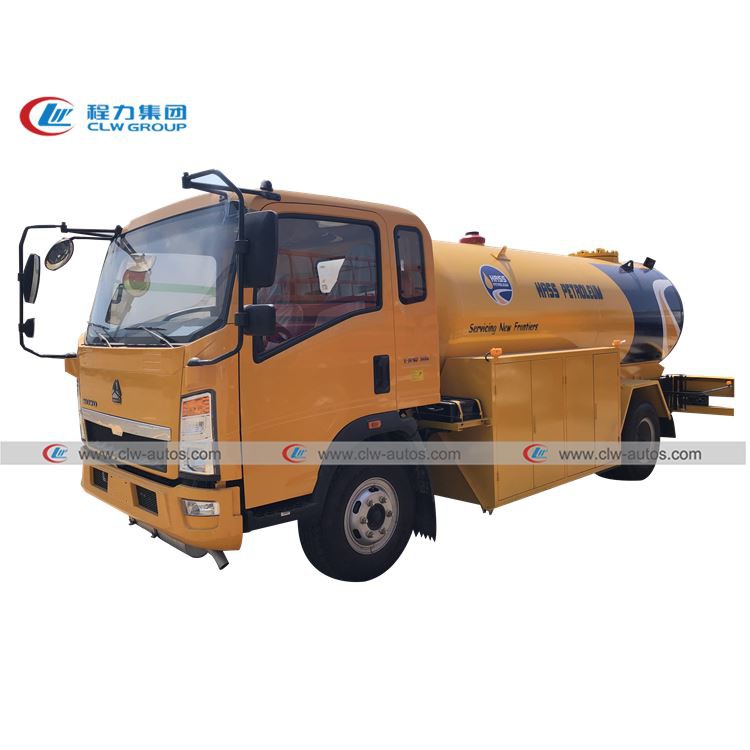

4Tons 8000L LPG Dispenser Truck Howo

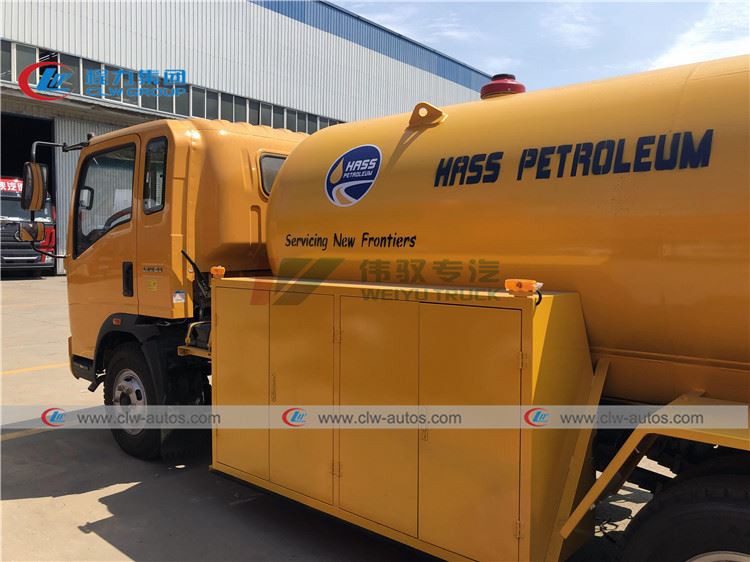

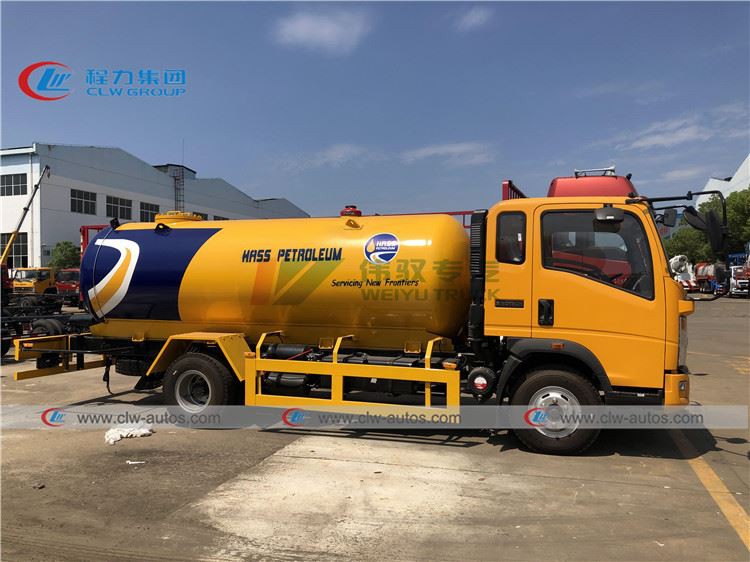

4Tons LPG truck for Hass Petroleum
8000L lpg dispenser truck for filling cylinders and small station
Filling system:lpg pump,flow meter,filling nozzle
Chassis brand Optional for Howo/Dongfeng/ISUZU
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4tons 8000l lpg dispenser truck howo in China. If you're going to buy high quality 4tons 8000l lpg dispenser truck howo, welcome to get more information from our factory. For price consultation, contact us.
LPG Dispenser Truck (also called gas delivery truck,lpg truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.
With different design,you can choose volume flow meter or lpg dispenser for mobile gas delivery truck. propane truck.With above LPG Dispenser Truck ,you can start lpg delivery business easily.
Optional lpg dispenser truck brand:Sinotruk Howo,dongfeng,faw,isuzu,foton and other brands.
Popular lpg dispenser truck size: 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L
Function of lpg dispenser truck: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
Main equipment of lpg dispenser truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
Truck Spec of dispenser : Diesel Yunnei Engine 116HP, WLY646 Gearbox 6 Forward & 1 Revers, 8.25R16 Tires
1. Easy to fill LPG Gas to cylinder and small lpg station
2. Low Investments and low maintenance cost.
3. Additionally available with Autogas filling station.4. Delivered product: LPG
5.emperature range: -15℃~50℃
6.Design pressure: 16.1 Bar
7. Flow rate: depending on the type of pump installed
8.Tension: 380V/50Hz, 220V/50Hz
Item No. | Parameters |
Overall Dimension | 6800x2300x2633 mm |
Driving Model | Left hand drive or right hand drive |
Gross Vehicle Weight | 10200 kg |
Curb Weight | 6200 kg |
Payload | 4000 kg |
F/R Axle Loading | 2700/7200 kg |
Wheel Base | 3800mm |
Engine | YN4102,Yunnei diesel engine |
Engine horsepower | 116 HP EUROIII |
Max Driving Speed | 95 km/h |
Gear Box | WLY646,6 forward& 1 reverse |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 8.25R16 (6 pc with 1 spare) |
LPG tank | |
Volume: | 8cbm |
Tank material: | Q345R |
Tank diameter: | 1600mm |
Tank thickness: | 10mm |
End plate | 10mm |
Tank length: | As designed |
Gas phase | DN50 |
Liquid Phase | DN50 or DN80 for option |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |

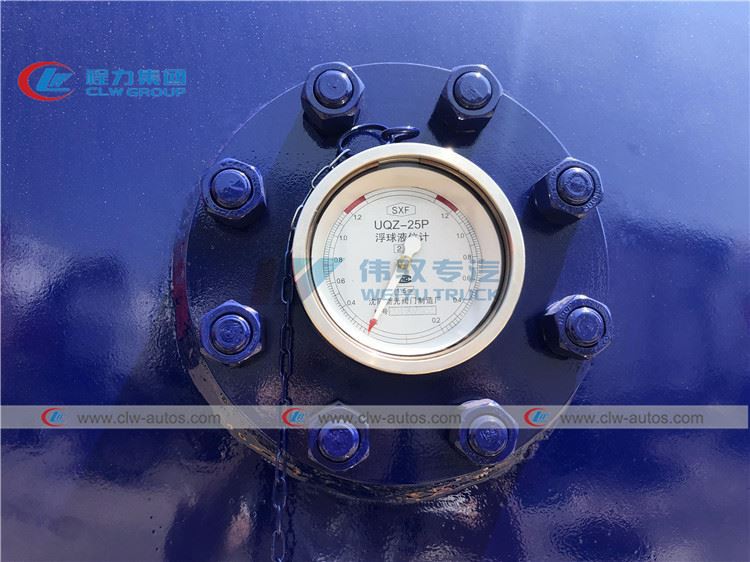

Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
LPG pump | 1 |
LPG Volume Flow Meter | 1 |
Filling Hose | 15 meters |
Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher holder | 2 |

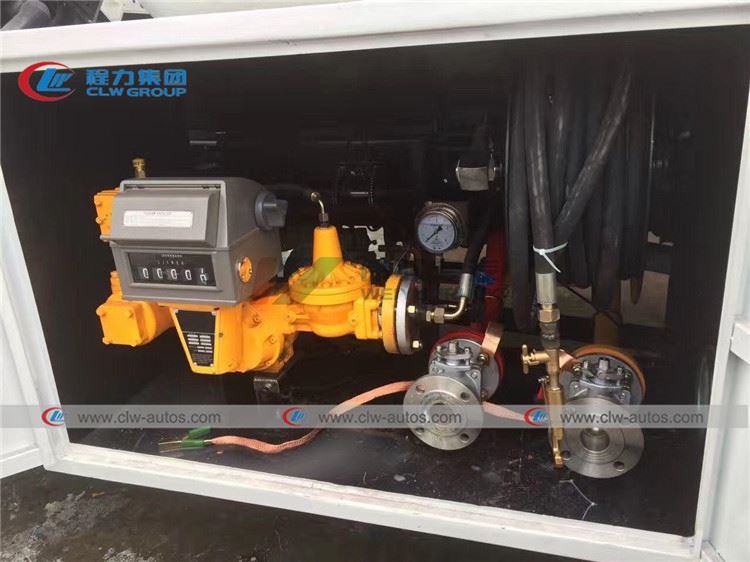

| Refilling system pump prameter Medium:Liquid petroleum gas Speed:15m3/h Input and Output Diameter:50 mm Working pressure:2.0 Mpa Working temperature:-40℃- 50℃ Material:carbon steel Flow meter Inlet & Outlet: 2", optional 1 ½". Maximum Capacity: 76~380lpm Working Pressure:350psi/24 Bar With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve. With Ticket Printer. Filling gun with pipe: 1 unit filling gun, 15m filling pipe | |
