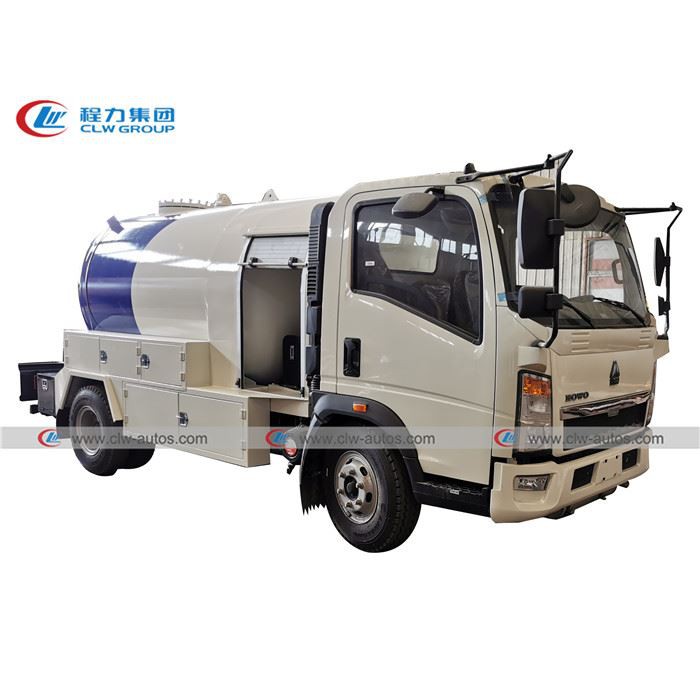

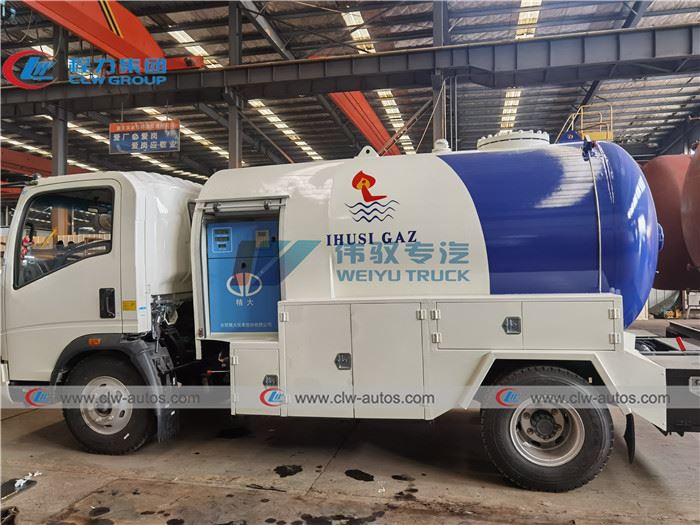

Sinotruk Howo 5000L 2Tons LPG Tanker Truck

Overall Dimension

5900x2400x2650mm

Driving Model

Left hand drive for Nigerian market

Gross Vehicle Weight

8160 kg

Curb Weight

5850kg

Payload

2310 kg

Wheel Base

3360 mm

Front Axle

2400kg

Rear Axle

4200kg

Engine

YN4102QBZL,Diesel engine

Engine horsepower

116HP EUROIII

Displacement

3760mL (Diesel)

Rated Rotation Speed

3000 rpm

Gearbox

WLY6T46,6-speed forward and 1 reverse

Cabin

Howo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C

Tire

7.50R16 (6 pcs with one spare)

Exhaust Pipe

At front of Cabin for safety

LPG tank

Volume:

5000iters

Tank material:

Q345R

Tank diameter:

1600mm

Tank thickness:

10mm

End plate thickness:

10mm

Tank length:

3070mm or as designed

Gas phase

Flange type,DN50/2” or according to customer request

Liquid Phase

Flange type,DN50/2” and DNDN80/3” or according to customer request

Filling gas

Propane(LPG)

Design Pressure:

1.61Mpa

Testing pressure

2.21Mpa

Refilling Accessory

LPG Pump

Chinese brand YQ15-5

Flow rate:15.5M3/H

10 Mpa inlet pressure

780 r/min for rotation speed

Radiator

1 pc(to avoid high temperature of hydraulic oil during operation)

Hydraulic motor

1 pc

LPG Dispenser

English remarks with printer for receipt

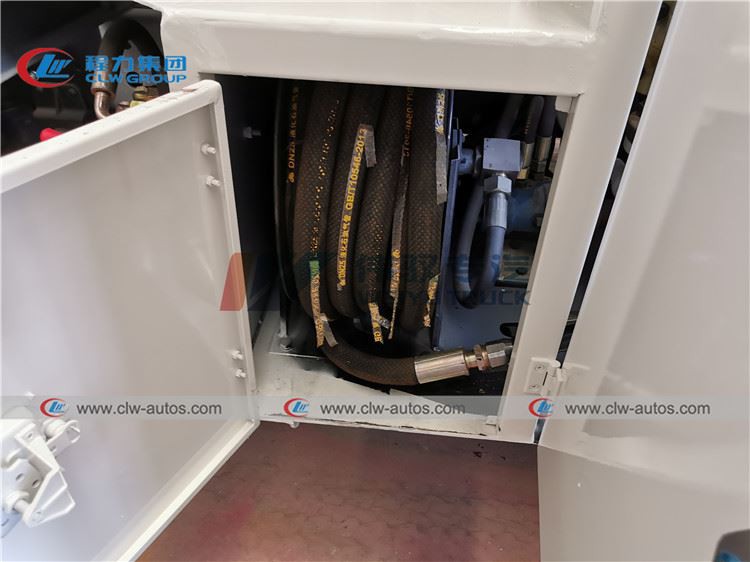

Filling hose

15M,retractable

Filling nozzle

Filling nozzle for cylinder

Level Gauge

Chinese Float Ball type,at the rear of tank

Safety Valve

1,DN80

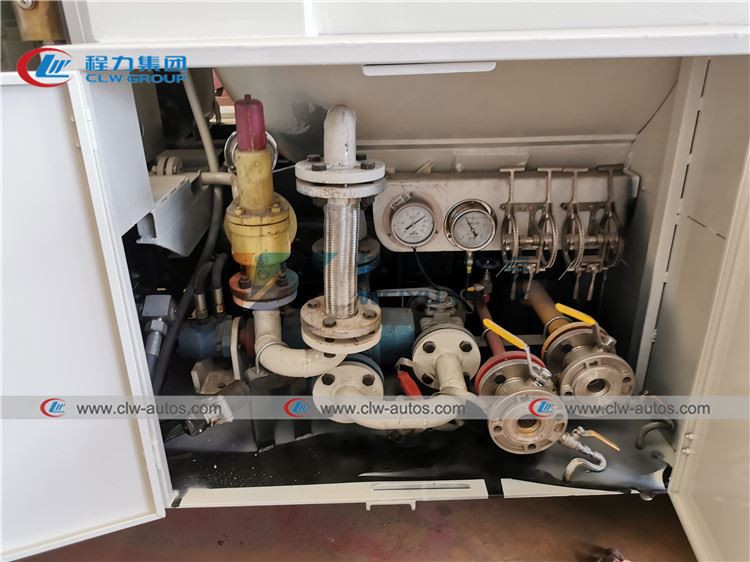

Tool and Valve Box

Located at side of LPG bobtail

Thermometer

1 pc

Pressure Gauge

2 pc

Emergency shut off Valve

3 pcs with witch inside valve box and at rear of truck

Fender

Steel

Fire Extinguisher Holder

2 sets

Anti Static line

1 set
