Aluminum Alloy Fuel Delivery Truck
Drive type:6x4
Engine:Weichai diesel 375hp
Capacity:20000L
Dispenser:Censtar smart dispenser
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of aluminum alloy fuel delivery truck in China. If you're going to buy high quality aluminum alloy fuel delivery truck, welcome to get more information from our factory. For price consultation, contact us.
Aluminum Alloy FAW Fuel Transport Truck 20, 000L for Gasoline/Diesel Delivery
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
1. Product Description
This 6×4 heavy-duty fuel tanker truck is built on the reliable FAW JH6 chassis and equipped with a 20,000-liter carbon steel tank. Designed for efficient fuel transportation and on-site refueling, it features optional accessories like a flow meter, hose reel, and fuel dispenser system for precise delivery. Ideal for long-distance fuel logistics, mining sites, and city refueling services.
Flexible and efficient
2. Key Highlights
- High-Capacity Tank
20,000-liter (20CBM) carbon steel tank suitable for diesel, gasoline, or kerosene transport.
- Reliable Chassis
Built on the FAW JH6 6×4 heavy-duty chassis with strong load-bearing capacity and proven durability.
- Powerful Engine
Equipped with a high-performance engine (e.g. Weichai WP10H375E50 or CA6DM2 series) for strong torque and fuel efficiency.
- Optional Refueling System
Flow meter, hose reel, and dispenser available for mobile fuel delivery and accurate volume tracking.
- Multi-Compartment Design (Optional)
Optional internal compartments for transporting multiple types of fuel in one trip.
- Safety Features
Equipped with anti-static system, bottom valve, fire extinguisher box, and emergency cut-off for safe fuel handling.
- Export-Ready Build
Complies with standard export specifications; ideal for Middle East, Africa, and Southeast Asia markets.
- Customizable Configuration
Available with European-style manholes, API valves, grounding cables, aluminum or stainless steel tanks, and more.
3. Product Specifications
| 1.Technical Specifications--FAW Chassis | ||
| Chassis Model | CA1250P26K2L5T3E6A80 | |
| Driving Model | 6 X 4 | |
| Cab |
1.Single and half row 2.Right hand driving 3.With air conditioner 4.Power steering assistance 5.Electric window 6.Central lock |
|
| Wheel Base | 5700+1350 mm | |
| Axle Loading (front/rear) | 9000/18000 kg | |
| External Dimensions (L x W x H) | 10500×2500×3200mm | |
| Max. driving speed | 90-100 km/h | |
| Engine | Model | WP10H375E50 |
| Type | Weichai diesel engine 6 cylinders in a line Turbocharged & Inter-cooled |
|
| Horse Power | 375 HP | |
| Max output power | 276 KW | |
| Emission standard | Euro 5 | |
| Displacement | 9500 ml | |
| Rated Speed | 1900 rpm | |
| Gearbox |
1.Manual type, 2.12JSD200T-B, 3.12 forward gears & 2 reverse |
|
| Clutch | Reinforced diaphragm clutch | |
| Tire | 12.00R20, 10 pieces with 1 spare tire. | |
| Others | Air break | |
| 2.Technical Specifications-- Fuel Tank | |||
| Fuel Tank | Capacity | 20,000 liters | |
| Tank material | Q235 | ||
| Thickness |
4 mm tank shell 5.5 mm of end plate 4 mm baffles |
||
| Compartment No. | 1 | ||
| Fuel Dispenser |
1 sets of Censtar brand,flow rate at 70L/min, English operation panel Showing unit price/filling volume/total price |
||
| Oil Pump |
1 No of 2.5 inch Oil Pump Aluminum alloy material; Driven by PTO; |
||
| Filling reel hose |
1 nos 1 inch and 15 meters With fuel filling nozzle |
||
| Level gauge (Optional) |
Float ball type at side of fuel tanker (Optional) UQZ-2 |
||
| Manhole cover | φ500mm | ||
| Bottom Valve | Aluminum alloy Pneumatic Bottom Valves | ||
| Discharging valve (Optional) | 1 setφ100 API discharging valves (Optional) | ||
| Operation compartment | Located at side of truck and with lockable door | ||
| Others |
With pump inlet and pump outlet 2 Nos of 4KG extinguishers 1 No of discharge pipe 1 No of static belt Emergency shut off control at rear of truck Ladder at rear of truck |
||
| Painting | Color and design as customer's requirement | ||
4. Detailed Photos

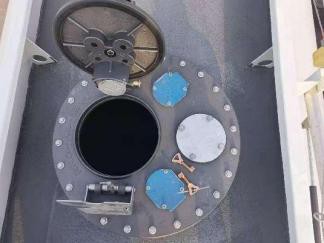

Manhole
- Standard Euro Manhole design
- With optional breather valve,keeping the tank pressure in safe zone

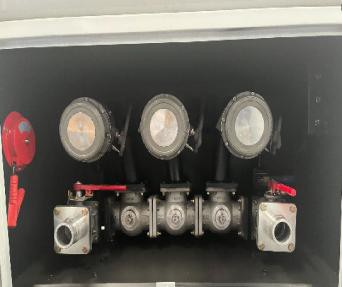

Pump inlet and outlet
- Equip with pump inlet/outlet port for each compartment
- Optional API discharge value

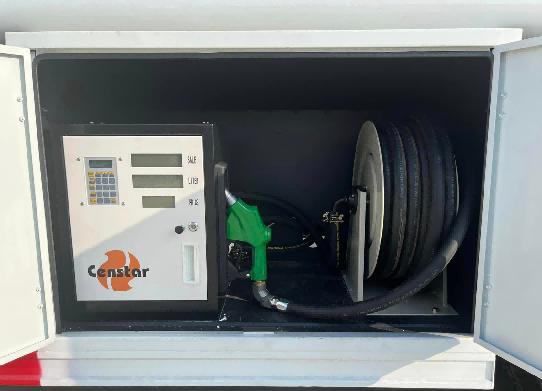

Dispenser system
- Trusted Censtar fuel dispenser,ensuring precise fuel distribution
-
Showing unit price/filling volume/total price
