20000L 60000gallon Isuzu Diesel Transport Truck For Fuel Station Refilling
6x4 ISUZU FVZ
Censtar Oil Dispenser
280HP Diesel Engine
FAST Gearbox 9 Forward
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20000l 60000gallon isuzu diesel transport truck for fuel station refilling in China. If you're going to buy high quality 20000l 60000gallon isuzu diesel transport truck for fuel station refilling, welcome to get more information from our factory. For price consultation, contact us.
20000L 60000gallon Isuzu Diesel Transport Truck for Fuel Station Refilling
Description:
Fuel tank truck also named as oil tank truck. The truck chassis can be any brand of China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, ISUZU etc. The Capactiy of the truck is 3cbm, 5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm etc.
1. Purpose of ISUZU Fuel Tanker Trucks: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Optional for Refueling System of ISUZU Fuel Tanker Trucks: Oil pump, Hose reel with filling gun/Oil dispenser machine
3. Tank shape of ISUZU Fuel Tanker Trucks: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
Product Details | |
Chassis brand | ISUZU |
Drive form | LHD or RHD optional |
Emission standard | Euro 2/3/4/5 optional |
Drive model | 6×4 |
Drive form | LHD or RHD optional |
Fuel type | Diesel |
Cab type | with 2 passengers allowed, AC included |
Overall dimension | 9930mm×2500mm×3350mm |
Tanker dimension | 7100mm×2350mm×1680mm |
Tanker capacity | 20 CBM |
Tanker material | Carbon steel,Aluminum alloy ,Stainless steel , |
Engine brand | ISUZU Engine |
Engine model | 6HK1-TCSG40 |
Horsepower | 280hp |
Displacement | 9460ml/ |
Emission standard | Euro 4/5 |
Tare weight | 9905kg |
Rated payload | 15900kg |
Wheelbase | 1800mm+4100mm |
Max speed | 80km/h |
Tyre type | 295/80 |
Tyre number | 11 (with a spare tire ) |
Transport medium | Gasoline, diesel ,kerosene, |
Braking system | Air brake |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Packing | Nude,polish with wax before shipment. |
| The above mentioned data is for your reference only. |

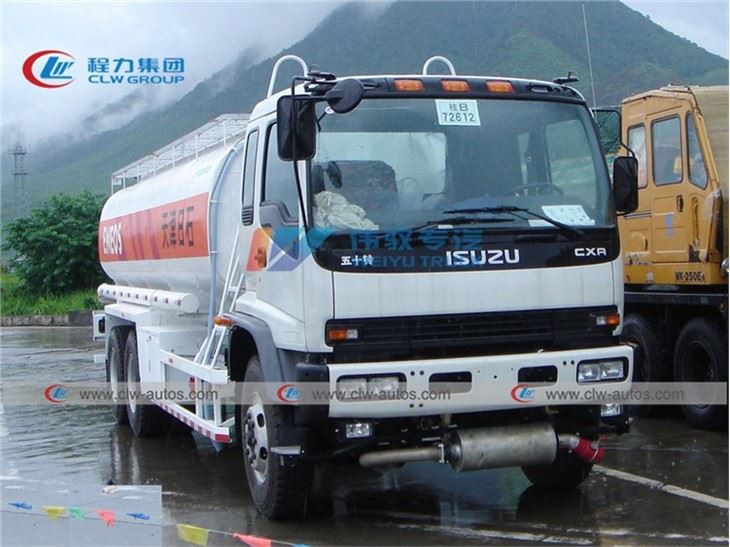

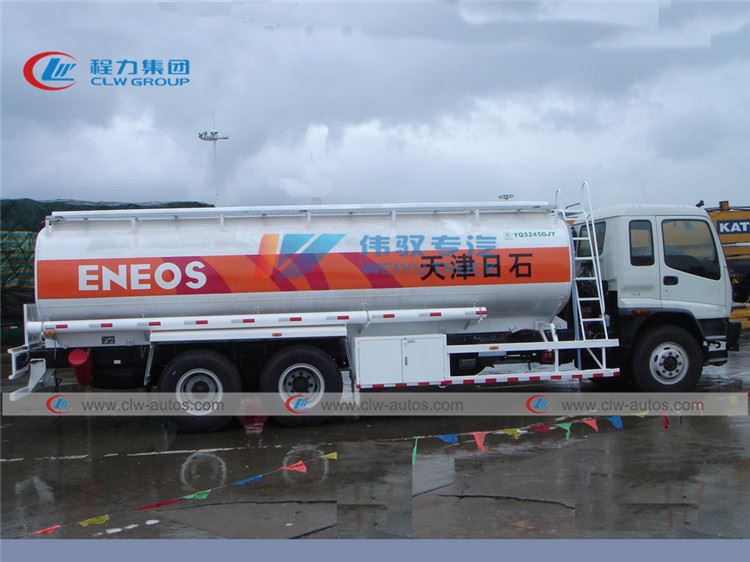

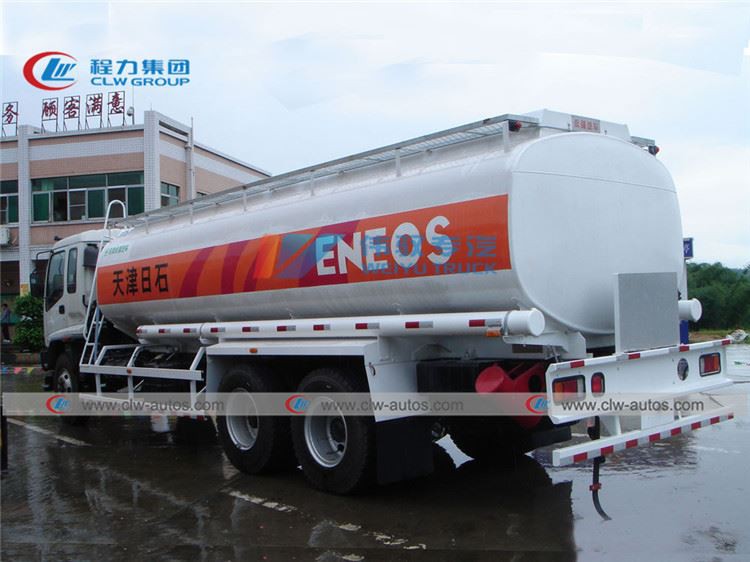

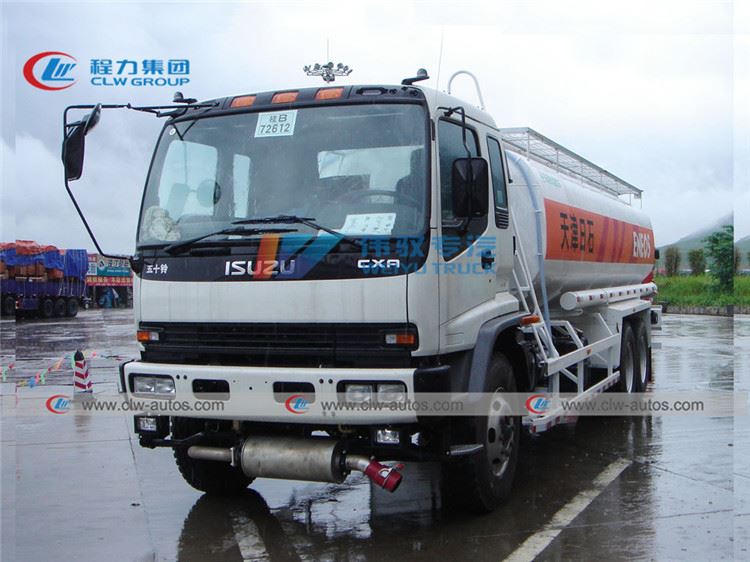

Reference Photos
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.
1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.
2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.
3. More than 300 type of products supply.
4. Our sales volume of 2019 reach US$800 million.
