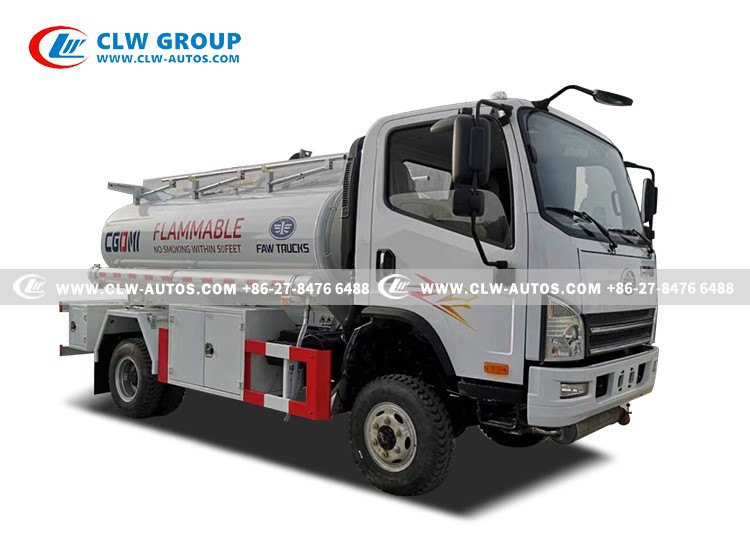

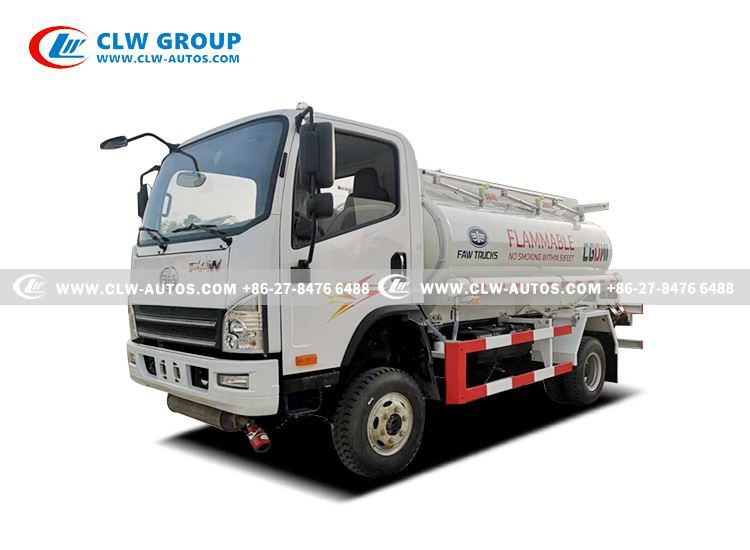

5 Ton FAW Fuel Tank Truck
Chassis brand:FAW
Emission:Euro 2
Driving type:4X2
Steering:LHD or RHD
Tank capacity:5,000 litres
Oil pump: Chinese top brand
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5 ton faw fuel tank truck in China. If you're going to buy high quality 5 ton faw fuel tank truck, welcome to get more information from our factory. For price consultation, contact us.
FAW 5,000L Fuel Tank Truck For Sale
We are Straight Manufacturer from China. Quality First, Service Best, Welcome for Inquiry!
Products Description
Fuel Tanker Truck: Reliable and Safe Liquid Transport Solution
A fuel tanker truck is a specialized commercial vehicle designed for the safe and efficient transportation of flammable liquids, including diesel, gasoline, kerosene, and non-corrosive chemicals.
Built on a heavy-duty chassis, such as the Jiefang CA series, these trucks feature a robust 5-cubic-meter (5,000L) capacity tank, typically constructed from carbon steel with an anti-corrosion epoxy coating to ensure durability and prevent contamination.
Equipped with advanced safety systems like explosion-proof manhole covers, pressure relief valves, and anti-static grounding mechanisms, modern fuel tankers comply with stringent international standards, including ADR (European Agreement Concerning the International Carriage of Dangerous Goods) and China Ⅱ emission regulations.
Operational Scenarios
- Urban Fuel Delivery: Navigates narrow city roads to replenish gas stations with minimal downtime.
- Remote Construction Sites: Delivers bulk diesel to excavators, cranes, and generators in off-grid areas.
- Agricultural Support: Refuels tractors and harvesters during peak farming seasons.
- Emergency Services: Deploys water or firefighting foam during disasters, leveraging rapid fluid transfer capabilities
- Chemical Logistics: Safely carries acids, alkalis, methanol, and ethanol using corrosion-resistant liners (e.g., polyethylene)
The tanker's core function:
Its high-efficiency rotary vane pump enables rapid loading and unloading at rates up to 400L/min, minimizing downtime at depots, gas stations, or remote sites. The compartmentalized tank design (optional 2–3 chambers) allows simultaneous transport of multiple fuel types, reducing operational costs for logistics companies. Key applications include urban fuel delivery to gas stations, refueling construction machinery at off-grid sites, supplying agricultural equipment during harvest seasons, and emergency response operations for disaster relief.
Compartment of the tank body :
Products Parameters
|
Chassis Technical parameter |
||
|
Driving mode |
4X2 |
|
|
Dimension |
6800*2400*3000mm |
|
|
Gross weight |
8000kg |
|
|
Curb weight |
3500kg |
|
|
Payload |
4500kg |
|
|
Wheelbase |
3600/3860/3900mm |
|
|
Cabin |
Steering wheel |
Left hand drive or right hand drive |
|
Configuration |
|
|
|
Engine |
Engine brand |
WP2.3NQ110E20 |
|
Horsepower |
110HP |
|
|
Displacement |
2300ml |
|
|
Emission standard |
Diesel, EuroⅡ |
|
|
Type |
4 stroke, 4-cylinders in line, water cooling |
|
|
Transmission |
WLY,5 forward gears and 1 reverse , Manual |
|
|
Tire |
7.50R16 |
|
|
Front axle loading |
2400kg |
|
|
Rear axle loading |
4200kg |
|
|
Upper structure parameter |
||
|
Fuel tank capacity |
5m3/5,000liters |
|
|
Tank material |
Carbon steel/ Stainless carbon/ Aluminum alloy |
|
|
Compartment No. |
2 |
|
|
Fuel dispenser |
2 sets, flow rate at 70L/min English operation panel Showing unit price/ filling volume/ total price |
|
|
Oil pump |
2 Nos of 2.5'' Oil pumps, driven by TPO Independent pump in and pump out for each compartment |
|
|
Filling hose |
1 inch and 15 meters 2 sets for diesel and petrol separately |
|
|
Filling hose reel |
2 Nos |
|
|
Filling nozzle |
2 Nos |
|
|
Manhole cover |
2 sets with breath valves |
|
|
Bottom valve |
2 sets of APL aluminum pneumatic bottom valves |
|
|
Level gauge |
Each tank top is equipped with an electronic level meter |
|
|
Operation compartment |
Located at rear of truck with aluminum alloy door |
|
|
Control system |
|
|
|
Others |
2 sets of 4kg extinguishers 1 set of static belt |
|
|
Painting |
Color and design as customer's requirement |
|
|
Special design |
Tank body is covered by carbon steel van |
|

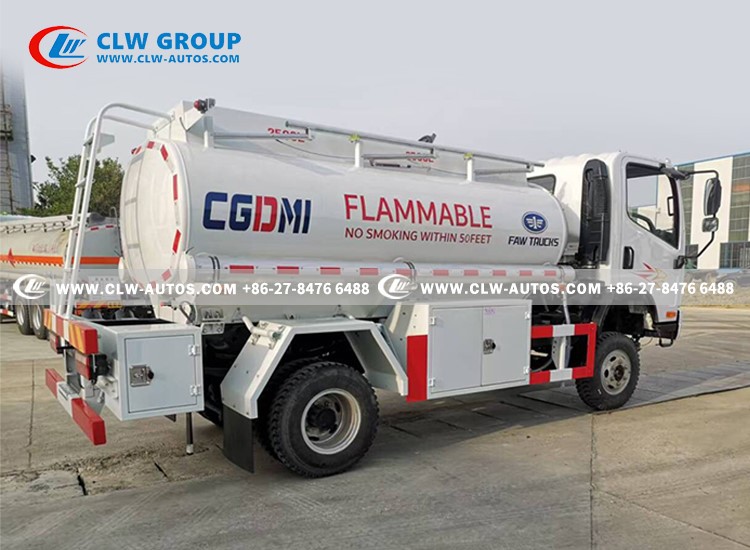

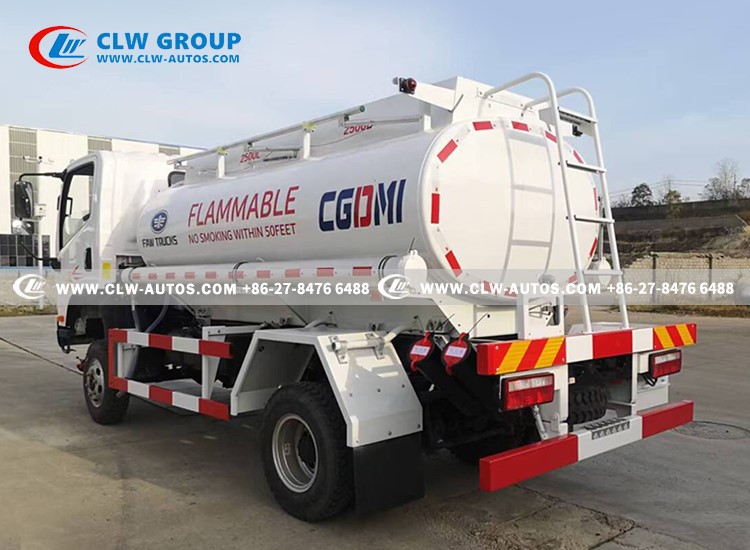

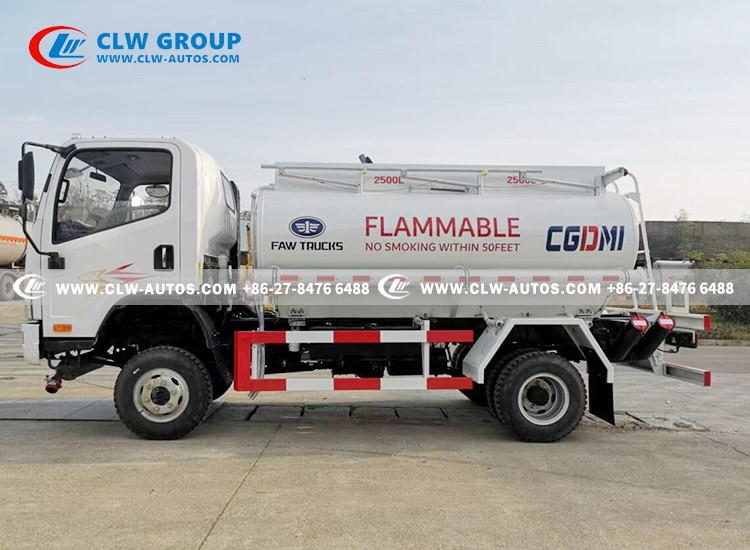

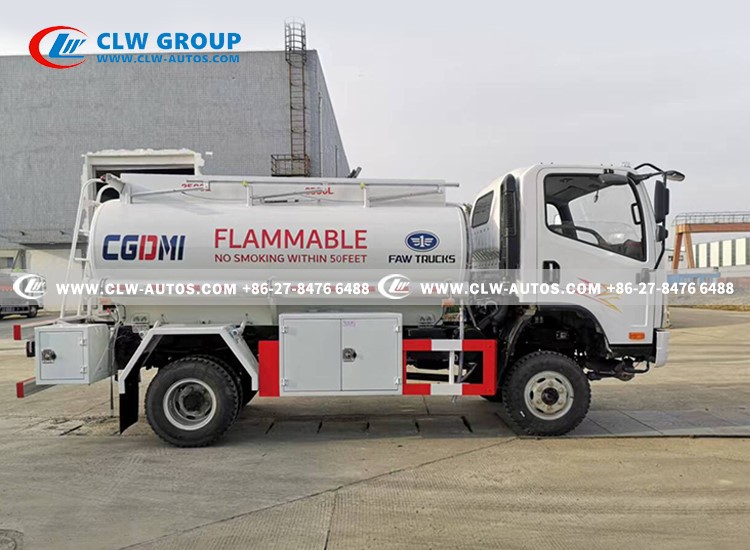

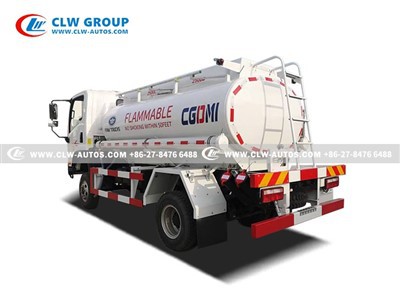

Reference Pictures
Tanks are crafted from carbon steel, stainless steel, aluminum, or polyethylene to suit diverse cargo needs, including corrosive chemicals, fuels, or food-grade liquids.
Vapor recovery systems and explosion-proof manhole covers enhance environmental and operational safety.
With a 5 m³ capacity, it balances payload efficiency and maneuverability, ideal for urban and remote logistics.
Customizable fuel dispensers, self-priming pumps, and metering systems enable precise loading/unloading
The subsea valve, also known as the emergency cut-off valve, is installed at the bottom of the fuel truck and sealed inside the tank body.
It ensures that even if the pipeline valve is accidentally broken, the tank remains sealed to prevent liquid leakage and enhance transportation safety and reliability.
Made of stainless steel material with strong corrosion resistance.
Simple structure and durable, easy maintenance.
Anti-surge baffles and emergency shut-off valves mitigate fluid sloshing risks during transit
The spill-proof sensor is mainly used in fuel tank trucks to detect refueling levels.
It transmits a signal to the refueling platform when there is excessive feed, prompting it to stop refueling and ensure safety.
The anti-static system consists of an anti-overflow probe rod, anti-overflow socket, and ground bolt.
Why Do You Choose Us?
Our Competitive Advantages:
Structural Integrity: Reinforced with internal baffles and longitudinal baffles to stabilize liquid movement and prevent tank rupture.
Compliance: Meets ADR/RID standards for hazardous goods transport, featuring fire-resistant coatings and anti-static designs.
Monitoring: Fiber-optic sensors detect micro-cracks or leaks in real time, paired with automated emergency response systems
Cost-Effectiveness: Reduced trip frequency due to higher payload capacity lowers operational costs and carbon footprint.
Versatility: Modular tanks allow multi-compartment configurations for simultaneous transport of different liquids.
Durability: High-strength materials and automated welding ensure a lifespan exceeding 10 years under harsh conditions
