5 Metric Tons 12000 L LPG Bobtail Truck HOWO

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5 metric tons 12000 l lpg bobtail truck howo in China. If you're going to buy high quality 5 metric tons 12000 l lpg bobtail truck howo, welcome to get more information from our factory. For price consultation, contact us.





Production Introduction



5 Metric Tons LPG bobtail truck is used in rough road in Africa and for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.



For quick inquiry

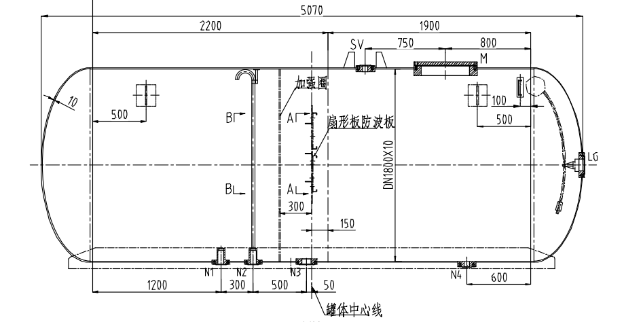

Our design

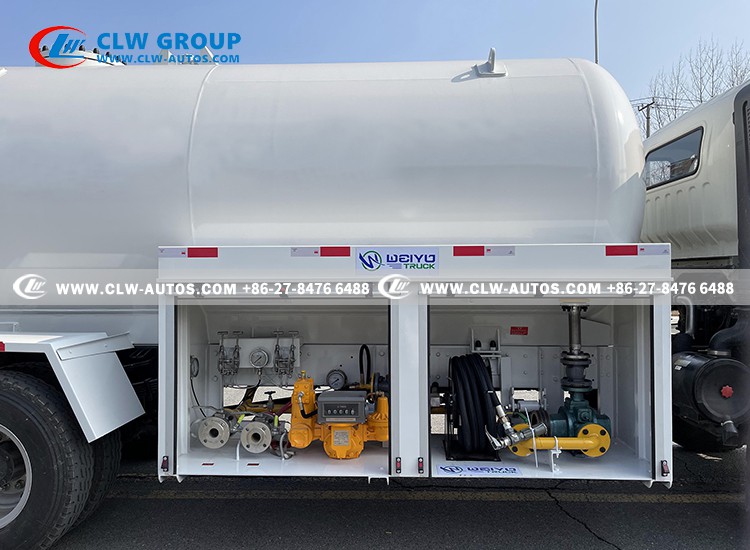

Main equipment

• 2" Flowmeter or single nozzle filling dispenser machine

• 2" USA corken pump Z2000 or Chinese brand vane Pump YQB15-5

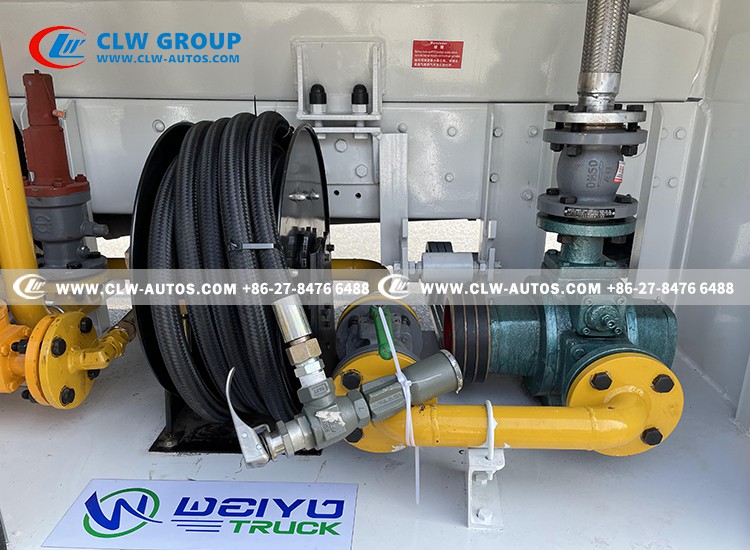

• 15/30/40 meters Filling Hose Reel

• REGO Filling nozzle

• Radiator(optional)

• hydraulic oil box(optional)

• Stainless steel tool box (optional)



Optional gas bottling truck brand:

SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other Chinese brands.



Optional size of China HOWO LPG bobtail truck

• 5000liters,5000L,5 cbm

• 8000liters,8000L,8 cbm

• 10,000liters,10000L,10cbm,

• 12,000liters,12,000L,12cbm,

• 15000 Liters,15000L,15cbm,

• 20cbm,20,000liters,20,000L

• 25cbm,25,000liters,25,000L

• 35cbm 35,000liters,35,000L





Available options for pump drive

• from truck’s PTO by hydraulic drive

• From truck’s PTO by shaft

• Electric motor-usually for lpg trailer



Main Truck Spec.

• Stable howo truck chassis

• Howo 2880 cabin with sleeper

• Left hand drive/Right hand drive

• Wheelbase 4700mm

• Yunnei Diesel Engine YC4E160-33,160HP

• Gear box:6 speed forward and 1 reverse

• Front axle 3.6 tons,Rear axle 10.5 Tons

• 9.00R20 tires,6 pcs with one spare

• Mounted with 12,000 liters LPG tank

• 10 mm thickness tank

• Q345R,one of ASME standard material

• Safety relief valve

• 2"  vapour and liquid phase

• Float ball Level gauge

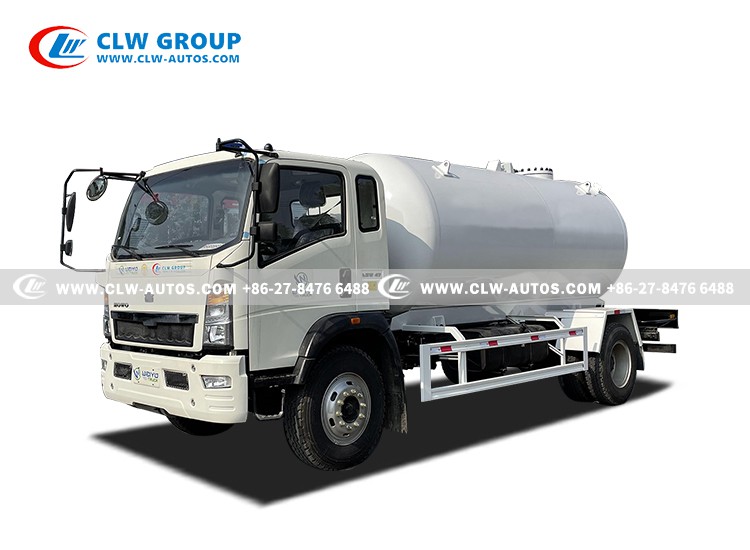

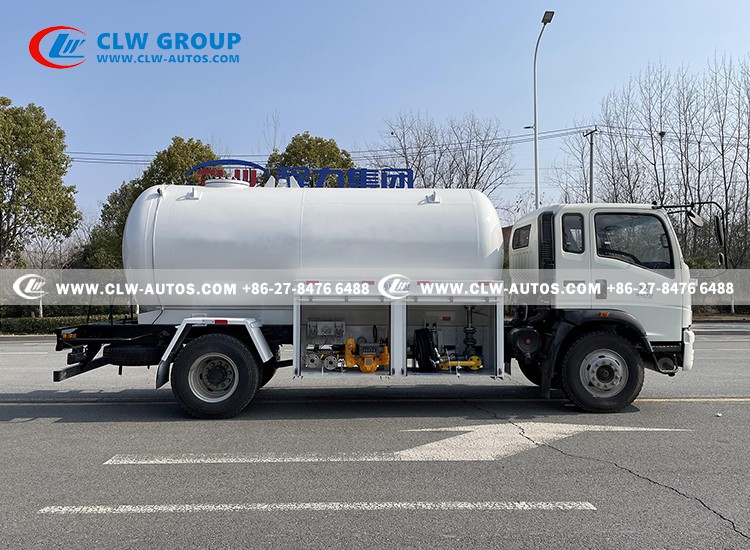

Reference picture
















































































































































































































Item No.	Parameters
Overall Dimension	7800x2500x3250 mm
Driving Model	Left hand drive for Nigeria
Gross Vehicle Weight	13,500 kg
Curb Weight	8,500 kg
Payload	5,000 kg
Wheel Base	4700 mm
Front Axle	3,600kg
Rear Axle	10,500kg
Engine	YC4E160-33,YUCHAI Diesel engine
Engine horsepower	160HP EUROIII
Displacement	4257mL (Diesel)
Rated Rotation Speed	2600 rpm
Gearbox	DC6J65TC,6-speed forward and 1 reverse
Cabin	HOWO 2080 type cabin, one row and a half with A/C
Tire	9.00R20 (6 pcs with one spare)
Exhaust Pipe	At front of Cabin for safety
LPG tank
Filling Medium	Liquefied Petroleum Gas
Working temperature	-40~50 ℃
Volume:	12,000Liters
Tank material:	Q345R
Tank diameter:	1800mm
Tank thickness:	10mm
End plate thickness:	10mm
Tank length:	5070mm
Gas phase	Flange type,DN50/2” or according to customer request
Liquid Phase	Flange type,DN50/2” or according to customer request
Filling gas	Propane(LPG)
Working Pressure:	1.61Mpa
Design Pressure	1.71 Mpa
Testing pressure	2.21Mpa
Corrosion Allowance	1.0 mm
