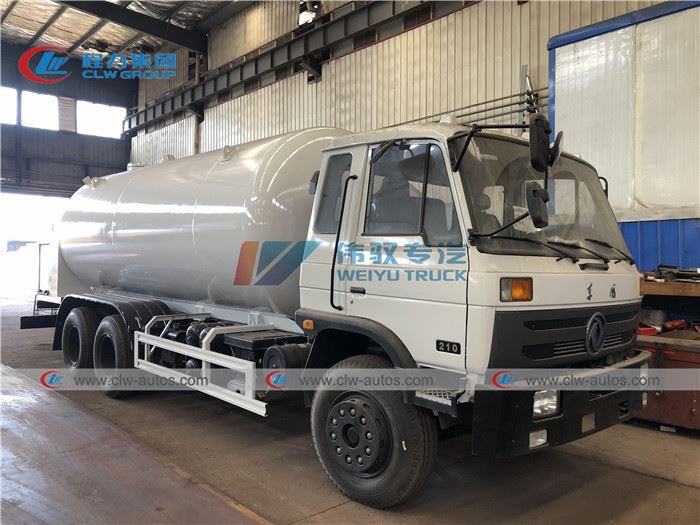

Dongfeng LHD 10tons LPG Bobtail Truck
Tank Volume:10tons
filling system: pump,flow meter,filling gun with pipe
Different Refilling Nozzle for Cylinder
Filling hose : 15 meters
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng lhd 10tons lpg bobtail truck in China. If you're going to buy high quality dongfeng lhd 10tons lpg bobtail truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

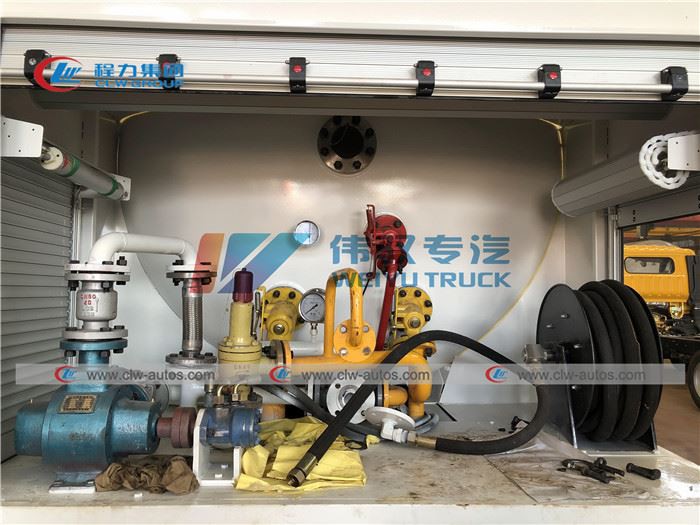

6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

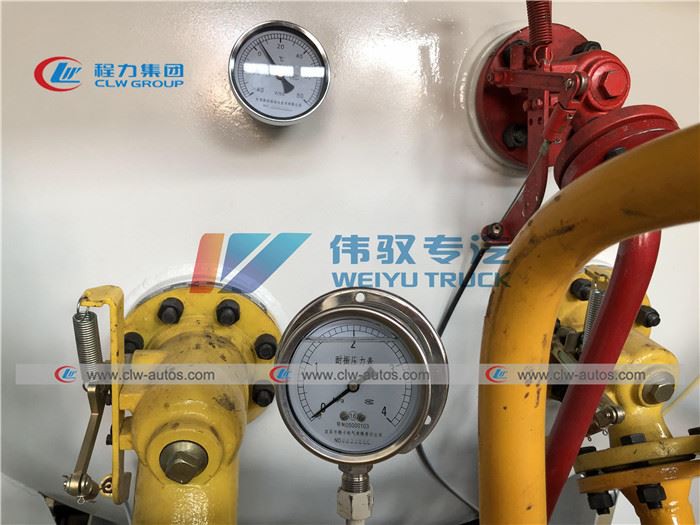

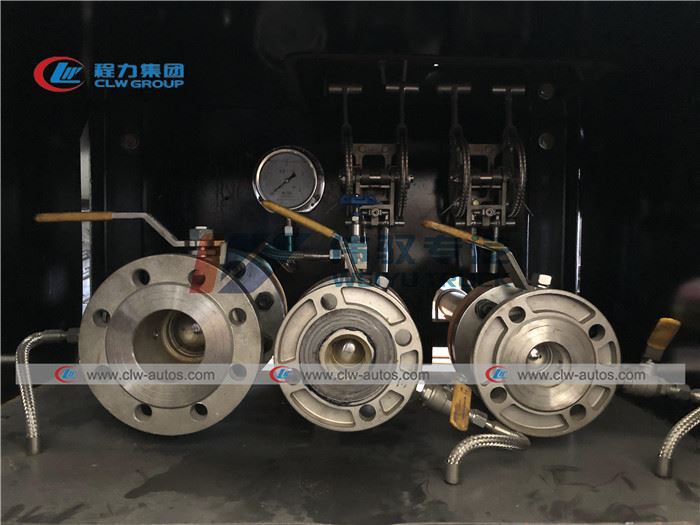

Reference picture
Specification
Item No. | Parameters |
Overall Dimension | 9510X2470x3450 mm |
Driving Model | Left hand drive or right hand drive |
Gross Vehicle Weight | 11460 kg |
Curb Weight | 12600 kg |
Payload | 8400 kg |
F/R Axle Loading | 5000/2*10000 kg |
Wheel Base | 4350+1300 mm |
Engine | Yuchai ,YC6A240-33 |
Engine horsepower | 240 HP EUROIII |
Displacement | 7255mL (Diesel) |
Max Driving Speed | 90 km/h |
Gear Box | 9 forward& 1 reverse |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 11.00-20 (10 pc with 1 spare) |
LPG tank | |
Volume: | 20cbm |
Tank material: | Q345R |
Tank diameter: | 1800mm |
Tank thickness: | 10mm |
End plate | 12mm |
Tank length: | As designed |
Gas phase | DN50 |
Liquid Phase | DN50 or DN80 for option |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
LPG pump | 1 |
LPG Volume Flow Meter | 1 |
Filling Hose | 15 meters |
Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher holder | 2 |
Exhaust shaft | At the front of truck for safety |
