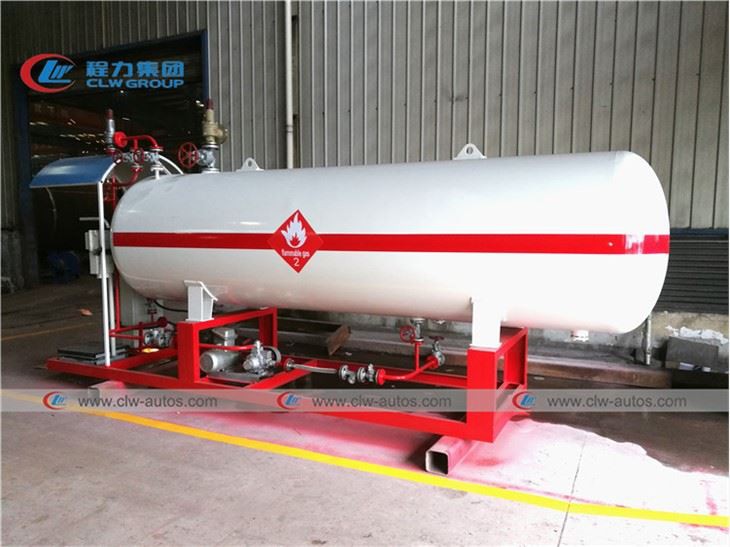

5CBM 2tons 3tons LPG Skid Station
2tons LPG Skid Station
3tons LPG Skid Station
5CBM LPG Skid Station
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5cbm 2tons 3tons lpg skid station in China. If you're going to buy high quality 5cbm 2tons 3tons lpg skid station, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1--LPG Skid Station for cooking gas refilling in home use cylinder in different size;
2--One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump;
3--Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling;
4--Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand;
5--Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW;
6--Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves;
7--Explosive Proof Central Control Panel for whole station system;
8--Other Equipment: Sunshade for filling area, Leakage Detector.
Product Specification
Specification of 2.5MT(5CBM) LPG Tanker | |
Tanker Essential Information | |
Volume of Tank(CBM/Liters) | 5 CBM/5,000 Liters |
Filling ratio | 0.95 |
Filling Weight(kg) | 2375 kg |
Tank Weight(kg) | 2030 kg |
Thickness of Shell (mm) | 10.0 mm |
Thickness of End plate (mm) | 10.0 mm |
Tank Diameter (mm) | 1600 mm |
External Dimensions (mm) (length x width x height) | 3070*1620*2210 mm |
Shell of Tanker | |
Products | Liquefied Petroleum Gas ( Propane) |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.77 Mpa |
Corrosion Allowance(mm) | 1.0 mm |
Medium Density(kg/cbm) | 420-590 kg/cbm |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
End plate：Q345R,12mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Manufacturing Standard: China standard Design code: GB150.1~4-2011 NOTES: Tank size will do accordingly amendment to meet loading by 40’HQ container | |

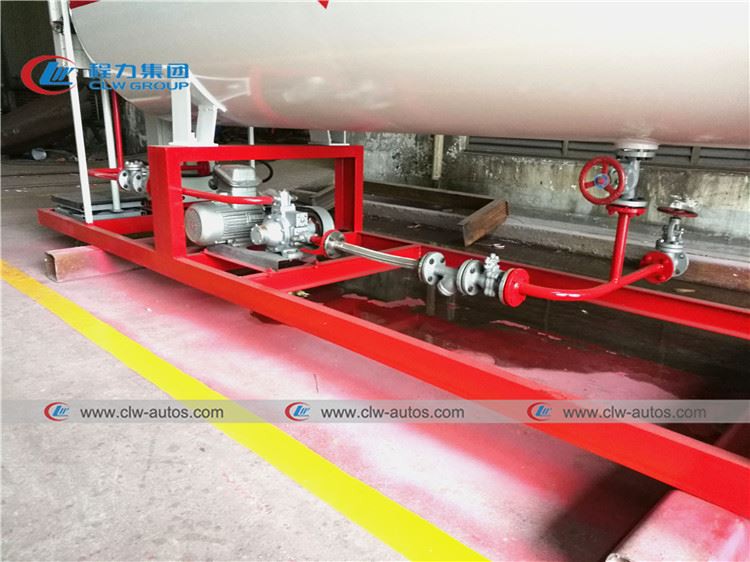

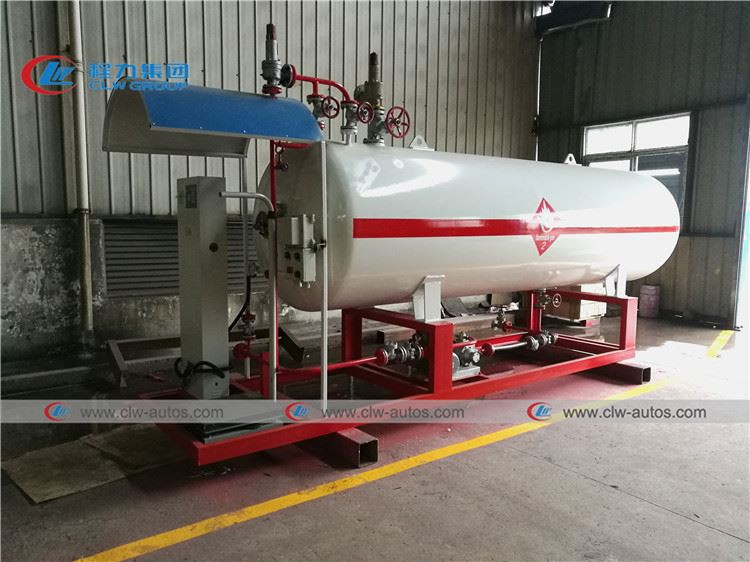

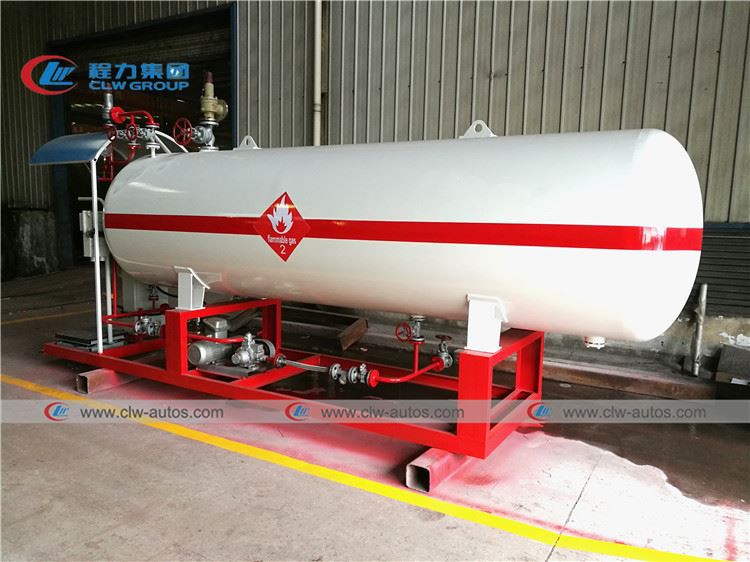

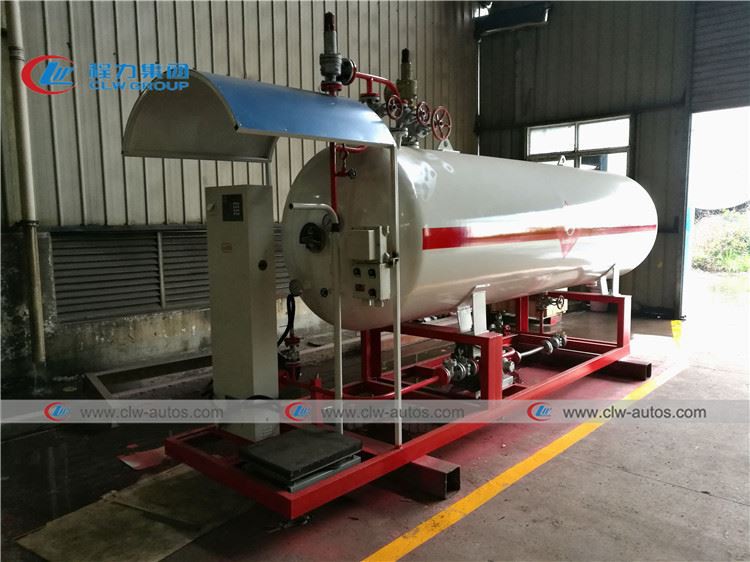

Reference Photos
Factory Introduction:
Hubei ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
l More than 10 years' experience as a manufacturer
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
