Tri-axle 50000Liters 1300 Gallons Fuel Transport Truck Trailer For Nigeria
Tanker size:50000L/50000liters/50k liters;
Compartment:3 Nos;Tank material:Carbon steel Q235
Thickness:5mm at shell and 6mm at end plate
Axle brand:FUWA/BPW axle
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of tri-axle 50000liters 1300 gallons fuel transport truck trailer for nigeria in China. If you're going to buy high quality tri-axle 50000liters 1300 gallons fuel transport truck trailer for nigeria, welcome to get more information from our factory. For price consultation, contact us.
Function
--Fuel Transport Truck Trailer(also called fuel transport trailer,fuel truck trailer,oil tanker semi-trailer,oil truck trailer,fuel tanker trailer,crude oil tanker trailer,oil bowser semi trailer,ragid oil tanker trailer,petrol transport truck,diesel delivery tanker trailer) is a semi-trailer tanker connected with tractor truck. Compared with ordinary small tanker truck, semitrailer tanker can effectively improve the transport efficiency in same time.
In the same tonnage loading,oil tanker trailer reduce the transportation cost and save fuel consumption.
-- Fuel Transport Truck Trailer can be divided into various types as follows,
★carbon steel Fuel Transport Truck Trailer,aluminum alloy Fuel Transport Truck Trailer,stainless steel Fuel Transport Truck Trailer;
★According to tank size,there are 20,000liters to 65,000liters Fuel Transport Truck Trailer for option;
★According to axles,there are double axle Fuel Transport Truck Trailer ,2-axle Fuel Transport Truck Trailer ,3-axle Fuel Transport Truck Trailer ,tri-axle Fuel Transport Truck Trailer
Feature
--High quality carbon steel from china top steel factory 4mm,5mm or 6mm tanker trailer thickness;
--Production strictly following china standard,ADR standard oil tanker trailer customized for saudi arabia is also optional.
--Oil tanker trailer shape is optional for oval and squareround oil tanker trailer ;
--Compartment no. is customized,which can load different types of oil or fuel;
--Several baffles inside tanker trailer,a through hole at the bottom to reduce the impact of oil in the tank and improve the strength of the tank;
--Reliable quality axle brand BPW,FUWA,L1

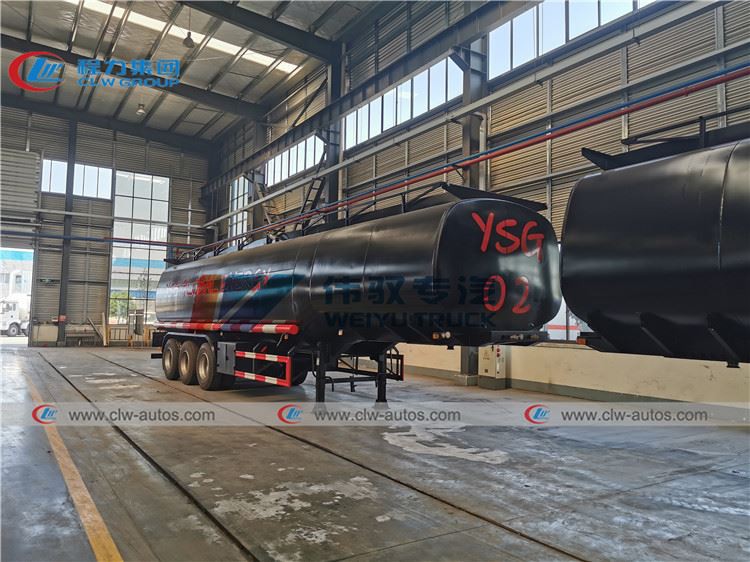

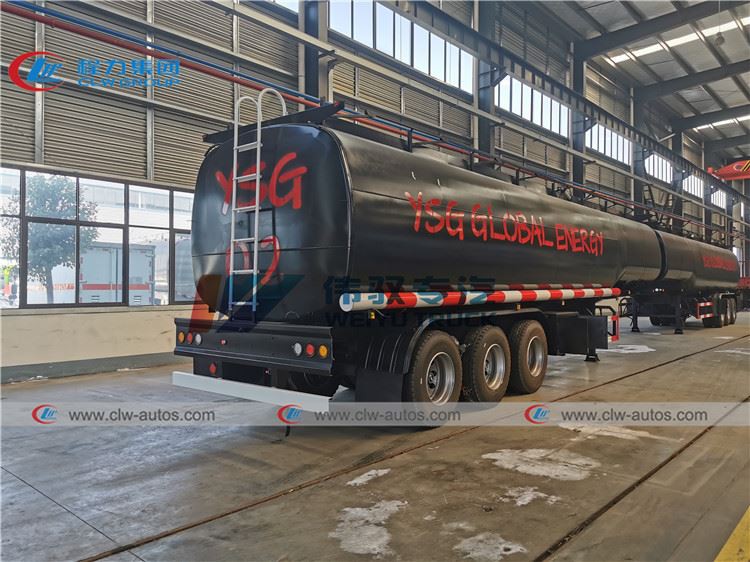

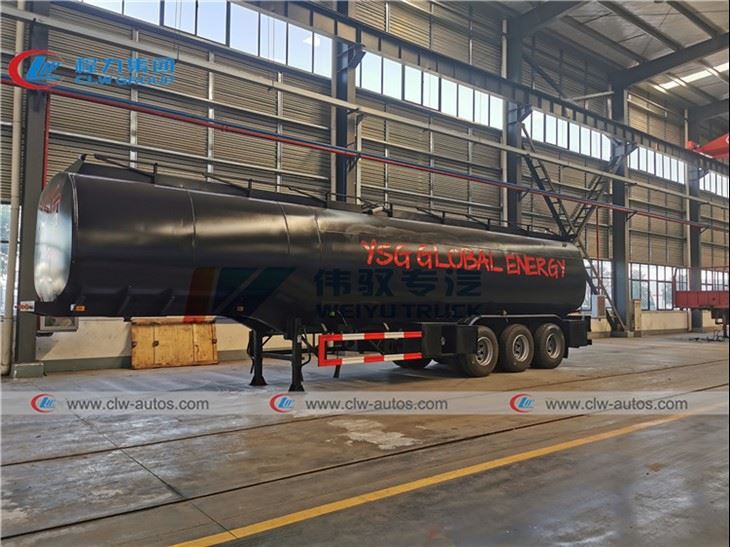

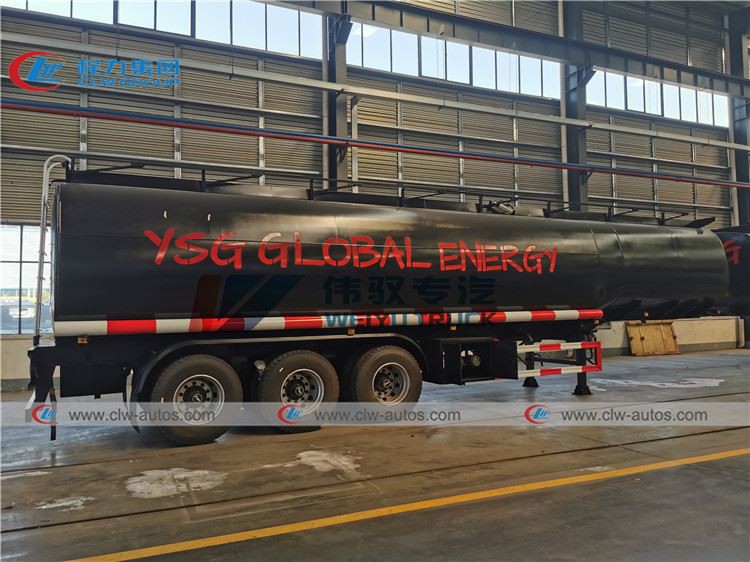

Pictures of 50000liters Fuel Transport Truck Trailer
Specification of
50000liters Fuel Transport Truck Trailer
| ||||
Overall Length | 12500mm | |||
Overall Width | 2500mm | |||
Overall Height | 3550mm | |||
Tare Weight | Around 11,000KGS | |||
Loading Capacity | 50m3 | |||
Photo only for reference, final product can be made according to exact requirements | ||||
| ||||
Shape | Mono block Cylinder | |||
Total Volume（m3） | 50 | |||
Tanker Body Material | 5mm carbon steel | |||
End plate | 6mm carbon steel | |||
Baffle | 2 Nos,4 mm carbon steel | |||
Lifting Ladder | Including Top walkway and backside steel material | |||
Manhole cover | 3 manhole covers, ∮500mm 3 sets with 3 breather valves | |||
Bottom Valve | 3 sets of API Pneumatic Bottom Valve | |||
Top Safety Rail | 1 Set,Pneumatic control at two side | |||

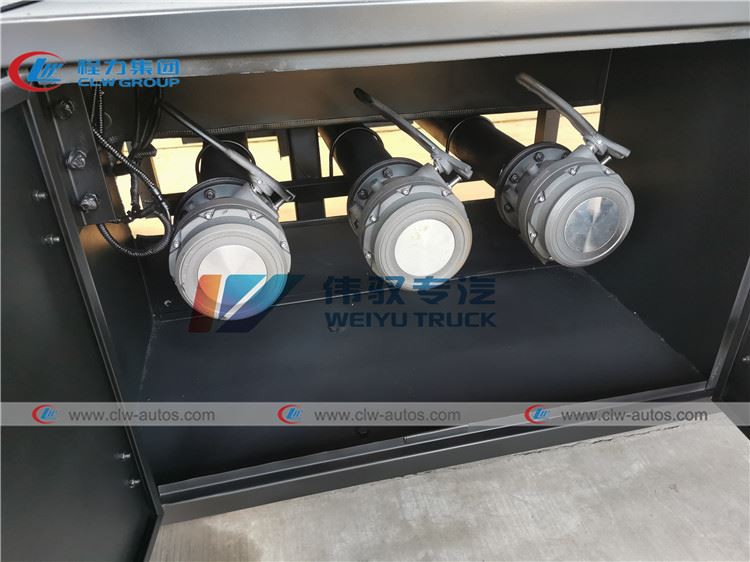

Discharging valve | 3 set ∮100mm discharging valves,optional for 3” | |||
No.of Compartment | 3 | |||
Discharging Pipe | 4”rubber hose, 2 pc, 6m long | |||
| ||||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body | |||
Axle | 3 FUWA axles,13 Tons | |||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
King Pin | JOST brand 2” bolt-in king pin | |||
Suspension | heavy duty mechanical suspension | |||
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||
Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | |||
Tire | 12R22.5 tubeless tire including one spare tire, 13 pieces | |||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
Accessories | One standard tool box | |||
Technical Drawing of
50000liters Fuel Transport Truck Trailer
FAQ★How can I get a sample of 50000liters Fuel Transport Truck Trailer to check your quality?Answer:Due to the oil tanker trailer size,sample can not be sent to your country.But we have supplied a lot of oil tanker trailers to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
★How long can I expect to get the 50000liters Fuel Transport Truck Trailer?Answer:20~30 working days after receiving deposit at account.
★What's your payment term?
Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of 50000liters Fuel Transport Truck Trailer?
Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.
★Does your 50000liters Fuel Transport Truck Trailer have warranty service? How long is the warranty period?
Answer:Yes,one year free warranty for tanker body,axles.
