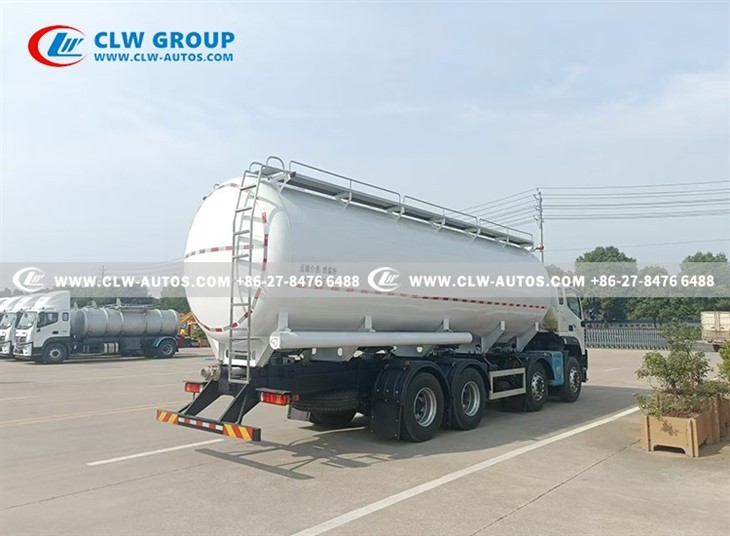

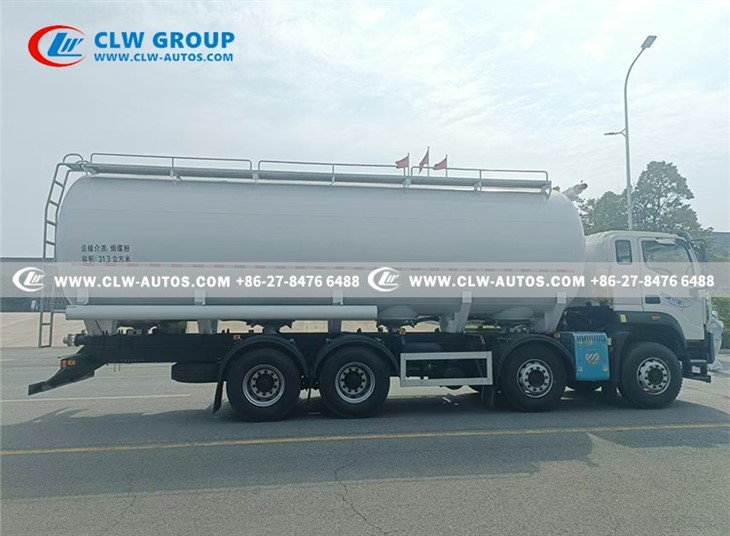

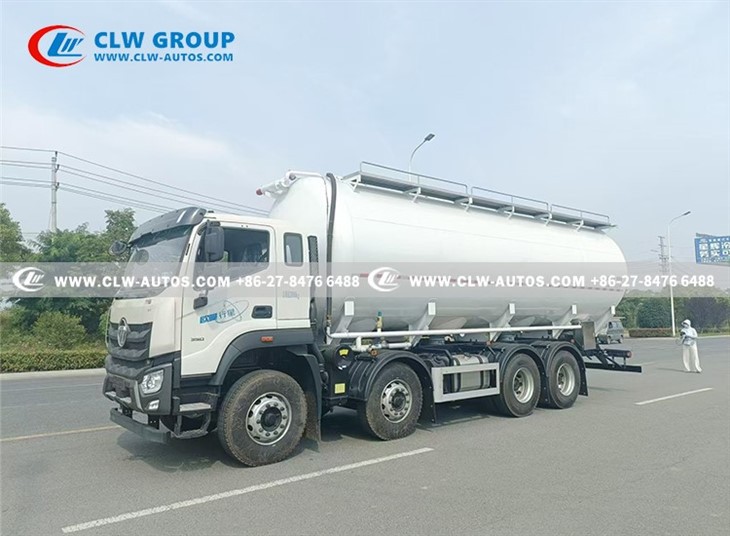

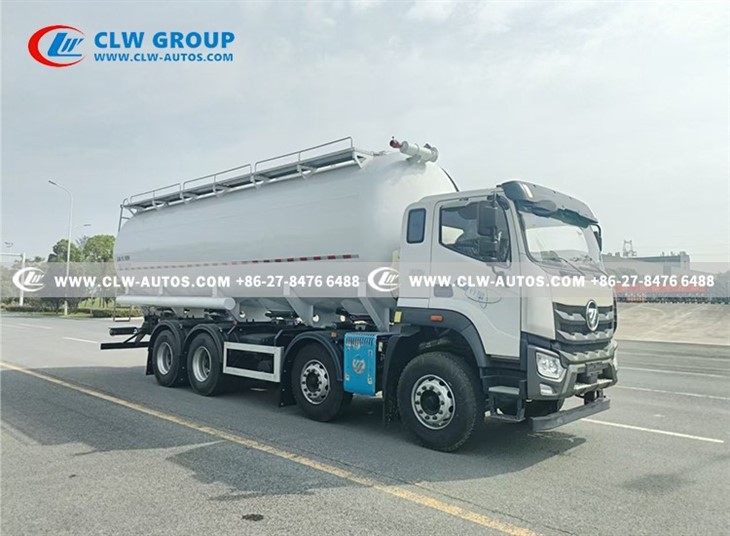

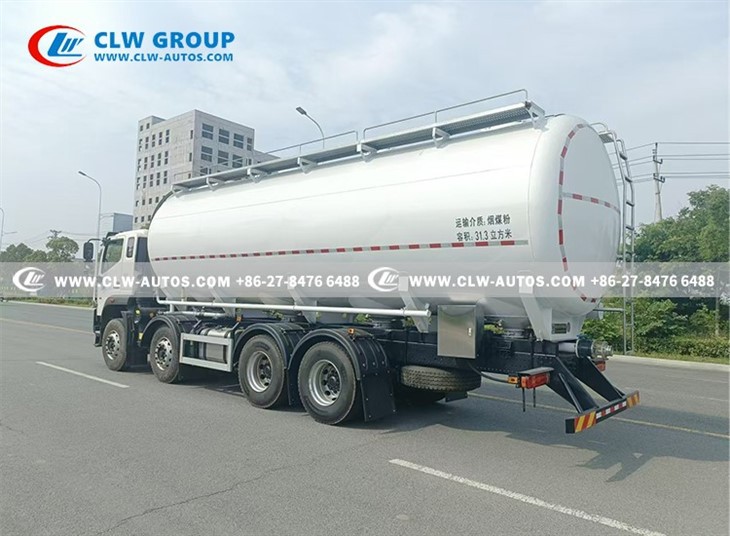

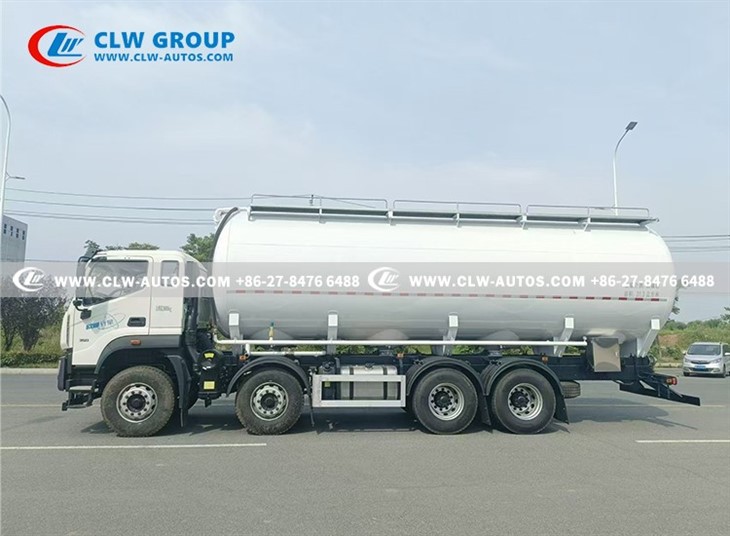

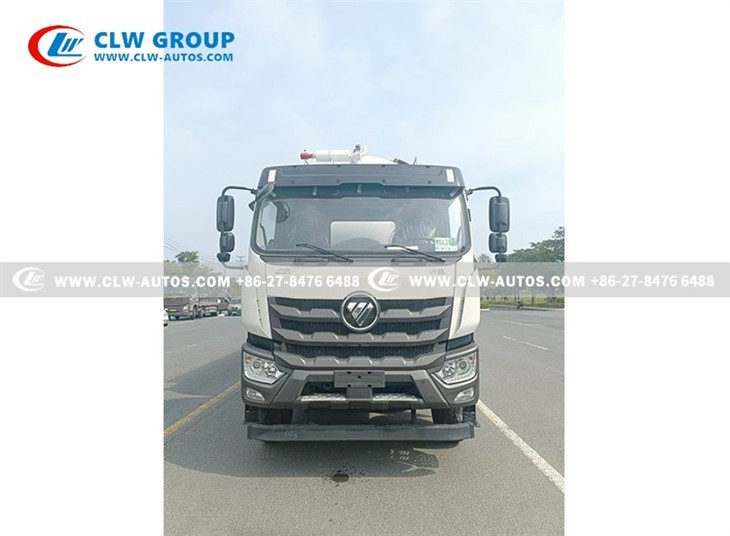

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 35cbm air blow bulk feed truck in China. If you're going to buy high quality 35cbm air blow bulk feed truck, welcome to get more information from our factory. For price consultation, contact us.
Excellent overall performance. Through CG simulation and big data testing, the structure is optimized for greater rationality and higher efficiency. Manufactured with 4kW fiber laser technology, CNC bending and robotic welding.
Precision Manufacturing:
Equipped with a high-end chassis, featuring stable performance, convenient control and comfortable driving. Constructed with high-quality wear-resistant steel with excellent toughness and ductility, ensuring consistent and reliable quality. The tank boasts a high filling coefficient.
The exterior of the tank undergoes a three-level finishing process: one pass of sandblasting, two passes of polishing, and three coats of paint, providing exceptional corrosion resistance and durability. It is fitted with an on-board screw air compressor, characterized by low pressure, large air output, anti-fouling performance, long service life and easy operation.
This new intelligent pneumatic discharge bulk feed transport truck offers a long conveying distance, low feed breakage rate, no stratification and no residue. It features a simple structure, is easy to operate, has a low failure rate and is simple to maintain. Equipped with an advanced imported air compressor, it delivers a large air volume, fast conveying speed and strong anti-fouling capability.
Product Name: Pneumatic Discharge Bulk Feed Tanker
Cab: One row and a half cabin,LHD, A/C
Driving Type: 8x4 / 12wheels
Wheelbase : 2000+850+1350
Engine : Yuchai 350hp
Transimission : Fast 10 Forward and 2 reverse
Curb Weight : 13000kg
Front / Rear Axle: 5000kg / 10000kg
Chassis Frame : 250/286*65/80*(8+4)
Emission Standard : Euro VI
Fuel Tank : 350L Aluminum alloy
|
Bulk Feed Tanker Specification |
|
|
Tank Overall Size |
7800*2550*φ2400mm |
|
Tank Volume |
35 Cubic meters / 35m³ |
|
Tank Thickness |
Tanker body 3mm / Head Thickness 4mm |
| Manhole | Quick-Opening Tank Cover by hand, it is charging inlet |
|
Compartment |
4 compartments / One compartment, one control button |
| Safety Valve | Mechanical Type |
| Discharge system | |
|
Driving Form |
Transporting feed by pneumatic force |
|
Discharge Capacity |
1000-1500kg/min |
|
Discharging Distance |
8m |
| Max Conveying Height | 10m |
| Number of Discharge Pipes | 2pcs Built-in steel wire rubber hose |
| Discharge Pipe Length | 4 m / pc |
| Discharge Valve | DN150 Pneumatic Valve |
| Discharge Outlet | Visual Discharge |
| Residual Rate | ≤0.02 % |
| External Air Source | Aluminum Alloy Valve |
| Secondary Air Assisted Blowing | 3 Air Assisted Blowers |
| Air Compressor | Screw Air Compressor |
| Compressor Pressure | 0.2MPA |
|
Accessories |
Operator box |
Choose Efficiency. Choose Reliability. Choose Capacity!
Screw air compressor
Large air volume with low pressure
Low feed breakage rate during conveying
Reduces feed stratification in silos
Decreases dust and powder generation
Minimizes feed waste effectively
Saves huge annual feed cost
Core components of the truck
Discharge valve glass sight glass
Real-time observe feed conveying condition
Facilitate operators' timely operation
Effectively reduce working time cost
Greatly improve overall working efficiency
Clearly monitor material conveying process
Support quick next-step operation arrangement
By Gravity downflow discharge
High flow rate for smooth fluidization
Effectively prevents material blockage
Supplies optimal air volume steadily
Ensures efficient loading operation
Improves tank sealing performance
Supports direct component replacement
Control Box
Four compartments for classified loading
Separate switch for each compartment
Discharge one compartment at a time
Shared rear discharge outlet design
Transport different media separately
Flexible and convenient discharging control
Before loading, open the pressure relief valve to ensure no pressure inside the tank. Then open the loading port of each compartment for loading.
During pressurization, open all air intake valves and auxiliary blowers, and close all loading ports, discharge butterfly valves, secondary auxiliary blow ball valves, and external air source ball valves. Adjust the remote control throttle to ensure the air compressor speed is within 900–1000 r/min on the tachometer.
(Note: When using an external air source for power take-off, open the external air source ball valve on the tank, connect it firmly to the external air source port, then open the external air source valve for pressurization.)
When the pressure reaches 0.15 MPa during discharging, open the secondary auxiliary blow valve. Then open the discharge butterfly valve of each compartment in sequence.
(Note: The 4 compartments cannot discharge simultaneously. Discharge one compartment completely before opening the next. There is a material observation window at the rear to monitor the discharging status of each compartment.)
When the pressure drops to 0.12 MPa, close the secondary auxiliary blow valve and discharge valve. When the pressure rises back to 0.15 MPa, open them again to resume discharging.
(About 2 minutes after starting discharging, gradually throttle down the secondary auxiliary blow valve to a maximum half-open position.)
After all compartments are emptied, open each discharge butterfly valve in sequence for tank cleaning. When the pressure drops to 0.05–0.08 MPa, open the pressure relief valve, shut down the air compressor, and complete the discharging operation.
Currently, there are three discharge methods for bulk feed trucks on the market: hydraulic type, electric auger type, and pneumatic discharge type. Their core functions, advantages and applicable scenarios are as follows:
Hydraulic Bulk Feed Truck
It adopts hydraulic drive for discharging, with a conveying system consisting of horizontal, vertical and movable discharge parts. The movable discharge auger on the roof can rotate and lift freely: it lies flat during transportation and lifts to align with the silo inlet during discharging. It has stable operation, flexible discharging, and can efficiently complete the feed discharge process.
Electric Auger Bulk Feed Truck
It adopts mechanical screw discharge, with fast discharging speed and continuous operation to improve production efficiency. Powered by three-phase 380V commercial power (without on-board generator), it has a small wheel track, suitable for narrow road conditions. It is cost-effective, with simple structure, convenient operation and easy maintenance; its tank can be divided into 2-4 compartments to load different feeds at the same time, suitable for small farms and feed mills.
Pneumatic Discharge Bulk Feed Truck
It adopts high-flow gas conveying technology, featuring low pressure, large flow, low noise, high output, long conveying distance, fast discharging speed, low residue and no pollution to materials. It can complete feeding into the silo without the vehicle entering the site, effectively solving the epidemic prevention problem of farms and being widely used for long-distance feed transportation in breeding and feed processing enterprises.
