20Ton LPG Tank Semi Trailer With Air Balloon Suspension
Design for Weight Limit Country
20Ton Safety Loading Capacity
Aluminum Sun Shade Preventing Heat
Remote Control Emergency Cut-off Valve
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20ton lpg tank semi trailer with air balloon suspension in China. If you're going to buy high quality 20ton lpg tank semi trailer with air balloon suspension, welcome to get more information from our factory. For price consultation, contact us.
Decription:
1. Tank Capacity: 40,000Liter to 50,000 Liter
2. Loading Weight: 20,000kg to 25,000kg
3. Design Pressure: 16.1Bar ~ 19.1Bar
4. Safety Feature:
Top Installed Safety Relief Valve,
Bottom Emergency Cut-off Valve for both Liquid & Vapor
Mechanical Handle to Emergency Cut-off
Trailer End Control Handle
Emergency Trailer Brake System

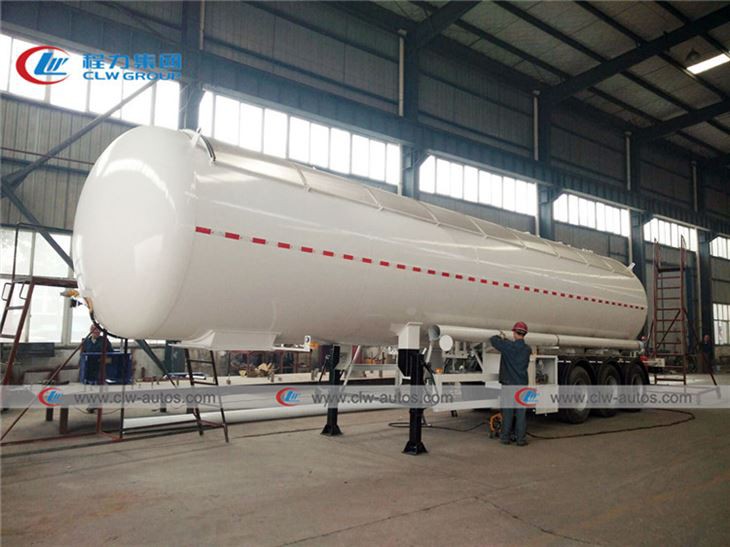

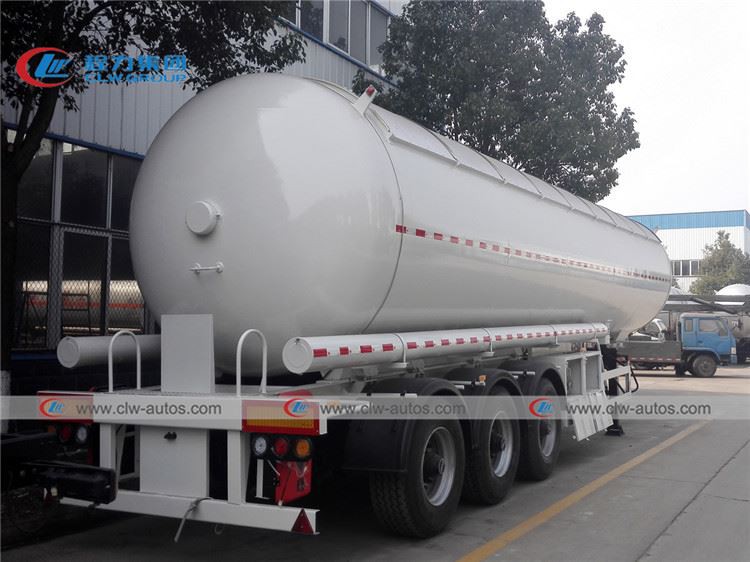

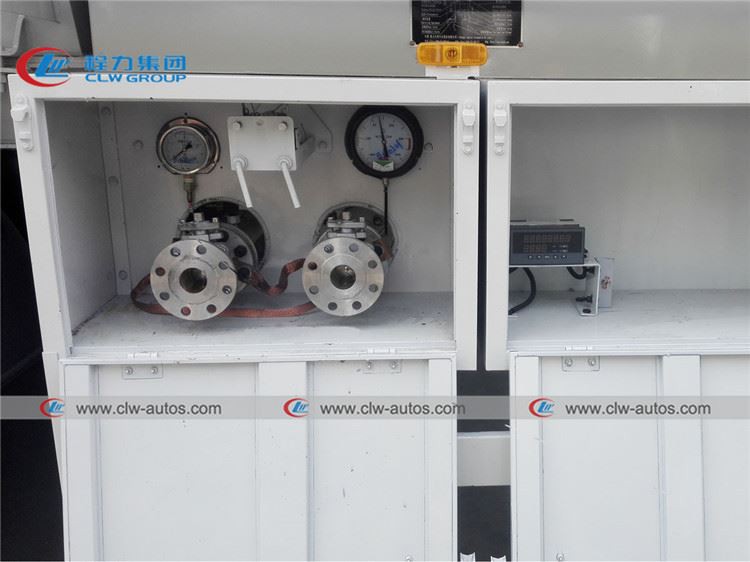

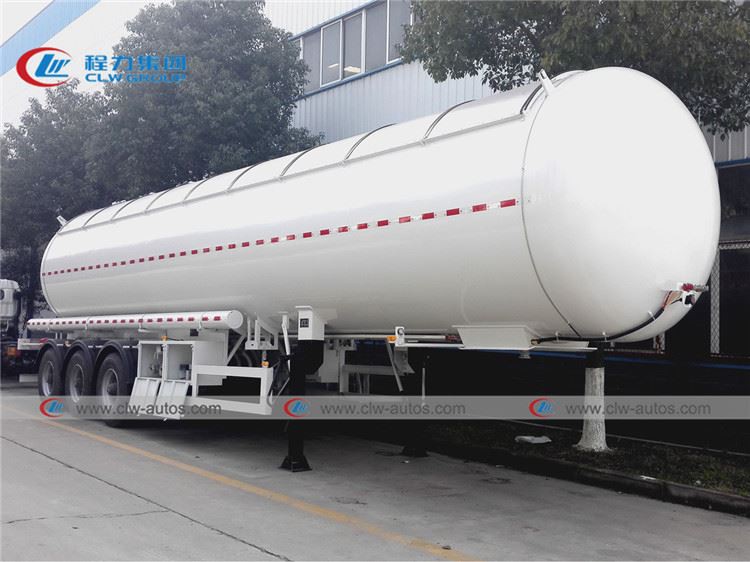

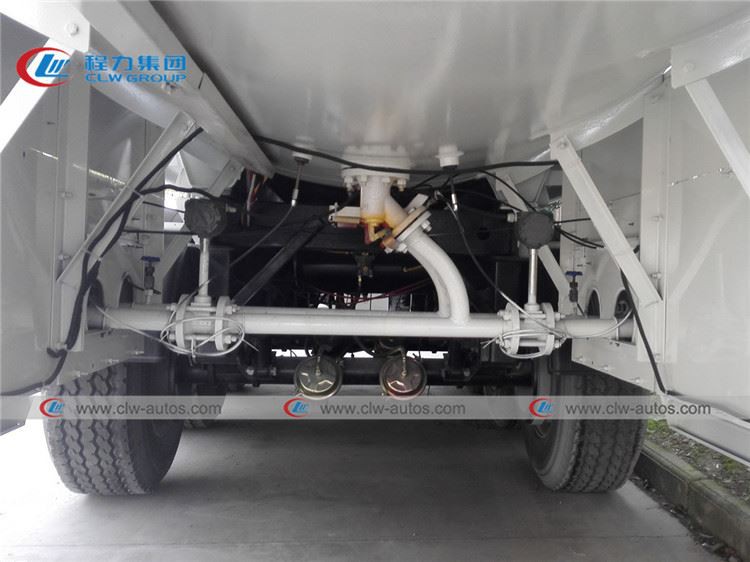

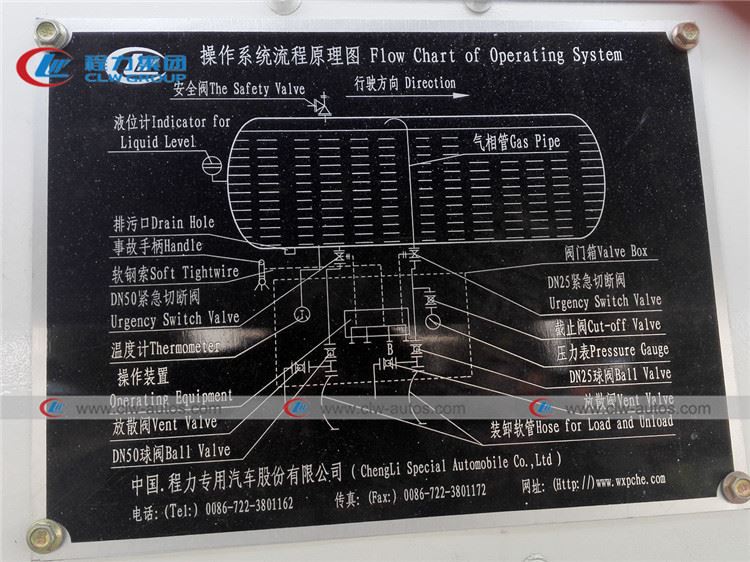

Reference Photos:
vehicle | Vehicle Type | LPG Semi-trailer | |
Vehicle Name | Liquefied gas semi-trailer | ||
Overall dimension | 12700×2500×3975 | ||
Actual Capacity | 56M3 | ||
Curb weight | 15480 | ||
Real capacity | 23520Kg | ||
Axle | Front axle:15390Kg | ||
rear overhang | 1550 | ||
departure angle | -/20 | ||
axles load | 23000(three axles) | ||
wheel base | 6865+1310+1310 | ||
Number of tires | 12 | ||
tire specification | 12R22.5 | ||
rear track base | 1840/1840/1840 | ||
Level gauge | Model | YWJ-25 | |
Type | rotary tube gage | ||
Nominal pressure | 2.5Mpa | ||
test range | 50-2450mm | ||
precision | 2.5 | ||
Emergency Cut-off Device | Model | gas phase | QGJ43F-2.5-8 |
liquid phase | QGJ43F-2.5-7 | ||
Nominal diameter | gas phase | DN25 | |
liquid phase | DN50 | ||
operated method | pullout Mechanical type | ||
