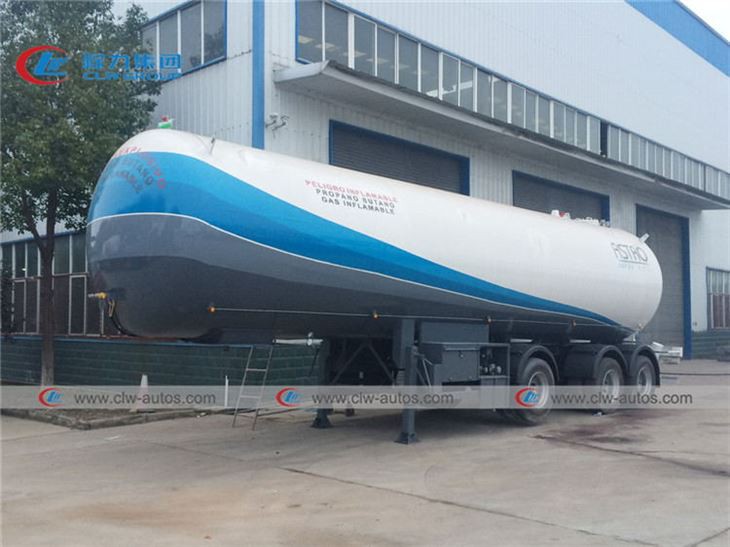

56000L 14000Gallon LP Gas Tank Semi Trailer Chile Bolivia
LP Gas Tank Semi Trailer 56000Liter Tank Capacity Liftable Front Axle Air Suspenstion BPW/FUWA
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 56000l 14000gallon lp gas tank semi trailer chile bolivia in China. If you're going to buy high quality 56000l 14000gallon lp gas tank semi trailer chile bolivia, welcome to get more information from our factory. For price consultation, contact us.
Description:
Tank Capacity: 56,000Liter / 14700 Us Gallon
Tank Standard: GB150-2013, ASME VIII DIV 01
Tank Pressure: 16.1Bar or as request
Material: Q345R, Q420R, SA516 gr70, SA612,
Nozzle: ACME Valve 1", 2" or 3"
Valves: REGO, MEC Brand
Level Gauge: Rochester, REGO, MEC, etc.
Running Chassis:
FUWA or BPW Brand Axle, 12Ton/13Ton,

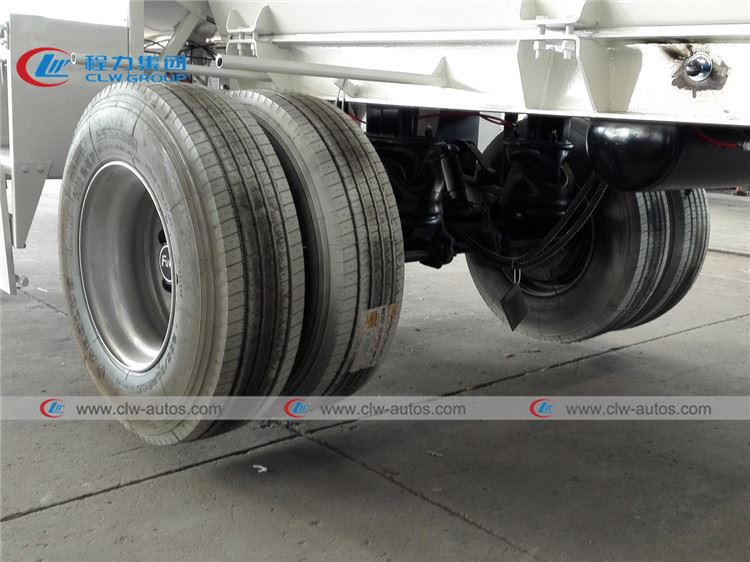

Liftable Air Suspension for first axle
Mechanical Rear 2 Axle Suspension
Tire Rim: 11.75x22.5 Steel or Aluminum Rim
Tire: 385/65R22.5 Tubeless Tire

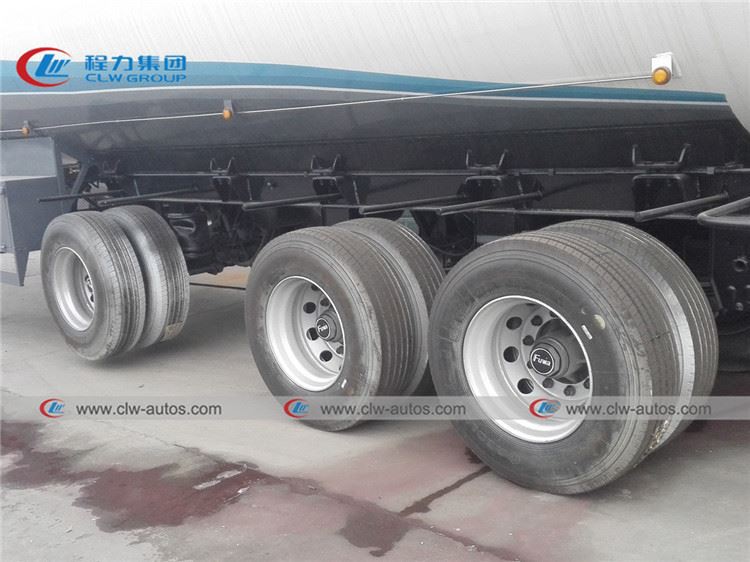

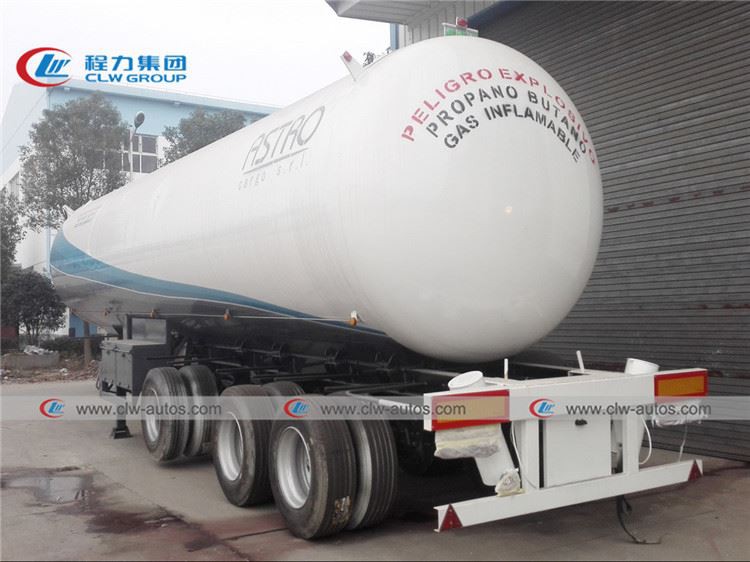

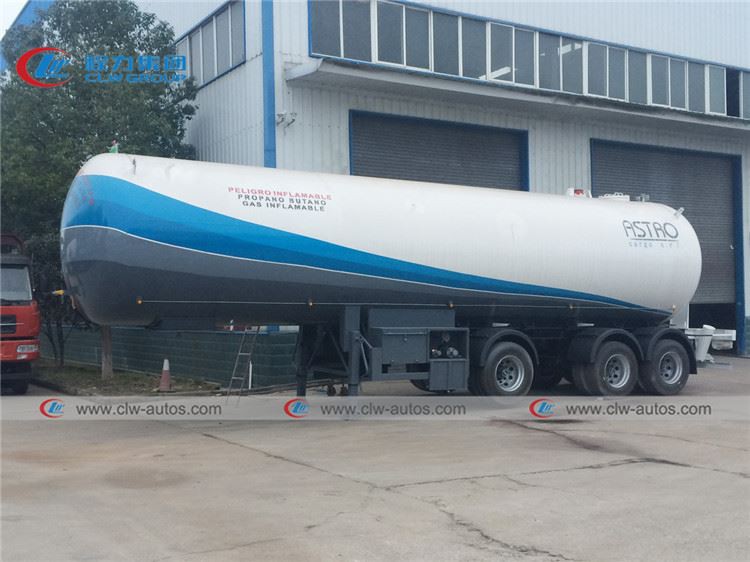

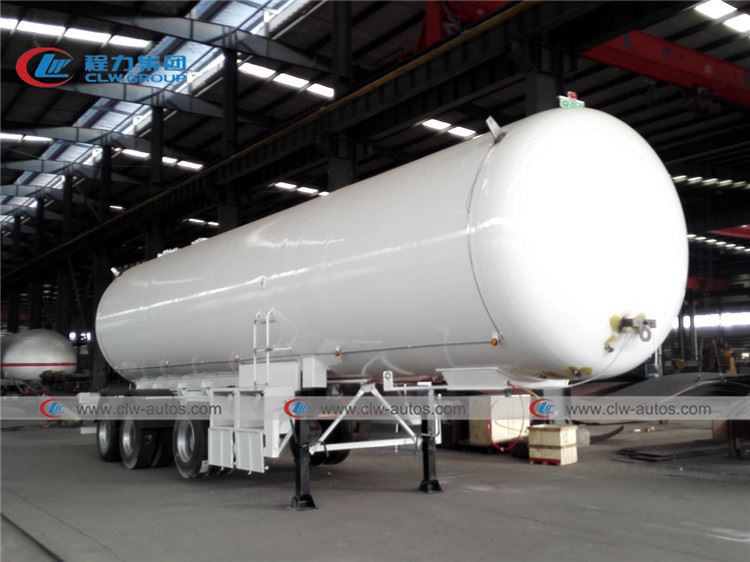

Photo for reference:
Specification:
56 CBM LPG Tanker Trailer | |||||
Volume of Tank | 56,000 Liter | ||||
Total Trailer Weight | 12,600 kg | ||||
Tank Diameter (mm) | 2500 mm | ||||
External Dimensions (mm) (length x width x height) | 13000 x 2500 x 3990 mm | ||||
Material of Tank and Main Pressure Parts | Q420R | ||||
Tank Shell | Type | Cylinder | |||
Thickness | 10 mm | ||||
Tank End Plate | Type | Hemispherical | |||
Thickness | 8 mm | ||||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||||
Manufacturing Standard | GB150-2013 / ASME | ||||
Corrosion Allowance | 1 mm | Filling Ratio | 500-560 kg / cbm | ||
Design Pressure | 1.61 MPa / 16.1 Bar | Hydraulic Test Pressure | 2.22 Mpa / 22.2 Bar | ||
Working Pressure | 1.61 Mpa / 16.1 Bar | Air Tightness Test Pressure | 1.61 Mpa / 16.1 Bar | ||
Chassis Specification | |||||
Item | Specification | ||||
Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes | ||||
Axle | 3 pieces of 12Ton German Brand BPW Axle, | ||||
Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear | ||||
King Pin | JOST 2”standard bolt-in king pin | ||||
Suspension | German design mechanical suspension | ||||
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||||
Tire | 385/65R22.5 tire, 12 Pieces with 1 Spare | ||||
Tire Rim | Aluminum Alloy Material (Forged Technic) | ||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||
Key Wods: LP Gas Tank Trailer, 56000Liter 14700US Gallon Tank, For Chile, Bolivia, South American Country,
