Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of corken z2000 2 inch lpg propane gas vane pump in China. If you're going to buy high quality corken z2000 2 inch lpg propane gas vane pump, welcome to get more information from our factory. For price consultation, contact us.

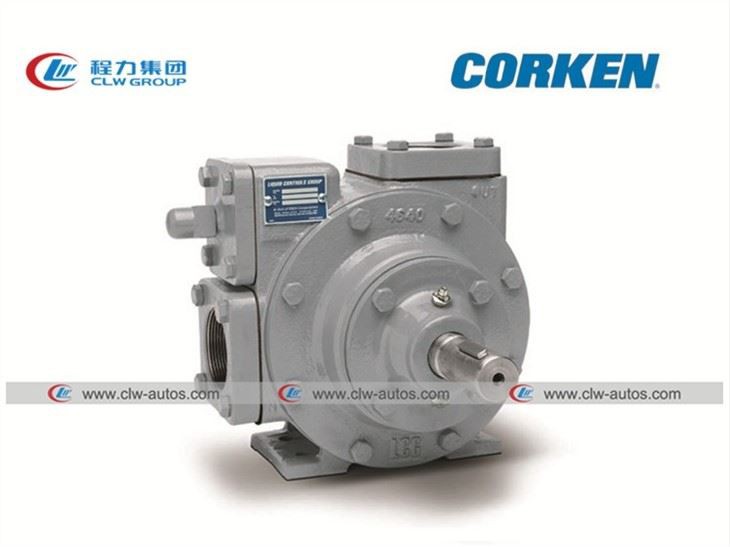

Coro-Vane® Pumps

Sliding vane positive displacement liquid pump.

Low pressure design with combination of O-ring construction

Mechanically sealed with silicon carbide seal seat

Six blades and blade drivers

Adjustable interal relief valve

Cam is not replaceable

Sideplates are reversible

Suitable for petroleum products and industrial solvents

Application:

Propane/butane bulk transferTruck/delivery application

Barge unloading

Tank/railcar unloading

Agricultural ammonia

Construction

Designed for high pressure applications with a maximum working pressure of 400 psi (27.6 bar)

Available in foot and truck mounted designs

O-ring construction

Six vanes/blades design with vane drivers

Mechanically seal design with silicon carbide seal seat

Depending on the model, available with NPT or Class 300 RF flanges

Approved by Underwriters' Laboratories (UL) for LPG and agricultural ammonia service

Hydraulic drive option available

Pump Materail:

Pump casing and heads: Ductile iron

Cam and sideplates: Gray iron

Rotor and flanges: Ductile iron

Seal seat: Silicon carbide

O-rings: Buna-N, PTFE, Viton®, Neoprene®. (Registered trademark of DuPont)

Blades: Advanced polymers

Deliverying Liquid

Agricultural ammonia

Butane

Propane

Natural gas liquids

Refrigerants

CO2

Many more liqueifed gases

Model Z2000 / 521 Specification:

Model	Z2000
Suction flange	2"
Discharge flange	2"
Minimum RPM	420
Maximum RPM	780
Minimum temperature	-25°F (-32°C)
Maximum temperature	225°F (107°C)
Max. working pressure psig (bar)	400 (28.6)
Max. Differential pressure psig (bar)	125 (8.6)
Internal relief	Yes
O-ring material options:
Seal seat material options:
Suction flange option	Yes
Discharge flange option	Yes
Maximum driver hp (kW)	10 (7.5)
