Foton 4tons 5tons Flatbed Wrecker Towing Truck
Truck purpose:breakdown car removal
Loading capacity : 4tons-5ton
one towing two cars
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 4tons 5tons flatbed wrecker towing truck in China. If you're going to buy high quality foton 4tons 5tons flatbed wrecker towing truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Road wrecker (also called tow truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.

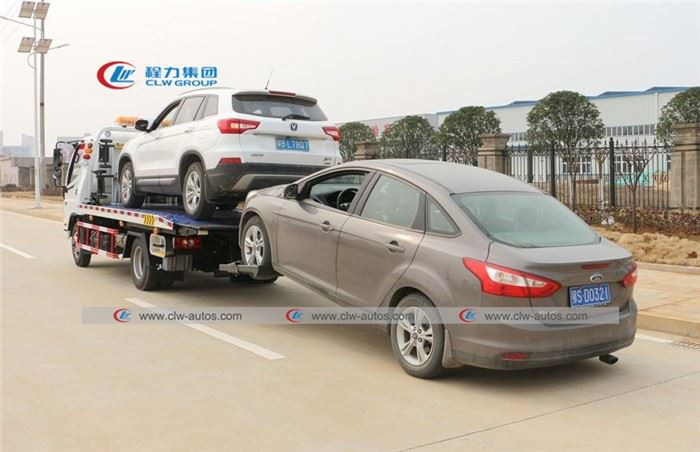

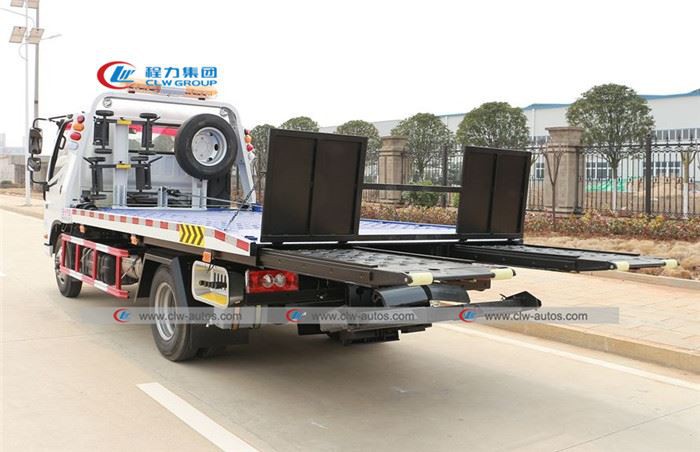

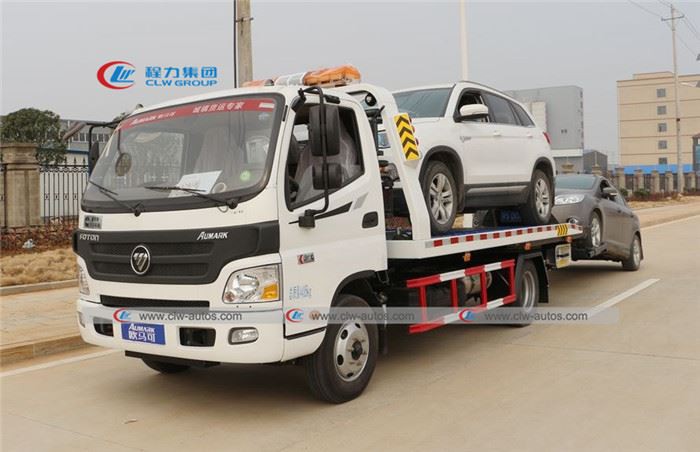

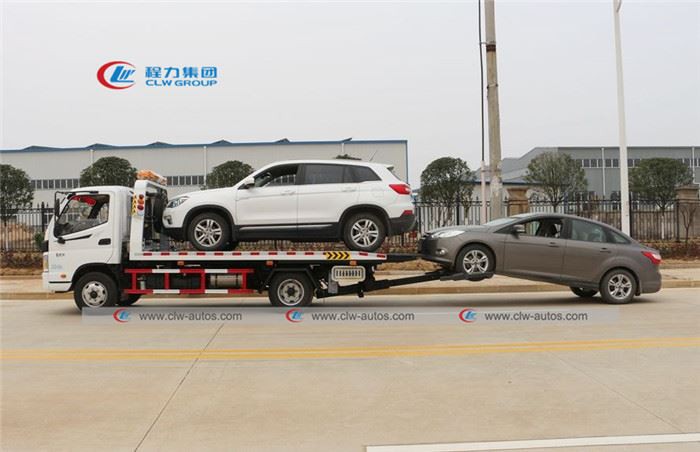

Re
ference picture
Specification
| |||||
Overall Dimension | 7390*2350*2400(mm) | ||||
Gross Vehicle Weight | 8280 (Kg) | ||||
Curb Weight | 5330 (Kg) | ||||
| |||||
Chassis Brand | Foton | ||||
Drive model | 4*2 | ||||
Cabin | Single, Left Hand Drive | ||||
Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Power | 113KW/154HP | ||||
Emission standard | EURO 2 or 3 | ||||
Displacement | 3760(ml) | ||||
Fuel type | Diesel | ||||
Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
Brake System | Oil Brake | ||||
Wheel Base | 3815(mm) | ||||
Front/Rear Axle Loading | 3000/4800(Kg) | ||||
Approach/Departure Angle | 24/12(°) | ||||
Tire | 7.50R16, 6pcs + 1 spare tire | ||||
Max Driving Speed | 98(km/h) | ||||
| |||||
Platform Organ | Dimension | 5600*2350(mm) | |||
Rear manual flip board length | 1200(mm) | ||||
Material | Q235 carbon steel | ||||
Max Loading capacity | 4000(kg) | ||||
Winch | Quantity | 1 | |||
Winch rating towing capacity | 4000(kg) | ||||
Length of steel rope | 25(m) | ||||
Speed of winch | 3.23~8 (m/min) | ||||
Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
Options | Caution light, air condition,inlet valve. | ||||
