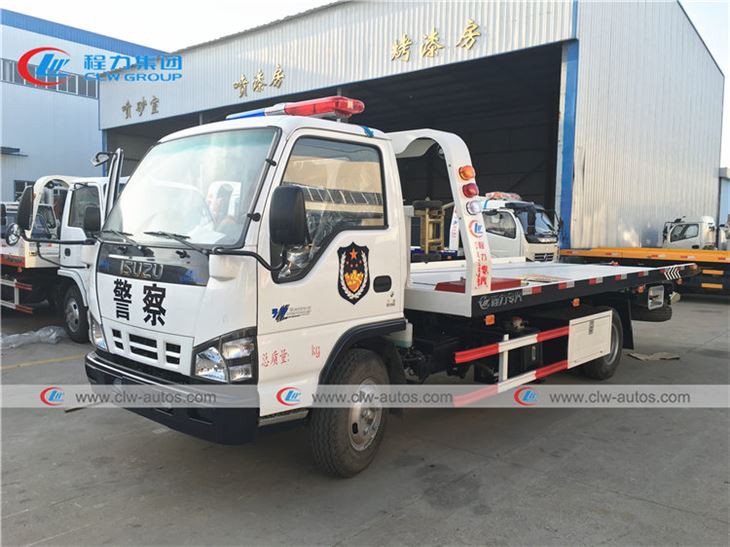

ISUZU 600P 4Tons Flatbed Road Wrecker

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 600p 4tons flatbed road wrecker in China. If you're going to buy high quality isuzu 600p 4tons flatbed road wrecker, welcome to get more information from our factory. For price consultation, contact us.



Function

--Road wrecker(also called wrecker,wrecker truck,tow truck,recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles or car.

-- Road wrecker can be divided into various types as follows,

1) According to the categories, the towing truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.

2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 Road wrecker;

3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons Road wrecker;

4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,shacman,camc Road wrecker

Feature

--Powerful ISUZU truck chassis;

--1 Nos of 4tons winches with diameter 11mm;

--Combined operation at two sides of road wrecker;

--imported brand hydro control control valve and balance valve;

--High efficient-towing two cars at the same time;

--anti-slip checked plate or Corrugated punching plate as flatbed

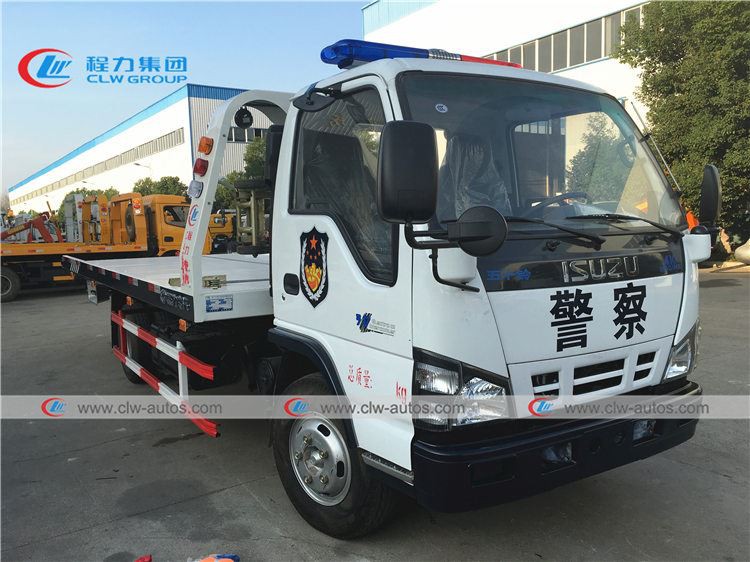

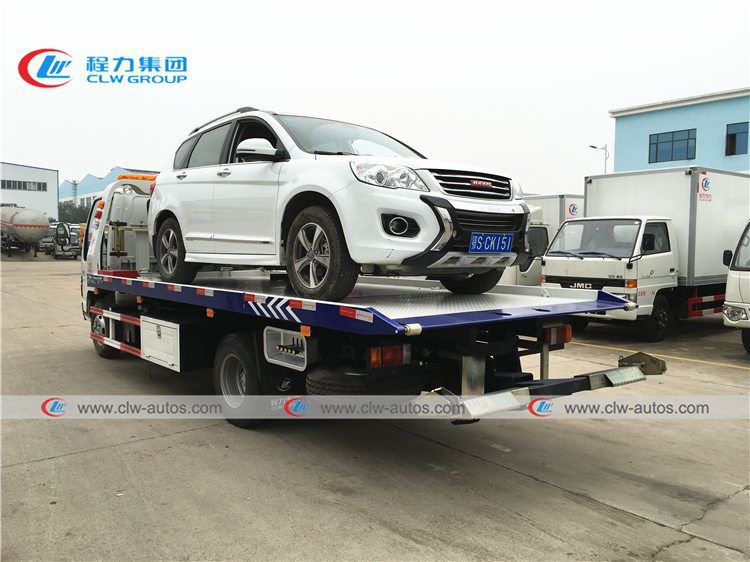

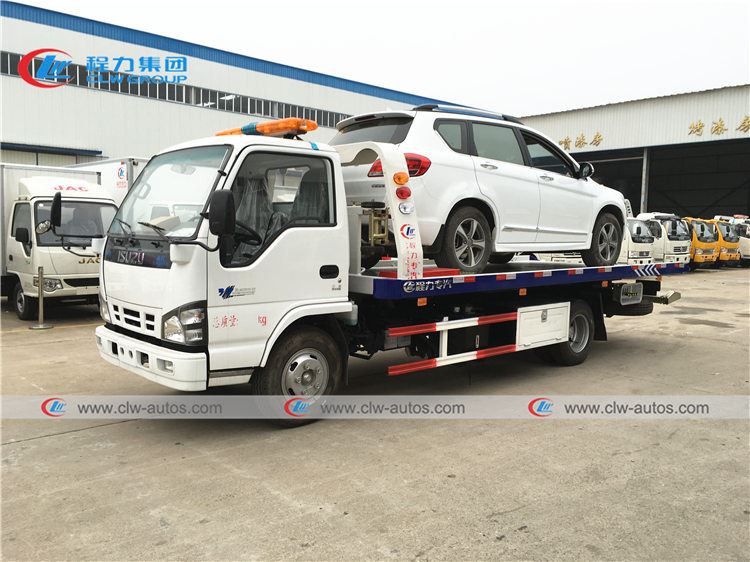

Reference picture

StructureRemote controller

Specification

Overall Dimension	7470x2350x2400mm
Driving Model	Left hand drive
Cabin	2~3 persons, one row and a half, with A/C
Gross Vehicle Weight	7300 kg
Curb Weight	4280 kg
Loading Weight	3000Kg
Wheel Base	3815mm
Front/rear Tread	1506/1466mm
Approach/Departure Angle	19/12 degree
Front Axle	2580kg
Rear Axle	4720kg
Engine	Isusu diesel Engine 4KH1CN5HS or optional for 4KH1-TCG51(no urea), 4 in-line cylinders
Engine horsepower	98KW/130HP or 88KW/120 EURO V
Displacement	2999mL (Diesel)
Max Driving Speed	95 km/h
Tire	7.00R16( 6 pieces+1 spare)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	2500kg
Loading Plate Dimensions	5500*2300mm
Thickness of Plate	4mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel	1 set
“L” bracket no.	1
Other accessories	Warning lamp 1 set,Bandage 4 sets,
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.
