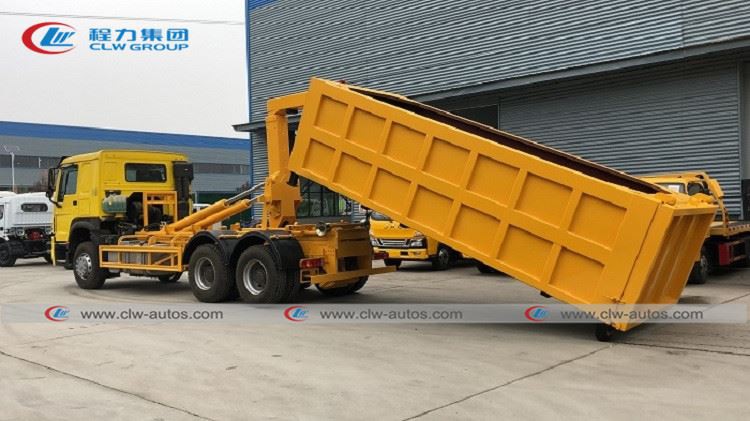

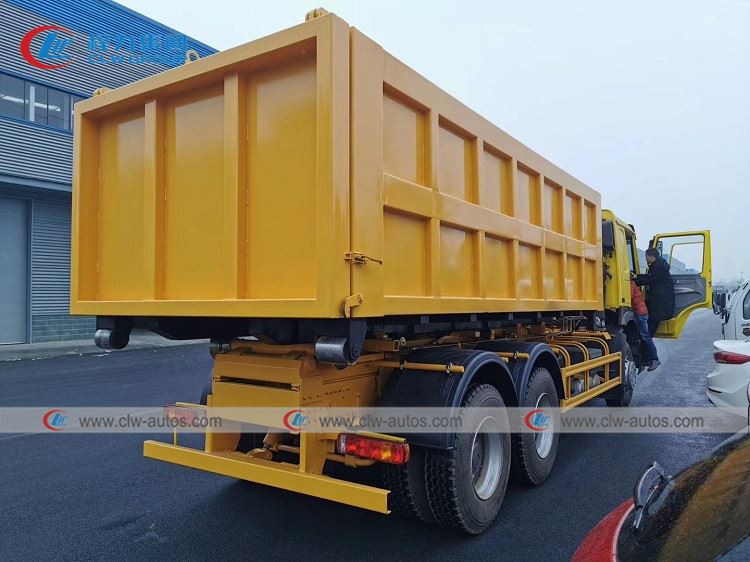

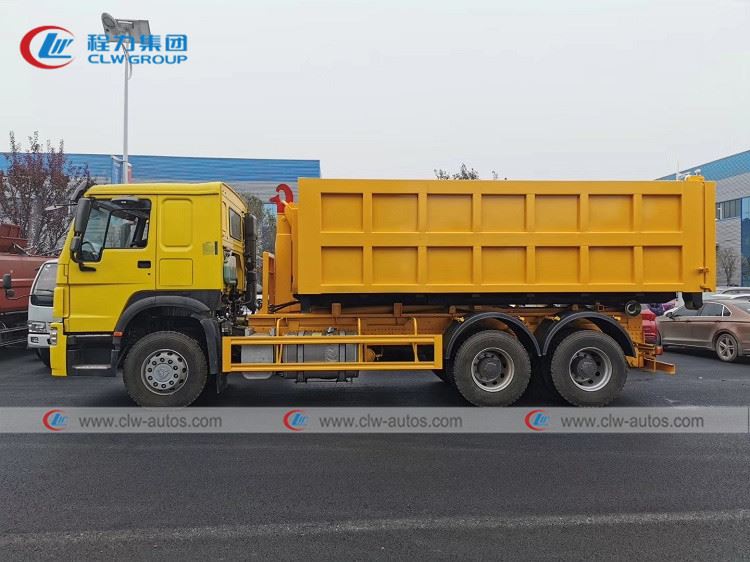

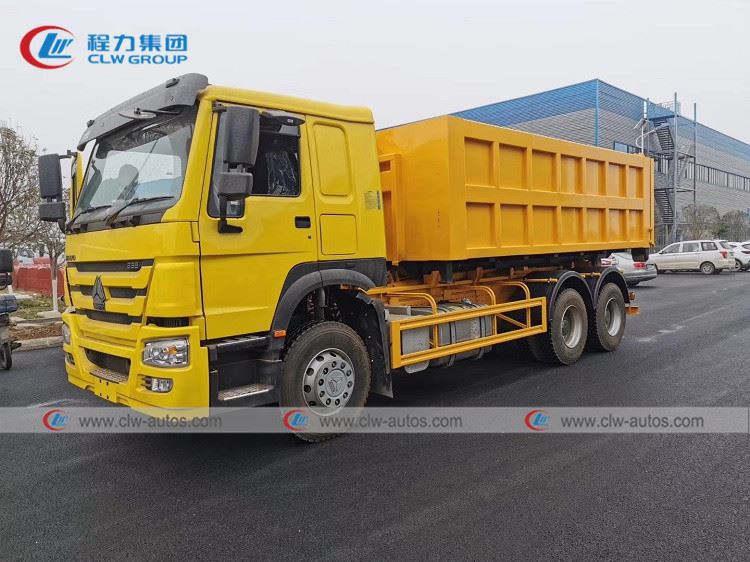

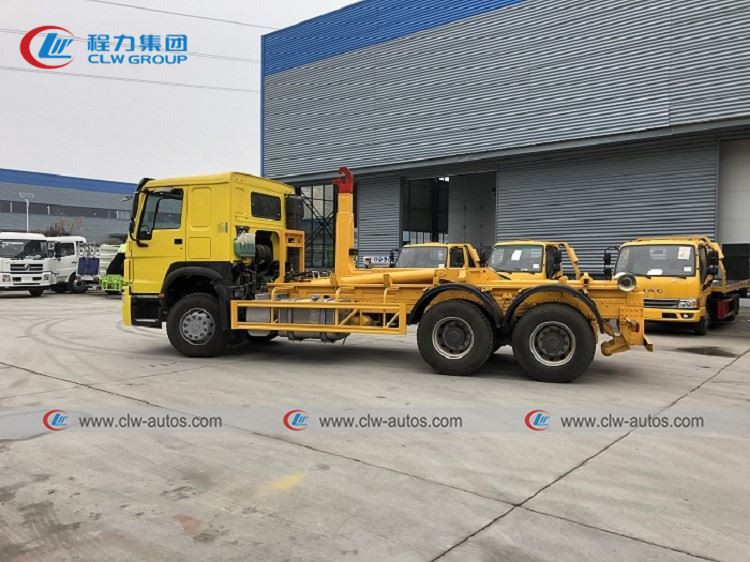

Howo RHD 20cbm Waste Recycling 20m3 Hook Lift Garbage Truck
Engine:SINOTRUK HOWO brand, 266HP;
Driving model:LHD or RHD;
Gear box:10-speed forward and 2 reverse
Hydraulic cylinder:Top brand
Garbage bin size:10cbm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo rhd 20cbm waste recycling 20m3 hook lift garbage truck in China. If you're going to buy high quality howo rhd 20cbm waste recycling 20m3 hook lift garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Description--Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
--Hydraulic Control Loading & Unloading System.
--Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
--High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
--Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
--Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Feature--SINOTRUK HOWO Chassis, perfect performance
--Sinotruk engine, Super powerful,reliable performance-- Nice shape, rational design --High quality hydrauilc cylinder, Top brand --Strong,durable, long time service time--High tense carbon steel material
Specification
Truck model | ZZ1257M4641W | |
Drive style | Left or right hand drive | |
Drive model | 6x4 | |
Dimensions(LxWxH) | 8865x2500x3290 MM | |
Cargo body | 20 cbm | |
Loading weight | 20ton | |
Engine | WD615.69, 336hp | |
Emission standard | EURO II | |
Front axle | HF7, 7tons loading capacity | |
Rear axle | HC16, 16tons loading capacity | |
Transmission | HW13710, 10 forward & 2 reverse. | |
Steering system | ZF8118, hydraulic steering with power assistance | |
Tires | 295/80R22.5, 10+1spare | |
Upperstructure Specification | ||
Garbage Hopper | Dimension | 5600×2300×1500mm |
Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
Volume | Ground type, 18CBM or 20cbm | |
Loading Capacity | 16tons or 18Tons | |
Thickness | 5mm, Carbon Steel Q235B | |
Dump type | Hydraulic cylinder lifting and self-loading | |
Dump angle | ≥45° | |
Hydraulic system pressure | ≤16Mpa | |
Protective Material | Q235A Carbon Steel | |
Controlling Way | Three-way hydraulic control valve | |
Other Configuration |
| |
Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
