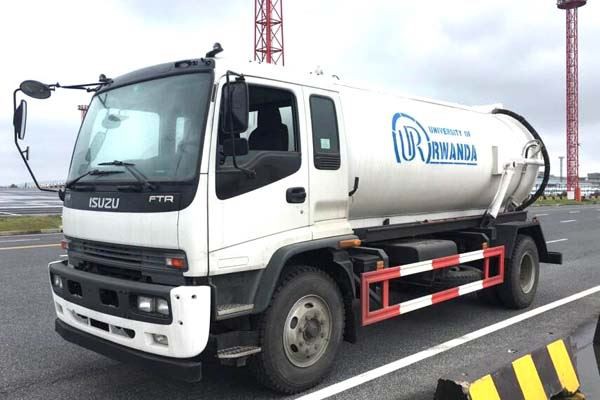

Vacuum Sewage Suction Truck
1. Purpose: Sewer cleaning and sewage transportation.
2. Main products: Sewage pump and tank material.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of vacuum sewage suction truck in China. If you're going to buy high quality vacuum sewage suction truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: Sewer cleaning and sewage transportation.
2. Main products: Sewage pump and tank material.
3. Sewage pump: China famous brand Weilong and Italy brand Jourp or BP for optional.
Specification
| New condition/Left hand drive/4x2 | ||
| Brand | ISUZU | |
Curb weight(kg) | 8570 kg | ||
Wheelbase(mm) | 4500 mm | ||
Dimensions(mm) | 7850*2500*3320 mm | ||
Front/Rear Axle loading(kg) | 7000/13000kg | ||
Wheel track (front/rear) (mm) | 1955/1764 mm | ||
Front/Rear overhang(mm) | 1430/2570 mm | ||
Approach/Departure angle(°) | 16/12° | ||
Max. driving speed(km/h) | 80 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Air brakes | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 10.00R20 | ||
| Manual type, 10 Forwards and 2 reverses | ||
| It can accommodate three people. With Air Conditioner | ||
| Brand | ISUZU | |
Fuel type | Diesel | ||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Power(kw) | 140 kw | ||
Horsepower(HP) | 190 HP | ||
Cylinder number | 4 | ||
Emission standard | Euro 4 | ||
| |||
| Capacity(cbm/liters) | 10.0cbm/10,000 liters | |
Tank material | Q235 carbon steel | ||
| Quantity(units) | 2 | |
Brand | China famous brand Weilong | ||
Model | 50QZXDH-68/7000 | ||

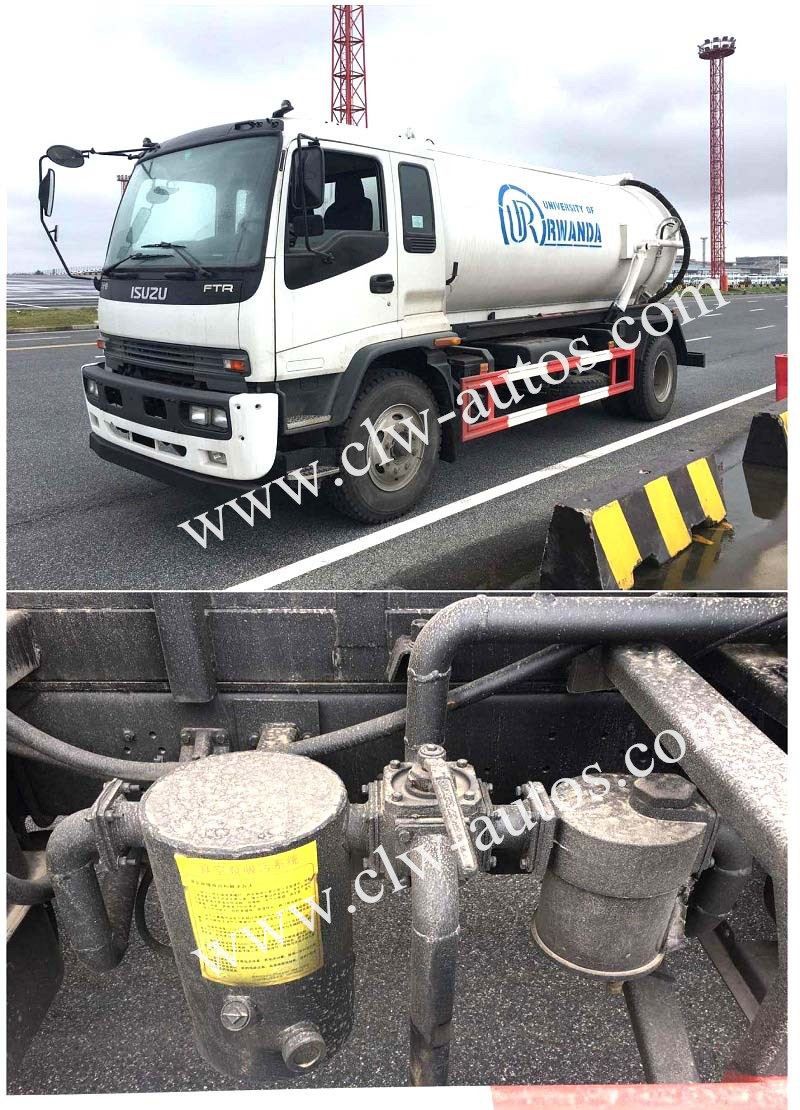

Reference Picture
Production Process
① Super Structure frame welding and installation.
② Sewage pump installation
③ Main parts installation.
④ Painting and Customized LOGO design
⑤ Hydraulic control system is optional
Our Advantage
1. Top quality sewage pump suction
2. High quality carbon steel for the tanker body.
3. Easy operation and we can provide guiding video to our client

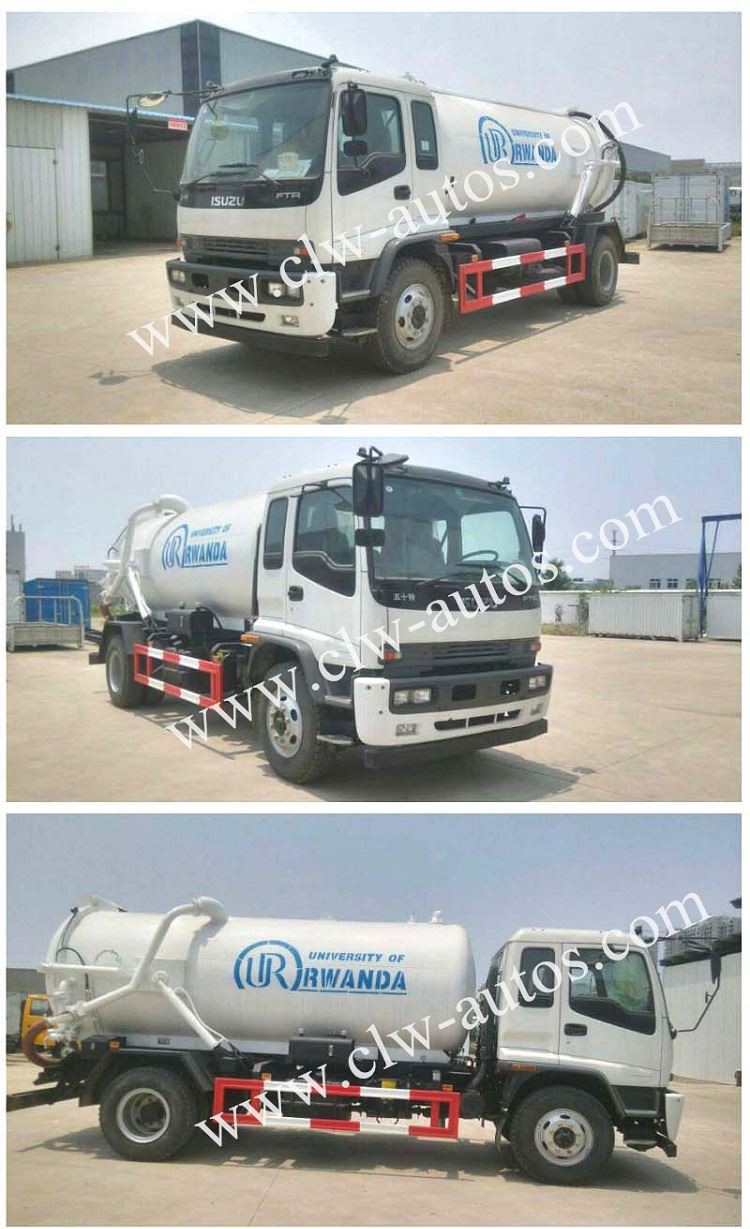

Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
FAQ
Q1: What kinds of Vacuum sewer cleaning truck I can order from your company?
A: We can supply different size Vacuum sewage suction truck as per our client demands.
Q2: Do you have any local agent in overseas market?
A: Yes. We have, but not sole agent.
Q3: Can you supply International brand sewage pump of your Vacuum sewer cleaning truck?
A: Yes. We can supply Italy brand Jourp and BP for optional
Q4: How about after sales service?
A: We usually suggest our clients to buy some spare parts for future maintenance, if they need assistance of maintenance and repairing, we can provide 24 hours on-line service and also can send our engineer to do on-site training and after sales service if client need.
