Dongfeng 6CBM Asphalt Distributor Sprayer
automatic control of spraying volume and working width
World famous hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

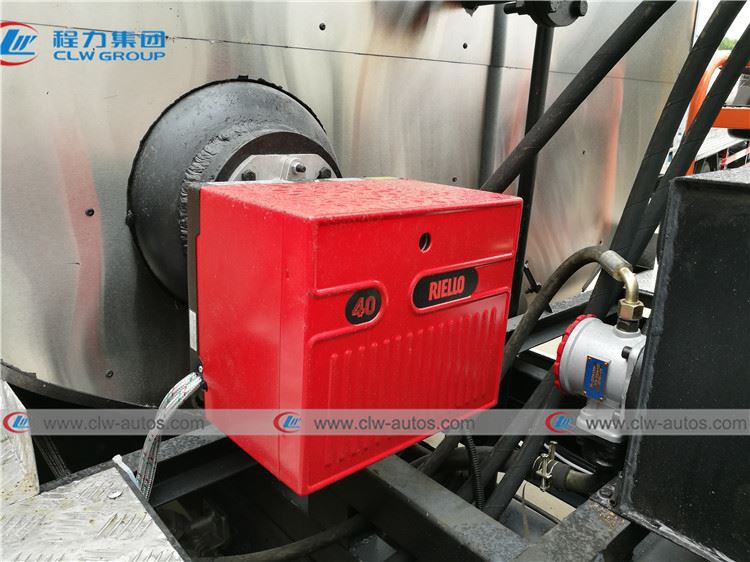

Italy burner for automatic fire and temperature control
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6cbm asphalt distributor sprayer in China. If you're going to buy high quality dongfeng 6cbm asphalt distributor sprayer, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.

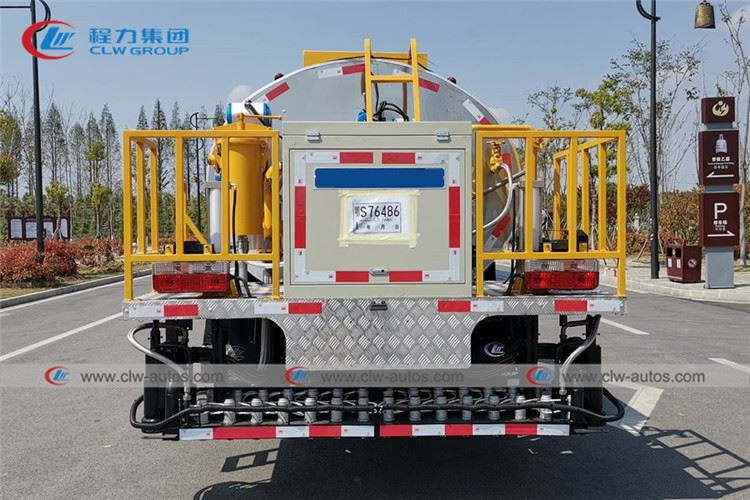

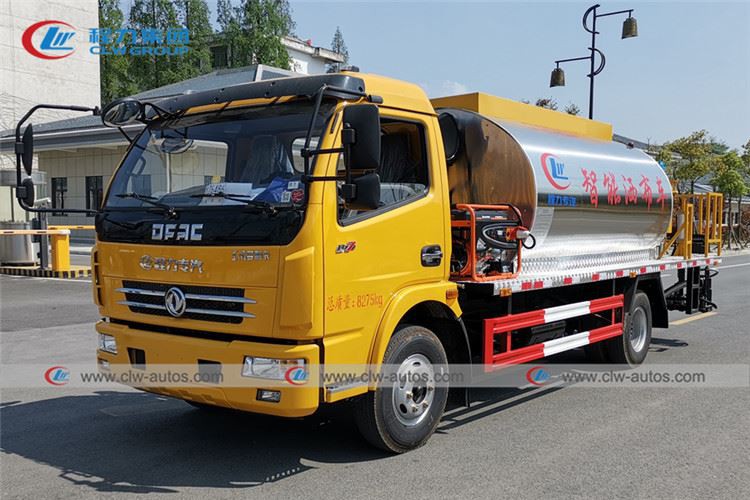

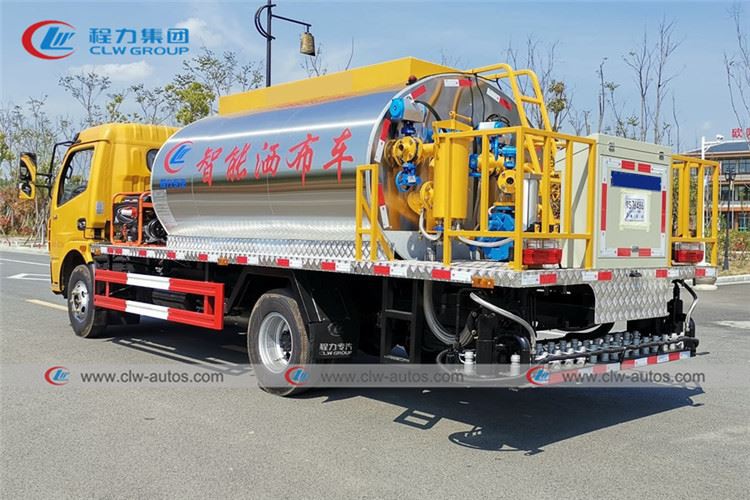

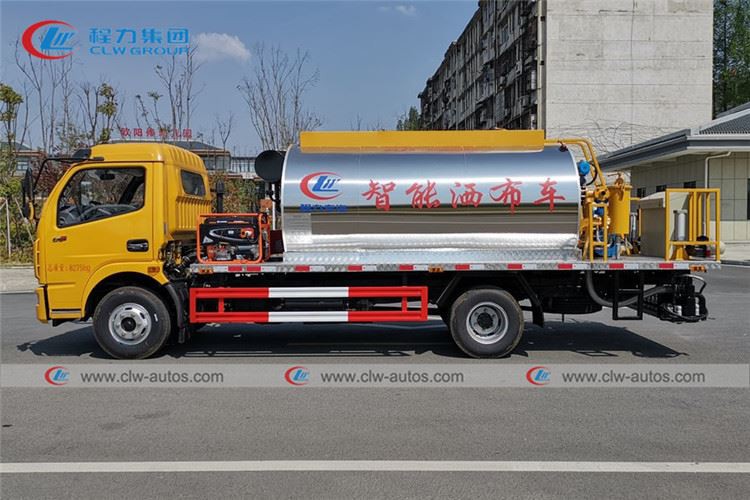

Reference picture
Working Show
Specification
| |
| |
Overall Dimension | 7380x2280x2550mm |
Gross Vehicle Weight | 11000 kg |
Curb Weight | 5600 kg |
Loading Weight | 10000 Kg |
Wheel Base | 3800 mm |
Front/rear Tread | 1210/2320mm |
Approach/Departure Angle | 24/10 degree |
Front Axle | 3400kg |
Rear Axle | 6350kg |
| watering cooling, four stroke, 4 cylinder in line |
Engine horsepower | 130HP EURO III |
Displacement | 3.856 L (Diesel) 88KW |
Max Driving Speed | 90 km/h |
Carbin | 3 Passenger allowed, Left Hand Driving, with Air Conditioner |
Tire | 7.00R16 (6 pieces+1piece spare tire) |
| |
|
|
Outside Material | Stainless plate |
Insulation layer | ≤20ºC/8h |
Bitumen pump | QGB950; 950L/min |
| |
Hydraulic pump | CQB550-L |
Driving Motor | 05-110-BD31 |
Proportional Valve | EFBG-03-160-HF/Taiwan brand |
Shuttle Valve | Shanxi Yuci brand |
Overflow Valve | Shanxi Yuci brand |
| |
Control System | CLW-30-01/Germany Siemens |
Control Method | Manual and computer control |
Smart asphalt nozzle | 30 pcs |
| |
Heating method | Automatic heating by oil |
Burner | G20/ |

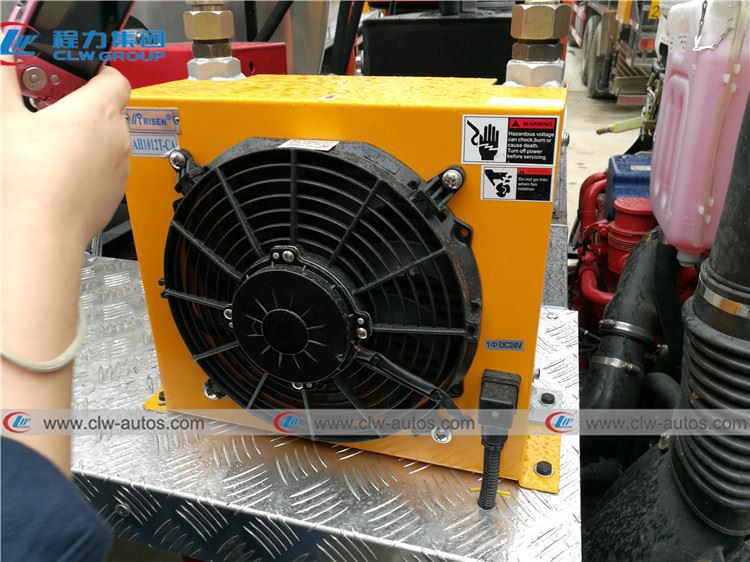

Radiator | Risheng brand |
Heat transfer oil pump | 40-25-160 |
|
|
Spreading Width | 6m |
Spreading Speed | 0.2~3L/min |
Spreading Precision | ±2% |
