Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road troop carrier with tarpaulin in China. If you're going to buy high quality howo 4x4 off road troop carrier with tarpaulin, welcome to get more information from our factory. For price consultation, contact us.
Troop carrier(also called army use personnel transport truck,army soldier delivery truck,20-person military personnel transport truck,4WD troop carrier) is designded and used for transporting,delivering military soldiers. We can design accoding to your request with ISUZU/HOWO/SHACMAN 4X4/6x6/8x8 truck chassis with detachable two row bench.
For quick inquiry
Strong SINOTRUK HOWO truck chasis
Large horsepower 266 hp/290HP for option
4X4 or 6X6 off road drive
Strong cargo box with Tarpaulin cover
Two rows of benches with safety belt

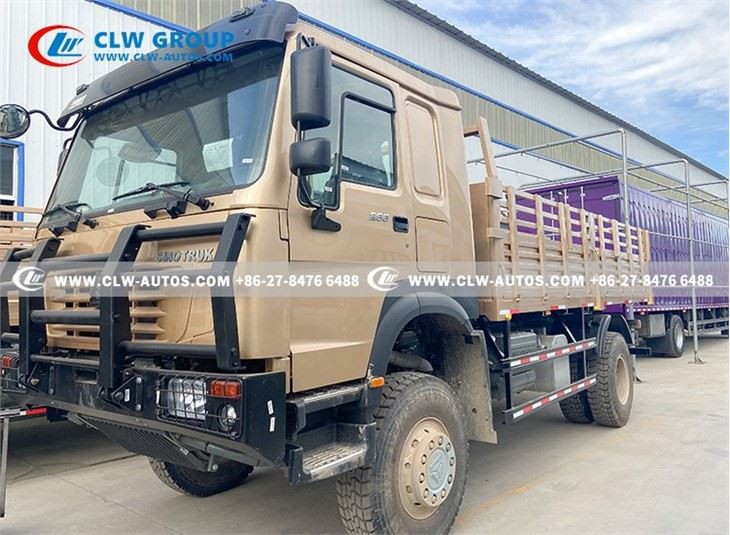

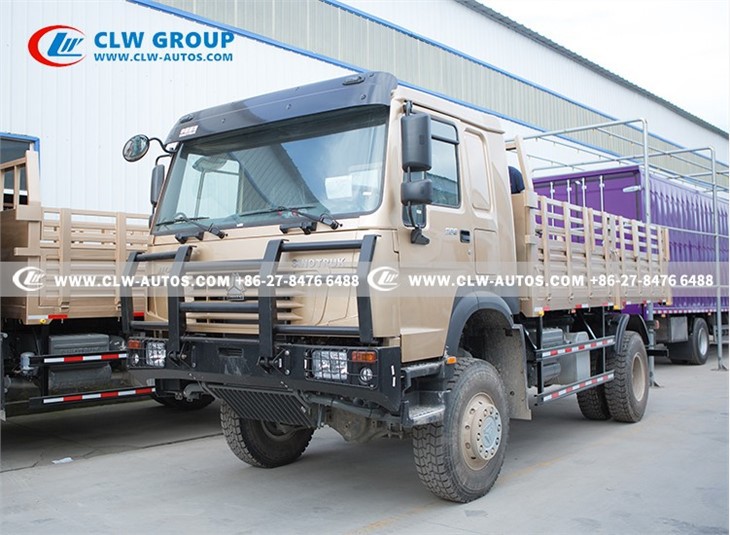

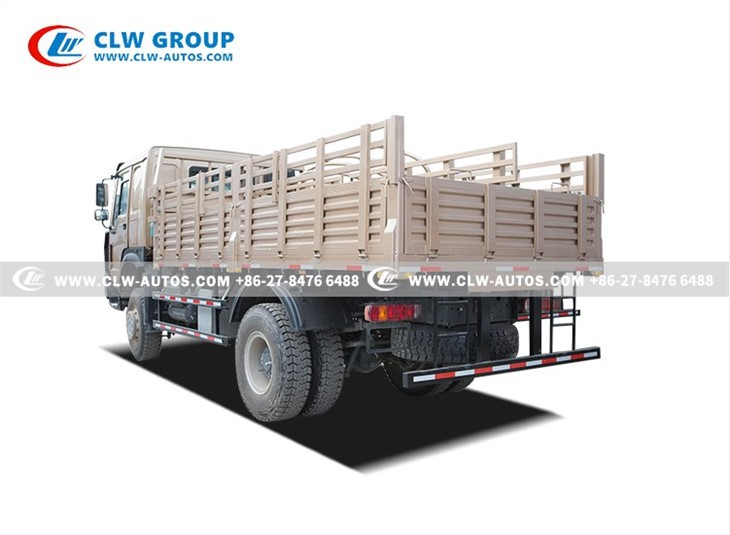

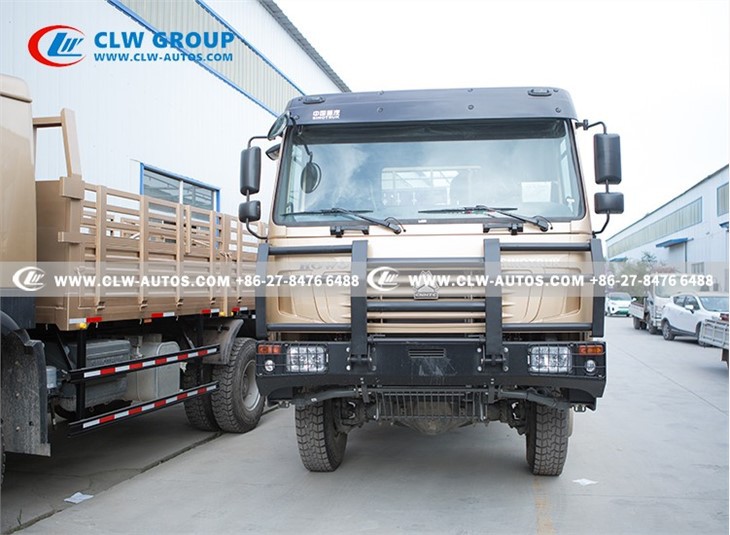

4X4 Khaki color off road military soldier transport truck
|
Truck Brand |
SINOTRUK HOWO |
|
|
Driving Type |
Left Hand Driving/Right Hand Driving |
|
|
Dimension(Lx W x H)(unloaded)(mm) |
8268*2496*3200 |
|
|
Cargo body dimension (L x W x H)mm |
5500*2326*600 |
|
|
Cargo body |
Special type(with Seat, tent holder and tent, ladder) |
|
|
Oil Tank |
Standard |
|
|
Wheel base (mm) |
4300/4600/5200 |
|
|
Max speed(km/h) |
95 |
|
|
Curb weight(kg) |
7870 |
|
|
Loading Weight(kg) |
16000 |
|
|
Engine |
Model |
WD615.87/ WD615.62/ D10.31-40/ D10.34-40, water-cooled,four strokes,6 cylinders in line with water cooling , directly injection |
|
Fuel type |
Diesel |
|
|
Horse Power |
290HP/266HP/310HP / 340HP |
|
|
Emission |
EURO II/III/ IV |
|
|
Fuel tanker capacity(L) |
400 |
|
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
8198 hydraulic steering with power assistance |
|
Front axle |
STR |
|
|
Rear axle |
ST16, Loading: 16000KG |
|
|
Color |
White( Optional) |
|
|
Tyre |
12.00R20 steel wire tire |
|
|
Option: 14.00-25, 14.00R25 (Single tire) |
||
|
Tyre quantity |
6pcs + 1 spare |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500w |
|
|
Starter |
7.5Kw/24V |
|
|
Cab |
HOWO76 cab, single sleeper with air conditioner, |
|
Contact us for more military use/off road/4x4/6x6 truck with different functions.
