Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of nigeria howo 290hp 10tons lpg gas rigid truck in China. If you're going to buy high quality nigeria howo 290hp 10tons lpg gas rigid truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG Rigid Truck(also called lpg rigid tanker,lp gas tanker truck,bullet lpg truck,bullet lpg tank truck,lpg bullet tanker,lpg tanker truck,propane truck,propane gas truck,propane tanker truck,propane delivery truck,propane transport truck,lpg bobtail,lpg tanker truck,lpg bobtail tanker,lpg dispenser truck,lpg refueler truck,lpg refilling truck,bulk lpg truck,lpg transport truck) is used to transport liquid petroleum gas/propane gas/cooking gas/LPG for a short distance.
--LPG rigid truck from our company is optional for 5000L,10,000L,15,000L,20,000L,24,000L and 35500L.
--Design standard: Chinese GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--LPG rigid truck is optional for accessories :ROCHESTER float-ball/magnetic level gauge or rotator level gauge,chinese or corken lpg pump,flow meter or lpg dispenser.
--Optional truck chassis brands for LPG rigid truck: DONGFENG/HOWO/ISUZU/FAW/SHACMAN...
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every propane tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
Reference picture

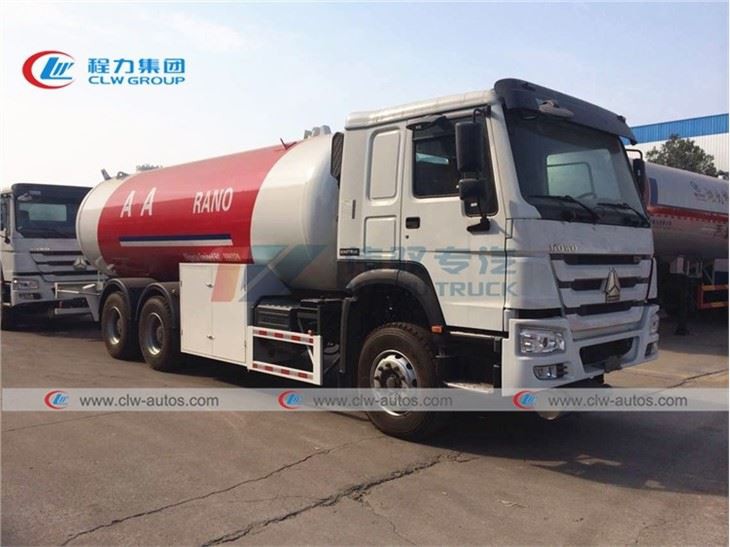

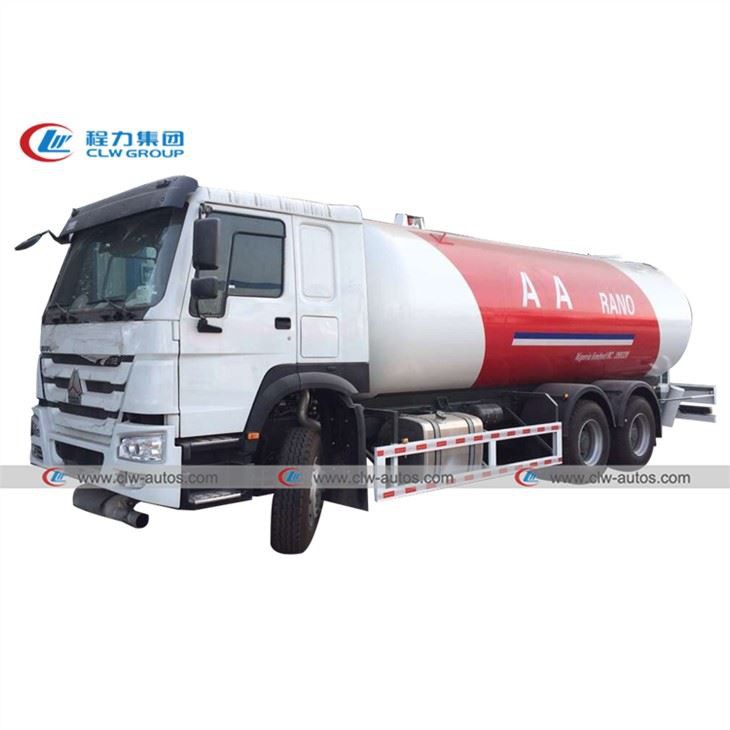

(front side view of sinotruk howo 10tons lpg rigid truck)
(Cabin of China sinotruk howo 10tons lpg rigid truck)

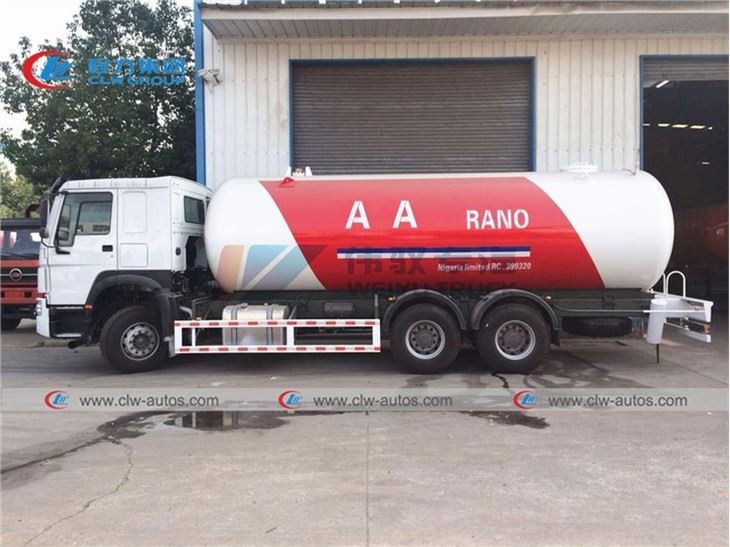

(side view of sinotruk howo 10tons lpg truck for MEGA oil company AA RANO in nigeria)
(sinotruk howo 10tons lpg rigid truck equipped with chinese top brand lpg vane pump and flange 2" and 3" liquid and vapour phase)
Specification
Item No. | Parameters |
Overall Dimension | 10720x2480x3420mm |
Driving Model | left hand drive |
Gross Vehicle Weight | 25000 kg |
Curb Weight | 14240kg |
Payload | 10630kg |
Wheel Base | 5200+1350 mm |
Front/rear Tread | 2022/1830 mm |
Approach/Departure Angle | 16/12 degree |
Front Axle | HF9,9000kg |
Rear Axle | HC16,16000kgX2(Heavy duty design) |
Engine | WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
Engine horsepower | 336HP EUROII |
Displacement | 9760mL (Diesel) |
Max Driving Speed | 95 km/h |
Gearbox | HW19710 |
Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
Tire | 12R22.5/12.00R20 (10 pcs with one spare) |
LPG tank | |
Volume: | 20,000Liters/24,000liters |
Tank material: | Q345R |
Tank diameter: | 2050mm |
Tank thickness: | 12mm |
End plate | 12mm |
Tank length: | 8060mm or as designed |
Gas phase | DN50 or according to customer request |
Liquid Phase | DN80 or according to customer request |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
LPG Pump | 1 pc,Chinese brand |
radiator | 1 pc |
Volume flow meter | 1 pc,English remarks with printer for receipt,Chinese brand |
Filling hose with filling nozzle | 15M |
Level Gauge | Rochester Float Ball type/located at side or rear of lpg tanker |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher Holder | 2 |
Exhaust shaft | At the front of truck for safety |
