Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of compactor garbage truck in China. If you're going to buy high quality compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.

Products Description

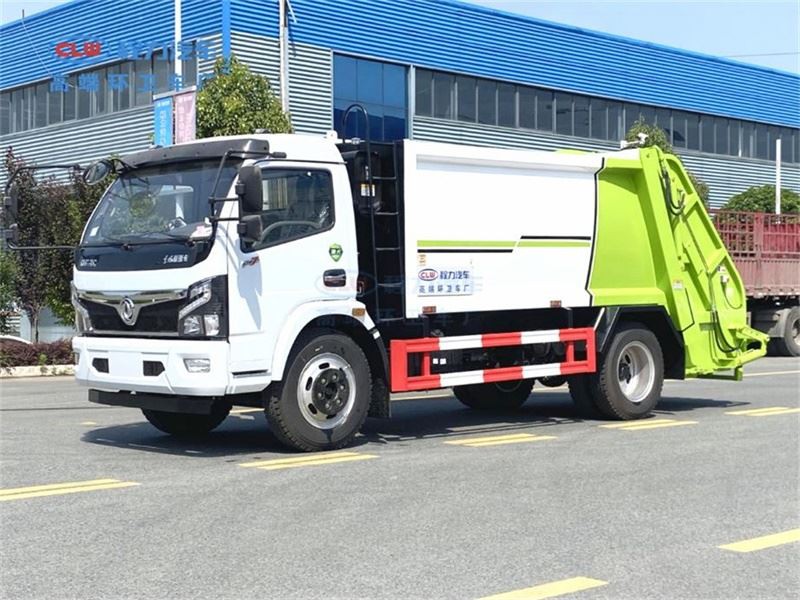

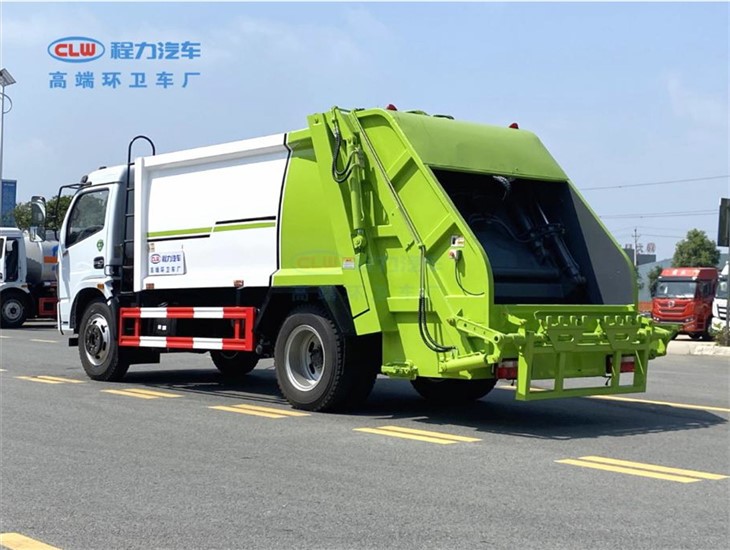

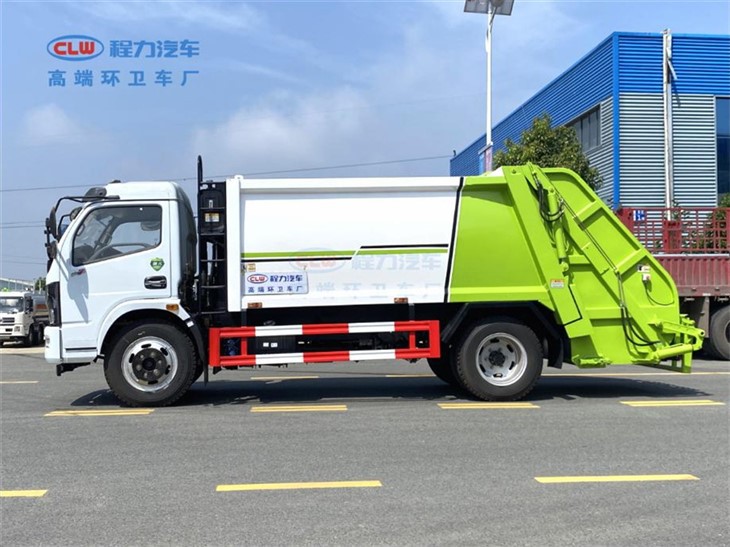

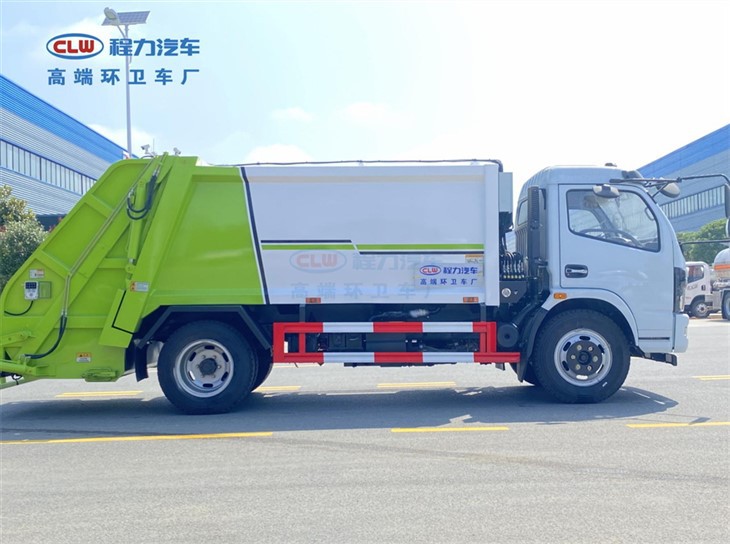

Rear-Loading Compaction Garbage Truck (also known as Garbage Compactor Truck, Compressed Garbage Truck, Compression Garbage Truck, Refuse Collection Vehicle with Compaction, or Waste Compaction Sweeper) is engineered to maximize payload efficiency and minimize operational costs. The Dongfeng Forland 8-10m³ Compressed Garbage Truck is a high-efficiency waste collection vehicle designed for urban and rural sanitation operations. It features an advanced compression mechanism that significantly increases waste capacity while reducing transport frequency, improving operational efficiency.

Products Features:

1. Eliminates scattered bins, reducing secondary pollution and street clutter.

2. 12-ton crushing force: Loads 2.5× more waste than non-compacted trucks of the same size.

3. Imported CNA computer control: Single-operator loading/unloading, cutting labor and boosting safety.

4. Auto-throttle system: Optimizes engine RPM during compaction, lowering fuel use and operational costs.

5. Computer + manual override: Ensures reliability and continuous operation, minimizing downtime.

6. Customizable lifters: Bucket flipper / rear swing-arm container / sealed large-bin compatibility.

7. Small footprint: Navigates narrow streets, height-restricted zones, and basement access.

8. Universal Container Support: 300L steel bins, 240L plastic bins, 800L onboard hoppers, 1,400L sealed hoppers, 3,350L large hoppers.

product parameters

Chassis Configuration:

Wheelbase	3,800 mm
Cabin	2,030 mm Wide-Body Cab
Transmission	Wanliyang 6-Speed Manual Gearbox
Engine	150 HP / 170 HP Yunnei Dewei Diesel Engine
Axles	Front: 3.5-Ton Capacity, Rear: 6-Ton Capacity
Tires	825R20 Radial Steel-Belted Tires

Upper Body Configuration:

Body Material	High-Grade Q235 Manganese Steel Plate	Hydraulic Cylinders	Hyprez
Side Walls	4mm	Seals	Japan Valqua
Floor	5mm	Hydraulic Hoses	Bangwei
Body Volume	8 m³ (≥200×240L GB Standard Bins)	Hydraulic Steel Pipes	Xuzhou Global
Compression Structure	Bidirectional Compaction System	Control System	Siemens PLC
Hydraulic System	Yangzhou Zhongmei Multi-Way Valve	Wastewater Tanks	Dual Wastewater Tanks (Rear + Side)
Optional Configurations	1. Dual 240L Bin Tipper 2. Dual 240L Dustpan Tipper 3. Dual 240L + Single 660L Tipper

| Compaction Mechanism | Structure | Plate Welded from Steel Plate + Channel Steel, guide wheels, cylinder mounts. |

Our Advantages

1. Lightweight Design & Performance Optimization

Given the complex structure and heavy weight of compactor garbage truck bodies, reducing self-weight and improving payload efficiency significantly lowers operational costs. Strategies include:

High-strength materials for the main body to minimize weight while retaining durability.
Low-density injection-molded parts (e.g., fenders, trim, covers) for auxiliary components.
Highly integrated components to reduce space usage and self-weight, enhancing hydraulic system performance.

2. Rigorous Pre-Delivery Testing

Dedicated test drivers conduct simulations under diverse, harsh operating conditions.
Full-scale, real-world testing for all compactor systems prior to delivery.

3. Warranty & After-Sales Support

Unconditional post-sale service for any non-customer-induced malfunctions.
Zero-cost repairs for clients under warranty, ensuring hassle-free ownership.

Safety Precautions

1. Bystander Safety

Keep unauthorized personnel away from the vehicle during operation, especially near the rear area.

2. Proper Waste Loading

Distribute waste evenly in the hopper to avoid imbalanced vehicle weight or overloading the hopper edges. This ensures uniform compaction and prevents uneven waste distribution in the bin.

3. Avoid Non-Compostable Obstructions

Monitor compaction closely. Immediately halt operations if large, non-compressible debris (e.g., construction waste) is detected. Remove obstructions before resuming to prevent damage to the compaction mechanism. Never compact construction waste.

4. Safe Ejection Procedures

Verify clear surroundings before raising/lowering the compactor body. Never raise it on inclines, as this risks rearward weight shift and rollover.

5. Pre-Driving Lockdown

The compactor body must be fully lowered and locked before the vehicle resumes normal driving.
