Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5 cbm garbage compactor truck waste disposal truck in China. If you're going to buy high quality isuzu 5 cbm garbage compactor truck waste disposal truck, welcome to get more information from our factory. For price consultation, contact us.
Main feature
1. Truck chassis: ISUZU,Dongfeng, HOWO,Foton, Shacman, JAC, JMC, FAW, CAMC etc.
2. Garbage bin box size various from 5cbm, 6cbm,8cbm,10cbm, 12cbm, 14cbm, 16cbm, 18cbm, 20cbm, 22cbm.
3. Garbage bin box material: high intense carton steel, from Well-known steel mills in China.
4. PLC control system from driver cabin and rear side of truck, easy operate by the workers.
5. multi type rear loading type for choice, customized design based on user's need.
6. High efficient compression rate 0.6 to 0.8 depends on the waste type.
Hydraulic system:
PTO: according to the transmission
Gear pump: China Top Brand
Working Pressure: 24 MPa
Rear loading garbage compactor
Garbage compression system: slide plate mechanism; scraper blade mechanism
Working time for finish one cycle: 35s

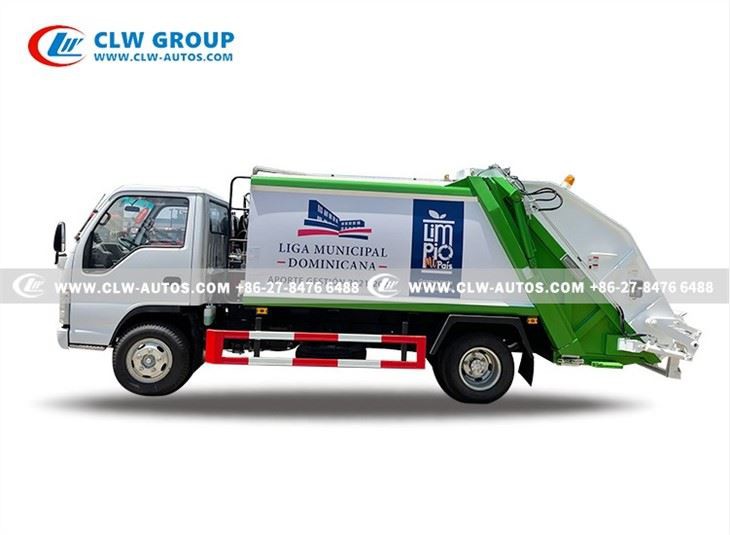

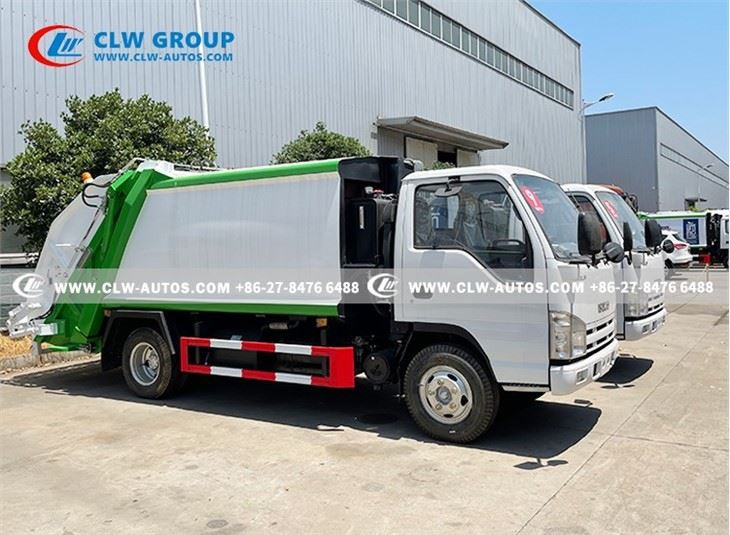

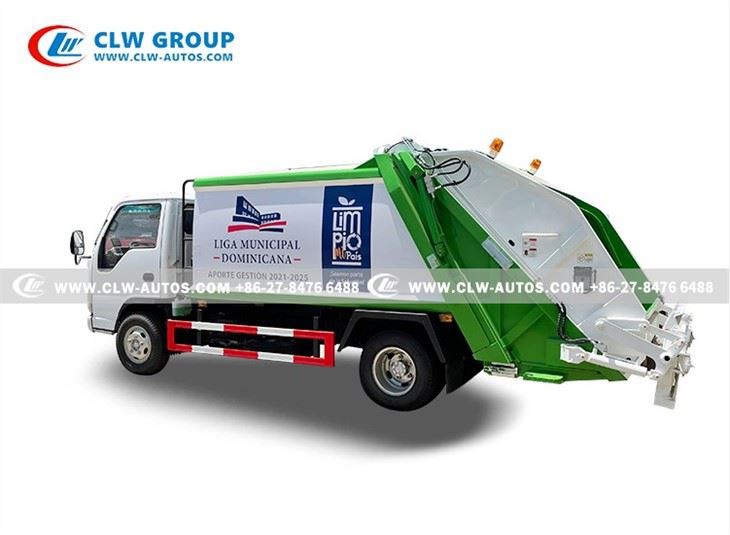

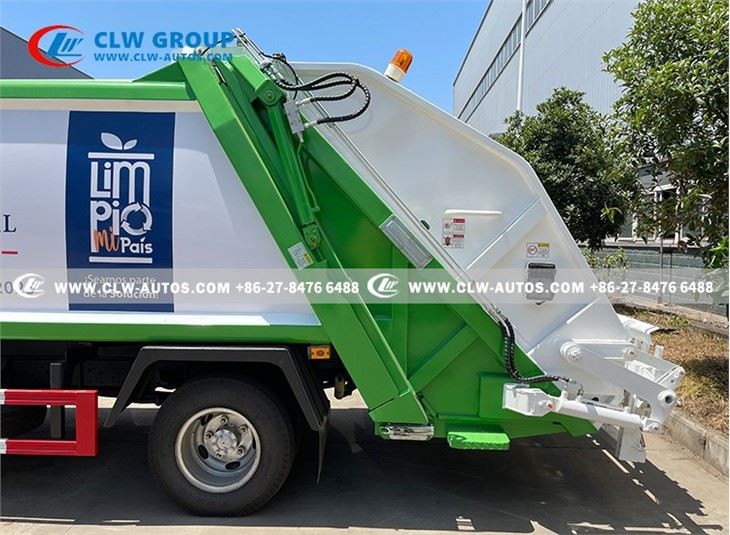

Reference picture
Specification
| ISUZU 5 CBM Garbage Compactor | |||
Overall Dimension | 6620×2050×2570 mm | Gross Vehicle Weight | 7360 kg |
Curb Weight | 5400 kg | Loading Weight | 1830 kg |
Wheel Base | 3360 mm | Front / Rear Axle | 2000/4800 kg |
Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner | ||
Engine | isuzu ENGINE | ||
Engine horsepower | 130HP, EURO 4/5 | ||
Max Driving Speed | 90 km/h | ||
Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
Tire | 7.50R16, 6 pieces with one spare) | ||
Garbage Bin | Capacity | 5CBM | |
Material | 4mm Carbon Steel for Garbage Bin Body | ||
Design | Whole unit with Leakage Proof Design | ||
Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
Garbage Compact Ratio | 0.6-0.7 | ||
Control System | One control Panel on the back, One Control system in back of Cabin | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
2. Automatic loading, compressing and discharging, all handled by 1 person | |||
3. Sewage water collection tank to avoid any pollution during handling. | |||
4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
Dependable Security | |||
5. Electrical Control Panel for compacting system. | |||
6. Cycling time<14~18s | |||
Remarks | 1. Color is optional | ||
2. Customized LOGO painting as per customer request | |||
Diagram for compressed garbage truck
