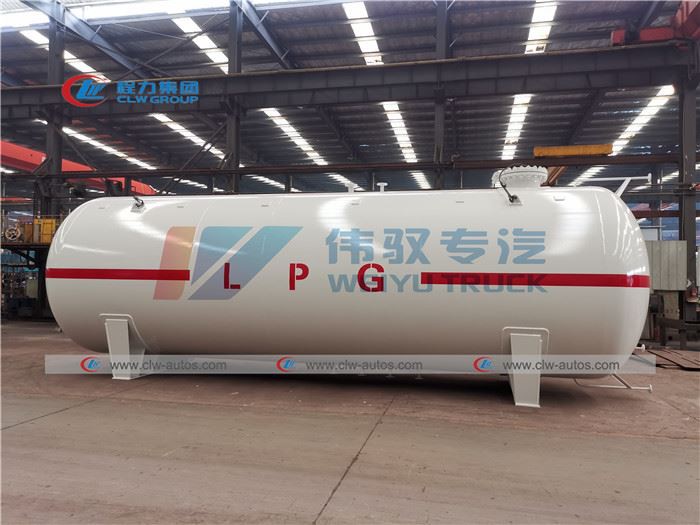

50cbm 25tons 25mt LPG Storage Tank
Tank Capacity:50cbm/25tons
Design Pressure: 1.77 Mpa
Loading capacity: 17,995kg
corrosion allowance: 1mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50cbm 25tons 25mt lpg storage tank in China. If you're going to buy high quality 50cbm 25tons 25mt lpg storage tank, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6.Maintenance-free operation with simple calibration and proof testing.
7.20 years guarantee against manufacturing defects.
Production Procedure
1. Steel Plate Cutting &Rolling
2. Tanker Body Welding
3. X-ray Welding Seam Detection: each vertical and circular welding seam will be X-ray tested, to prevent welding defective like bubble & cracks
4. Whole Tanker Heat Treatment
5.Water Pressure Test: hydraulic water pressure test: 2.22 Mpa, to make sure tanker meet designed pressure
6. Painting with customize logo

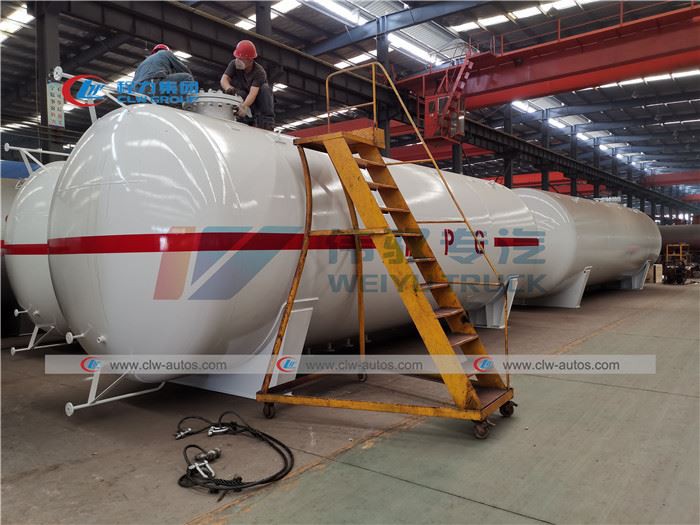

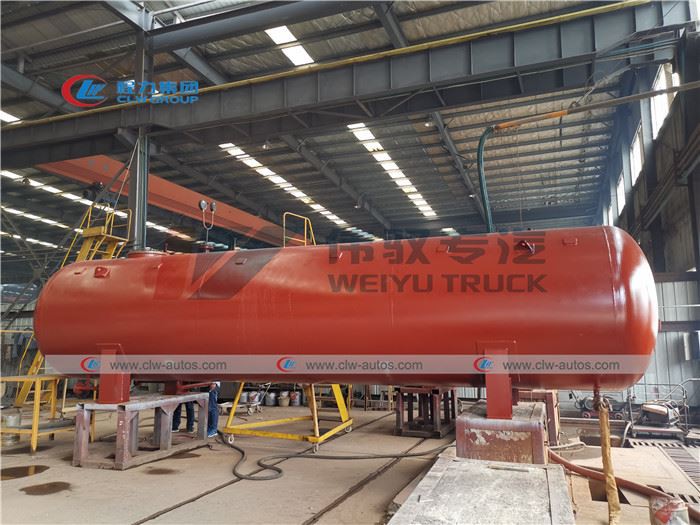

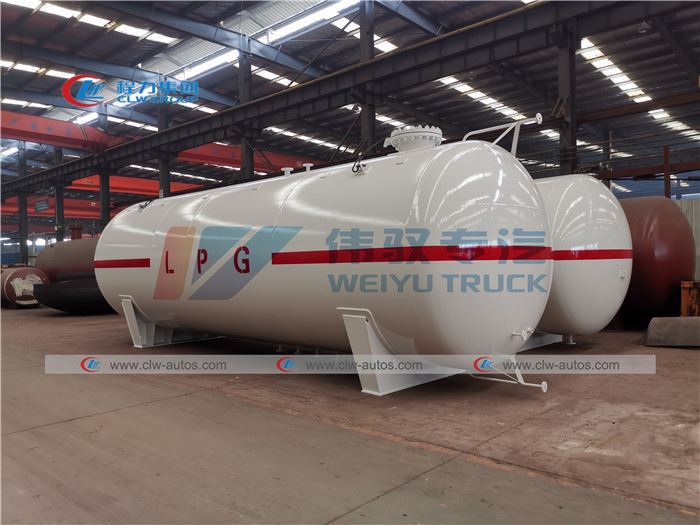

Re
ference picture
Specification
Parameter of 50cbm/25tons LPG storage tank | ||||||
ITEM | PARAMETER | ITEM | PARAMETER | |||
Volume | 50000liters | Thickness of Shell | 14mm | |||
Tank Material | Q345R | Thickness of End plate | 16mm | |||
Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | |||
Tank Diameter | 2700mm | Loading Capacity | 19950kg | |||
Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
Life time | 15 years | |||||
Accessories | ||||||
Model | Item | Qty | Junction surface | |||
J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
