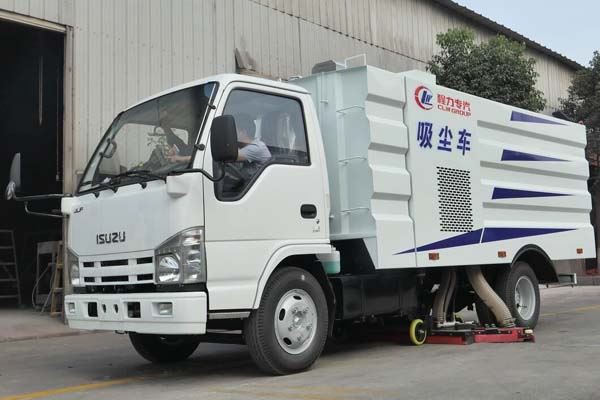

Vacuum Road Sweeper Truck
Purpose: For coal plants, power plants, cement plants, steel plants and mining pavements cleaning.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of vacuum road sweeper truck in China. If you're going to buy high quality vacuum road sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: For coal plants, power plants, cement plants, steel plants and mining pavements cleaning.
2. Main products: Deputy engine, fan and hydraulic system
3. Deputy engine: China local famous brand
Specification
| ||||
| 4X2, Left hand drive | |||
| Dimensions(L x W x H)(mm) | 6200*2000*2590 | ||
Wheel base (mm) | 3360 | |||
Overhang (front/rear) (mm) | 1015/1815 | |||
Wheel track (front/rear) (mm) | 1504/1425 | |||
Approach/Departure angle(°) | 24/13 | |||
| Curb Weight (kg) | 4880 | ||
Front/Rear axle loading(kg) | 2500/4800 | |||
| 110 | |||
| Model | 4JB1CN | ||
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horse Power(HP) | 98 | |||
Displacement (ml) | 2771 | |||
Emission standard | Euro IV | |||
| 5 forwards & 1 reverse | |||
| Power steering, hydraulic steering with power assistance | |||
| Hydraulic oil brake | |||
| 7.00-16 tire , 6 + 1(spare tire) | |||
| ||||
| Garbage tank | Tank material | Stainless steel 304 | |
Tank volume(cbm) | 4.0 cbm | |||
Water tank | Tank material | Stainless steel 304 | ||
Tank volume(cbm) | 1.0 cbm | |||
| Max. Operation ability(m2/h) | 40000 | ||
Max. Sucking dimension(mm) | 50 | |||
| Model | ISUZU Brand | ||
Quantity(No.) | 1 | |||
Power(kw/HP) | 55 /75 | |||
| Quantity(No.) | 1 | ||
Brand | China famous brand | |||
Power(kw) | 18 | |||
Speed(r/min) | 2900 | |||
Reference Picture
Production Process
①Super Structure frame welding and installation.
②Deputy engine installation
③Hydraulic system and sweeping system installation.
④Control system and electricity device installation.
⑤Painting and Customized LOGO design
⑥Hydraulic control system is optional
Our Advantage
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
FAQ
Q1: Can you supply right hand drive ISUZU truck?
A: No, only left hand drive truck chassis is available.
Q2: Whether the power of fan is enough?
A: Yes, we adopts China famous brand powerful fan of our Vacuum road sweeper truck.
Q3: Can you supply International brand deputy engine of your road sweeper?
A: Yes. We all adopts Japanese brand ISUZU deputy engine.
Q4: Can you install a suction hose in this car?
A: Yes, we can install a suction hose in the rear of garbage box can it can be used for suction leaf.
