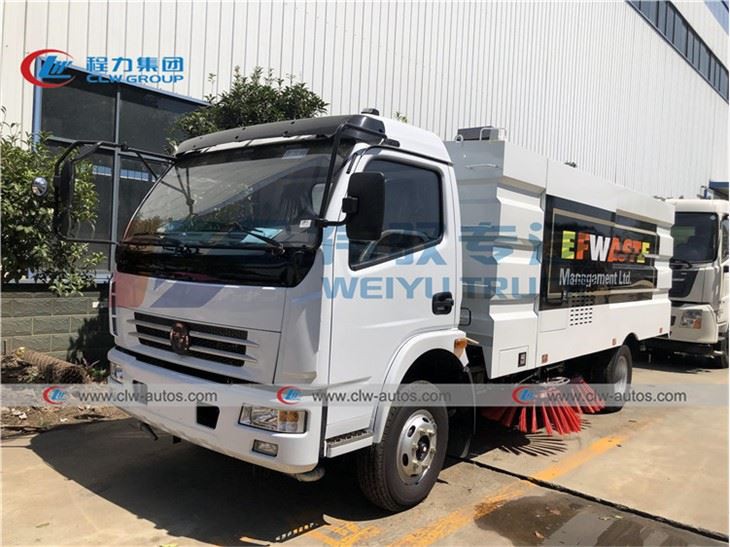

Dongfeng 8CBM Street Square Factory Cleaning Road Sweeper
Engine:Diesel/120hp
Water Tank:2000liters
Dust Container:6cubic meters
Wheelbase:3800mm
Brush No.:4
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8cbm street square factory cleaning road sweeper in China. If you're going to buy high quality dongfeng 8cbm street square factory cleaning road sweeper, welcome to get more information from our factory. For price consultation, contact us.
DescriptionRoad sweeper(also called sweeper truck,road cleaning truck,vacuum sweeper) is a new generation of environmental protection, cleaning and suction combined with road cleaning special vehicles, mainly applicable to the city streets, municipal square, large factories and mines mechanized cleaning and cleaning operations.
Road sweeper can not only sweep garbage, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, maintains the good working condition of the road, and reduces and prevents traffic accidents. Occurrence and further extend the service life of the road surface. The road sweeper is a special sanitation vehicle equipped with sweeping systems such as sweeping brushes, and is mainly used for cleaning operations in large and medium-sized urban sanitation departments. The road sweeper greatly liberated the work intensity of sanitation workers, improved work efficiency, and reduced secondary pollution such as dust.
Feature★With 4 Nos of sweeping brushes in middle ★Turntable realizes three-speed speed regulation★Stainless steel/carbon steel water tank,stainless steel dust tank★jmc auxiliary engine 78hp or cummins 140hp auxiliary engine ★Sanyo Motor, Schneider control switch, Hypress solenoid valve group, infinitely variable automatic clutch, maintenance-free centrifugal automatic fan, ★Tail LED arrow indicator,★manual pump emergency system,★Zoomlion Polaris electronic water pump★garbage lifting Tipper function.
Optional configuration:
1. Optional trash can self-cleaning function
2. Optional reversing monitoring function
3. Optional front flushing and back sprinkling functions
4. Optional dust suction pipeline at rear
★Working width: 3M
★Inhalation particle size: φ120mm.
★Water tank volume: 2m³
★Trash bin volume: 6m³
★Maximum operating capacity: 15000㎡/h-60000㎡/h

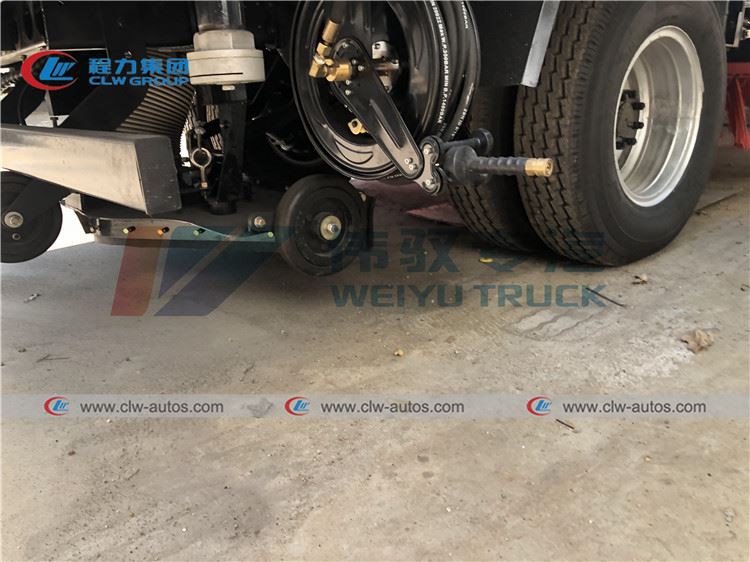

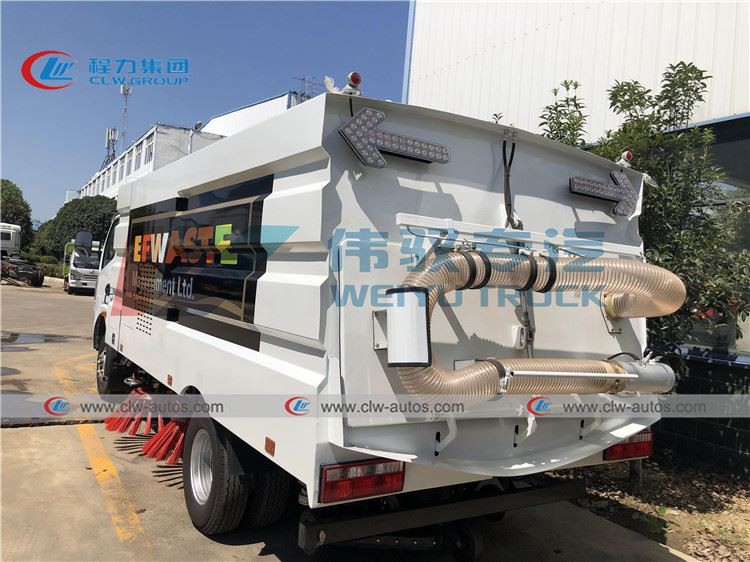

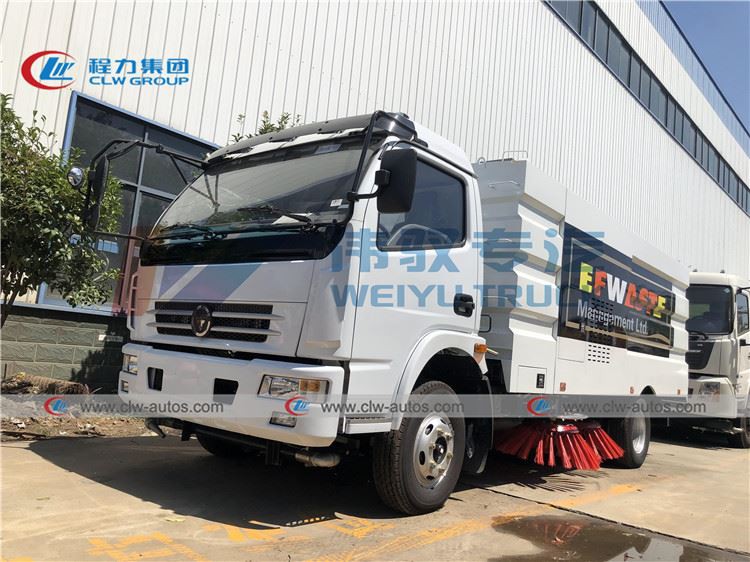

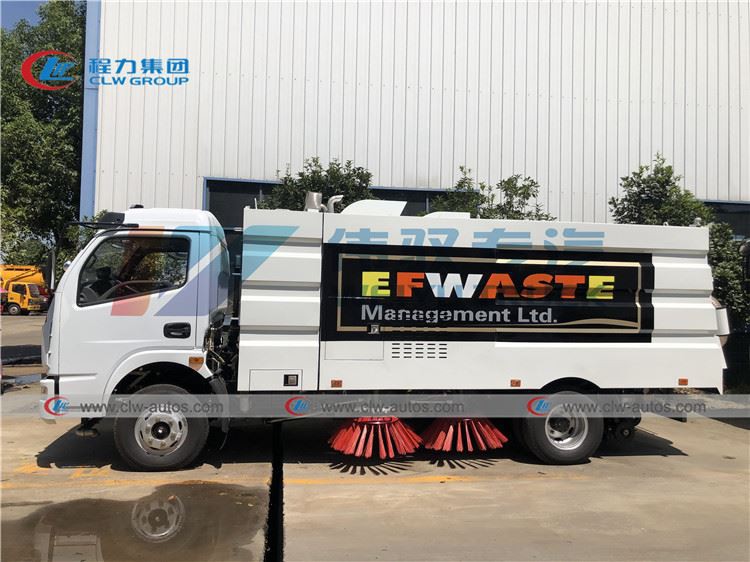

Reference Picture
Technical parameter
| Driving type 4x2 LHD
| |||||||
single row,with two seats,audio with USB， | ||||||||
| Overall dimensions (L x W x H)mm | 6700×2200×2750,2500 | ||||||
Wheel base (mm) | 3800 | |||||||
Wheel track (front/rear) (mm) | 1740/1610 | |||||||
Approach/Departure angle(°) | 20/14 | |||||||
| Tare Weight | 8275 | ||||||
payload | 2180 | |||||||
Front axles loading capacity | 3310 | |||||||
Rear axles loading capacity | 4965 | |||||||
| 90 | |||||||
| Brand | ChaoChai | ||||||
Model | CY4102 | |||||||
Horse Power（HP) | 120HP | |||||||
Emission standard | EuroIII | |||||||
| 5 forwards & 1 reverse | |||||||
| Left hand drive | |||||||
| 7.00R16,6 tires with one spare | |||||||
| 3M | |||||||
| 3~20 km/h | |||||||
| 60000 m2/h | |||||||
| ≥110mm | |||||||
| ≥45° | |||||||
| 6000liters,double layer,Stainless steel inside | |||||||
| 2000Liters | |||||||
| Model&Manufacturer | JIANGLING JX493ZQ | ||||||
Type | Four-injection,water-cooling,diesel engine | |||||||
Power | 77hp/3600r/min | |||||||
Max. Rotation Speed | 2400r/min | |||||||
Oil type | Diesel,share the same fuel box with chassis | |||||||
| Type | High pressure centrifugal | ||||||
Curb rotation speed | 2600-2900r/min | |||||||
Driving model | Driven by auxiliary engine and transferred by transmission parts,clutch and belts | |||||||
| Type | electro-hydraulic Centralized Control | ||||||
Main parts | Gear pump、gerotor motor、hyraulic oil cylinder、magnetic valve、manual pump | |||||||
Overflow pressure | 14MPa | |||||||
Hydraulic oil type | L-HV46(when temperature is 30℃-5℃) | |||||||
Hydraulic oil box | 70L | |||||||
| Main parts | Water pump,water filter,sprinkler,water box | ||||||
| Con-structure | Two batteries(in series) | ||||||
Voltage | 24V | |||||||
Battery model | 12-80A.H | |||||||
| Type | Fours brushes installed between front and rear axle,driven by gerotor motor.Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are gang controlled for up and down. | ||||||
Sweeper Diameter | 900mm | |||||||
Sweeper rotation speed | 80r/min | |||||||
Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | |||||||
| Type | U-shaped | ||||||
Nozzle diameter | 200mm | |||||||
Nozzle ground clearance when operation | 5-10mm | |||||||
FAQ★How can I get a sample of dongfeng 8cbm road sweeper to check your quality?Answer:Due to the road sweeper size,sample can not be sent to your country.But we have supplied a lot of road sweepers to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
★How long can I expect to get the road sweeper ?Answer:20~30 working days after receiving deposit at account.
★What's your payment term?
Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of road sweeper ?
Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.
★Does your road sweeper have warranty service? How long is the warranty period?
Answer:Yes,one year free warranty for tanker body,axles.
