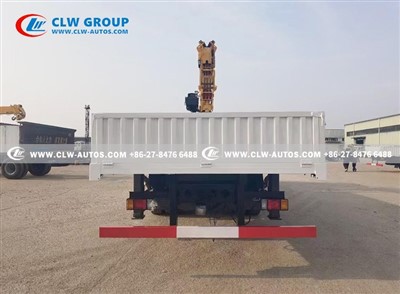

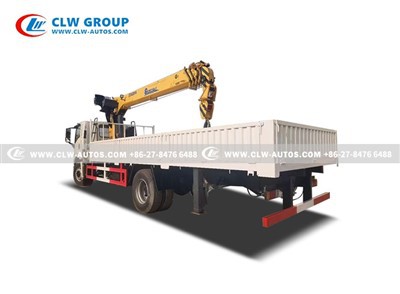

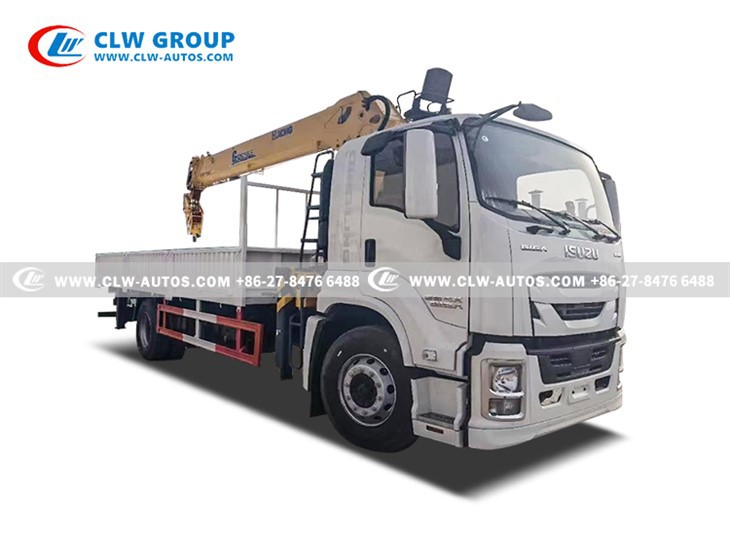

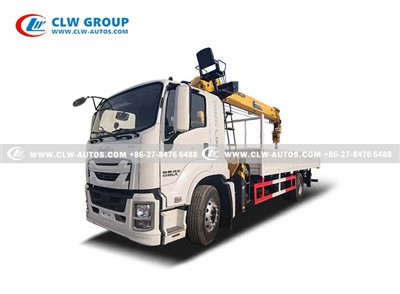

ISUZU 4X 10 Tons Straight Boom Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x 10 tons straight boom crane truck in China. If you're going to buy high quality isuzu 4x 10 tons straight boom crane truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU 4X 10 TONS STRAIGHT BOOM CRANE Truck



We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance





ISUZU GIGA Crane Truck, ISUZU 10-ton truck crane,ISUZU truck with crane is an engineering vehicle, mainly used for lifting and transportation operations in docks, workshops, construction sites and other environments.



We supply customized design for ISUZU crane truck, could you please let us know your request?

--Crane configuration: Optional 5 tons,6 tons, 8-ton, 10-ton, and 12-ton cranes, brands include CLW,Sany, XCMG, Shimei, Zoomlion, etc.

--XCMG crane supports 360-degree full rotation, and the operation mode is optional, including upper, middle, or lower operation.

--Crane is with Standard front hydraulic outriggers,optional for single-chamber or double-chamber hydraulic rear outriggers for stability.

--Crane type: divided into straight arm type and folding arm type.

--Straight arm cranes have different lifting weights at different boom lengths. For example, they can lift 10 tons when the arm is not extended, and 1.5 tons when it is fully extended to 12 meters.

--The lifting weight of the folding arm crane is 1.7 tons when it is fully extended to 9.755 meters. The lifting weight is not only related to the boom length, but also to the elevation angle. When the boom length remains unchanged, the greater the elevation angle, the greater the lifting weight. ‌

--Single pump or double pump can be selected.

The double pump has a large flow rate and can operate multiple actions at the same time, making the lifting smoother. ‌

--The cargo box bottom plate is made of side 3mm and bottom 5mm thick carbon steel material, the sideboard can be made detachable, and the tail can be manually retracted or hydraulically retracted.



--For a Crane truck or truck-mounted crane, you need to consider the three major elements of the chassis, crane, and cargo box. At the same time, you should consider the working condition. For an open working environment, you can choose a ISUZU straight-arm truck-mounted crane, and for a narrow working environment, you can choose a folding-arm or kunckle boom ISUZU truck-mounted crane.



--Application scenarios: Truck cranes can be seen in industrial parks, green planting, power construction, docks and ports, etc. Its hydraulic system has powerful lifting and flexible retraction, which is suitable for a variety of lifting and handling work needs.







• For Quick inquiry: +86 135 4506 4324(whatsApp)
• Email: shirley@clw-autos.com

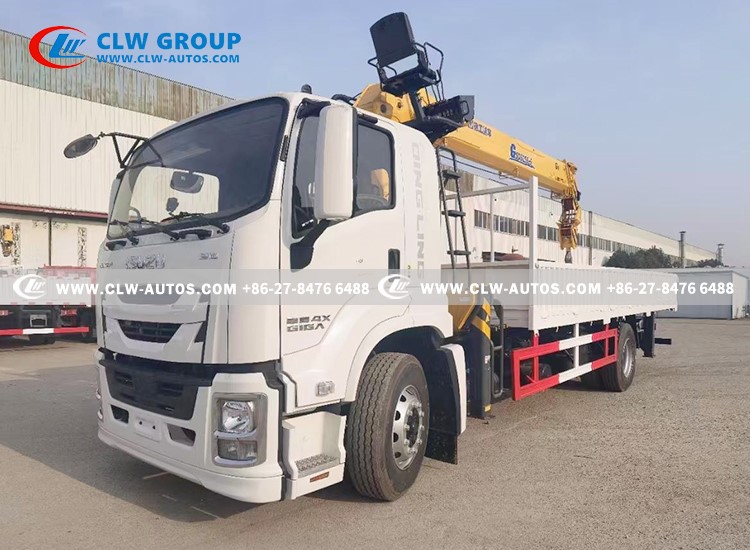

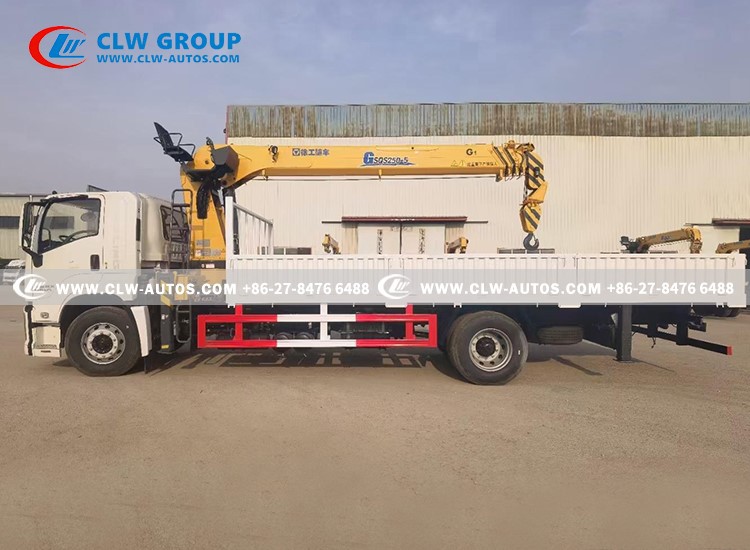

The whole truck is combined with

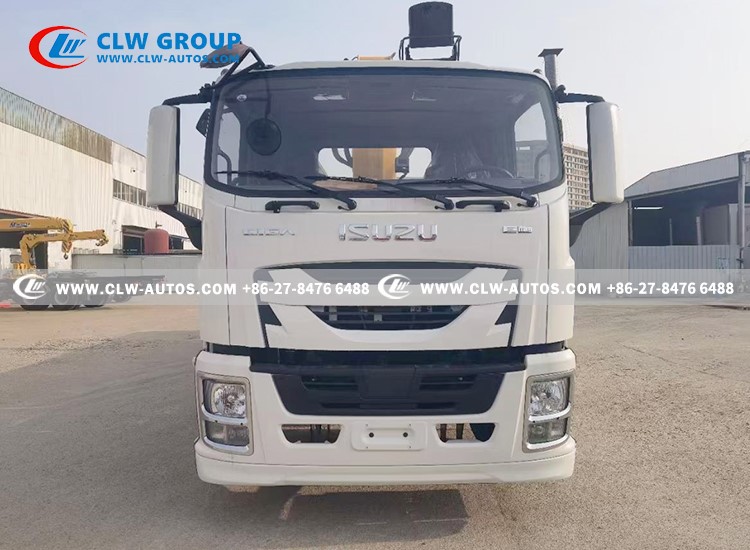

--ISUZU GIGA 4X 205HP truck chassis

--XCMG KSQS250-4  10tons with aerial operation seat

--Crane section can be 4 or 5 section

--Lifting height 16meters

--Working radius/Outreach 14 meters

Customized design is available,please let us know your working condition.





Specification of Truck Chassis
Chassis Model	QL518XXYAJWHY
Driving Model	4 X 2

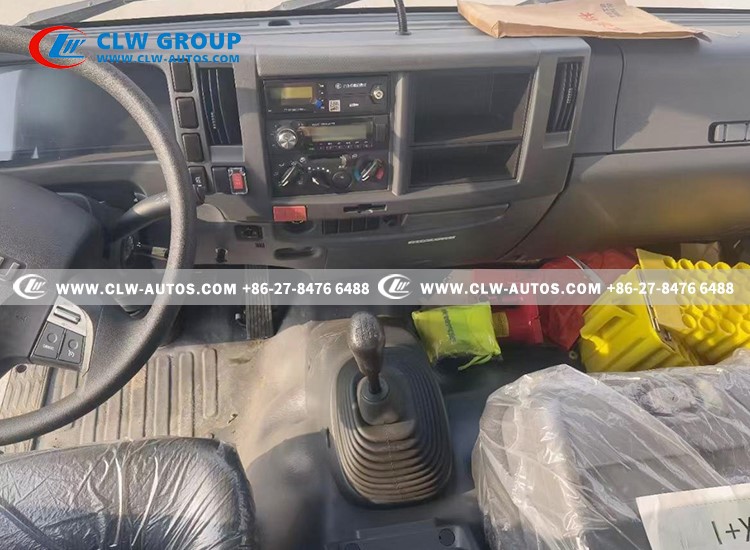

Cab	Original ISUZU VC61 cabin Single Row Left Hand Driving with air conditioner Power steering Electric window Central lock
Wheel Base	5550mm
Axle Loading (front/rear)	6300/13000 kg
External Dimensions (L x W x H)	11200×2500×3850 mm
Max. driving speed	95 km/h
Engine	Model	4HK1-TC60
	Type	ISUZU diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start.
	Horse Power	205Hp
	Max output power	151KW
	Emission standard	Euro VI
	Displacement	5193 ml
	Rated Speed	2600 rpm
Gearbox	Manual type, MLD, 6 forward gears & 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	295/80R22.5, 6 pieces with 1 spare tire.

Cargo box
Cargo box		Carbon steel with bottom 3mm and side 2mm
Box size(Length*width*height)		6500*2450*550mm
Loading capacity		10~15 tons
XCMG crane SQS250-4
Rear Landing Leg	With





​
