6x4 ISUZU 20tons Straight Boom Truck Mouted Crane
Engine:diesel engine ISUZU 240HP;
Driving model:LHD
Gear box:8-speed forward and 2 reverses
Tire:11.00R20
Crane max lifting weight:20tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6x4 isuzu 20tons straight boom truck mouted crane in China. If you're going to buy high quality 6x4 isuzu 20tons straight boom truck mouted crane, welcome to get more information from our factory. For price consultation, contact us.
Function
--Straight Boom Truck(also called Truck Mouted Crane, Truck Crane, Truck With Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
--Straight Boom Truck can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Knuckle Boom Truck;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Knuckle Boom Truck;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Knuckle Boom Truck.
Feature
--Crane: We can supply International brand XCMG and PALFINGER for optional.
--Landing leg: Hydraulic control, top quality, easy for operation.
--Storage box: High quality carbon steel Q235
--Truck chassis: Top quality ISUZU 6X4 Diesel engine truck chassis

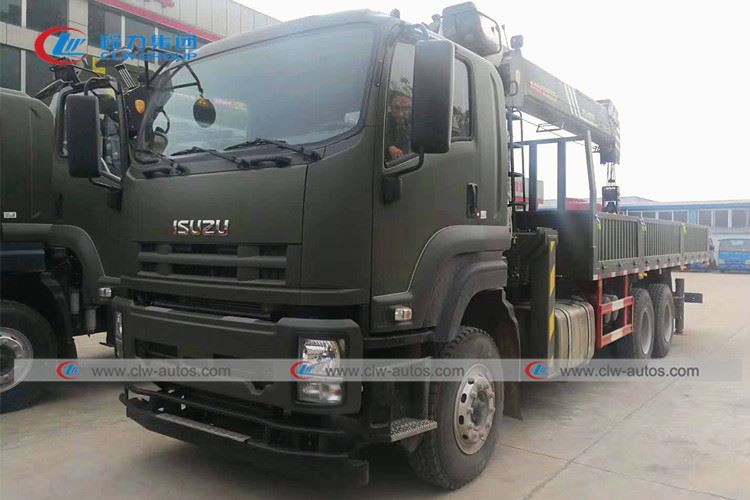

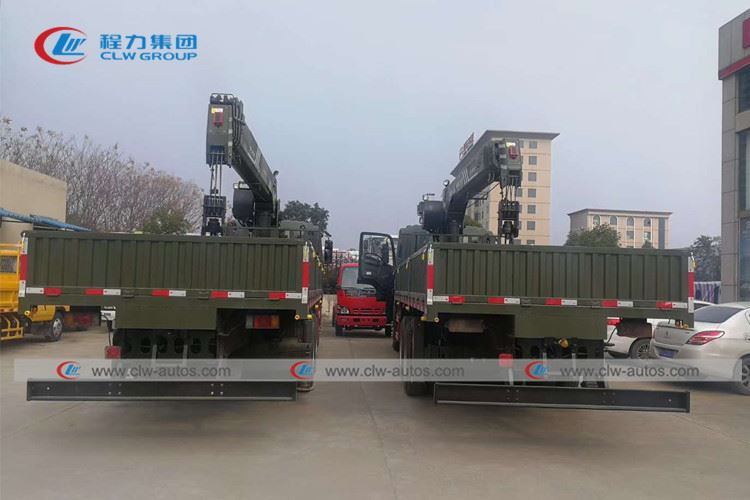

Reference picture
Specification
Parameters | |||
Drive Model | 6X4, Left hand drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9500*2500*3850 mm | |
Wheelbase (mm) | 4600+1350 mm | ||
Max. driving speed(km/h) | |||
| Engine | Type | 6-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 240 HP | ||
Emission standard | Euro IV | ||
Brakes | Service brake: Dual circuit compressed air brake. Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
Cabin | It can accommodate three people, With Air conditioner | ||
Gearbox | 8 forwards & 2 reverses | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 300 | ||
Tire | 11.00R20 , 10 + 1(spare tire) | ||
Flatbed | Loading Capacity(tons) | 20tons | |
Crane | Brand | PALFINGER | |
Working Platform | 400°turning(left or right), H-shape legs 360° | ||
Material | Q235 Carbon steel | ||
Boom Type | type | ||
Max. Lifting Weight(kg) | Theoretical max.: 20000kg | ||
Max. Oil Flow of Hydraulic System(L/min) | 80-100L/min | ||
Max. Pressure of Hydraulic System(MPa) | 33.0 MPa | ||
Key word:Straight Boom Truck, Truck Mouted Crane, Truck Crane and Truck With Crane
