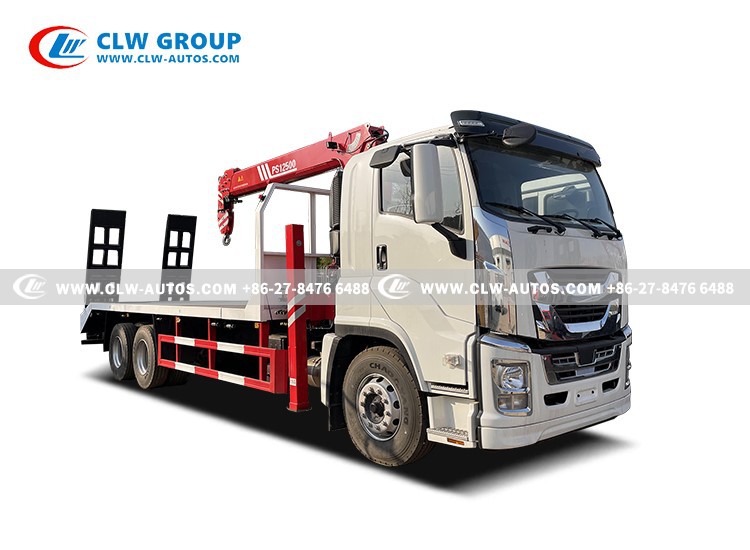

ISUZU GIGA 6X4 20FT Flatbed Truck With 10 Tons Straight Boom Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 6x4 20ft flatbed truck with 10 tons straight boom crane in China. If you're going to buy high quality isuzu giga 6x4 20ft flatbed truck with 10 tons straight boom crane, welcome to get more information from our factory. For price consultation, contact us.









Flatbed truck with crane, also called flatbed truck,excavator transport truck,forklift transport truck is specially designed and produced for transporting engineering machinery (such as excavator, loader), farming machinery(such as harvestor , rice transplanter, cultivator), and other special equipment or big machinery which are not suitable for long distances traveling.





Equipped with 6 tons/8 tons/10 tons/12 tons/14 tons crane and 10 tons winch,the flatbed truck can realize multi functions. Usually crane is installed between cabin and rear flatbed  and it is available for chinese top brands XCMG,PALFINGER or CLW crane.





Quick inquiry: +86 135 4506 4324(whatsApp)





The whole truck is combined with

--ISUZU VC61 460hp truck chassis

--7400X2500 mm flatbed plate

--Hydraulic/Mechanical rear ramp

--10 tons telescopic crane( we can adjust crane tons as per request and crane brand is XCMG/Palfinger/Shimei/clw...)

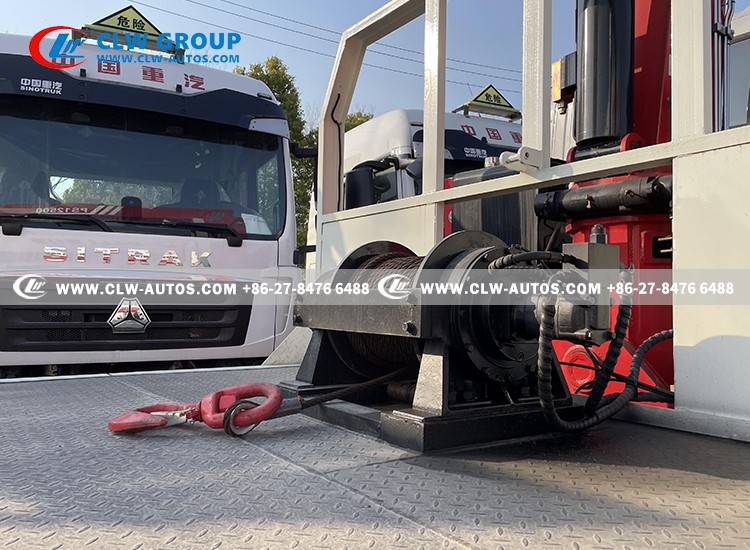

--10 tons winch/45 meters long/φ18 mm





Customized design is available,please let us know your working condition.







hssis	Model	GIGA
	G.V.W.	25000kg
	Curb Weight	9400kg
	Wheel base	5820+1370mm
	Drive type	6x4
	Engine model	6WG1-TCG51
	Engine Power	460PS
	Disaplacement	15681ml
	Tire	12R22.5 18PR
Crane	Type	Telescopic boom crane
	Max lifting capacity	10000kg
	Max Lifting Height	15.8m
	Max lifting moment	25T.M
	Max working radius	13.8m
Flatbed Body	Length	7800mm
	Width	2500mm
	Feature	The plate width can be telescopic and extended for 3.2 m operated manually.
	Bottom beam	120x120x5mm GB square steel
	Thicness	8mm checkered plate with antiskid

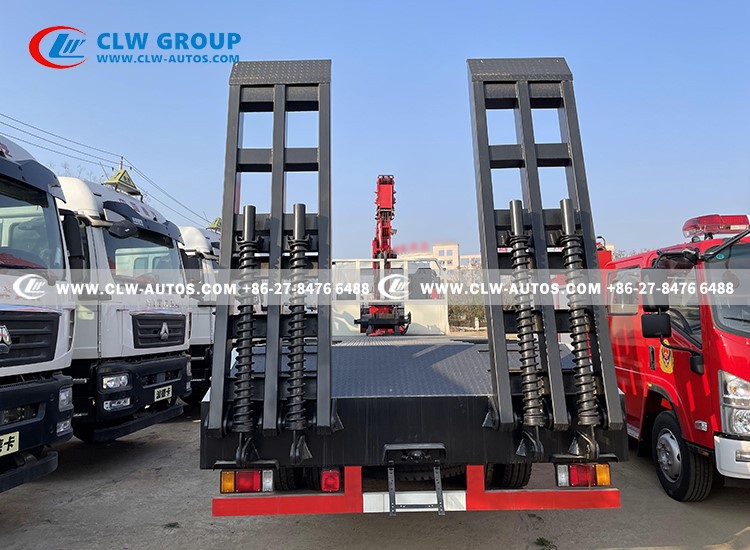

Mechanical ramp	Type	mechanical spring
	Length	2200mm
	Material	All Steel Ramp
	Feature	It adopts heavy load strengthening design, and three reinforcement ,double spring reinforcement treatment, with rear outrigger
Winch	Type	10ton,45m,18mmthick
