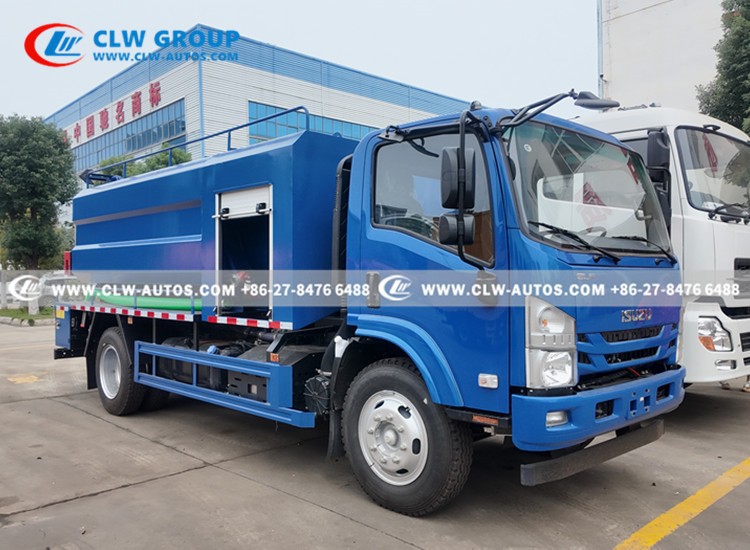

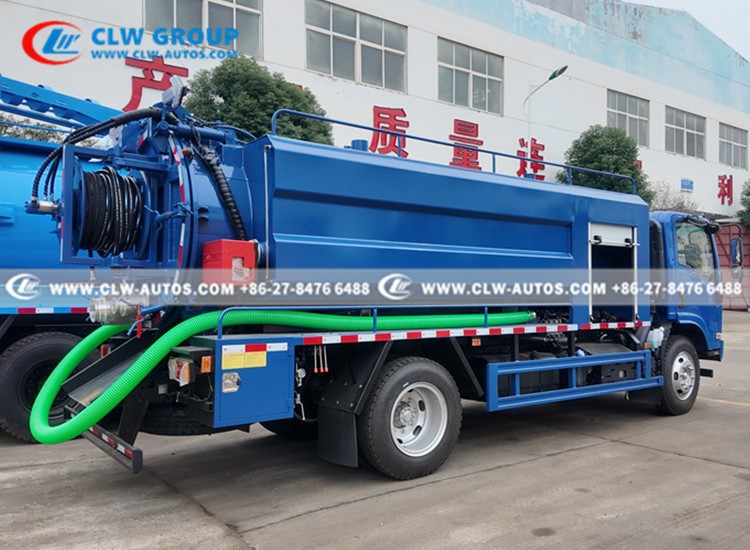

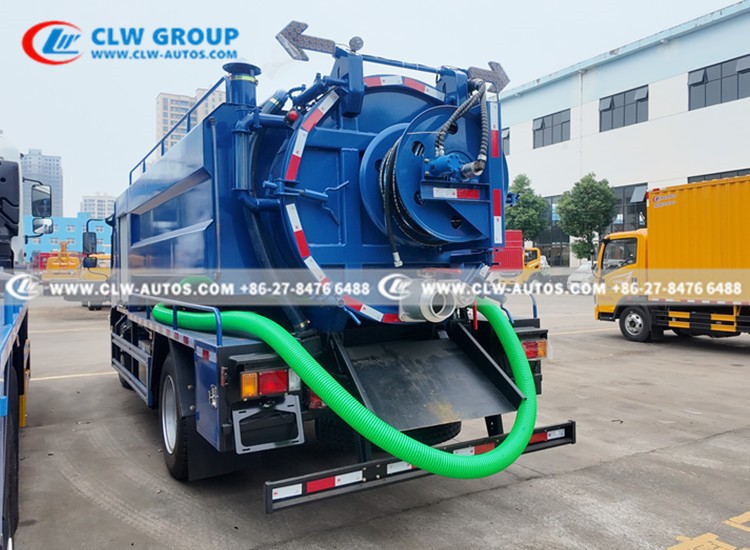

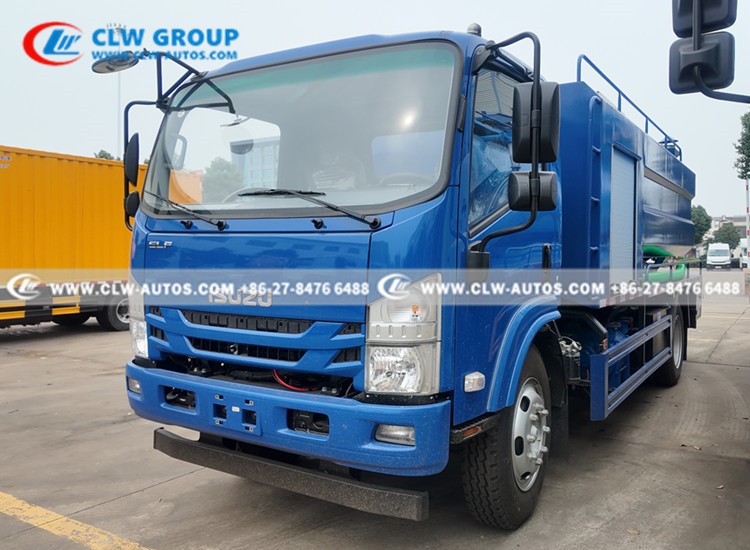

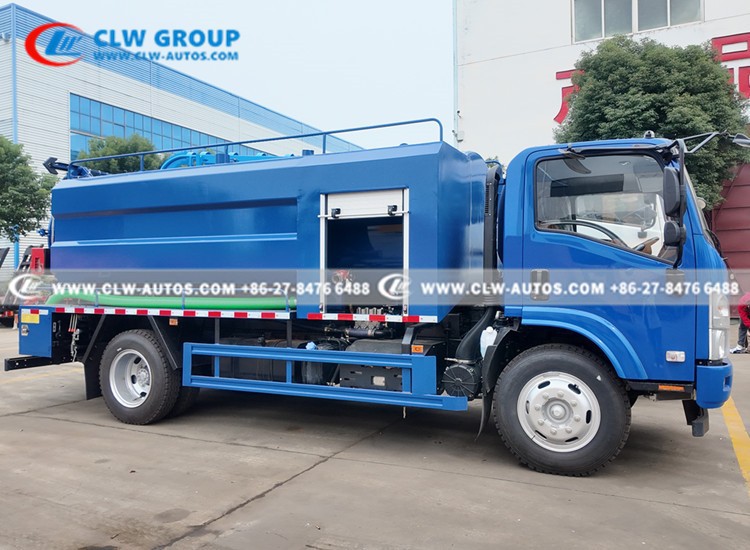

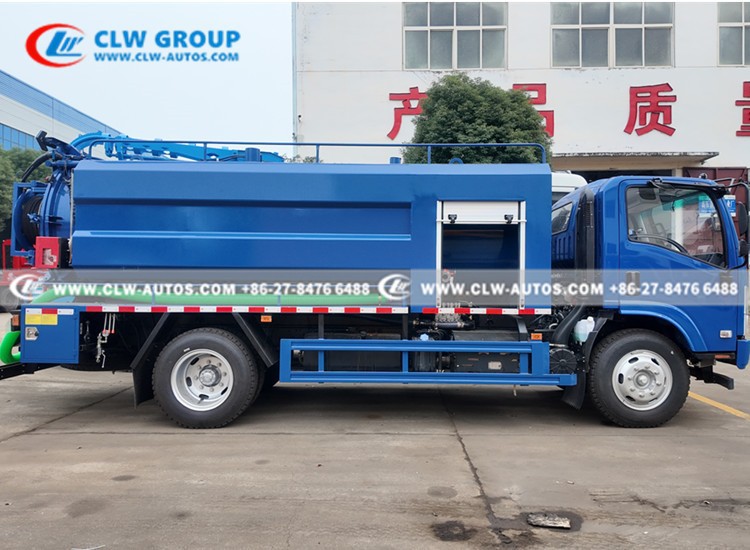

ISUZU 6000L Sludge Removal Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 6000l sludge removal truck in China. If you're going to buy high quality isuzu 6000l sludge removal truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU 700P 4x2 190HP 6,000L Septic Tank Dredging Vacuum Truck Sludge Removal Truck with a 2,000L water tank and 4,000L sewage tank.

This ISUZU 700P combination Septic tank dredging vacuum truck, Sludge Removal Truck is a versatile, powerful, and intelligent piece of equipment. The 2,000L water / 4,000L sewage split is a practical configuration that makes it an ideal choice for contractors and municipalities looking for a highly efficient and self-contained solution for liquid waste management, Pipe dredging, sewer dredging, septic tank dredging. and sewer cleaning tasks.

Common Applications

• Municipal Sewer Maintenance: Cleaning and unblocking public sewer lines.
• Septic Tank Desludging: Emptying residential and commercial septic systems.
• Industrial Waste Collection: Vacuuming liquid waste from factories and processing plants.
• Drain and Catch Basin Cleaning: Maintaining stormwater systems.
• Emergency Spill Response: Cleaning up liquid spills.
•  Sludge/Toilet Suction: Liquid Waste Removal

How To Cooperate With Us?

Our address

Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China

Phone Number

Mob: +86-135 5419 5719 (Whatsapp)

E-mail

helen@clw-autos.com

















1. Chassis: ISUZU NPS 75 (700P) 4x2

• Cab: Standard 3-persons cabin, known for comfort and good visibility.
• Drive Configuration: 4x2 (Rear-Wheel Drive). Suitable for on-road and firm ground conditions.
• Engine: ~5.2L 4-cylinder turbocharged diesel engine.
• Horsepower (HP): 190 HP. Provides ample power for driving and operating the vacuum system.
• Transmission: 6-Speed Manual Transmission is typical for this model.
• GVWR (Gross Vehicle Weight Rating): Likely around 7,500 - 8,000 kg, making it a medium-duty truck.

2. Tank Assembly: 6,000 Liters (6 Cubic Meters) Combined

• Front Compartment: 2,000L Clean Water Tank
• Purpose: Carries clean water for high-pressure jetting and cleaning.
• Material: Typically carbon steel with anti-corrosion coating (epoxy or similar).
• Inlet: Manhole with a sealed cap for filling from a standard water source.
• Connection: Outlet pipe connected to the high-pressure water pump.
• Rear Compartment: 4,000L Sewage/Sludge Tank
• Purpose: Collects and transports wastewater, sludge, and septic waste.
• Material: Carbon steel, often with a more robust internal coating to handle corrosive waste.
• Inlet: Large-diameter suction hose connection (typically 4-6 inches).
• Discharge: Rear or top-mounted manhole for pressurized or gravity discharge.

Key Systems & Operational Features

1. Vacuum System

• Vacuum Pump:  Italy MORO/JUROP brand, or Chinese Water Cycle Pump for option, The heart of the system. Likely a positive displacement rotary vane pump, powered by the truck's engine via a Power Take-Off (PTO).
• Function: Creates a powerful vacuum in the sewage tank to suck up liquid and semi-solid waste.
• Performance: Capable of creating a high vacuum level (e.g., 25-30 inHg) for efficient lifting of sludge from deep septic tanks.

2. High-Pressure Water Jetting System

• Water Pump: PINFU brand, German Brand, Made in China. A high-pressure positive displacement pump (e.g., 150-250 Bar / 2200-3600 PSI).
• Function: Takes water from the 2,000L clean water tank to power a sewer jetting hose and nozzle.
• Purpose: To break up blockages, clean pipes, and scour the walls of septic tanks before vacuuming. The separate water tank means you never run out of clean water for cleaning.
•

3. Hydraulic System

Power Source: Driven by the chassis PTO.

Operates the vacuum pump.

Powers the hose reel for the high-pressure water jet.

Controls the lifting mechanism for the suction hose.

4. Safety & Control Features

• Vacuum Relief Valve: Prevents the tank from being over-pressurized or collapsing.
• Sight Glasses: Liquid level gauges to see when the tank is full.
• Baffles: Internal plates in the sewage tank to reduce fluid surge during transport.
• Toolbox: Storage for hoses, nozzles, and other accessories.

Q1: What is this truck primarily used for?

This is a versatile combination truck designed for efficient sewer and septic system maintenance. It can high-pressure jet/clean blockages using the 2,000L water tank and simultaneously vacuum/suction the dislodged waste, sludge, and debris into the 4,000L sewage tank. It's ideal for municipalities, septic tank pumpers, and industrial cleaning companies.

Q2: What does "Combination Truck" mean?

 It means the vehicle integrates two separate systems into one unit:

A High-Pressure Water Jetting System for cleaning and cutting through blockages.

A Vacuum/Pumping System for removing the resulting liquid waste and sludge. This eliminates the need for two separate trucks, saving time and cost on jobs.

Q3: What are the key advantages of this specific configuration?

Efficiency: Clean and vacuum in a single pass, dramatically reducing job time.

Power: The 190HP ISUZU engine provides reliable power for both driving and operating the systems.

Optimal Capacity: The 2:1 ratio (4000L sewage / 2000L water) is practical, as the volume of waste suctioned is often greater than the water used for jetting.

Versatility: Handles a wide range of tasks from septic tank pumping to sewer line maintenance.

Q4: What is the vacuum pump capacity and pressure?

Vacuum Pump: Typically a 320-420 m³/h rotary vane pump.

Vacuum Degree: Can achieve a high vacuum level, often ≥ 99% (or -0.09 Mpa), for powerful suction.

Water Jetting Pump: Typically a high-pressure piston pump with a pressure range of 10-20 MPa (1450-2900 PSI) and a flow rate of 150-250 L/min.

Q5: How far and deep can it suction sludge?

The suction performance is excellent. It can typically:

Suction Depth: Reach up to 8 meters underground.

Suction Horizontal Distance: Effectively suction over a distance of ≥ 100 meters with appropriate hoses, making it flexible for hard-to-reach areas.

Q6: What is the maximum suction hose diameter?

The truck is typically equipped with a 6-inch (Φ150mm) suction hose , which is standard for handling thick sludges and solids.

Q7: How is the sewage tank unloaded?

 The tank uses a rear hydraulic flip-door for discharge. The operator hydraulically opens the door, and the tank's slope allows the sludge to be dumped quickly and cleanly. Some models may offer optional pressurized discharge for situations where dumping is not possible.

Q8: What materials can this truck handle?

 It is designed for a wide range of liquid and semi-solid waste, including:

Septic tank waste (Septage)
Sewage sludge
Industrial wastewater
Slurry from ponds and pits
Oily water (with proper post-job cleaning)
It can handle small solids, but large, heavy objects (stones, metal) should be avoided to prevent pump damage.

Q9: Can the high-pressure water system use water from an external source?

Yes. While the integrated 2,000L tank provides onboard water, the jetting pump can usually be connected to an external water supply (like a fire hydrant or external tank) for continuous operation on larger jobs without depleting the onboard tank.

Q10: Is special training required to operate this truck?

Yes. Operating this combination truck requires specific training on:

Safe operation of high-pressure water systems (which can cause severe injury).
Proper vacuum pump procedures and safety checks.
Understanding the controls for both systems.
Basic maintenance and emergency shutdown procedures.
