Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 15000l vacuum sewage jetting tank truck with jurop pump in China. If you're going to buy high quality sinotruk howo 15000l vacuum sewage jetting tank truck with jurop pump, welcome to get more information from our factory. For price consultation, contact us.
Description:
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
The Parameters of 16CBM Sewage Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck |
| Dimension(LxWxH) | 9950X2490X3350(mm) |
| Total Mass | 29005 Kg |
| Rated Payload | 20000 Kg |
| Kerb Weight | 9005 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 32/14 |
| The Parameters of Chassis | |
| Manufacture | Howo |
| Driving Type | 6*4 left/right hand drive |
| Wheel Base | 4300+1350 mm |
| Gearbox | Seven/Eight speed lever with six/seven speed forward and one reverse, manual |
| Front/Rear Track | 1940/1860/1860(mm) |
| Tyre | 10.00-20 |
| The Number of Tyre | 10+1(spare tyre) |
| Front/Rear Suspension | 1245/3055,1245/3005(mm) |
| Leaf Spring Number | 8/13,8/12 |
| The Paremeters of Engine | |
| Rated Power | 210hp/155kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5900ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/6/intercooling |
| Max. torque | 700N.m |
| Velocity | 2500rpm |

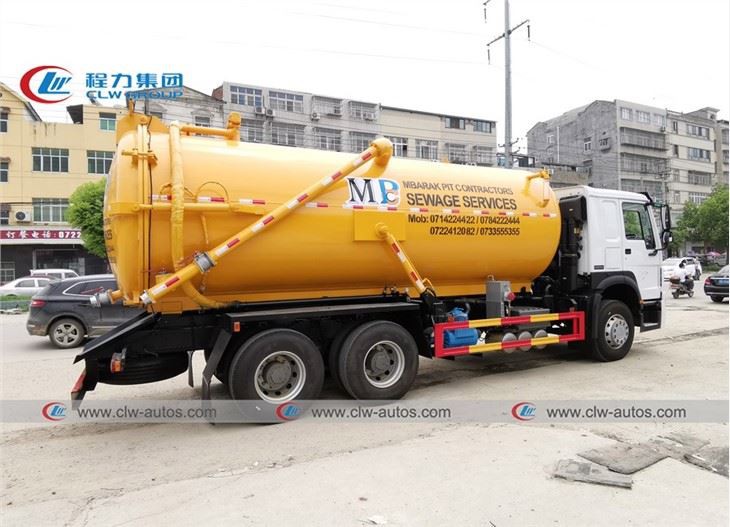

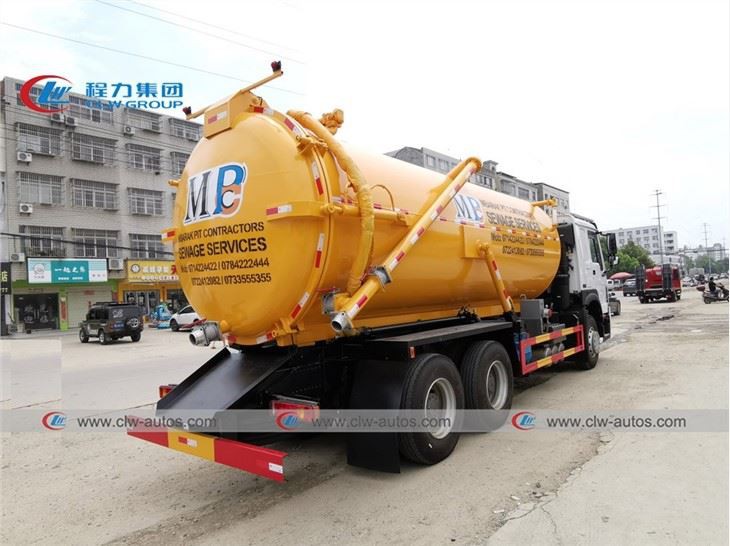

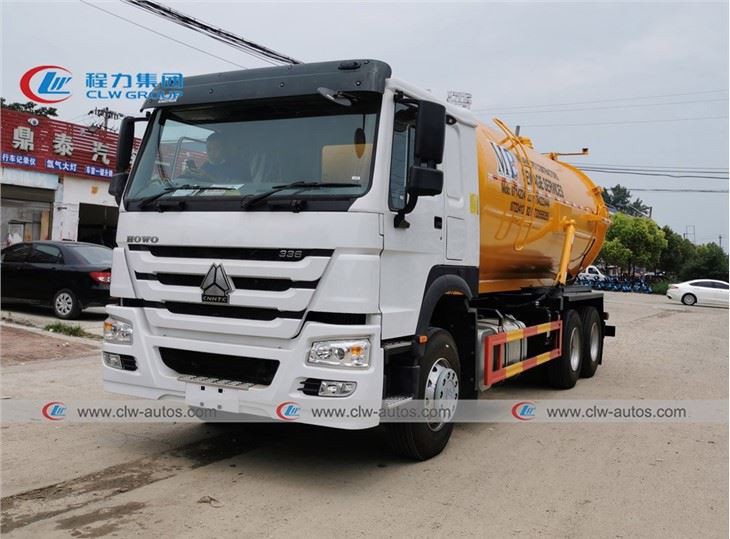

Sewage Truck Photos:

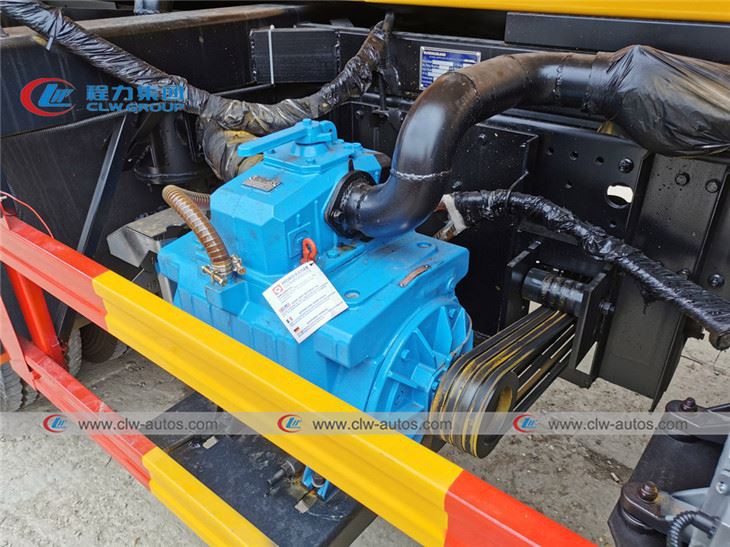

Truck Structure

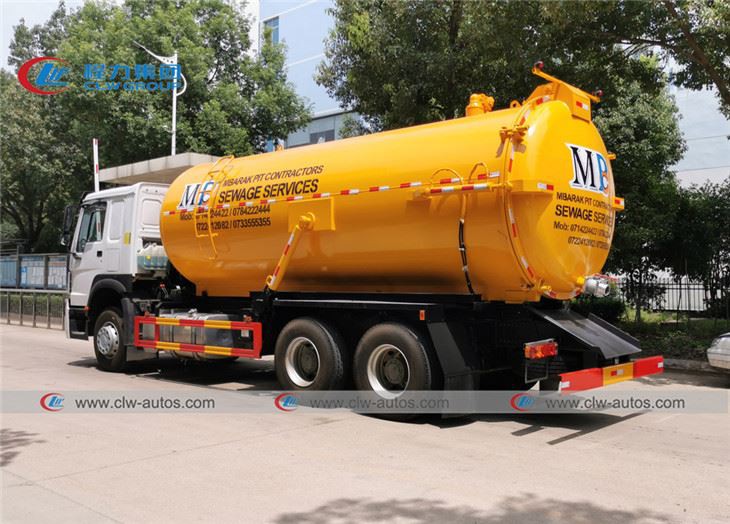

working show
