Isuzu Refrigerated Van
Features of the truck: International chassis brands and refrigerating unit brands for optional.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu refrigerated van in China. If you're going to buy high quality isuzu refrigerated van, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Specification
| |||
Overall Dimension | 5995×2130×2960(mm) | Gross Vehicle Weight | 8300(Kg) |
Curb Weight | 3210(Kg) | Loading Weight | 5000(Kg) |
| |||
Item No. | Parameters | ||
Chassis Brand | ISUZU 120P | ||
Cabin | Single, Left Hand Driving, with ABS | ||
Engine | Model | 4KH1-TCG40, 4 Cylinders | |
Power | 88KW/120HP | ||
Emission standard | EUROIV | ||
Displacement | 2999(ml) | ||
Fuel type | Diesel | ||
Gearbox | 5 Forward & 1 Reverse Gear | ||
Brake System | Pneumatic | ||
Steering Gear | Power Assistant | ||
Wheel Base | 3360(mm) | ||
Front/Rear Tread | 1504/1425(mm) | ||
Front/Rear Axle Loading | 2000/4800(Kg) | ||
Approach/Departure Angle | 24/16(°) | ||
Tire | 7.00-16 | ||
Max Driving Speed | 100(km/h) | ||
| |||
Van | Box Dimension | 4095*1900*1800(mm) | |
Refrigerator Model | Thermo King, KV300 | ||
Van Material | Color plate inside, FRP outside of the van, polyurethane foam middle | ||
Back Door | The opening of the door can be different directions | ||
Normal Temperature | 0° C— -18 ° | ||

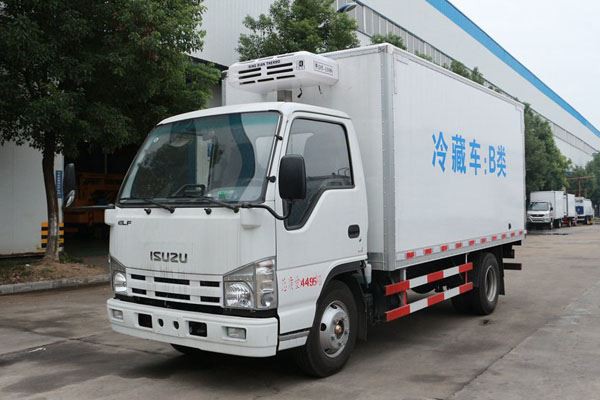

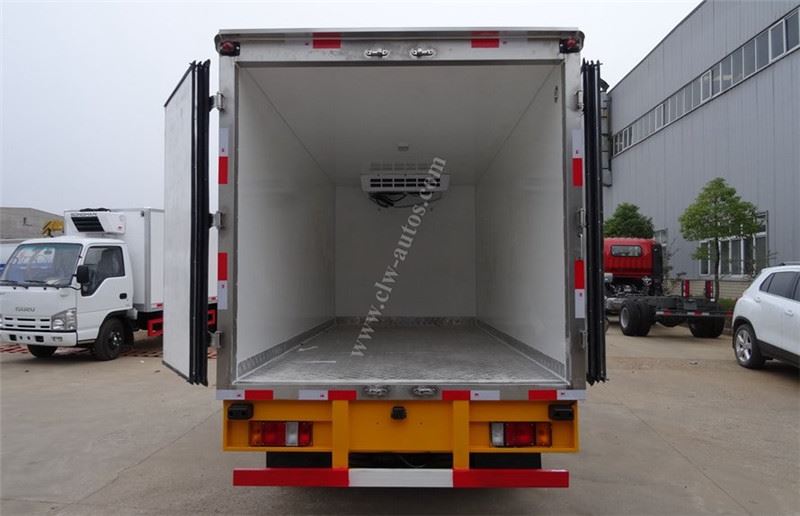

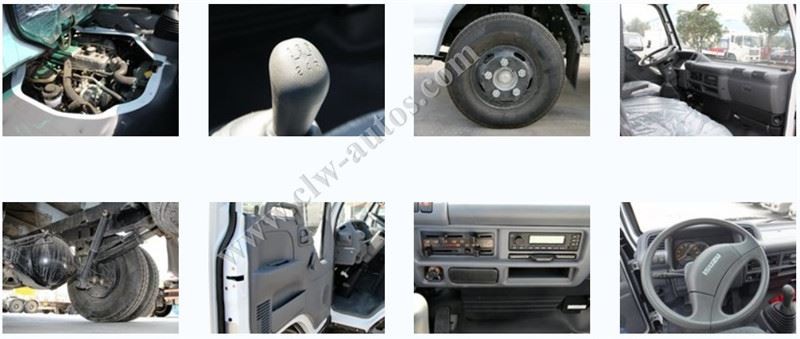

Reference Picture
Our Advantage
1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam(60mm,80mm,100mm) in the core.
2).Light in weight:40% lighter than metal body.
3).It is good at strength and long life.
4).Thermal insulation layer is 60-100mm thick, which offers a very good thermal insulation performance.
5).Customer can select side doors.
Successful Case
Customer Inspection
Overseas Exhibition
Sales Service
1. We have a professional team, we can answer all your question effectively within 24 hours.
2. We have professional engineers to customize the trucks according to your special requirement.
3. We have our own spare parts warehouse, you can get the parts in a very short time.
4. We supply wearing parts to you for free ,they will be deliveried with the vehicle together
FAQ
Q1. Can you arrange the shipment for us?
A: Yes. Of course! But you need to pay the freight charges. We have built a very reliable commercial relationship with our dear freight forwarders. Pls trust us, the freight charge we get is the lowest ones in the market. We are pleased to save much money for you. You can compare our freight charges with others.
Q2: Do you test the refrigerated van before delivery?
A: Yes, we have 100% test before delivery
Q3: Can we adopts International brand refrigerating unit for refrigerated truck?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Yes, we have 100% test before delivery.
Q4: How do you control the quality of product?
A: Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
