Sinotruk 90-ton Heavy Duty Truck Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 90-ton heavy duty truck crane in China. If you're going to buy high quality sinotruk 90-ton heavy duty truck crane, welcome to get more information from our factory. For price consultation, contact us.

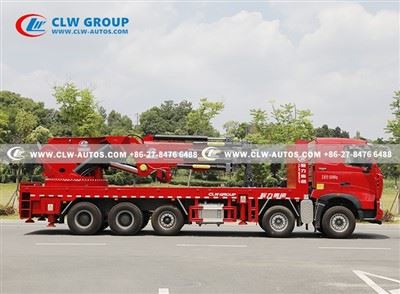

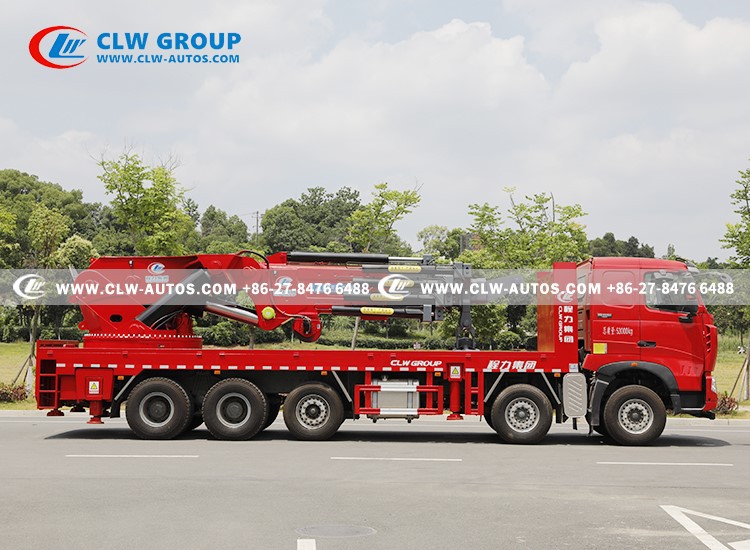

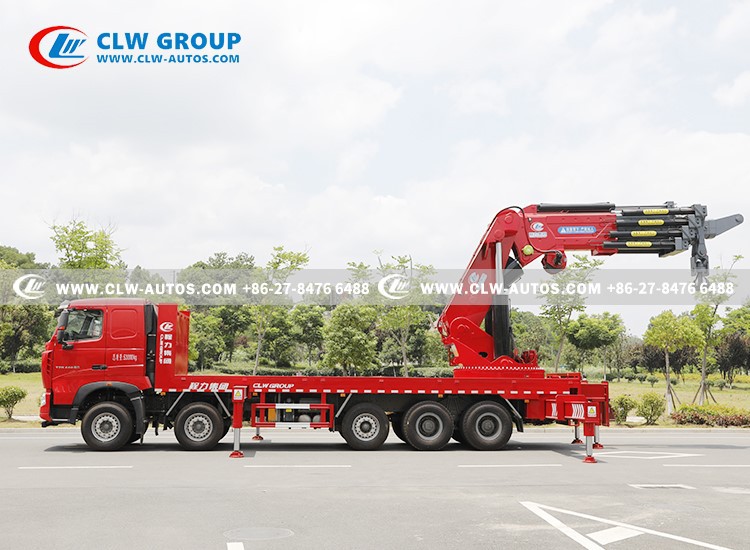

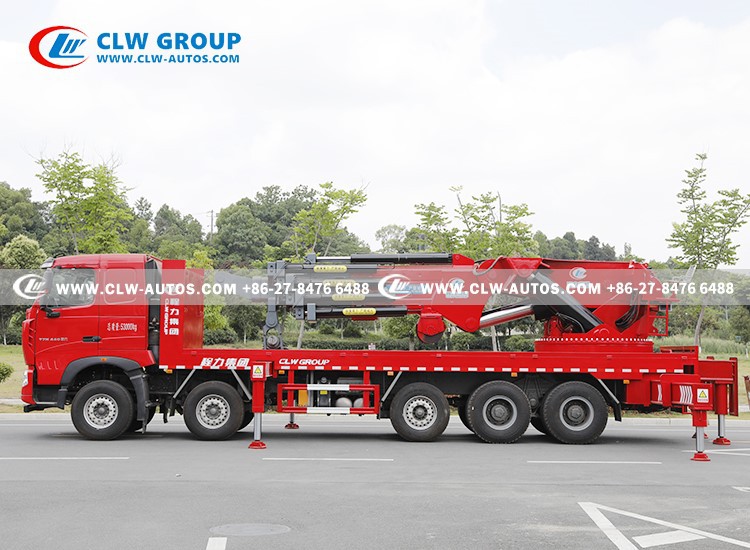

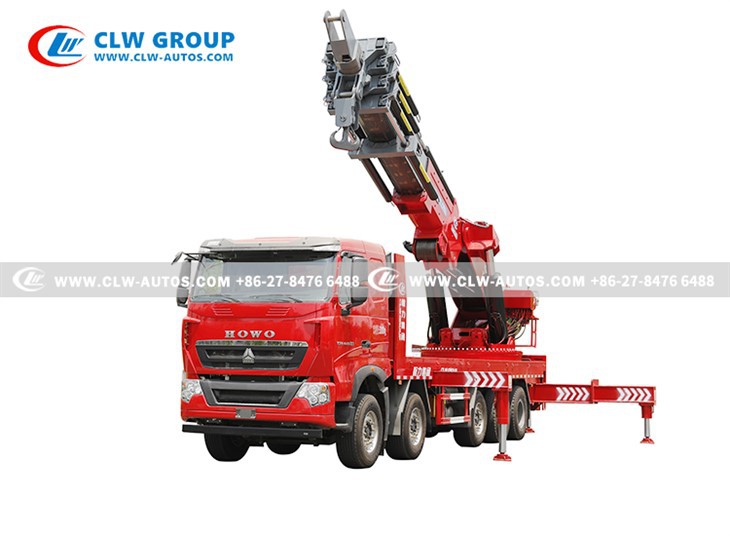

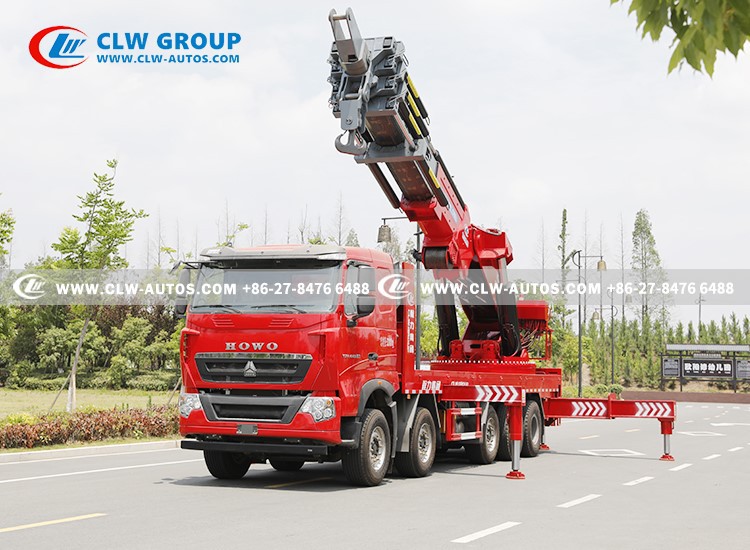

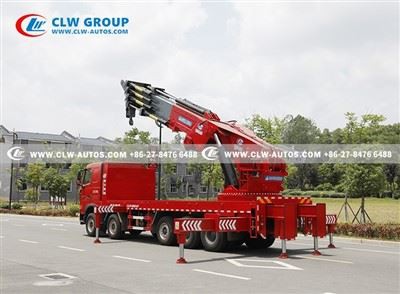

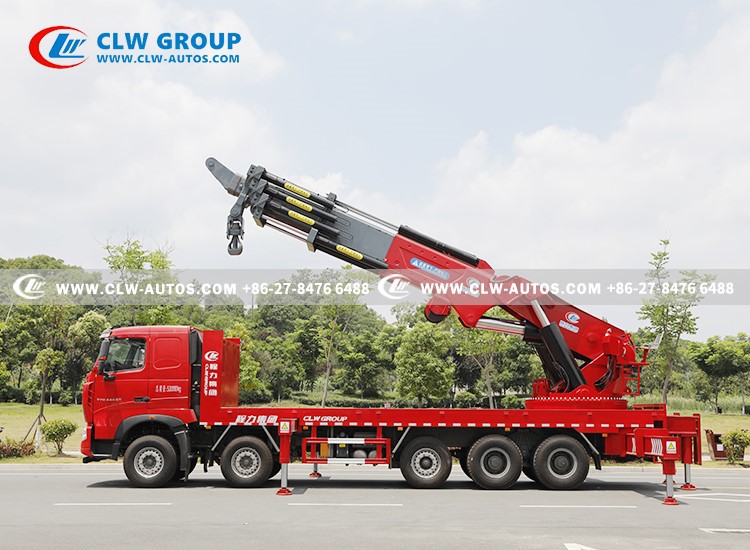

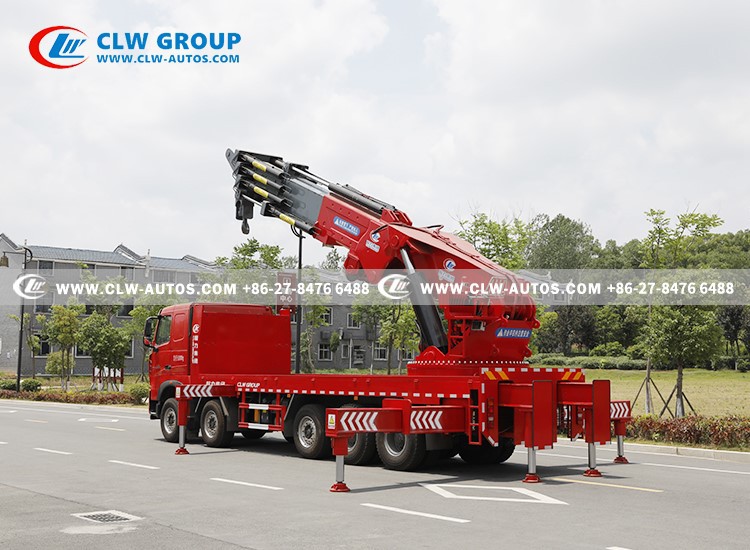

10X4 Sinotruk 90-ton Heavy Duty Truck Crane



We are professional heavy duty crane truck manufacturer in China since 2004











The 5-axle Sinotruk heavy-duty knucle boom truck crane, heavy-duty truck mounted crane, knuckle boom crane truck, Sinotruk crane truck with folding boom, 90-ton articulated boom crane truck, all-terrain truck crane combines powerful lifting capabilities, specifically designed for equipment relocation, low-altitude lifting, bridge lifting and wind turbine installation. This vehicle powered by a German MAN 460-horsepower engine, coupled with a 12-speed manual transmission and 9T/16T heavy-duty axles, ensuring excellent passability and traction in heavy-load and rough conditions.



With an overall height of just 3.3 meters and a length of 12 meters, it is ideal for working in facilities with limited overhead clearance. Equipped with a high-strength five-section telescoping boom, it has a real lifting capacity of 90 tons, a maximum working radius of 15.5 meters, and a maximum lifting height of 18 meters. It is widely used for heavy equipment installation, deep-well operations, and inter-workshop lifting tasks.









Engine	MAN 460 HP
Transmission	12-speed manual transmission
Front and Rear Axles	2 x 9-ton front axles / 3 x 16-ton rear axles
Tire Configuration	385/65R22.5 / 12.00R20
Overall Dimensions	12000*2500*3850mm
Curb Weight	42 tons (without counterweight)
Gross Vehicle Weight	53 tons (approved total weight)
Fuel Tank Capacity	≥400L
Maximum Lifting Moment	360 ton·meters
Maximum Lifting Capacity	90 tons (at 4 meters from the turntable center)
Maximum Working Radius	15.5 meters
Maximum Lifting Height	18 meters (including jib)
Rotation Capability	360° full rotation, utilizing dual chain eight-point contact slewing bearing
Boom Structure	Five-section fully hydraulic telescoping boom + one-section jib (manual jib)
Outriggers	Six hydraulic H-type telescopic outriggers with wide support base for high stability
Hydraulic System	Rated pressure: 28MPa, pump displacement: 108cc/r
Control System	Remote control + ground control, embedded control system, supports fault self-diagnosis and Chinese alarm prompts











• Low Vehicle Height (3.3 meters): Easily enters old factory buildings for construction.
• High Lifting Capacity: 90 tons real lifting capacity, suitable for heavy equipment lifting tasks.
• Energy Efficiency: 11 tons lighter than similar models, reducing fuel consumption by approximately 5% during highway travel.
• Remote Operation: Increases safety and efficiency, allowing one person to operate independently.
• All-Terrain Adaptability: Large-span hydraulic outriggers + five-axle drive ensure stability in extreme operating environments.
