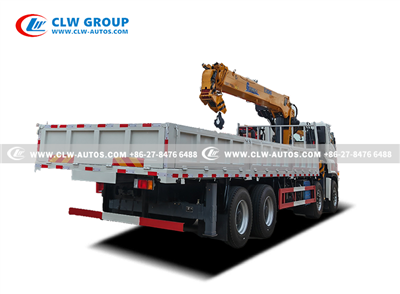

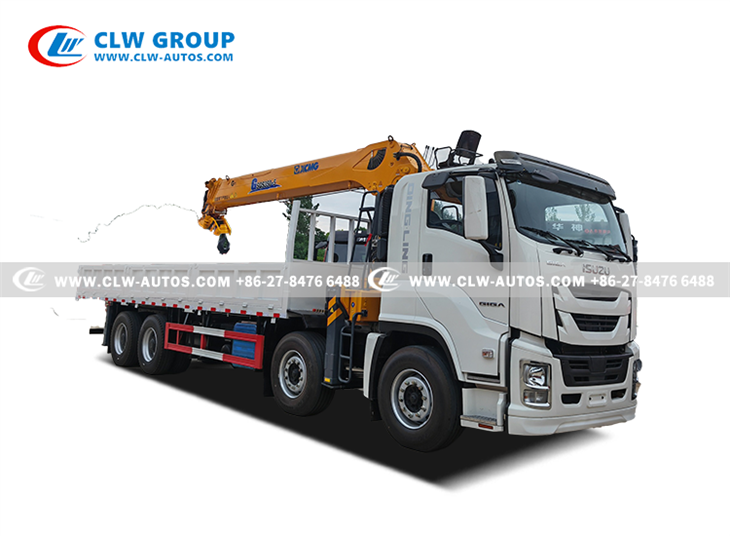

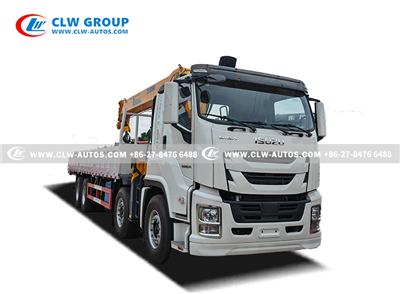

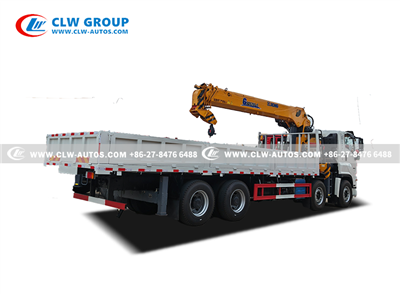

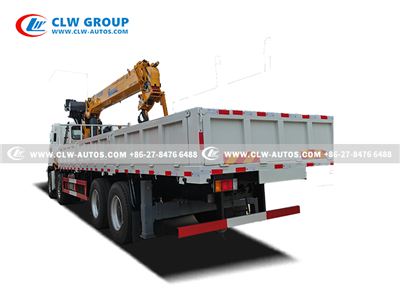

ISUZU VC66 14Tons Straight Boom Crane Truck

Name: China ISUZU VC66 14Tons Straight Boom Crane Truck Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 268256971

Drive Type: 8x4
Engine:350hp
Cargo Box Loading Capacity:≥ 25Tons
Crane Type: Straight Boom Crane
Crane Loading Capacity: 14Tons

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu vc66 14tons straight boom crane truck in China. If you're going to buy high quality isuzu vc66 14tons straight boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU 8X4 VC66 Crane Truck With 14Tons Straight Boom Crane

Product Description

Truck Chassis

ISUZU 8x4 VC66 Cabin

Suitable for heavy-duty long-distance transportation

Cargo Box

Large capacity for loading cargo

High quality Q235 carbon steel

Crane

XCMG China TOP1 Crane Brand

14Tons Straight Boom Crane

Products Video

Products Parameters

ISUZU Crane Truck With 14Tons Straight Boom Crane
Chassis Specification
Chassis Model	QL131
Driving Model	8 x 4
Dimension	12000 x 2540 x 3900 mm
Cab	Original ISUZU VC66 Cabin with air conditioner
Wheelbase	1850+4575+1370 mm
Gross vehicle Weight	31000 kg
Curb Weight	10350 kg
Front Axle Loading Capacity	7500 x2 kg
Rear Axle Loading Capacity	13000 x2 kg
Axle Number	4
Tire	295/80R22.5 / 12R22.5 18PR
Tire	12pcs with 1 spare tire
Engine	ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6UZ1
	Horse power: 350 HP
	Displacement: 9839 ml
	Emission standard: Euro 6
Transmission	Model: ZF8
Transmission	8 Forwards & 1 Reverse
Upper Parameters
Cargo Box
Size (LWH)	7900 X 2400 X 550 mm
Loading Capacity	25 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	SQS350
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 5 extendable boom
Crane Type	Straight Boom Crane
Max. Lifting Capacity	Effectively: 14000 kg at 2.5 meters
Max. Working Radius	19.6 meters
Max. Lifting Moment	360 kN.m
Max. Oil Flow of Hydraulic System	63+50 L/min
Max. Pressure of Hydraulic System	28 Mpa
Crane Weight	5723 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

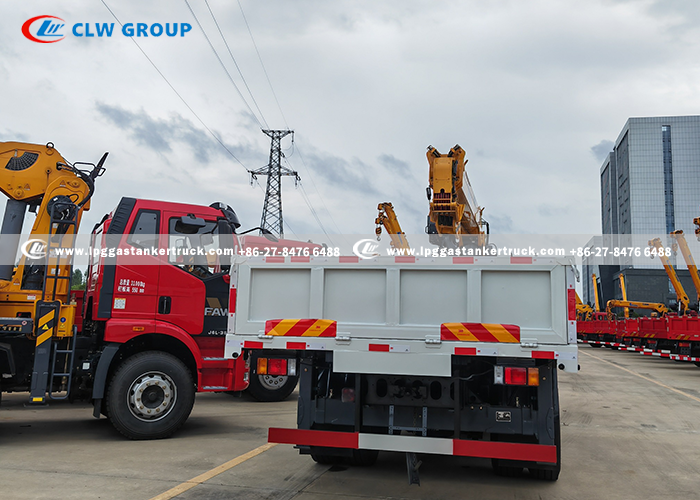

Products Photos

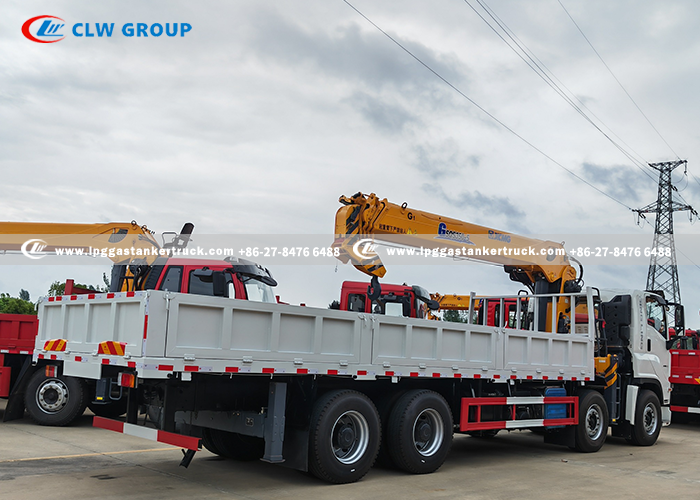

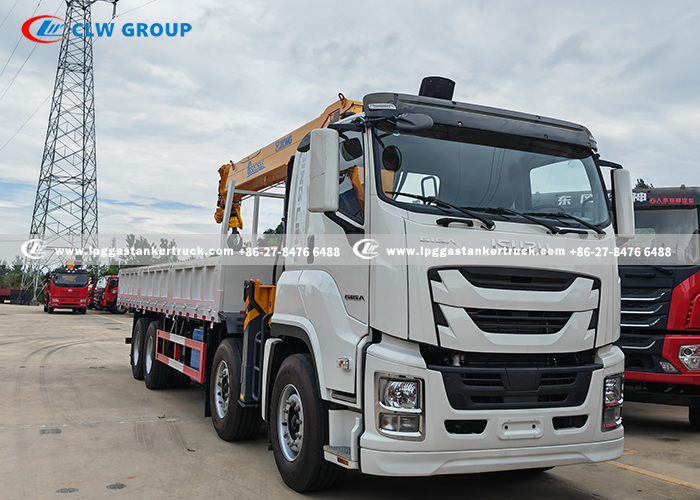

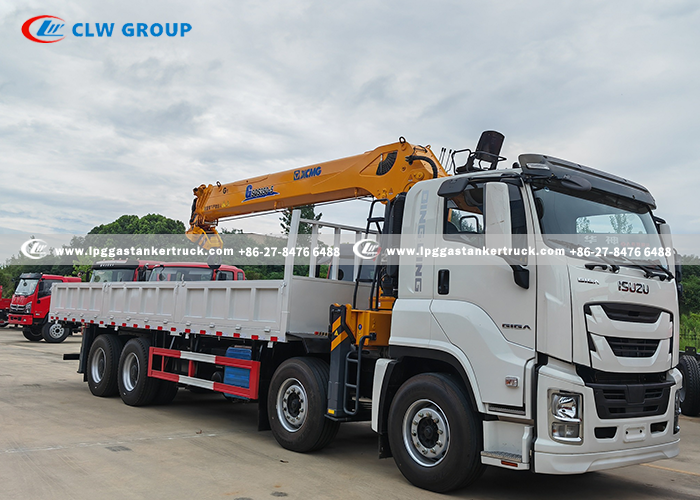

ISUZU Giga vC66 Crane Truck

Engine & Transmission

ISUZU 350HP Euro 6
ZF8, 8 Forwards & 1 Reverse

Axle Loading Capacity

Front Axle Loading: 7500 kg x2
Rear Axle Loading: 13000 kg x2

Tire

12 pcs with 1 spare tire
295/80R22.5 / 12R22.5

Max.speed

90 km/h

Cargo Box Loading

7900 X 2400 X 550 mm
25 ~ 35 tons

Cargo Box

3 mm for the side and 5 mm for the bottom
High quality Q235 carbon steel

Crane Model

XCMG
SQS350

crane

Effectively: 14000 kg at 2.5 meters
Max. Working Radius:19.6 meters

Crane optional Configuration

Crane Truck with Log Grapple Attachment

According to different types of bricks to develop different sizes of fixtures
Generally adopt folding arm crane

Crane Truck with Brick Clamp Attachment

Completes the loading and unloading of firewood at the forest site.

For loading and unloading of bamboo in bamboo forests

Crane Truck with Drilling Rig Attachment

For transportation, drilling, erection and pulling of poles.
Save time and labor

Crane Truck with Personnel Basket

Can be used as an aerial work truck
