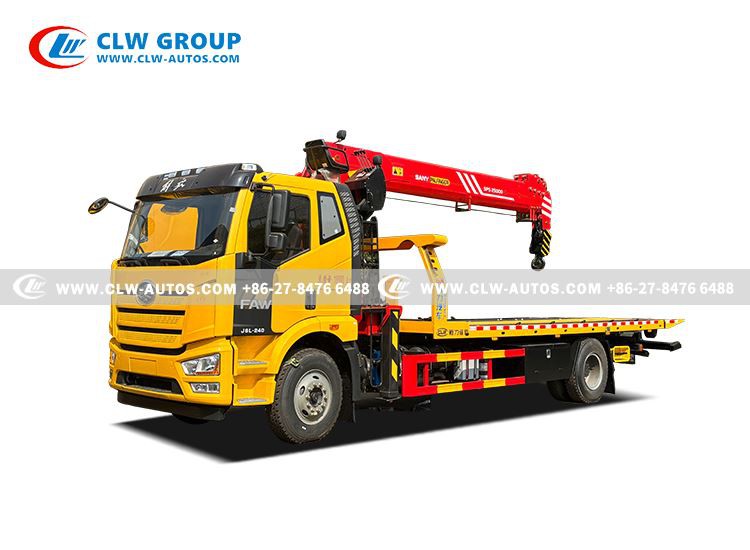

FAW J6L 10T Tow Truck With SANY Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw j6l 10t tow truck with sany crane in China. If you're going to buy high quality faw j6l 10t tow truck with sany crane, welcome to get more information from our factory. For price consultation, contact us.

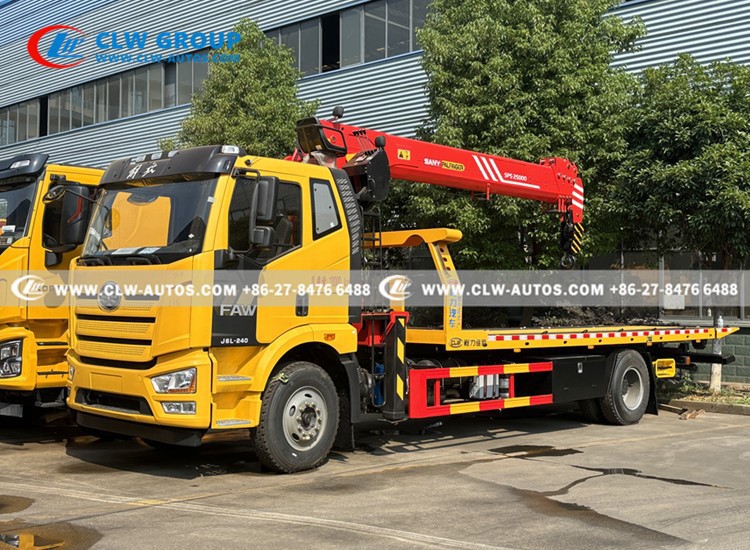

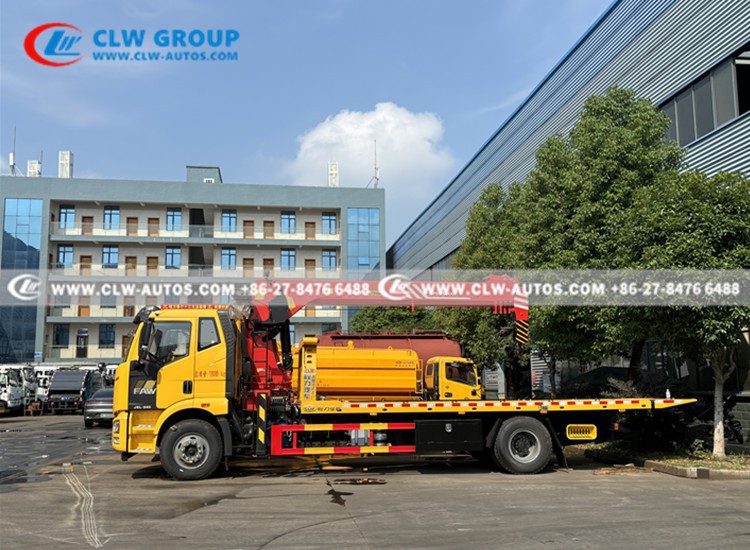

FAW J6L 4×2 10T Tilt Tray Flatbed Tow Truck with a SANY SPS 25000 crane is a powerful and versatile combination designed for medium-duty recovery, transport, and lifting tasks .



This FAW J6L equipped with a tilt tray and a SANY SPS 25000 crane is a highly capable medium-duty workhorse . It's designed for operators who need not just towing, but also significant lifting power on a single 10-ton platform, offering excellent versatility for recovery, transport, and various lifting applications. Always verify the specific weight ratings and crane load charts for the exact configuration.



Main Specification

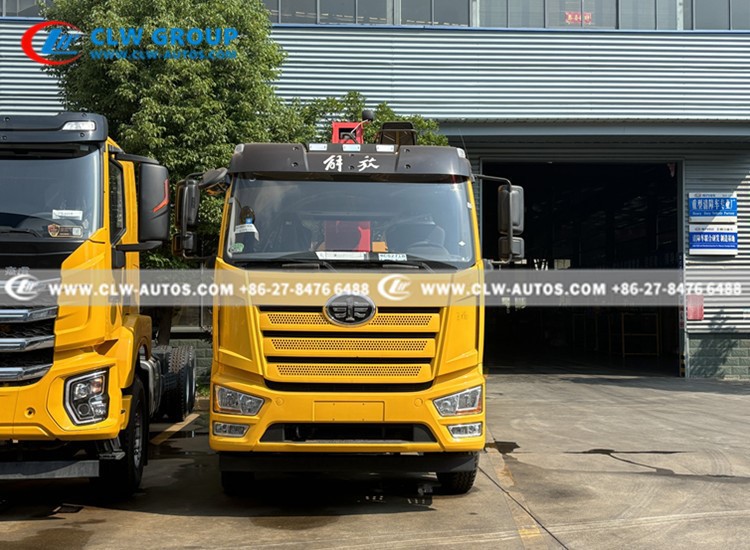

FAW J6L 4×2 Chassis:

• Manufacturer: FAW (First Auto Works), a major Chinese truck manufacturer.
• Model: J6L - A popular, reliable medium-duty truck platform.
• Configuration: 4x2 - Two axles, rear-wheel drive. Standard configuration for this class of tow truck.
• GVWR (Gross Vehicle Weight Rating): 18 Tons (18,000 kg). This indicates the maximum permissible total loaded weight of the vehicle (truck + body + crane + load).

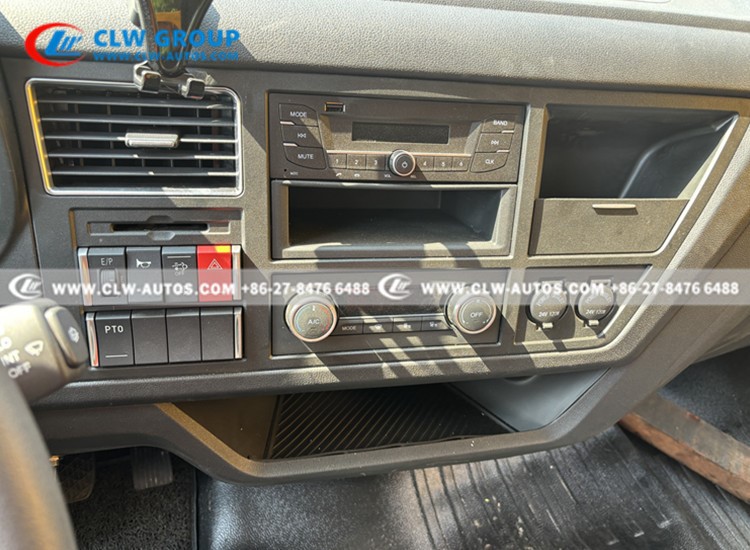

• Typical Features: Robust chassis frame, powerful diesel engine (common FAW CA4/6DK or CA6DH series in the 180-240 HP range), manual or automated manual transmission, comfortable cab.
• CA6DK1-28E Diesel Engine, 280HP.
• CA10TAX130S Manual Gearbox/Transmission.



Tilt Tray Flatbed Body:

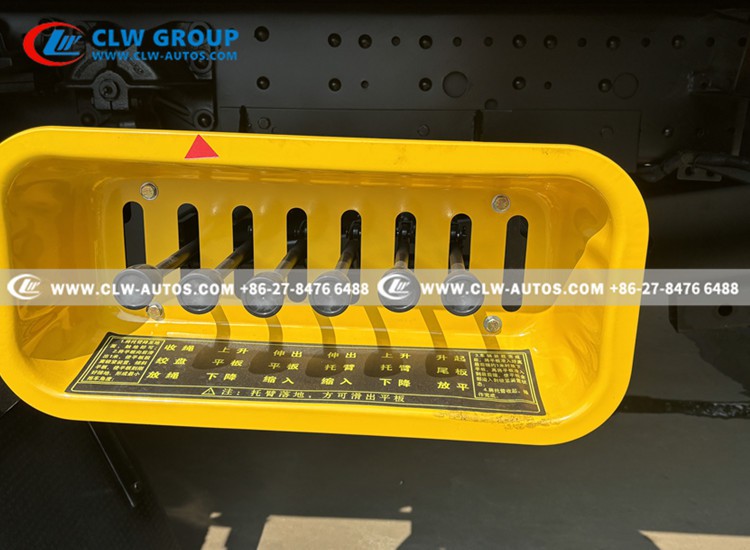

• Function: The core recovery body. A hydraulically operated flatbed that can tilt down to the ground and slide rearwards.

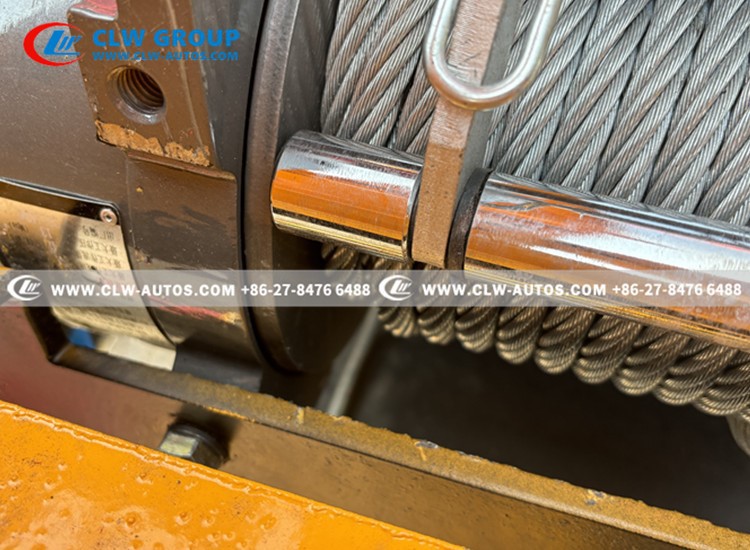

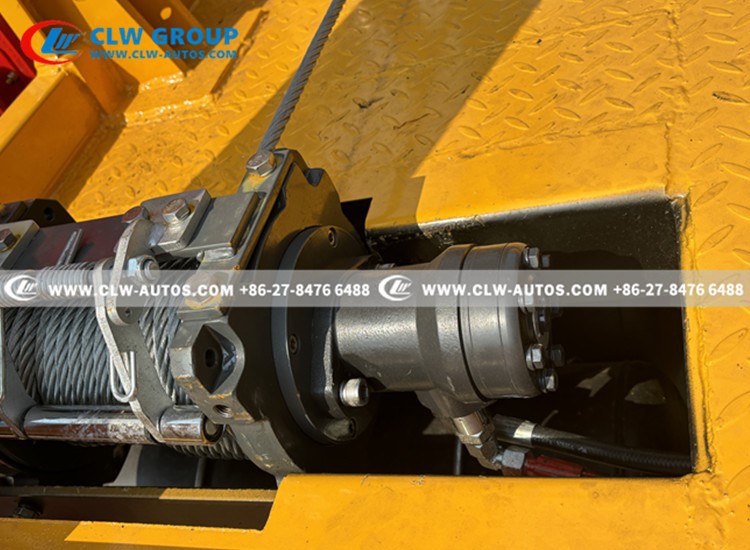

• Loading: Allows for loading vehicles that are unable to move under their own power (dead vehicles). Winches pull the vehicle onto the tilted bed. Once loaded, the bed slides forward and levels out.
• Capacity: The 10T GVWR chassis dictates the max total load capacity (including the weight of the body, crane, and the vehicle being towed). The actual payload capacity for the recovered vehicle will be roughly 8-10 tons , depending on the weight of the specific body/crane combo fitted.
• Typical Recoveries: Ideal for cars, SUVs, vans, light trucks, small buses, and some construction equipment.
• Advantages: Versatile, efficient, minimizes damage during loading/unloading compared to wheel-lift only systems.

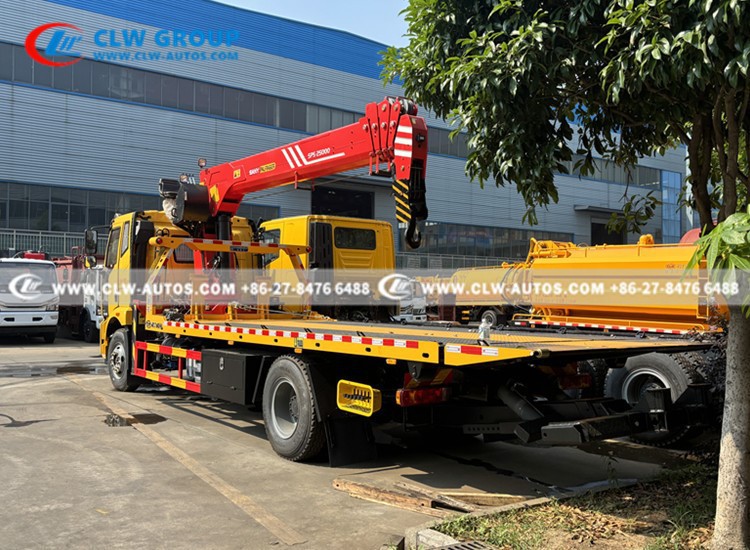

SANY SPS 25000 Crane:

• Manufacturer: SANY Heavy Industry, a world-leading Chinese manufacturer of construction machinery.
• Model: SPS 25000 - This refers to the crane's lifting moment capacity .
• SPS: Stands for SANY's series of loader cranes (often knuckle booms or telescopic).
• 25000: Indicates a maximum lifting moment of 250,000 kgcm (or 25,000 kg m / ~246 kNm) . This is a significant capacity for a crane mounted on a 10T truck.
• Lifting Capacity: The actual lifting capacity depends heavily on the boom extension and angle (radius). At its shortest radius (typically 2.5-3 meters), it could lift close to its maximum moment capacity (e.g., ~8,000 - 10,000 kg). At its maximum reach (often 10-12+ meters), capacity reduces significantly (e.g., 500 - 1500 kg).







Typical Features:



Hydraulic Tilt Tray Platform (articulated) with telescopic boom design.

Hydraulic outriggers (stabilizers) for safe lifting operations.

SANY Crane, 360-degree continuous rotation.

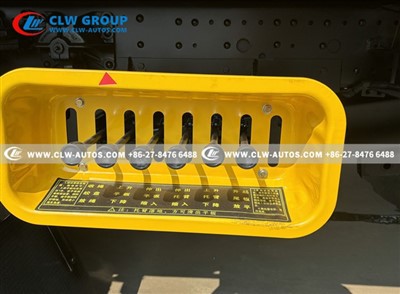

Proportional hydraulic controls (often with remote control).

Various attachments possible (hooks, grabs, winches).



Role on Tow Truck:

Provides crucial additional functionality:

Lifting engines, transmissions, or heavy components during roadside repairs.

Recovering vehicles stuck in ditches or awkward positions where the tilt tray alone isn't sufficient.

Loading/unloading cargo or equipment onto the flatbed.

Assisting in accident scene recovery by moving debris or stabilizing vehicles.



Overall Capabilities and Target Use:



Powerful Combination: Integrates robust chassis, efficient recovery body, and a high-capacity crane.

Versatility: Can handle a wide range of tasks - standard vehicle recovery, accident recovery, equipment transport, light construction lifting, utility work.

Typical Operators: Towing/recovery companies, vehicle dealerships, construction & mining support services, utility companies, equipment rental yards.



Advantages:

• Cost-effectiveness (Chinese manufacturing).
• High lifting capacity crane relative to chassis size.
• Efficient loading of dead or breakdown vehicles.
• Single truck for multiple functions (tow, lift).
