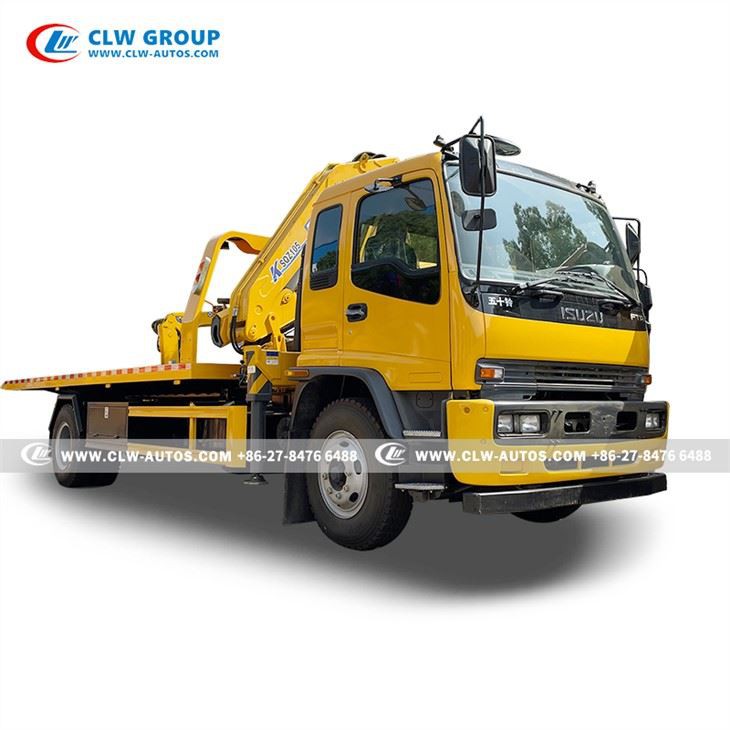

ISUZU FTR 8 Tons Tilt Tray Wrecker Truck With 5 Tons Crane
ISUZU road wrecker 8tons
ISUZU tow truck with crane
ISUZU flatbed recovery truck
8 Tons platform tow truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 8 tons tilt tray wrecker truck with 5 tons crane in China. If you're going to buy high quality isuzu ftr 8 tons tilt tray wrecker truck with 5 tons crane, welcome to get more information from our factory. For price consultation, contact us.
ISUZU tilt tray wrecker(also called road wrecker tow truck,breakdown truck,recovery vehicle, isuzu flatbed road wrecker,under lift tow truck,emergency rescue towing truck,flat platform recovery truck) is used to move disabled,breakdown cars,vehicles,bus,improperly parks vehicles or acts as a car carrier temperarily.
tilt tray wrecker with knuckle boom crane has both function of tow truck and truck mounted crane.
whatsapp for quick inquiry +86 135 45064324
Technical Parameters
Chassis | |||
Drive Model | 4X2, left hand drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9360X2550X3500mm | |
Wheelbase (mm) | 5000 | ||
Weight in KGS | Curb Weight (kg) | 12700 kg | |
Front/Rear axle loading(kg) | 6300/13000 | ||
Max. driving speed(km/h) | 95 | ||
Engine | Model | ISUZU 4HK1-TC50 | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 205HP | ||
Emission standard | Euro V | ||
Displacement(ml) | 5193 | ||
Brakes | Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
Cabin | l ISUZU FTR cabin l Color optional for white,yellow,red.. l accommodate three people l With Air conditioner | ||
Gearbox | l MLD l 6 forwards & 1 reverse | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | 10.00R20 or 11.00R20 tire , 6 + 1(spare tire) | ||
Upper & Equipment | |||
Platform material | l 6mm thickness checked plate l Treated by electrophoresis for better painting lift time | ||
Lifting and Towing device | Max. Towing capacity(kgs) | 8000 | |
Max. Lifting capacity(kgs) | 8000 | ||
Platform | Max. Loading capacity(kgs) | 10,000 | |
Length(mm) | 6200 | ||
Width(mm) | 2550 | ||
Minimum inclination angle(°) | 8° | ||
Platform working itinerary（mm) | 2700 | ||
Ground clearance(mm) | 1250 | ||
Winch device | Quantity(pcs) | 1 pc | |
Rated traction(KN) | 50 KN | ||
Wire rope diameter(mm) | φ12 | ||
Wire rope length(m) | 35 m | ||
Minimum linear speed of wire rope(m/min) | 3.23 m/min | ||
Remarks | 1. Auxiliary trolley two units 2. Top electronic lamp one unit 3. 1 pair “L” bracket fork 4. 4 units fastening strap | ||
Control | l Controlled by handle stick at both sides of truck rear | ||
Crane | l Straight boom/knuckle boom crane l 5 Tons/6.3 Tons l Crane brand: XCMG/Palfinger/CLW | ||
Reference pictures

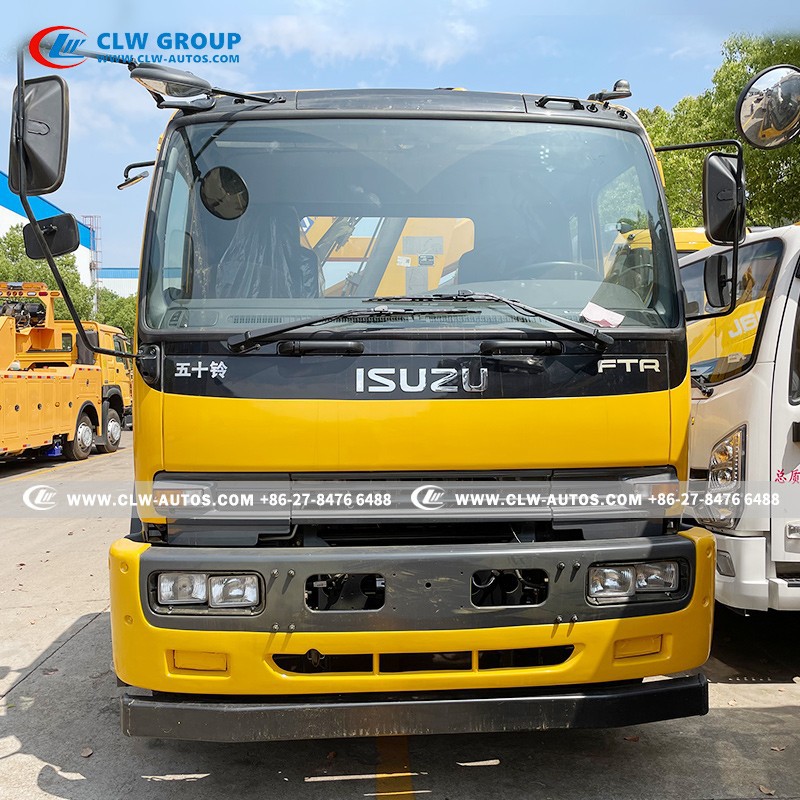

ISUZU FTR cabin

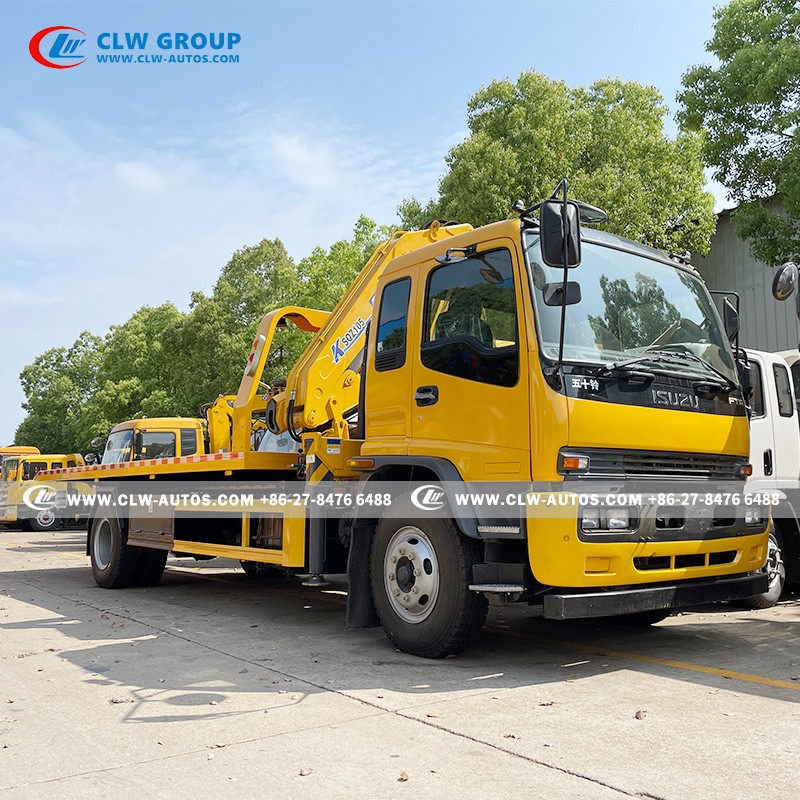

ISUZU FTR 8 tons tilt tray wrecker truck with XCMG crane SQZ105

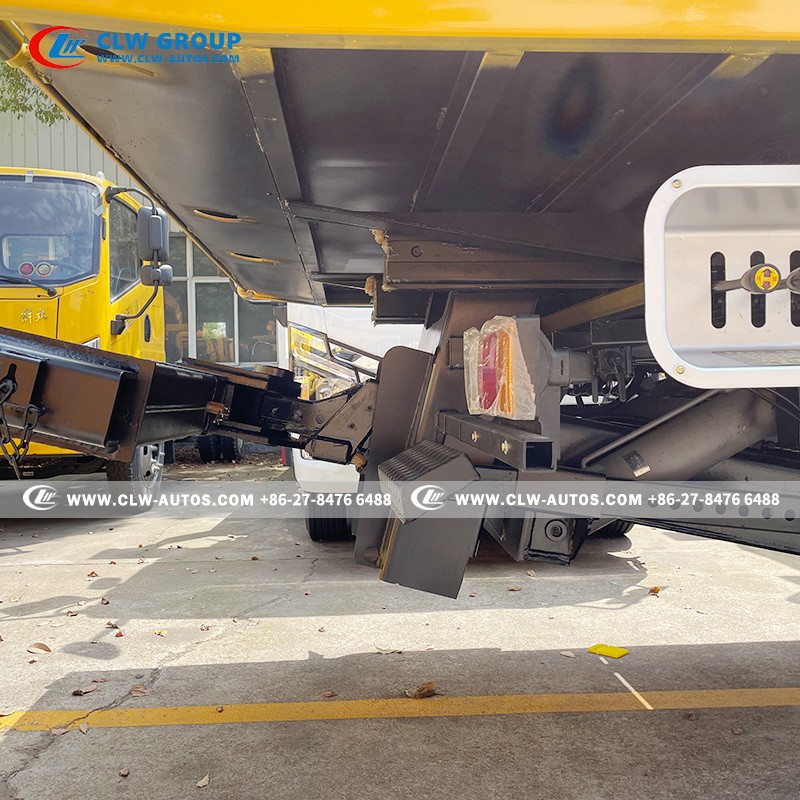

6mm checked plate and 8 tons under lift boom

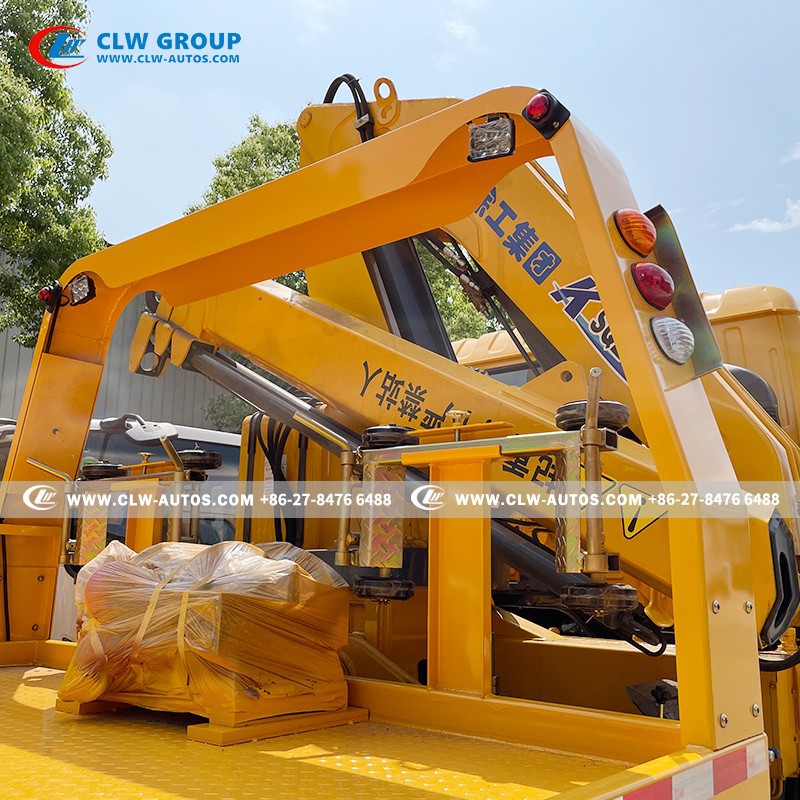

8 Tons winch and 2 Auxiliary trolley
