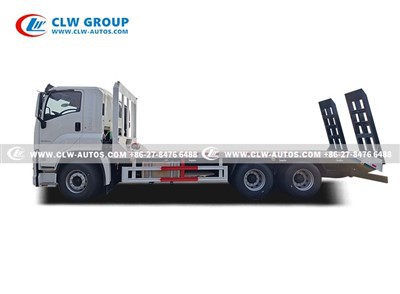

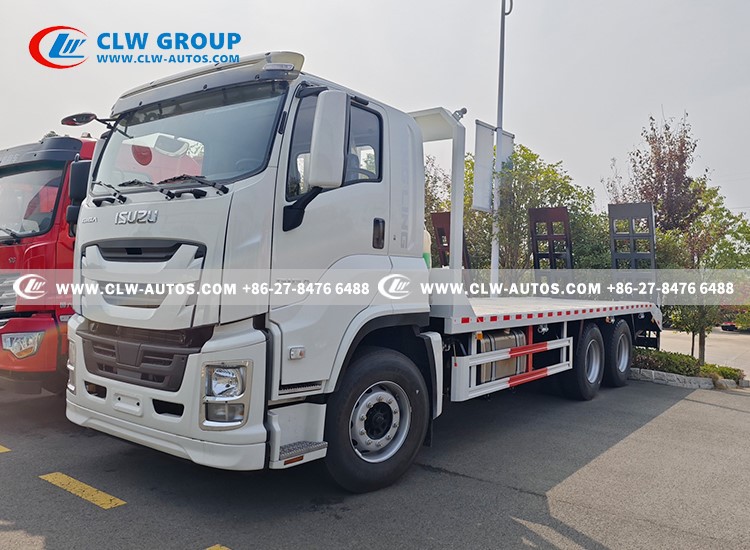

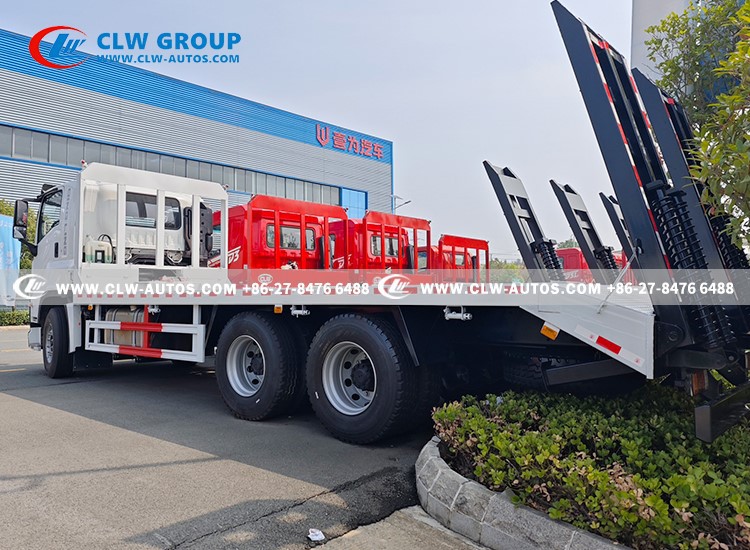

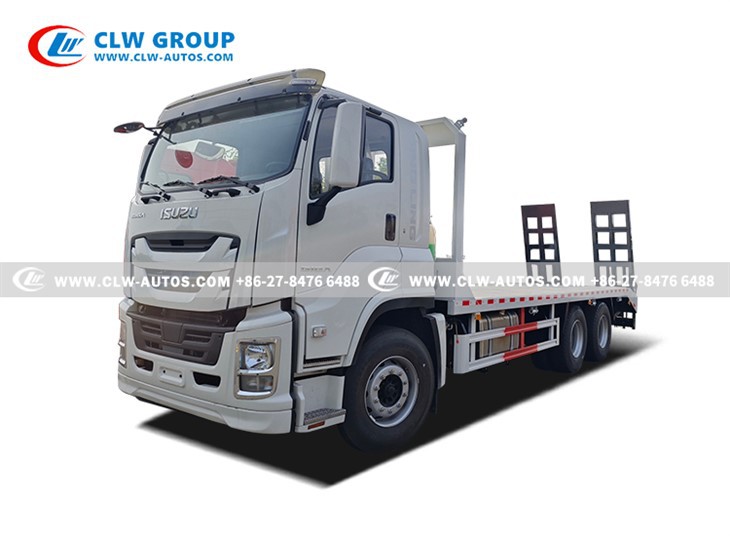

ISUZU FVZ 15Ton Flatbed Truck

Name: China ISUZU FVZ 15Ton Flatbed Truck Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 273746051

Transport Excavators/Bulldozer
Engine: 300hp
Flatbed Length:7.5m
Flatbed Width:2.5m
Flatbed Loading Capacity:15Ton
With Winch

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu fvz 15ton flatbed truck in China. If you're going to buy high quality isuzu fvz 15ton flatbed truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU FVZ 6x4 10 Wheels 15Tons Flatbed Tow Truck /With Winch /Transporting Excavators

The Role of Flatbed Trucks in Transporting Excavators

1. Efficient Transportation

Quickly move excavators from worksite A to worksite B, avoiding long-distance self-propelled travel that causes track wear and excessive fuel consumption.

2. Equipment Protection

Reduce vibrations and shocks from rough terrain, minimizing the risk of mechanical damage.

3. Adaptation to Special Conditions

In harsh environments such as swamps, deserts, or mountainous areas, flatbed trailers can be equipped with off-road chassis or reinforced suspensions to ensure safe transport.

4. Multi-Equipment Coordination

Can simultaneously transport excavators along with auxiliary equipment (e.g., generators, fuel tanks), improving overall operational efficiency.

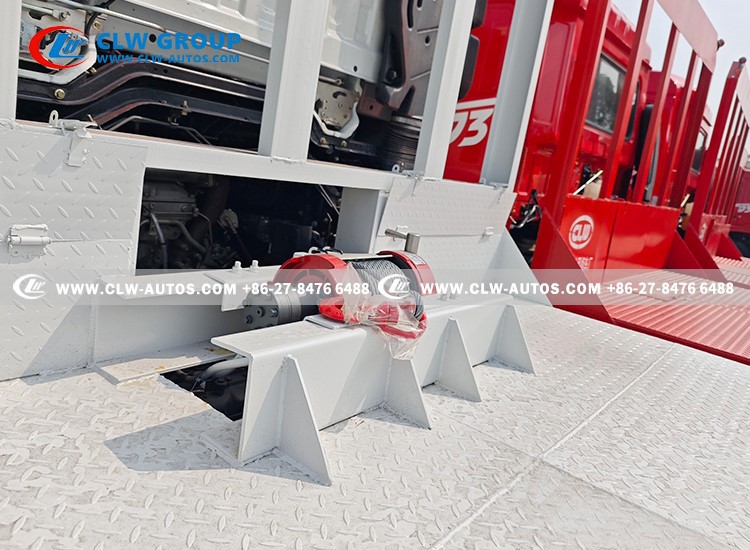

Winch Key Features

1. Towing and Recovery

Self-recovery/Assisted recovery: When the trailer or cargo is stuck in mud, sand, or other challenging terrain, the winch can be anchored (e.g., to trees or ground anchors) to facilitate extraction.
Cargo loading: Assists in dragging heavy equipment (e.g., agricultural or construction machinery) onto the flatbed, resolving loading challenges in the absence of auxiliary equipment.

2. Precision Positioning

Enables fine adjustment of cargo placement on the flatbed via winch cable retraction/extension, eliminating the risks associated with manual pushing (e.g., sliding of heavy machinery).

3. Safety Control

Acts as an auxiliary braking system during downhill or steep slope transport by reverse cable tensioning to prevent rollaway incidents.

4. Enhanced Adaptability

Ideal for remote environments (e.g., construction sites, farms, forests) lacking forklifts or cranes, reducing dependency on supporting infrastructure.

5. Improved Efficiency and Safety

Mechanized operation minimizes manual labor requirements and mitigates injury risks (e.g., load tipping or musculoskeletal strain from manual dragging).

6. Functional Versatility

Can be paired with pulley blocks to enable angle redirection or force multiplication (e.g., lateral vehicle recovery).

7. Emergency Backup

Rapidly establishes a towing system during disaster response or emergencies (e.g., vehicles stranded in ditches).

Products Factory Pictures

1. Power Performance

Engine: Isuzu 6UZ1-TCG40 or 6WG1-TCG50 diesel.
Displacement: ~7.8L–9.8L, 300 HP max.
Torque: ~900–1100 N·m, ideal for heavy loads.
Emission: Complies with Euro V/VI or higher.
Fuel efficiency: Relatively economical.
Transmission: 6 or 9-speed manual.

2. Chassis & Load Capacity

Frame: High-strength steel ladder frame.
Load capacity: ~15–25 tons (varies).
Rear axle: Multi-leaf spring or air suspension.
Wheelbase: Customizable (~4–6m).

3. Flatbed Design

Dimensions: ~6–9m long, 2.4–2.5m wide.
Low deck for easy loading/unloading.
Material: Steel or aluminum.
Optional: Anti-slip, hooks, tie-downs.
Suitable for heavy cargo transport.

4. Safety & Reliability

Brakes: Air brake + ABS + exhaust brake.
Stability: Low center of gravity.
Optional: ESC (Electronic Stability Control).
Durability: Low failure rate, easy maintenance.
Proven Isuzu powertrain reliability.

Products Parameters

ISUZU FVZ 6X4 15Tons Flatbed Tow Truck
Chassis Specification
Chassis model	QL1251
Driving model	6X4
Dimension	12000×2500×3950 mm
Cab	Original ISUZU FVZ/5X cabin Single Row Left Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Overall Weight	25000 kg
Net Weight	21550 kg
Wheelbase	5800+1370 mm
Axle loading (front / rear)	7000 / 10000 x 2 kg
Engine	ISUZU, diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1
	Horse power: 300 HP, 221 KW
	Displacement: 7790 ml
	Emission standard: Euro 6
Transmission	Manual type, 9 Forward & 1 Reverse
Upper Parameters
Flatbed	Ground Clearance: 1200 mm
	Flatbed Plate Size(length*width): 8500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 16000 kg
