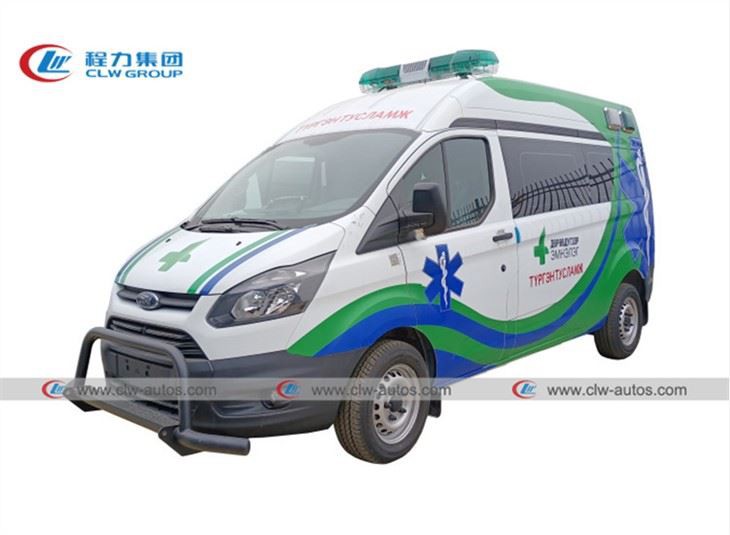

Ford Rescue Negative Pressure Ambulance For Epidemic Patients

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ford rescue negative pressure ambulance for epidemic patients in China. If you're going to buy high quality ford rescue negative pressure ambulance for epidemic patients, welcome to get more information from our factory. For price consultation, contact us.

High Proof  V348 Patient Transport Ambulance Car Medical Rescue Negative Pressure Ambulance

1) The Rescue Negative Pressure Ambulance  is also called negative pressure isolation ambulance,patient transport ambulance vehicle, icu ambulance, medical ambulance etc. It is usually consisted of truck chassis, ambulance equipment,etc.

2) Rescue Negative Pressure Ambulance can be customized,usually it can include one portable ambulance stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.

Rescue Negative Pressure Ambulance is equipped with negative pressure decontamination system with advantages as follows,

1. Special strong exhaust: exhaust volume: > 600m3/ h power 12V, 150W

2. High-efficiency filtration device: filter material: effective area of ultrafine glass fiber: 0.15m2

maximum air passage rate: 0.8m /S filtration rate: 0.3 micron for particle size, reaching more than 99.995% (standard 99.7%). Service life: the average life is 8-12 months (related to the starting time of the negative pressure system)

3. Sterilization device: ozone output: 2 g/h power: 220V 70W

4. Primary filtration device: (activated carbon dust removal) filtration level: G3, air inlet flow rate: 200 m3/ h

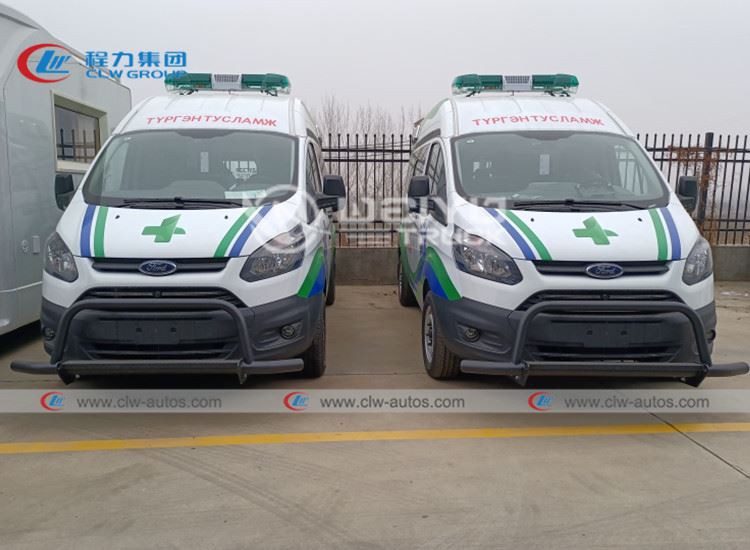

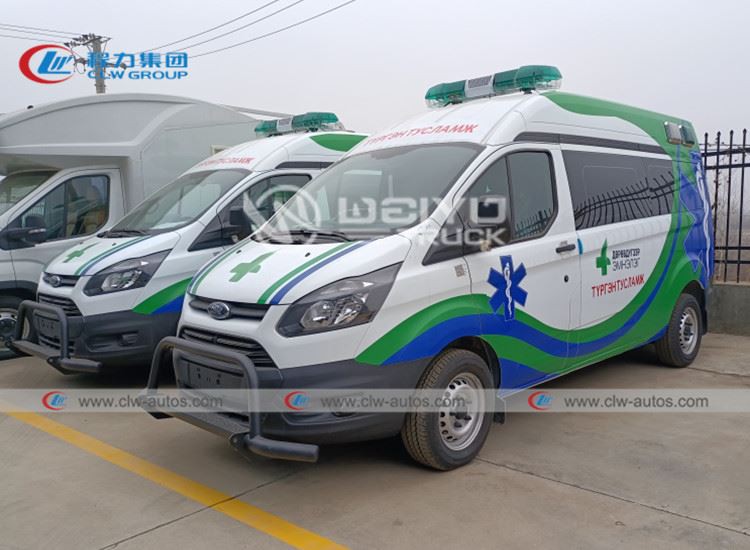

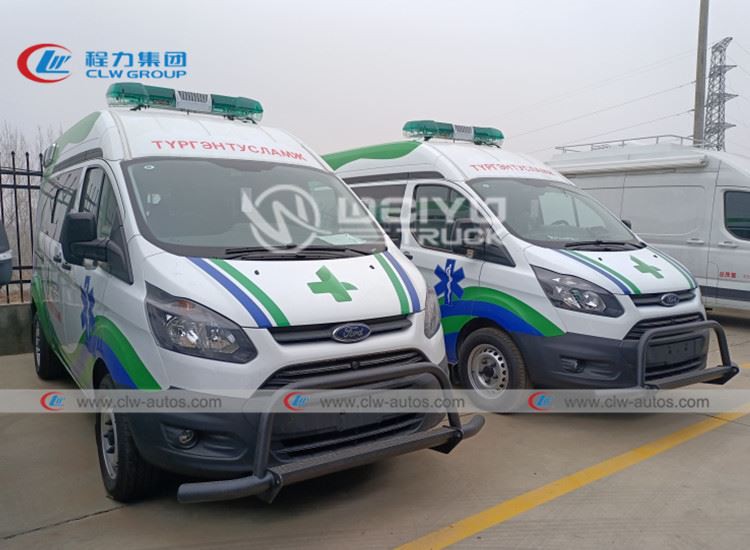

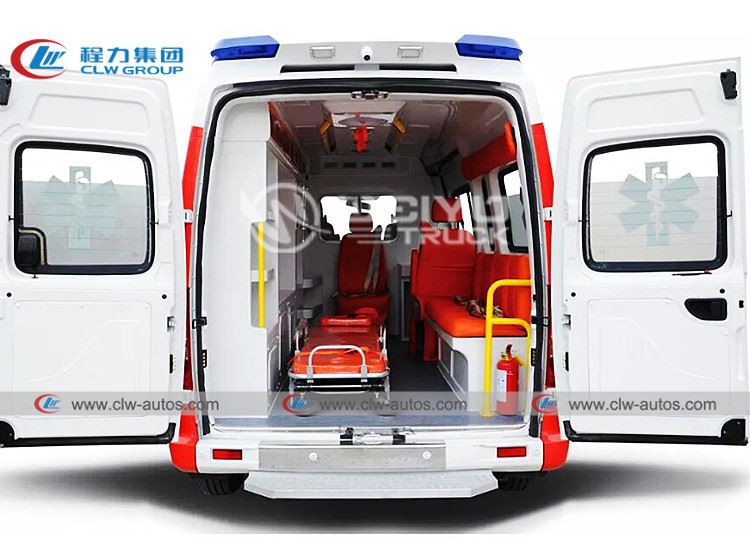

More Pictures for Ford Rescue Negative Pressure Ambulance for Epidemic Patients:

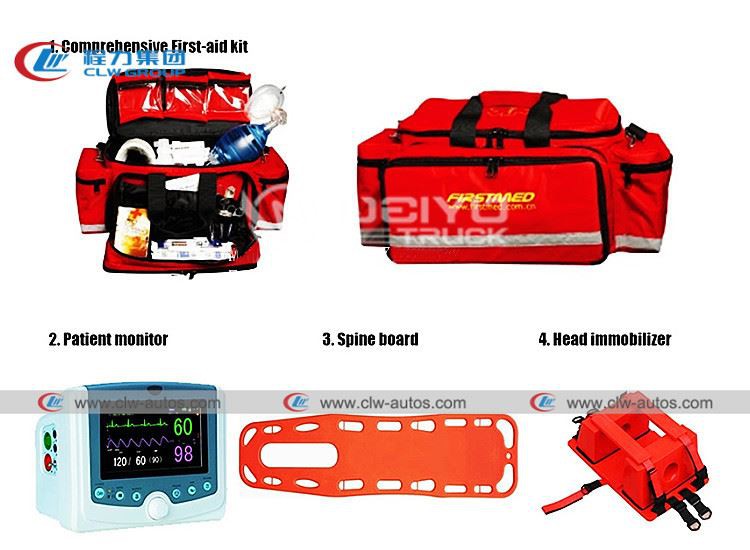

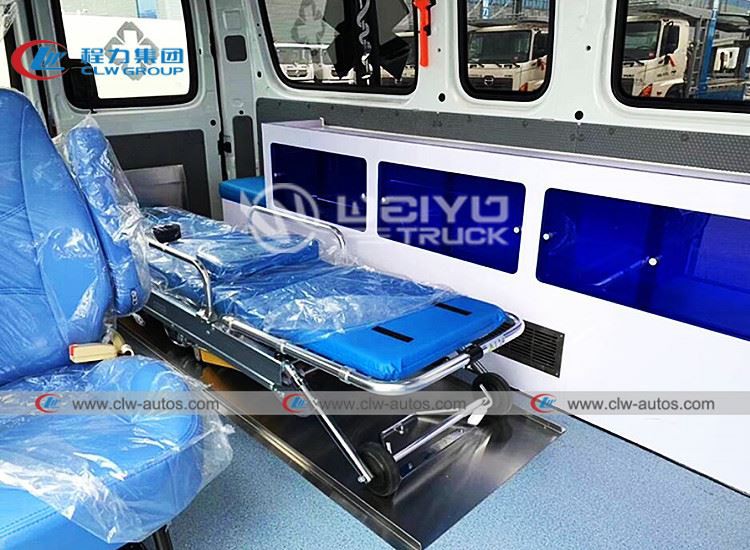

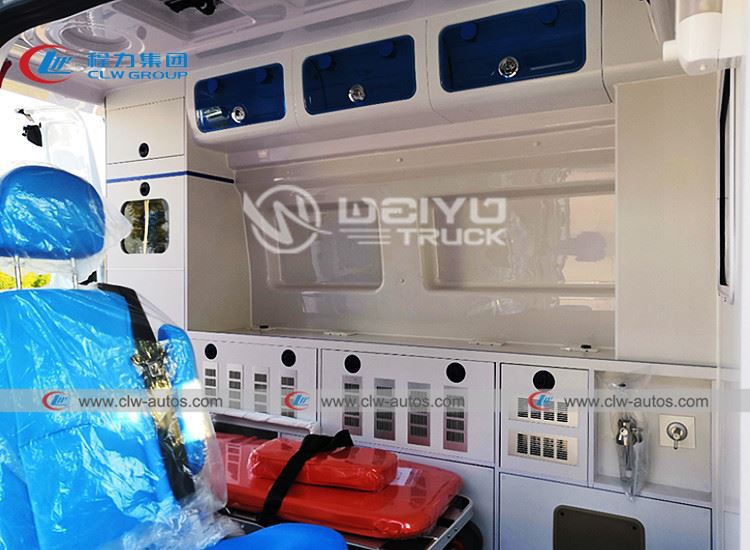

Inside Equipment for Negative Pressure Ambulance:

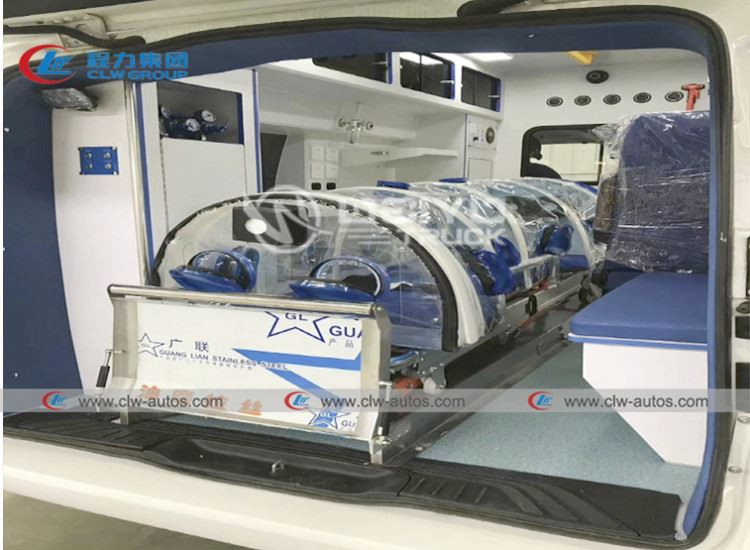

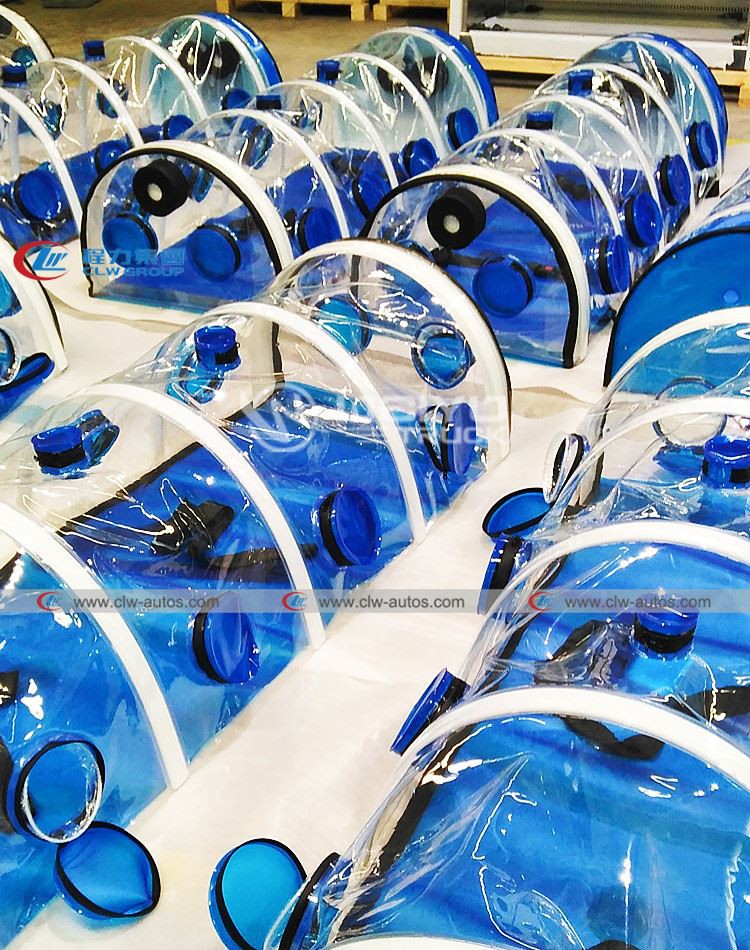

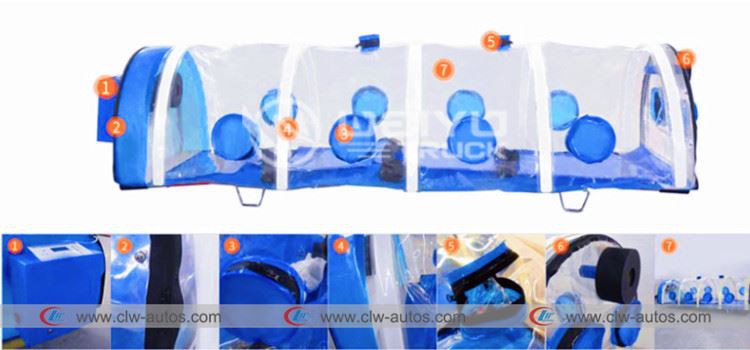

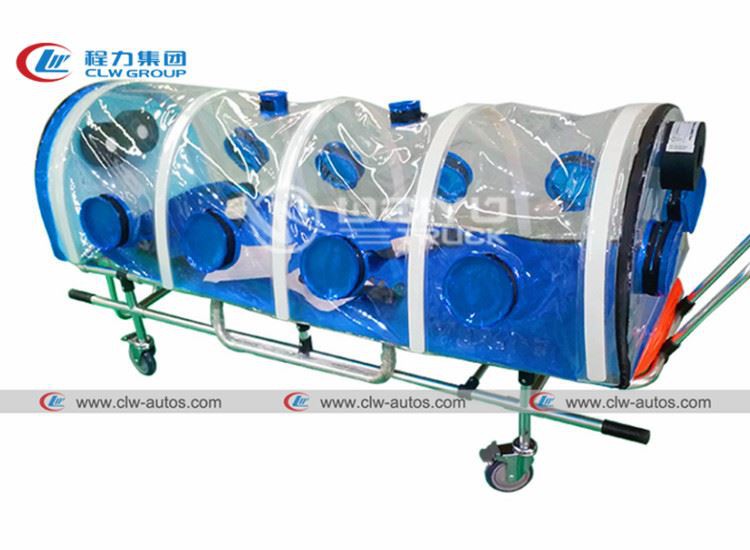

Negative pressure stretcher cabinExpanded size: 1900 × 680 × 500 (mm)

1. It is used for the isolation and transportation of patients with severe respiratory infections such as SARS to prevent the spread of pathogens and reduce the infection rate of medical staff.

2. The cabin is made of high-quality, durable, pollution-free, high-strength transparent material, and uses a waterproof sealed zipper.

3. It is supported by a support rod in an arch shape, with 2 oxygen infusion ports for infusion and oxygen infusion of patients; 10 operation ports are attached, and gloves are put on to facilitate the care and maintenance of patients inside.

4. The battery can be used continuously for at least about 4 hours when fully charged.

5. It can be used with a stretcher to facilitate the movement of patients.

6. A negative pressure of not less than 15 Pa is quickly established within 2 minutes.

7. The cabin noise is not greater than 65dB (A).

8. The filtration efficiency of 0.3μm aerosol particles is not less than 99.99%.

9. The air exchange volume in the cabin is not less than 50L / min.

10. Acoustic and visual alarms are issued when the internal negative pressure is insufficient or the power is too low.

11. The total weight of the cabin at no-load is not more than 20Kg.

12. With optional stretcher, the load can reach 150Kg.

[Standard configuration]

1 transparent cabin, 3 high-efficiency filters (3 canisters), 1 pressure generating system, 5 disposable PE gloves, 1 lithium battery, 1 charger, stretcher (Optional).

Parameters for Ford Rescue Negative Pressure Ambulance For Epidemic Patients：

Paramaters for Ford Rescue Negative Pressure Ambulance for Epidemic Patients:

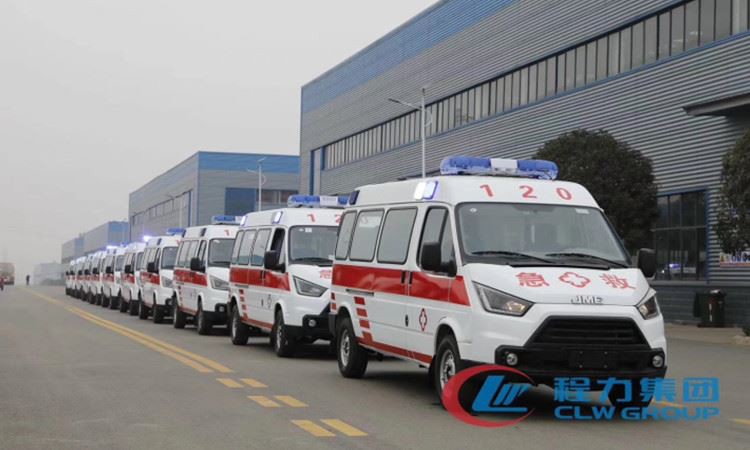

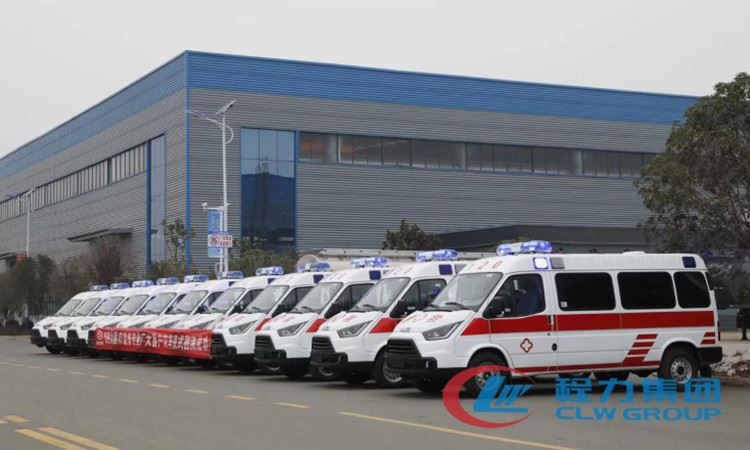

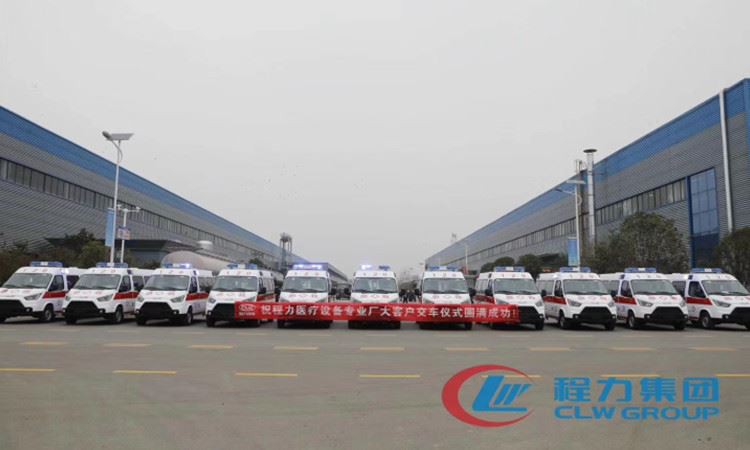

Successful Cases delivery for ambulance project:

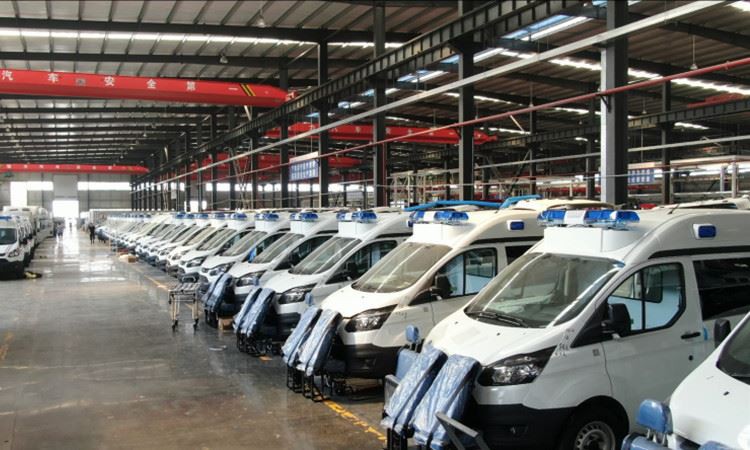

Our workshop for Ambulance:
