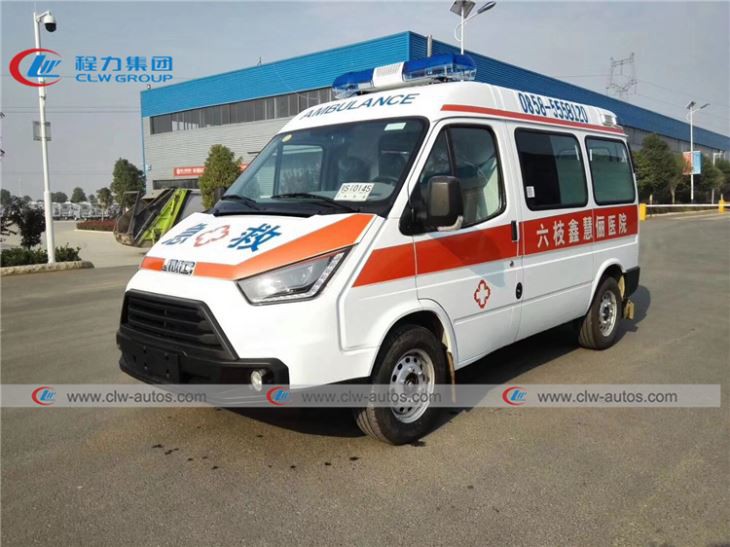

JMC Rescue Ambulance
Engine:JMC diesel or Mitsubishi gasoline engine;
Driving model:Front engine and rear drive
Suspension:MacPhersan type/steel-plate type;
wheelbase:2835mm/3300mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of jmc rescue ambulance in China. If you're going to buy high quality jmc rescue ambulance, welcome to get more information from our factory. For price consultation, contact us.
Function
The jmc ambulance
( also called medical ambulance,rescue ambulance,ambulance car,isolation
ambulance, ambulance vehicle, icu ambulance,
etc) is usually consisted of truck chassis, ambulance medical equipments such as one portable ambulance stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
JMC rescue ambulance can be divided into various types as follows,
1) according to functions,ambulances type are patient transfer ambulance,ward-type ambulance,negative pressure ambulance;
2) according to truck size,you can choose short wheelbase or long wheelbase ambulance;
3) For ambulance brands,there are ford,jmc,maxus,foton,iveco,mercedes benz,golden cup,hyundai and toyota ambulance.
Feature
--JMC diesel or Mitsubishi gasoline engine;
--Manual gear box 5-speed forward and 1 reverse ambulance;
--front engine and rear drive;
--Low oil consumption;
--Allowance for 3~8 persons;
--Optional for medical equipments inside:1 set of oxygen tank, 10L oxygen cylinder, oxygen cylinder fixed bracket, single meter constant pressure reducing valve (special double meter pressure adjustable ventilator), high pressure resistant medical grade oxygen tube, oxygen terminal (NATIONAL standard/European standard), 2 sets of humidifying bottles, 1 set of ventilator rotary interface;

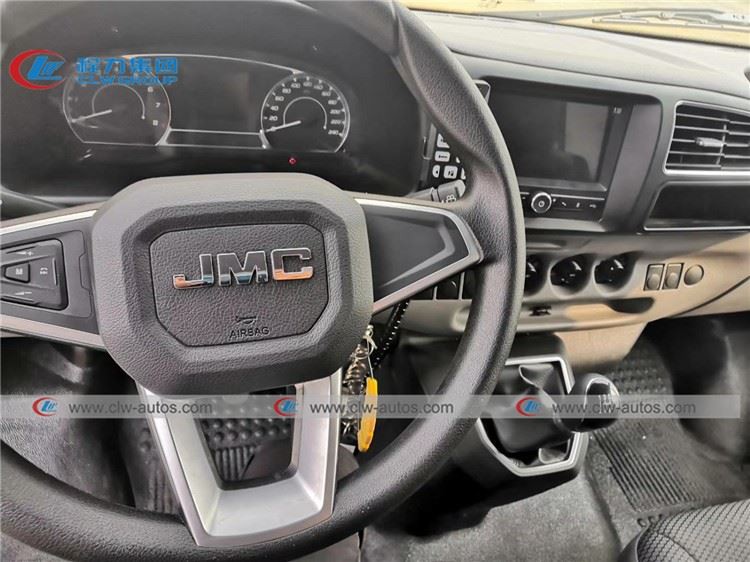

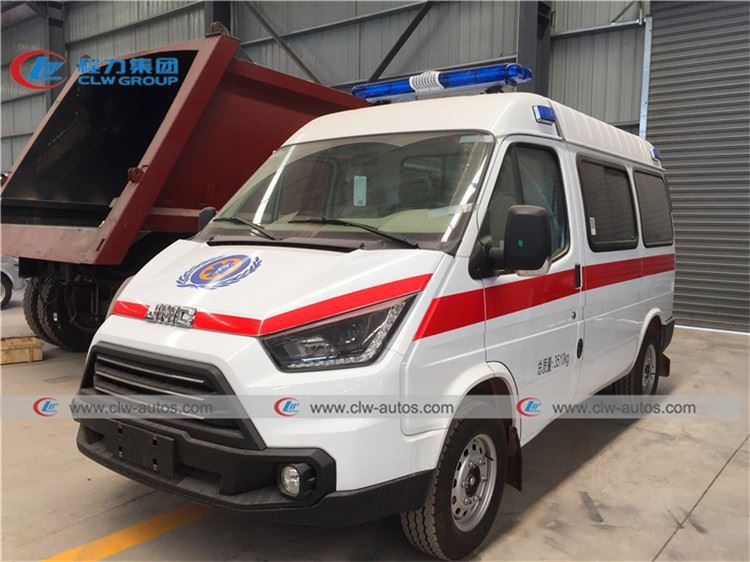

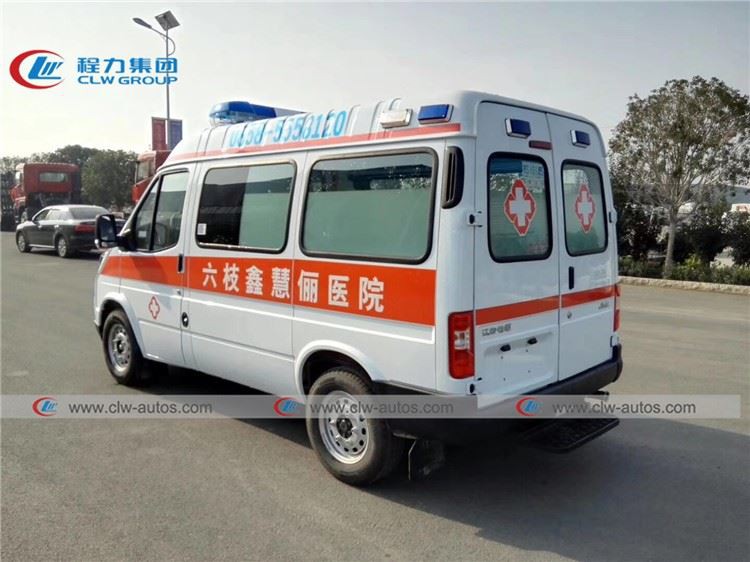

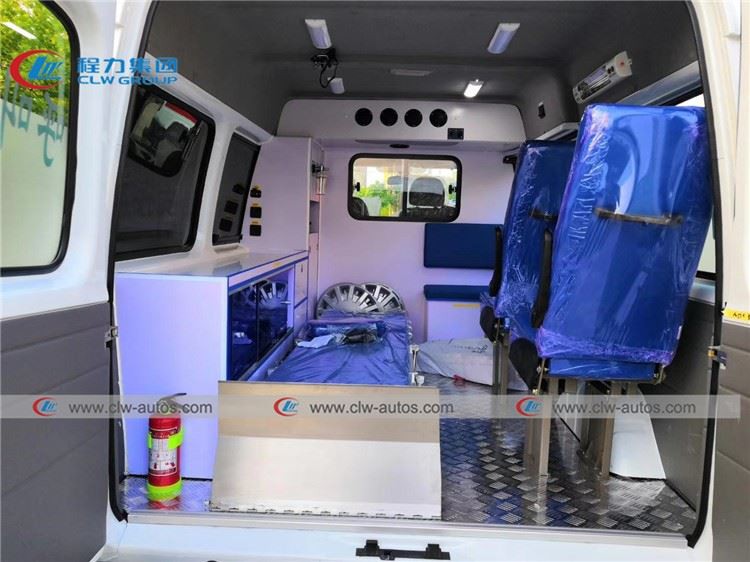

Reference picture
Specification
A |
| ||||
Wheelbase(mm)： | 2835 | ||||
Dimension(mm): | 4944X1972X2390 | ||||
Curb weight(kg): | 2150 | ||||
Tire | 215/70R15LT,4pcs | ||||
F/R Suspension | 1026/883 | ||||
A/D angle(°) | 21.4/23.5 | ||||
| |||||
Model： | JX493ZLQ5 | ||||
Fuel type: | Diesel | ||||
Displacement(ml) | 2771 | ||||
Emission standard | Euro V | ||||
Rate power kw(hp): | 85KW/115HP | ||||
| |||||
Manual gear box: | 5 Forwards & 1 reverse | ||||
Max.Speed(km/h): | 120 | ||||
| |||||
| 1 | Anti collision steel beam | |||
2 | Center control door lock | ||||
3 | Leather steering wheel | ||||
4 | Two set in cabin | ||||
5 | Air bag | ||||
6 | Tea table box in cabin | ||||
7 | Stereo tape recorder＋CD | ||||
8 | Rear mirror | ||||
|
| ||||
1 | Cabin air conditioner | ||||
2 | Medical warehouse air conditioner | 1 | |||
3 | Bidirectional exhaust fan in medical warehouse | 1 | |||
4 | Medical warehouse daylight lamp(Self bright function in night) | 4 | |||
5 | Installed ultraviolet disinfection lamp in medical warehouse 12V | 1 | |||
|
| ||||
1 | 12v DC power supply charging system | 1 | |||
2 | 12V Vehicle mounted power socket | 2 | |||
3 | Cabin 12V socket | 2 | |||
4 | Intercom system | 1 | |||
| |||||
| 1 | Alarm lights controller mounted on cabin | 1 | ||
2 | 100W car speakers built in interior of the long rows lights | 1 | |||
3 | Blue flashing LED lights mounted on rear of the car roof | 1 | |||
4 | Blue rotating long rows lights mounted on front of the car roof | 1 | |||
| |||||
| 1 | The dividing wall between the cabin and medical warehouse, it divide the vehicle into two part. The dividing wall adopts fireproof and flame retardant composite foaming material | 1 | ||
2 | Medical used slip-proof,acid and alkali resistance,wear resistance PVC floor | 1 | |||
3 | Medicine Storing Locker(Please find picture for reference) | 1 | |||
4 | The window on dividing wall is pasted with 2/3 translucent frosted subfilm | 1 | |||
| |||||
1 | 1 set of 10L oxygen cylinder with fixed support,1 set of Buoy type oxygen inhalator(Integrated decompression humidifier) | 1 | |||
| |||||
1 | Chinese brand Automatic loading stretcher and Stretcher guide | 1 | |||
2 | Extra folding stretcher | 1 | |||
3 | Folding seat for doctor,long bench or separate seats for family members with safety belt | ||||
| |||||
1 | Stable Folding transfusion hanger 1 set | 1 | |||
| |||||
1 | 12V /LED lights 2 pcs | ||||
| |||||
1 | 12V Ultraviolet disinfection lamp | 1 | |||
| |||||
1 | ACC key ignition control | ||||
2 | Cockpit integrated mainframe insurance box | 1 | |||
3 | medical cabin integrated control panel | 1 | |||
4 | Vehicular 12V /500W inverter power supply, | 1 | |||
5 | AC:220V/DC:12V uninterrupted power socket | 1 | |||
| |||||
11 | 1 kg Fire extinguisher | 1 | |||
12 | Emergency hammer | 1 | |||
13 | Safety handrail | 1 | |||
14 | Stainless steel waste bin | 1 | |||
