Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10ton foton aumark vacuum sewer jetting truck in China. If you're going to buy high quality 10ton foton aumark vacuum sewer jetting truck, welcome to get more information from our factory. For price consultation, contact us.

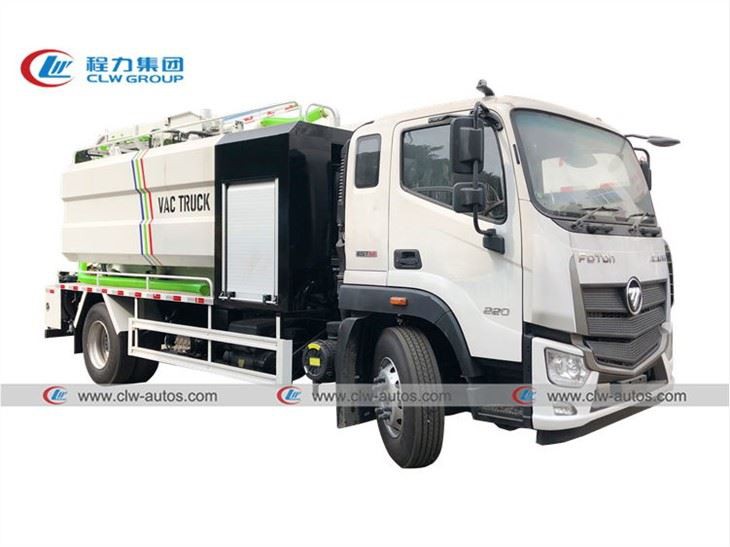

10Ton Foton Aumark Vacuum Sewer Jetting Truck
Truck Chassis Advantage:
Ø High Quality Chassis Series-FOTON Aumark
Ø Good Quality Yuchai or Cummins Engine in 180HP ~220HP
Ø FAST Gearbox Suppling large powe Output in Big Speed Ratio
Ø High Speed Gear with Low Fuel Consumption
Sewage System Advantage:
Ø Large volume sewage tank 8000L with High Pressure Design
Ø 4000L Wate with Side Installed Design Low Gravity Center
Ø Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min
Ø High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure.
Ø Hydraulic Arm for easier sewage hose handling
Ø Remote control system
Tuck Photos for reference--------------------------------------------------------------------------

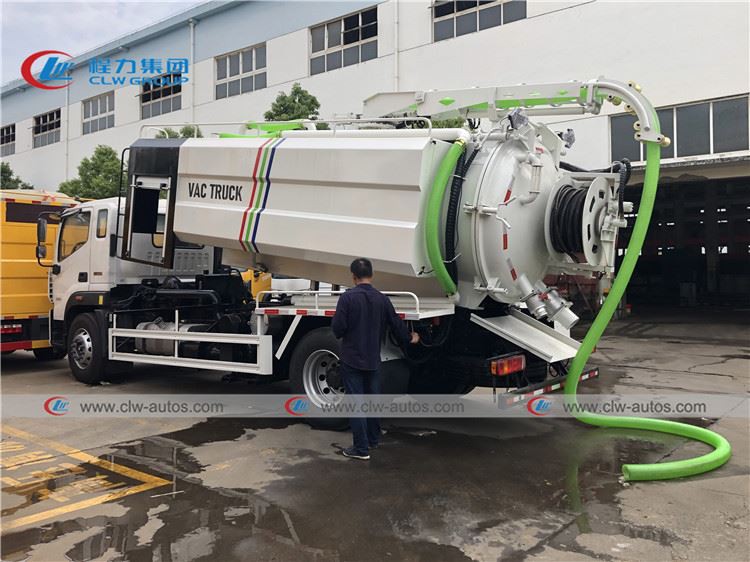

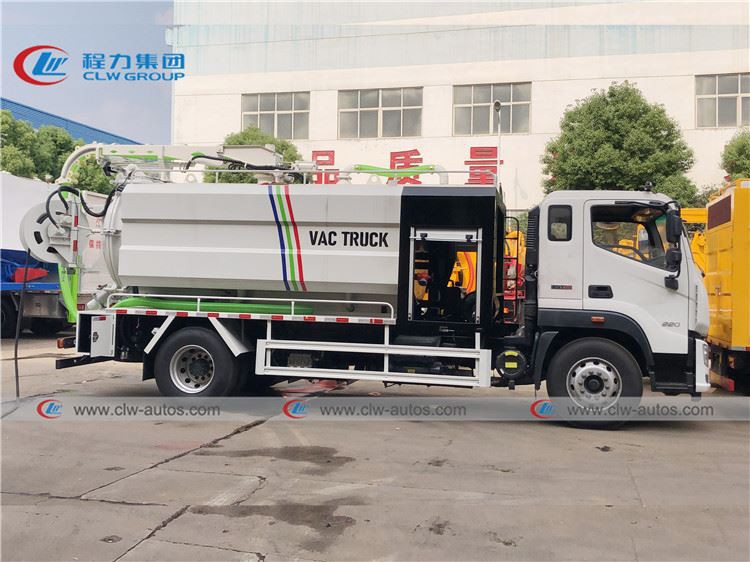

Side Installed Water Tank with Middle Sewage Tank

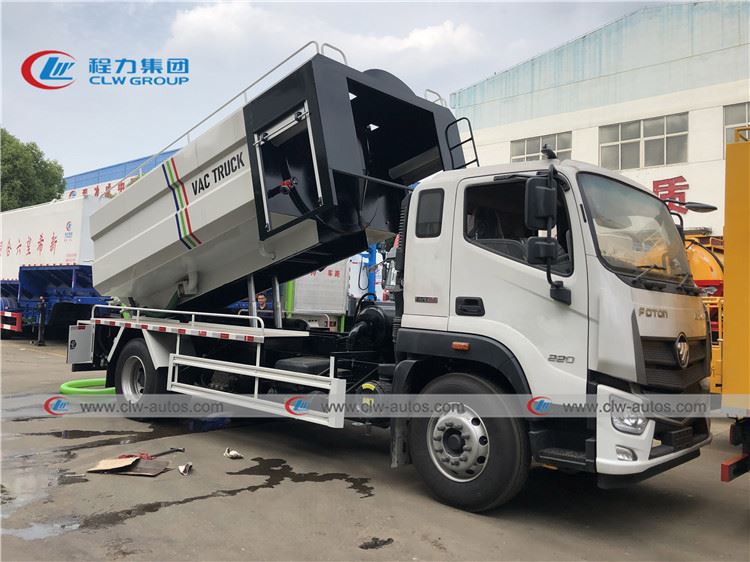

Hydraulic Tank Tipping System
Foton Aumark High Chassis with Yuchai or Cummins Engine.
FAST Gearbox: 11R22.5 Tubeless Tire.

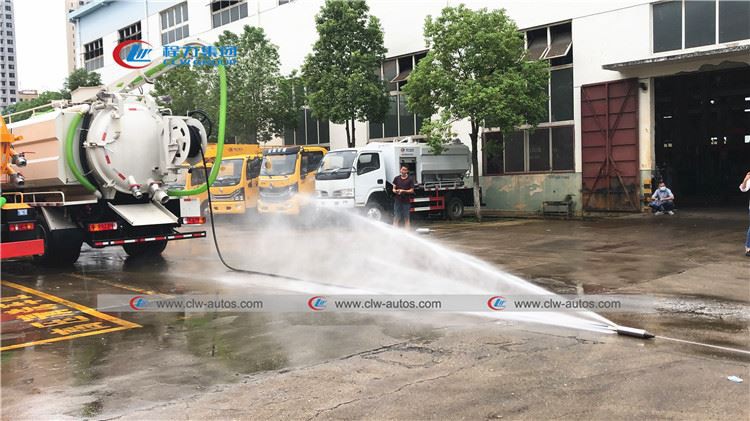

High Pressure Water Jetting for Different Sewer Cleaning.

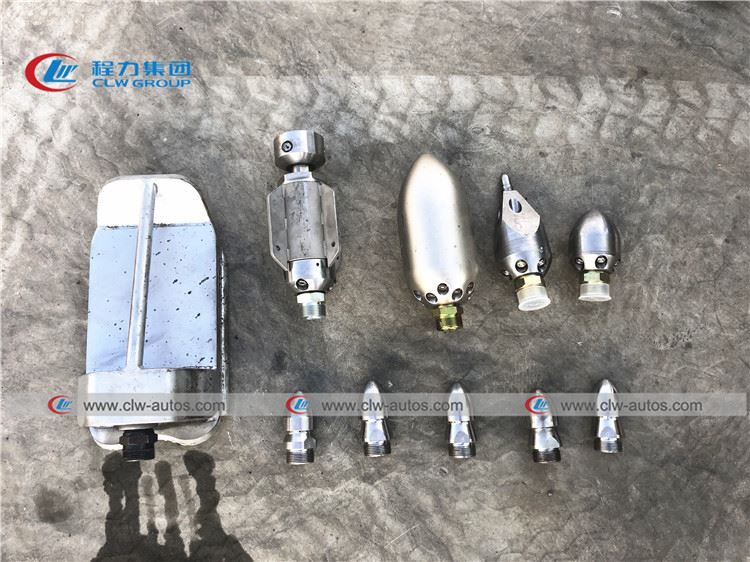

Different Sewer Cleaning Nozzle
Sewer Pipe Bottom Cleaning
Sewer Pipe Wall Cleaning
Sewer Pipe Block Breaking
Common Sewer Cleaning
Cleaning Nozzle for Different Size
Send Inquiry for more Inforamtion:
Contact: Mr Eric Cen
Whatsapp: +86 186 0715 8551
Sewer Cleaning Truck Details & Specifications-------------------------------------------------------------
Chassis parameters | |||
Condition | New condition /4x2, right hand driving or left hand driving | ||
Main details | Brand | Foton | |
Curb weight(kg) | 8900 kg | ||
Wheelbase(mm) | 4800 mm | ||
Dimensions(mm) | 9120*2500*3550mm | ||
Approach/Departure angle(°) | 20/17 ° | ||
Max. driving speed(km/h) | 95 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Air brakes | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 11R22.5 | ||
Transmission | Manual type, FAST Brand, 8 Forwards and 1 reverse | ||
Cabin | FOTON AUMARK Model, with Air Condition, for 2~3 persons | ||
Engine | Brand | Cummins Engine | |
Horsepower(HP) | 210 HP | ||
Fuel type | Diesel | ||
Displacement(ml) | 6500 ml | ||
Emission standard | Euro 2 or Euro 3 | ||
Power Supply | PTO,one is for high pressure water pump and another is for spare | ||
Sewage Suction & Cleaning System | |||
Water tank | Capacity(cbm) | 4.0cbm/4,000 liters | |
Tank material | Q235 carbon steel | ||
Thickness | ≥5 | ||
Safety protection device | 1-High water level; 2-Low water level 3-No water | ||
Sewage tank | Capacity(cbm/liters) | 8.0cbm/8,000 liters | |
Tank material | Q235 carbon steel | ||
Thickness(mm) | ≥5 | ||
Opening of Rear Cover | 100% open by hydraulic control | ||
Working pressure | 93% Vacuum | ||
Sewer Discharging outlet(mm) | 100~150 | ||
Tank is front tipping under function of oil cylinder | |||
Sewage pump | Brand | Italian Brand Jurop | |
Max. Working Speed(r/min) | 3300 | ||
Max vacuum | 93% | ||
Rate flow rate | 2400 L/min | ||
High pressure water pump | Brand | China famous brand | |
Type | Triple plunger pump | ||
Max. Pressure(Bar/Mpa) | ≥180/18.0 | ||
Rate speed(rpm) | 1500 | ||
Rate flow(L/min) | 300 | ||
High pressure Winch | Length of High pressure hose(m) | ≥60 | |
Diameters of High pressure hose(mm) | ≥19 | ||
Water nozzle | 10 different size water nozzle for cleaning sand,sludge and dirt | ||
Lamp | 1-Revolving Warning Light on top 2-Upper Arrow Warning light at truck rear 3-Signal light at truck rear | ||
Main parts | 1. Hydraulic controlled suction hose 2. Water-gas separator； 3. Oil-gas separator 4. Four way valve; 5. Safety valve 6. Anti overflow valve 7. Anti overflow warning device 8. Hydraulic control rear cover; 8. Tipping sewage tank body | ||
Remarks | The color is optional | ||
