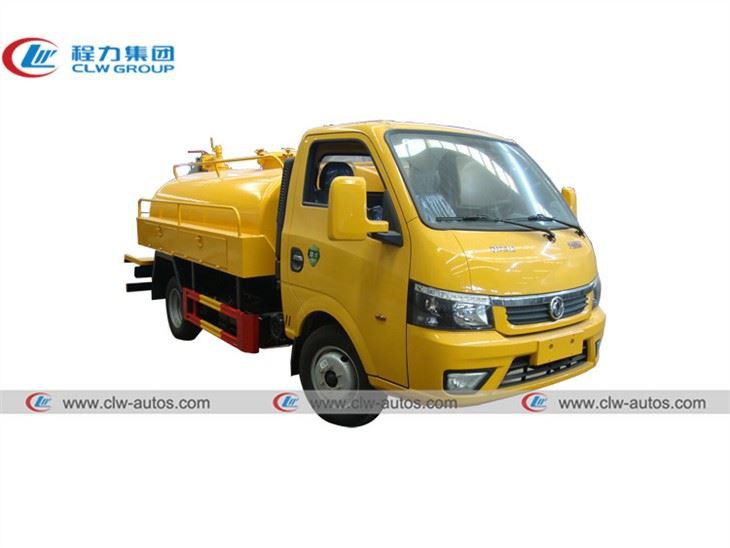

3000Liters Dongfeng 4X2 Mini Fecal Suction Truck
Product Description: A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities...
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3000liters dongfeng 4x2 mini fecal suction truck in China. If you're going to buy high quality 3000liters dongfeng 4x2 mini fecal suction truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.
Product Specifications
| The Parameters of 3000Liters Dongfeng Mini Fecal Suction Truck | |
| Overview | |
| Name | Dongfeng Mini Fecal Suction Truck |
| Dimension(LxWxH) | 4801X1575X1870(mm) |
| Total Mass | 4165 Kg |
| Rated Payload | 3000 Kg |
| Curb Weight | 1165 Kg |
| Passenger | 2 |
| Approach/Departure Angle | 33/24 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4*2 left hand drive |
| Wheel base | 2456 mm |
| Gearbox | Five speed forward and one reverse, manual |
| Front/Rear Track | 1260/1260(mm) |
| Tyre | 6.00-15 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 795/850(mm) |
| Leaf Spring Number | 3/5 |
| The Paremeters of Engine | |
| Manufacturer/Model | Laidong/4801QB |
| Rated Power | 78hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 1809ml |
| Emission Standard | Euro 6 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 170N.M |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Tank Capacity | 3000Liters |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction depth | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Length of Pipe | 7m |
| Time for full sucktion | <5min |
| Basic Equipment | Vacuum pump, ball valve, 7 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc. |
| Optional Equipment | Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc. |

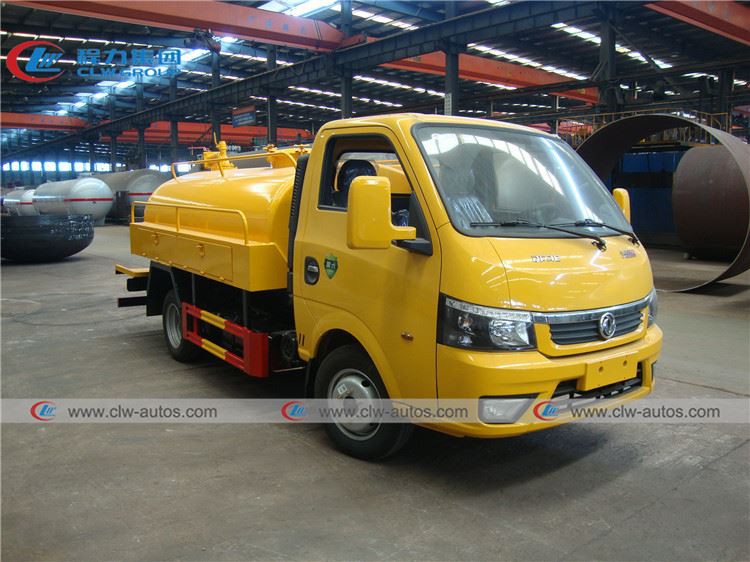

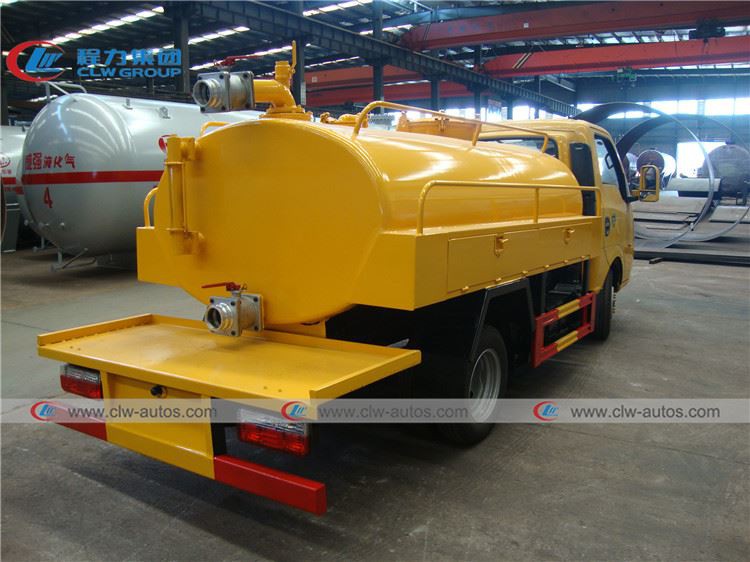

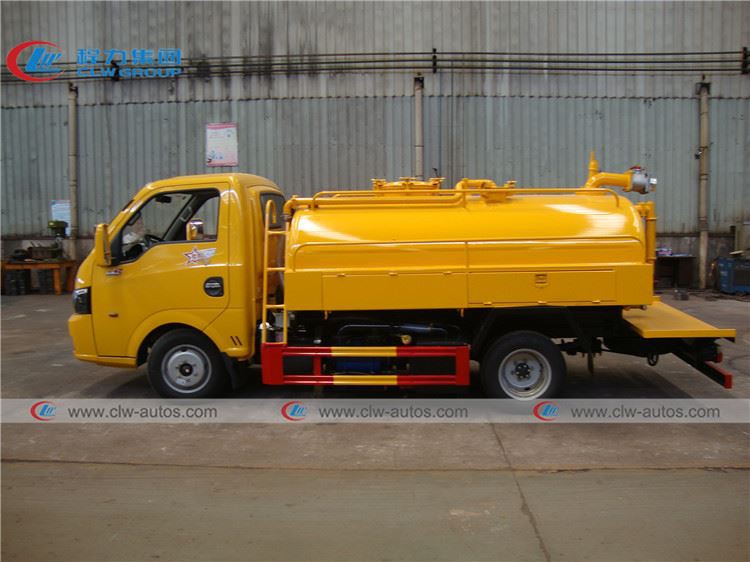

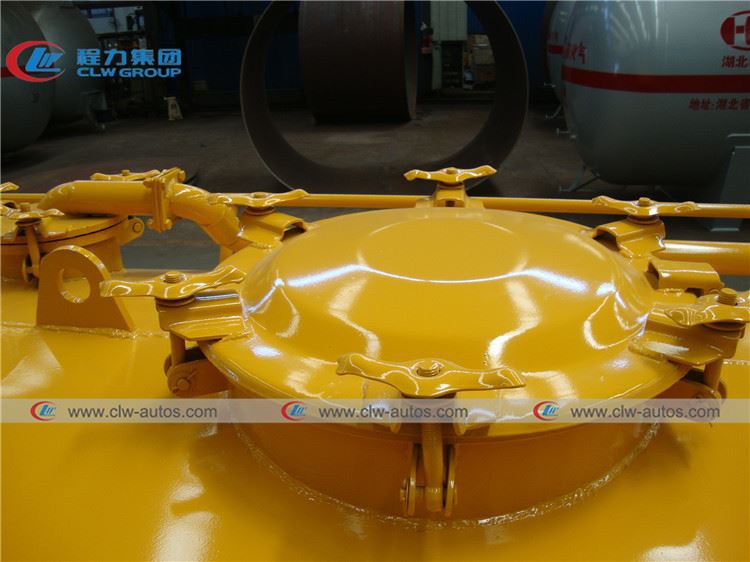

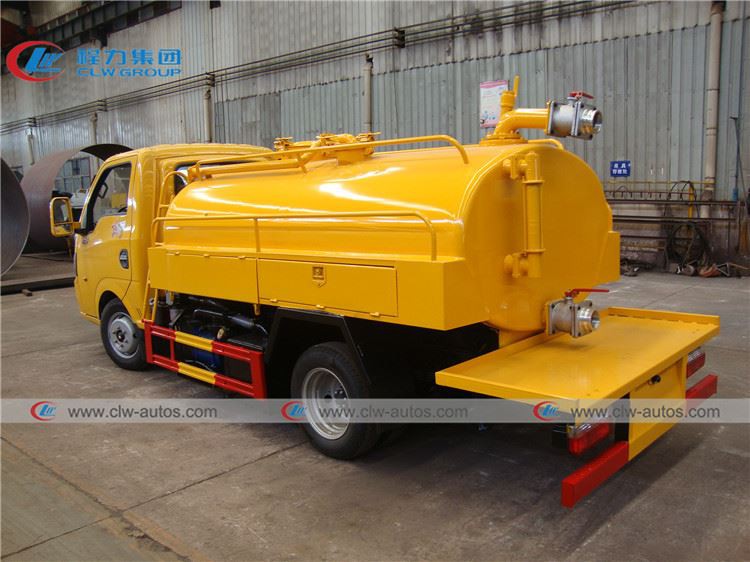

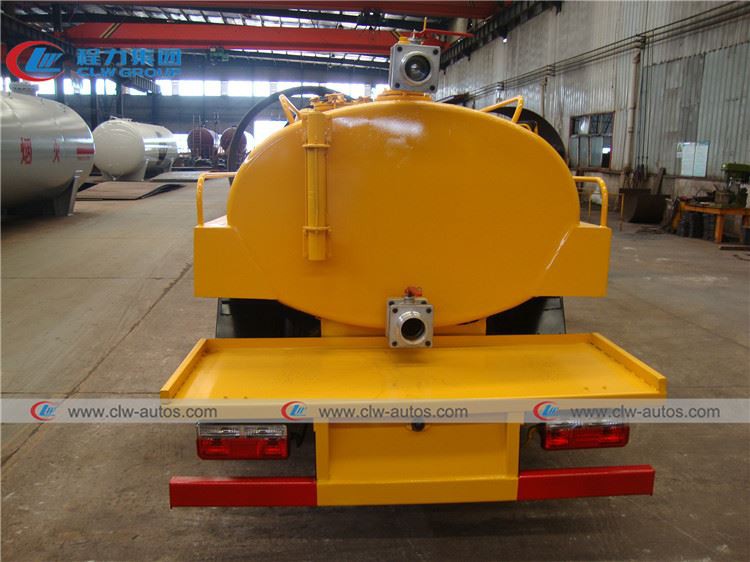

Product photos
