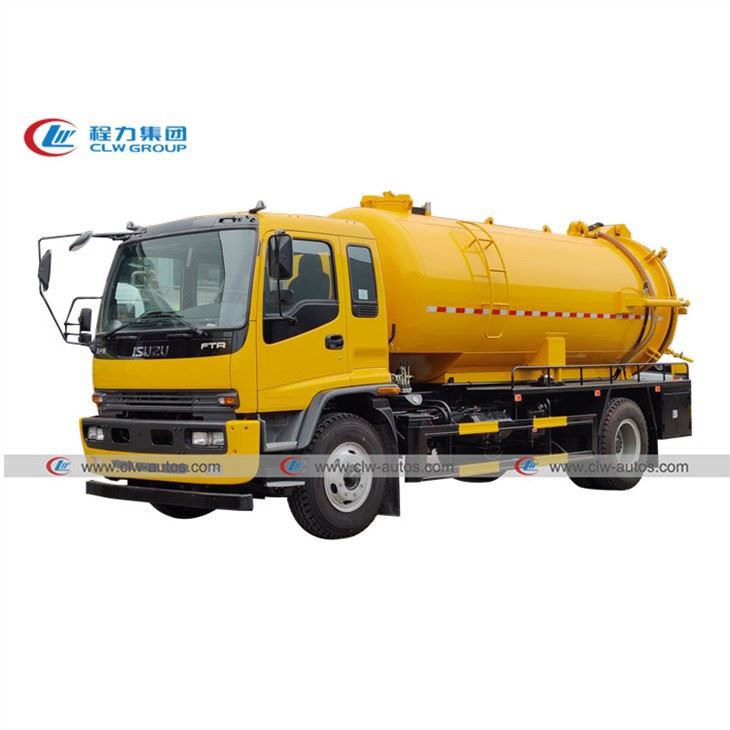

ISUZU FTR 10,000L Vacuum Hydro Excavator Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 10,000l vacuum hydro excavator truck in China. If you're going to buy high quality isuzu ftr 10,000l vacuum hydro excavator truck, welcome to get more information from our factory. For price consultation, contact us.

Vacuum hydro excavator truck (also referred to hydrovac,hydro excavator,hydro excavation truck,vacuum excavator truck,vacuum jetting tanker truck, jet vacuum cleaner truck, vacuum jetting tanker, sewer jetting truck,sewer jetter truck,vacuum jetting tank body, sewage suction jet tank, sewage vacuum truck, etc.) uses high pressure water jet nozzles to blow apart and flush sludge and grease out of drains and drainfilelds.Also vacuum hydro excavator truck is wildely used to clean and collect liquid such as waste oil,dirty water, sludge, septic, crude oil and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

vacuum jetting truck with with two functions as follows,

■High pressure sewage cleaning:

■original for imported Italian HPP high-pressure pump, ESL122/130, pressure: 16MPA, flow: 130L/min;

■equipped with high-pressure pipe 60 meters, 10 nozzles

Sewage suction part:

with sewage viewing window, self draining outlet, a 7-meter sewer suction pipe, vacuum sewage suction pump

Above isuzu truck chassis is designed to produce 10,000liters or 12000Litres vacuum hydro excavator truck.The tank could be hydraulic lifted and the rear door & tank could be hydraulic opened for completely tipping sewage and solid stuff.

whatsapp +86 135 4506 4324

--Vacuum hydro excavator truck tanker material optional for carbon steel or stainless steel 304;

--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;

-- vacuum tanker can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
-- Adopt JUROP vacuum pump  (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
-- Pump can be operated by a hydraulic motor or by an auxiliary engine.
-- Adopt imported high pressure pump PINFL or HPP or equivalent China top brand pump.
-- Overfilling system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
-- Nice shape ISUZU FTR truck chassis, rational structure, durable and long service life.

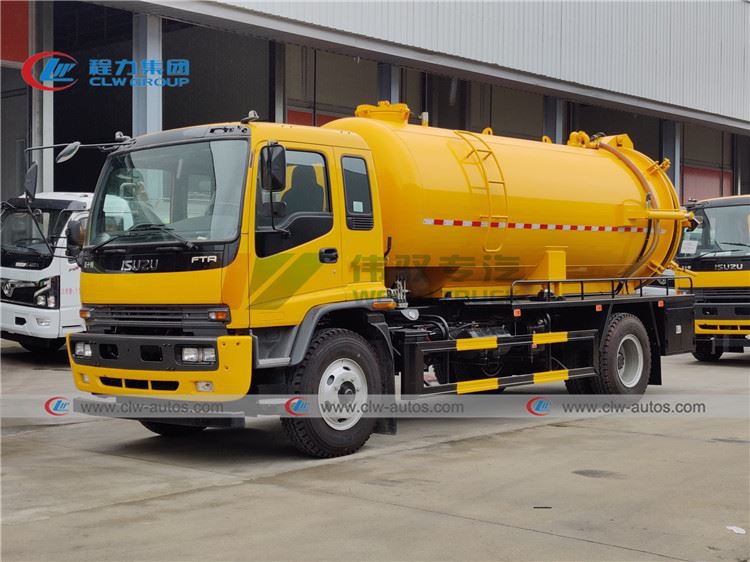

  (front side view of ISUZU FTR vacuum hydro excavator truck)

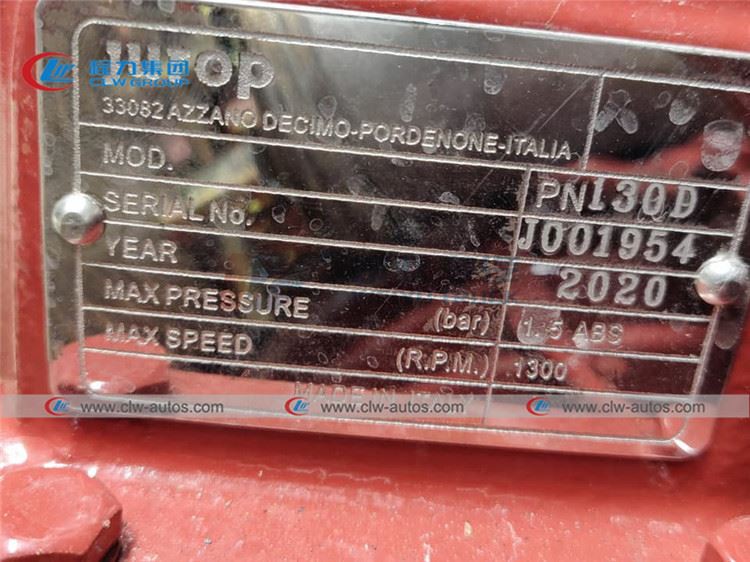

  (ITALY brand vacuum pump PN130D of ISUZU FTR vacuum hydrovac)

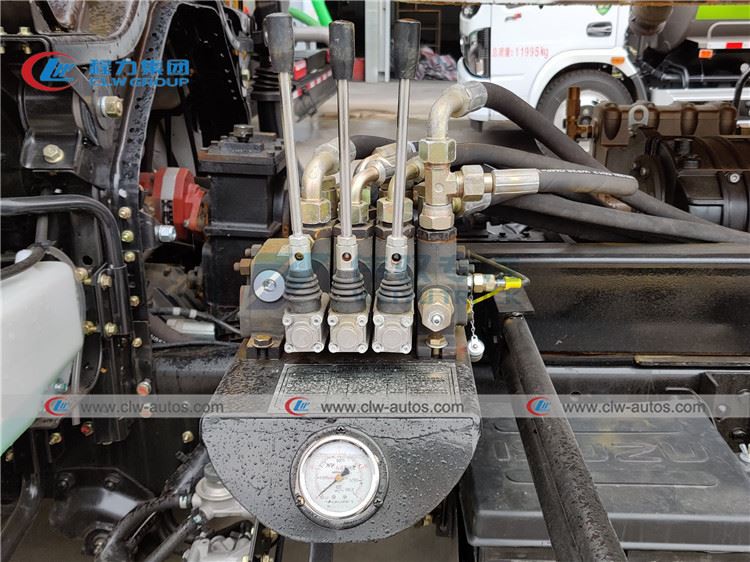

   (Manual operation handle of ISUZU hydro excavator truck)

    (High pressure sewer jetting pipe of ISUZU 10tons hydro excavator truck)
