6Ton Dongfeng Kingrun Boom Crane Truck With 1 Ton Hydraulic Platform
1Ton Lifting Platform
6Ton Boom Crane Truck
Dongfeng Kingrun Truck
CLW Crane Brand
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6ton dongfeng kingrun boom crane truck with 1 ton hydraulic platform in China. If you're going to buy high quality 6ton dongfeng kingrun boom crane truck with 1 ton hydraulic platform, welcome to get more information from our factory. For price consultation, contact us.
1Ton Platform Lifting 6Ton Dongfeng Kingrun Crane Truck in Telescopic Straight Arm
Major Specification:
1. Truck Brand: Dongfeng Brand, 170HPCummins Engine, FAST Gearbox, 9.00R20 Tire
2. Crane: 6Ton Crane, Straight arm, CLW Brand or XCMG, SANY Plafinger.
3. Box: 5600x2200x550m, Carbon Steel, 2mm side, 3mm bottom
4. Lifting Platform: Hydraulic Control,1Ton to 2Ton Lifting Capacity.
5. Fuction: equipment delivery, electrical pole delivery, etc
Product Specification
General Description | |||||||||||
Overall Dimension(mm) | 8600×2490×3650 | Cargo body size | 5600*2200*550 | ||||||||
Gross Weight | Appro* 12000Kg | Driving type | 4*2, left hand drive | ||||||||
Curb weight | Appro* 6120Kg | Rated loading capacity kg | 6000 | ||||||||
Wheel base (mm) | 3950 mm | Axle number | 2 | ||||||||
Approaching/Departure Angle(°) | 23/20(°) | F/R Axle load(kg) | 3600/7650 | ||||||||
Passengers in cab | 3 | Maximum speed(km/h) | 90 | ||||||||
Number of Tires | 6 (1 spare piece) | Tyre type | 9.00-20 | ||||||||
Front/Rear suspension(mm) | 1250/2650 | Front/Rear track base (mm) | 1920/1860 | ||||||||
Transmission | 6 Forward with 1 Reverse, manual | Fuel type | Diesel oil | ||||||||
| |||||||||||
Brand | Cummins | Model | B170-33 | ||||||||
Displacement (L) | 5.9 L | Emission Standard | EURO III | ||||||||
Max Power Output | 125 kw | Horse power | 170HP | ||||||||
Number of cylinders | 6 | Cylinder spread pattern | In-line | ||||||||
|
|
| 2500 | ||||||||
Crane Model(5 Ton 3 telescopic arms crane) | SQ5SA2 | Unit | |||||||||
Max Lifting Capacity | 5000 | kg | |||||||||
Max Lifting Moment | 12.5 | T.M | |||||||||
Recommended Power | 20 | KW | |||||||||
Recommended Hydraulic Flow | 40 | L/min | |||||||||
Rated hydraulic Pressure | 20 | MPa | |||||||||
Oil tank capacity | 100 | L | |||||||||
Crane Weight | 2200 | kg | |||||||||
Installation Space | 900 | mm | |||||||||
Rotation Angle | 400° | ° | |||||||||
lifting capacity table | |||||||||||
Working radius(m) | 2.5 | 3.95 | 6.3 | 8.65 | |||||||
Rated loading(kg) | 5000 | 2250 | 1450 | 1000 | |||||||

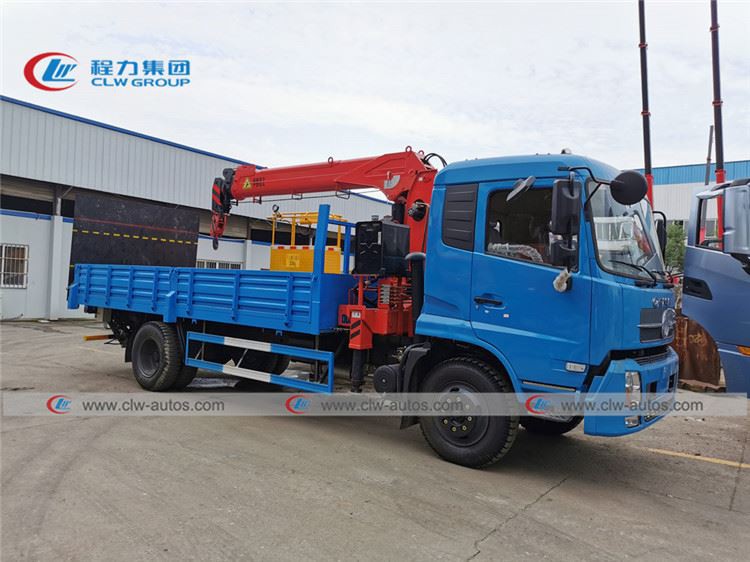

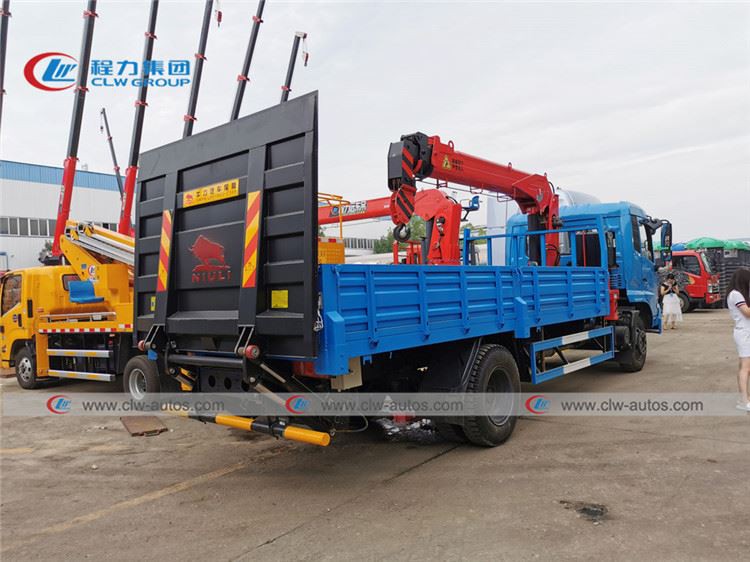

Product Photos Detail
