Kama 5MT Telescopic Boom Crane Truck With 5meters Cargo Box

5MT Crane Truck
5meters carrigage box
Straight Arm Crane
CLW Brand in Height Quality

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of kama 5mt telescopic boom crane truck with 5meters cargo box in China. If you're going to buy high quality kama 5mt telescopic boom crane truck with 5meters cargo box, welcome to get more information from our factory. For price consultation, contact us.

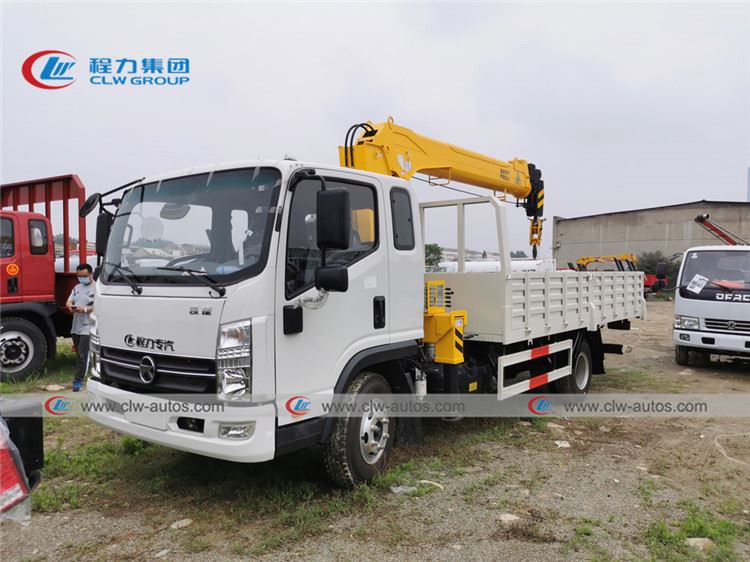

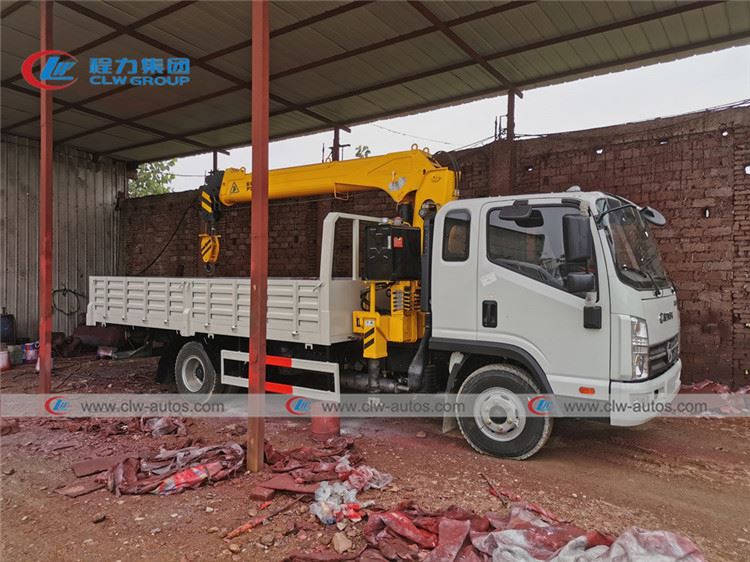

Kama 5MT Telescopic Boom Crane Truck with 5meters Cargo box

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

Overall Size		7660 x 2280 x 3510 mm
Gross Vehicle Weight		10,000 kg	Loading Weight		5000 kg
Curb Weight		5,000 kg	Front/ Rear Axle		3.6 Ton / 6.4Ton
Wheel Base		4200 mm
Cabin		Kama Cabin, Single & Hald Row, with Air Condition, Electical Glass, Central Lock, ABS, Left Hand Driving, 3 Passenger Allowed
Engine		Yunei Diesel Engine YN38CRE1, Euro 5, 4 Stroke, Water Cooling,4 Cylinder in Line,
Horse Power		129hp / 95KW ,
Max Torque		1600 ~2400rpm
Gearbox		10 Forward & 1 Reverse Gear
Steering Gear		Hydraulic Assistant
Suspesion		Mechanical
Leaf Spring		9/11+8
Tire		8.25R16LT, 6 Piece with 1 spare
Maximum Speed		95-110 km/h
Crane Specification

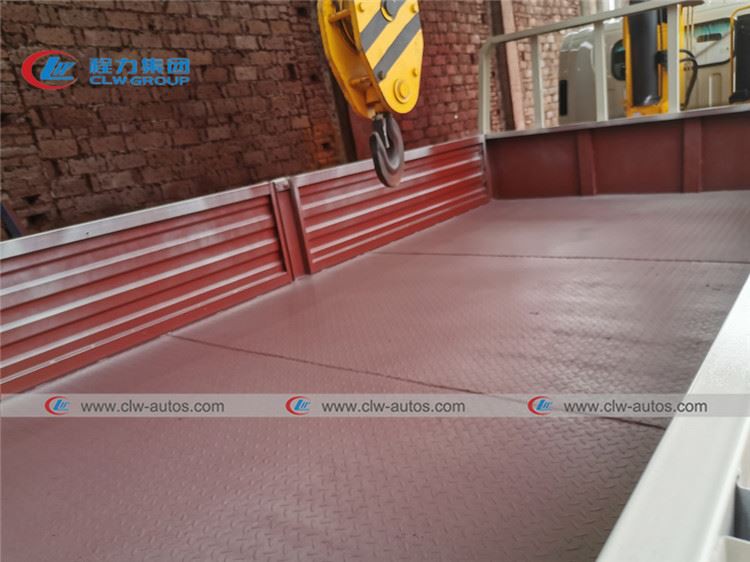

Cargo Box	Size			4600 × 2300 × 550mm
	Material			Q235 Carbon steel
Crane	Type			Straight Arm Crane
	Model			CLW / SQS125-4

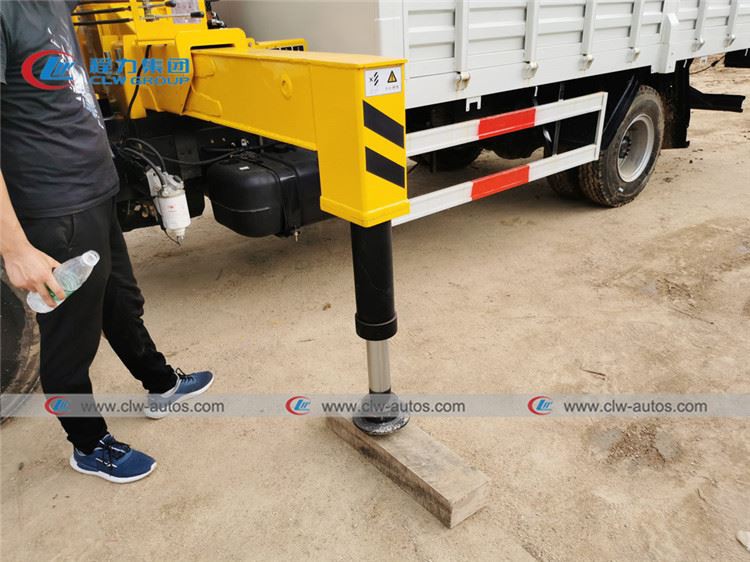

	Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability. The crane using the 5ton fold-able boom.
