8x4 SINOTRUK HOWO 25tons Knuckle Boom Truck Mounted Crane
Engine:diesel engine SINOTRUK 371HP;
Driving model:LHD or RHD
Gear box:10-speed forward and 2 reverses
Tire:12R22.5
Crane max lifting weight:25tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 8x4 sinotruk howo 25tons knuckle boom truck mounted crane in China. If you're going to buy high quality 8x4 sinotruk howo 25tons knuckle boom truck mounted crane, welcome to get more information from our factory. For price consultation, contact us.
Function
--Knuckle Boom Truck(also called Truck Mouted Crane, Truck Crane, Truck With Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
--Knuckle Boom Truck can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Knuckle Boom Truck;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Knuckle Boom Truck;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Knuckle Boom Truck.
Feature
--Crane: We can supply International brand XCMG and PALFINGER for optional.
--Landing leg: Hydraulic control, top quality, easy for operation.
--Storage box: High quality carbon steel Q235
--Truck chassis: Militray quality SINOTRUK HOWO 8X4 Diesel engine truck chassis
--Tire: 12R22.5 tubeless tire with high trafficability.

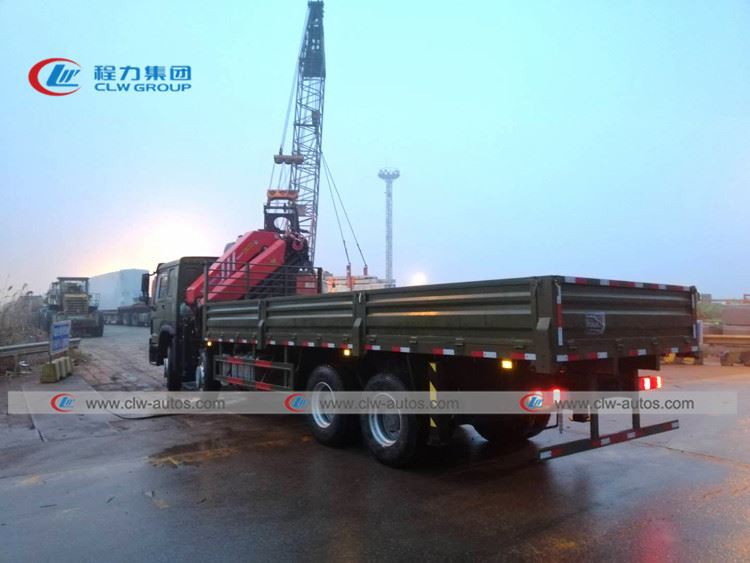

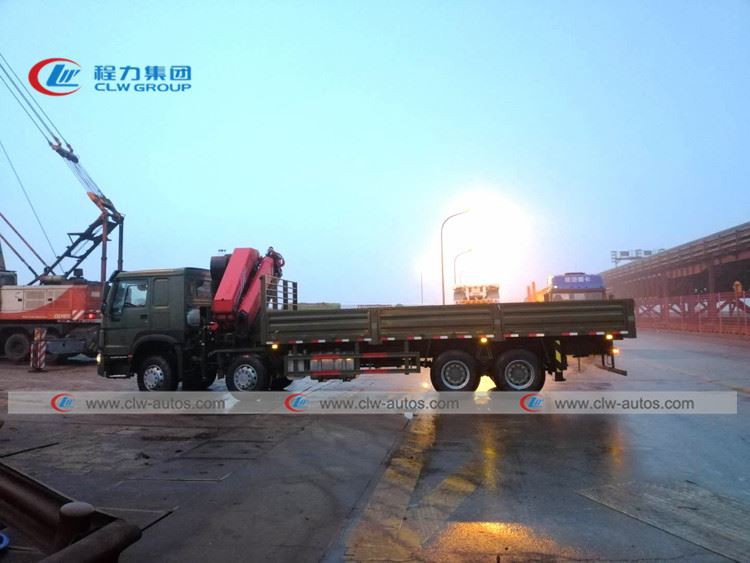

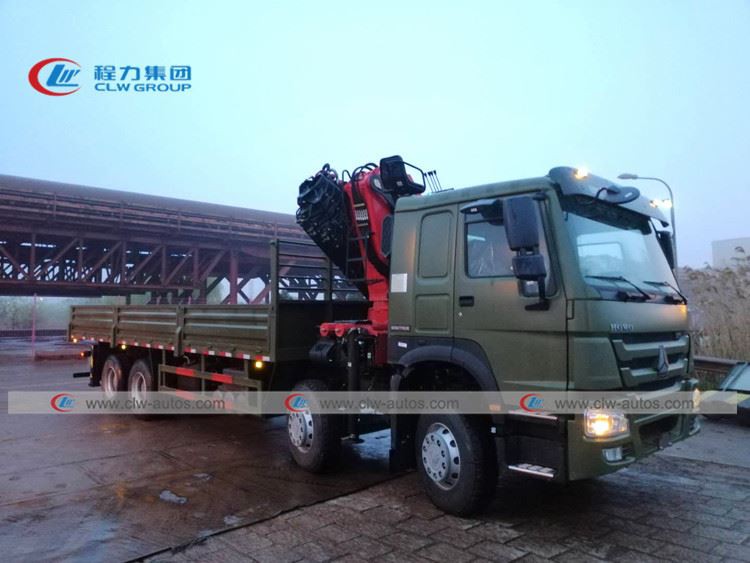

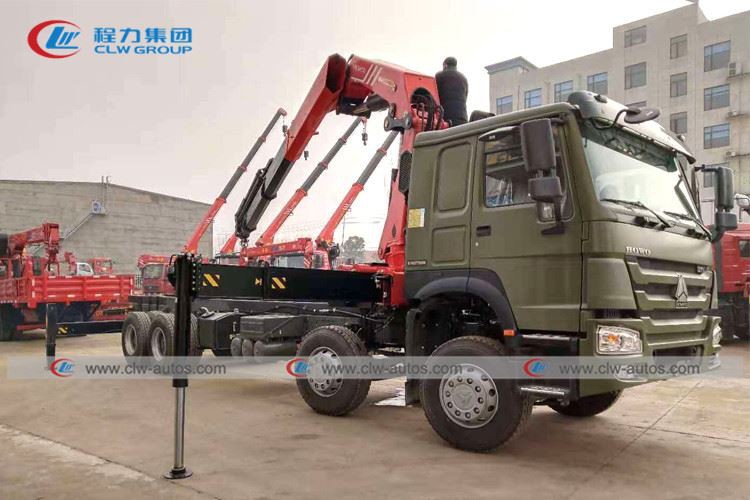

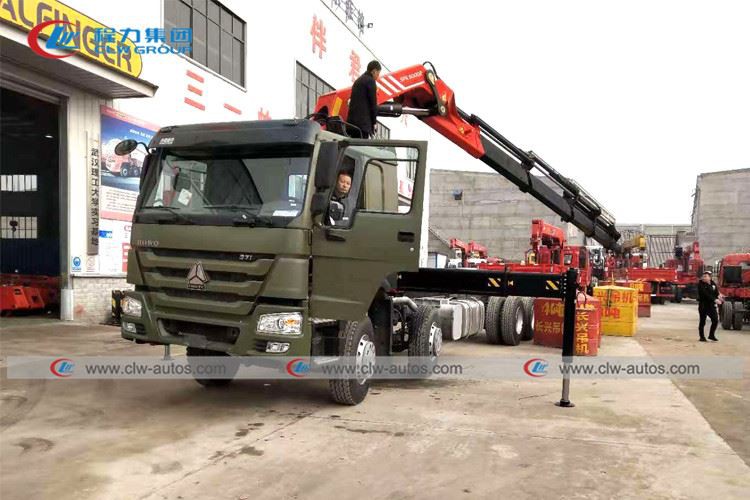

Reference picture
Specification
Parameters | |||
Drive Model | 8X4, Left hand drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 10500*2500*3850 mm | |
Wheelbase (mm) | 1800+4600+1350 mm | ||
Max. driving speed(km/h) | |||
Engine | Model | WD615.47 | |
Type | 6-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 371 HP | ||
Displacement (ml) | 9726 ml | ||
Emission standard | Euro II | ||
Brakes | Service brake: Dual circuit compressed air brake. Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
Cabin | HW76. It can accommodate three people, With Air conditioner | ||
Gearbox | 10 forwards & 2 reverses | ||
Steering Gear | ZF, Power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 400 | ||
Tire | 12R22.5 Tubeless tire , 12 + 1(spare tire) | ||
Flatbed | Loading Capacity(tons) | 30-40tons | |
Crane | Brand | PALFINGER | |
Working Platform | 400°turning(left or right), H-shape legs 360° | ||
Material | Q235 Carbon steel | ||
Boom Type | Folded type | ||
Max. Lifting Weight(kg) | Theoretical max.: 25000kg Effectively: 16500kg | ||
Max. Working Radius(m) | 16.8 m | ||
Max. Lifting height(m)(Hydraulic boom） | 20.5 m | ||
Max. Lifting height(m)(With mechanic boom）(Optional) | 27.2 m | ||
Max. Lifting Moment(T.M) | 49.0 T.M | ||
Max. Oil Flow of Hydraulic System(L/min) | 80-100L/min | ||
Max. Pressure of Hydraulic System(MPa) | 33.0 MPa | ||
Crane Weight(kg) | 5400kg | ||
