Sinotruk Howo 6*4 Folded Boom Crane Truck

Truck brand:Sinotruk Howo;
Engine:diesel engine 336HP;
Driving model:6X4
Boom Type:Knuckle 3-Arm Telescopic Boom

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6*4 folded boom crane truck in China. If you're going to buy high quality sinotruk howo 6*4 folded boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

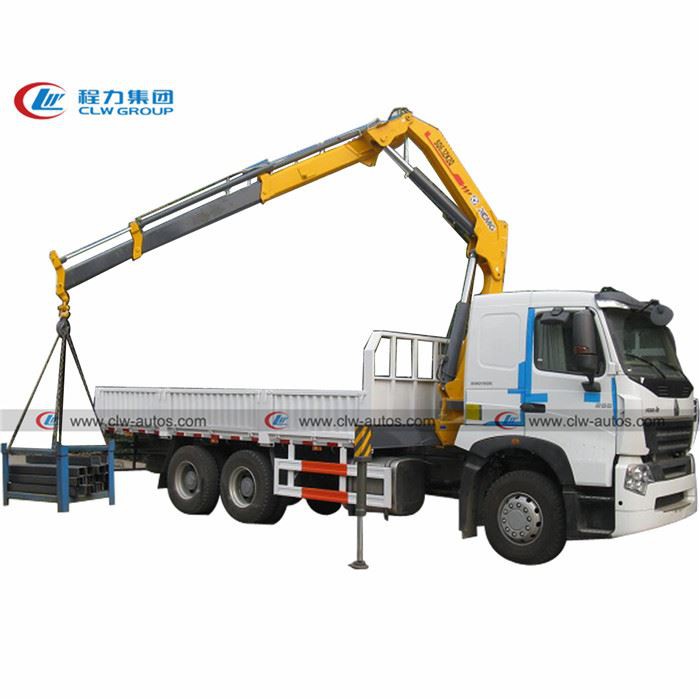

Sinotruk Howo 6*4 Folded Boom Crane Truck

Product Description

--Truck with crane is a type of transportation vehicle that combines a truck with a crane and a chassis. It is composed of boom, turntable, frame, outrigger and other parts. The mechanical action of the truck crane is realized through the actions of luffing, telescopic, rotating, hoisting and other mechanisms, and the lifting operation is realized through the combination of different actions.

--The official name of crane truck: truck with crane, which is widely used in the lifting and transportation of infrastructure materials and other equipment such as municipal construction, coal mine engineering, and landscaping. The truck-mounted crane can be operated left and right, it can rotate 360 degrees forward and backward, and it can also rotate in all directions.

--CLW Group crane truck adopts military quality production, reliable quality, long life and fast working speed. Related models are 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 Tons, 20 tons, 25 tons, 30 tons, 80 tons, 140 tons, we provide straight arm or folding arm cranes for your optional.

--Popular truck chassis brands: Sinotruk Howo, Isuzu, Dongfeng, FAW, Shackman, etc.

whatsapp Flora +86 13971508969

Reference picture

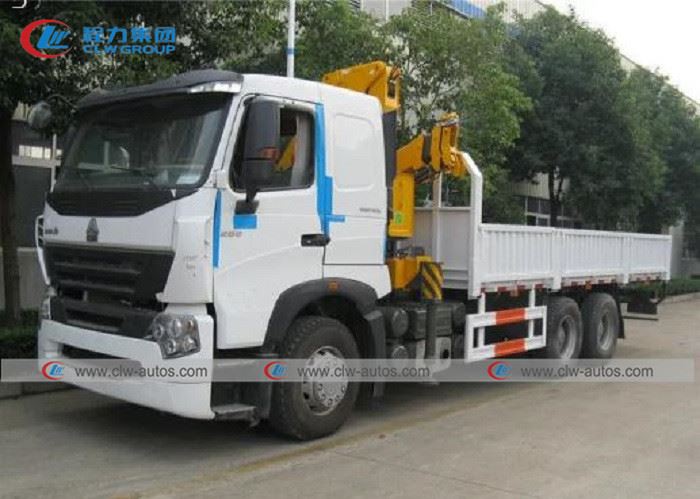

Howo crane truck

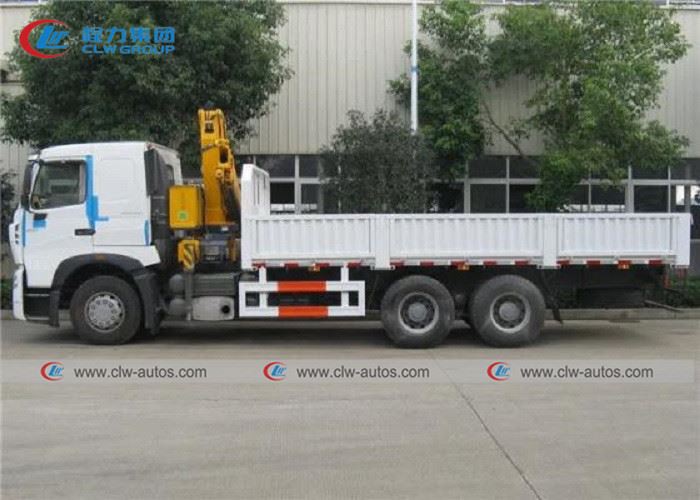

Sinotruk howo truck mounted crane

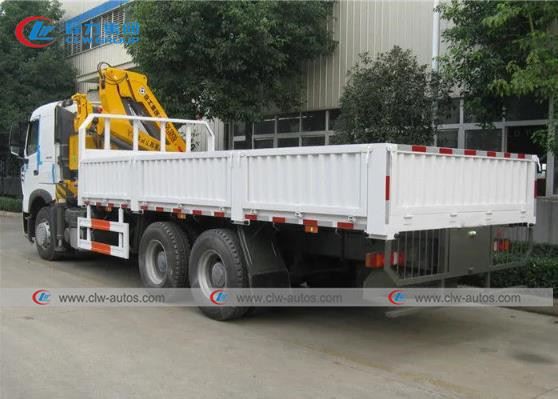

Howo truck crane

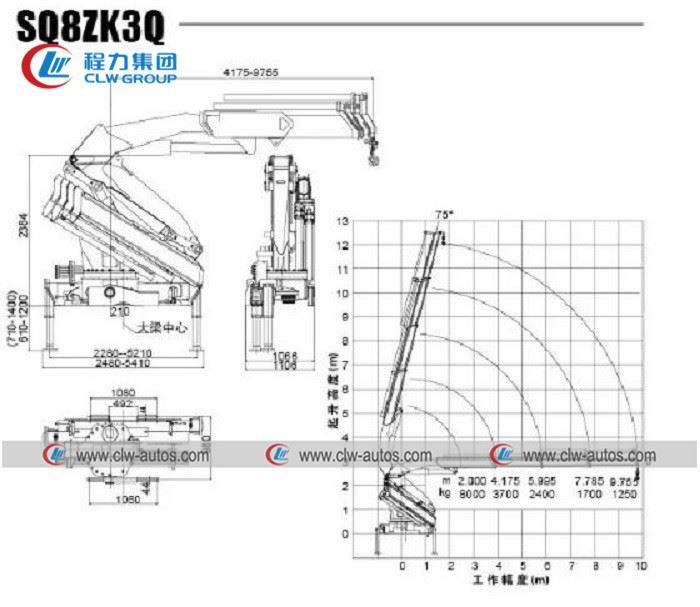

234520200910173416_

Specification

Vehicle Main Dimensions	Overall dimensions (L x W x H) mm	9800×2500×3718
	Carriage Size (L x W x H) mm	7100×2326×600
	Wheel base (mm)	4325+1350
	Wheel track (front/rear) (mm)	1500/2625
	Approach/Departure angle(°)	16/15
Weight in KGS	Curb Weight	13870
	payload	25000
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Max. driving speed(km/h)		90
Engine	Brand	Sinotruk
	Model	WD615.69
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	336 HP
	Emission standard	Euro 2
Gearbox	HW19710,10 Forwards gear & 2 reverse gear.
Steering	ZF8098, from Germany,
Tire	12R22.5 tubeless radial tires, 11pieces including one spare
Clutch	Reinforced diaphragm clutch, diameter 430 mm
Crane specifications	Brand : CLW or SANY or other brands
	Type: Knuckle
	Max lift capacity: 8000 kg
	Max working radius 12.5 m, Max lifting height : 10m2

Key word: Sinotruk crane truck, Howo 6X4 truck crane, truck mounted 6.3t crane, 8tons crane truck, China crane truck, truck mounted folding arm crane, truck with 6.3T knuckle boom Crane, 6.3tons folded arm crane Truck, truck mounted kunckle boom crane, Sinotruk Howo truck crane, truck mounted hydraulic crane, straight arm crane truck, telescopic boom crane, knucle boom crane, construction truck, CLW crane truck, etc.

Hot Tags: sinotruk howo 6*4 folded boom crane truck, China, manufacturers, suppliers, factory, price, Construction Truck
