20cbm ISUZU Combination Sewer Cleaner
Truck brand:Japanese Brand ISUZU
Tank volume:Clean/Sewage water tank: 6cbm + 14cbm
Integrated air-blow anti-freeze specialized for Russia
A dedicated Weifang 420 HP auxiliary engine
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20cbm isuzu combination sewer cleaner in China. If you're going to buy high quality 20cbm isuzu combination sewer cleaner, welcome to get more information from our factory. For price consultation, contact us.

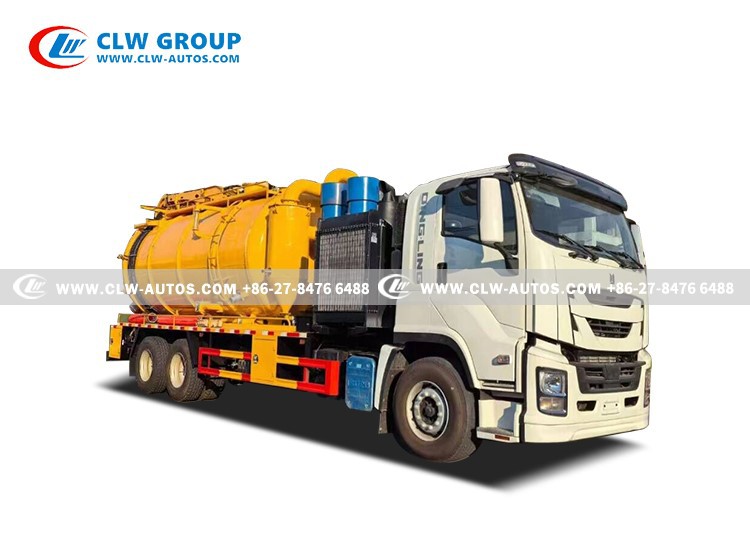

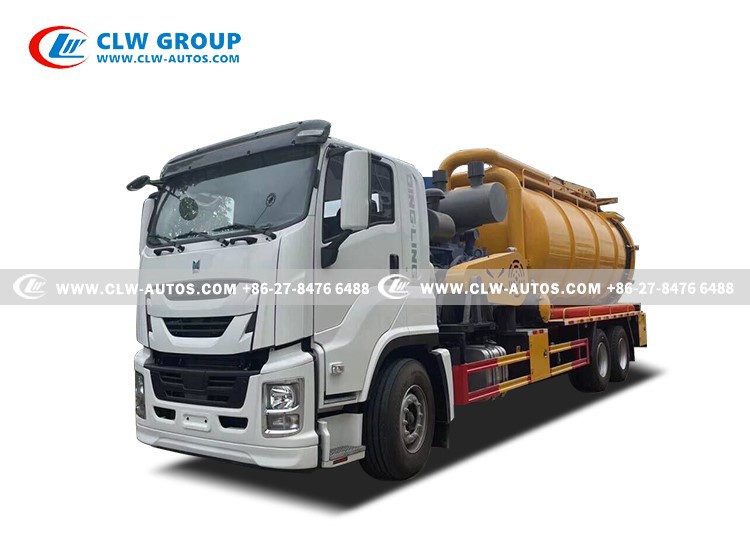

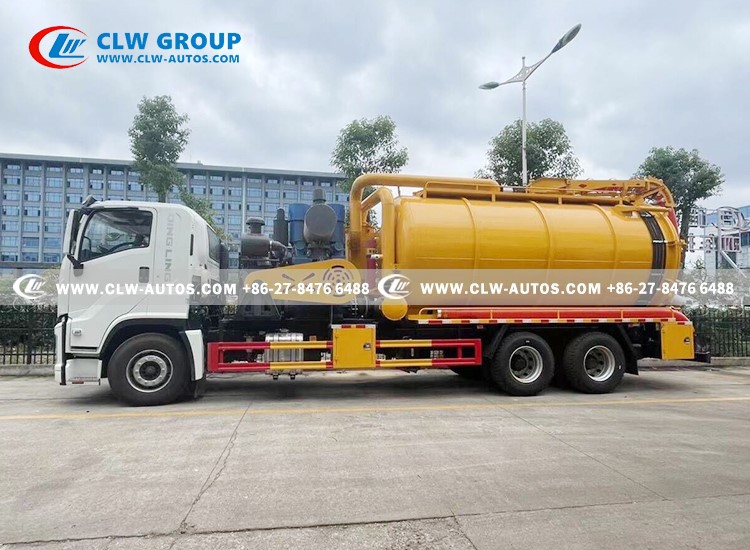

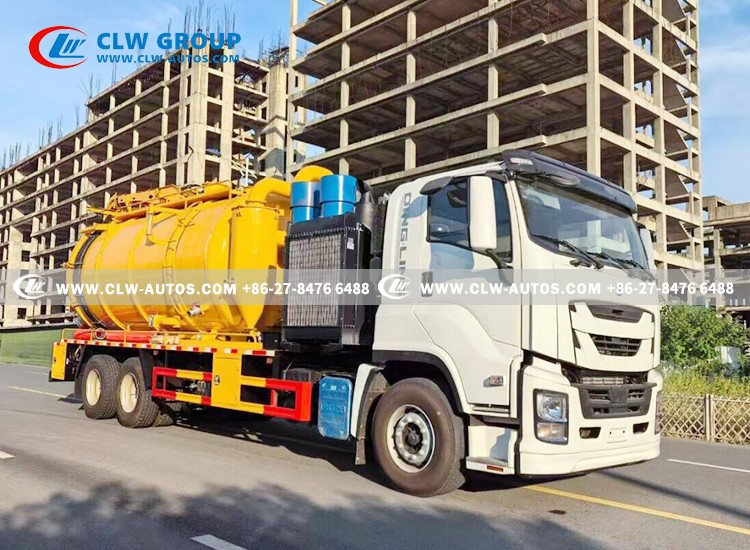

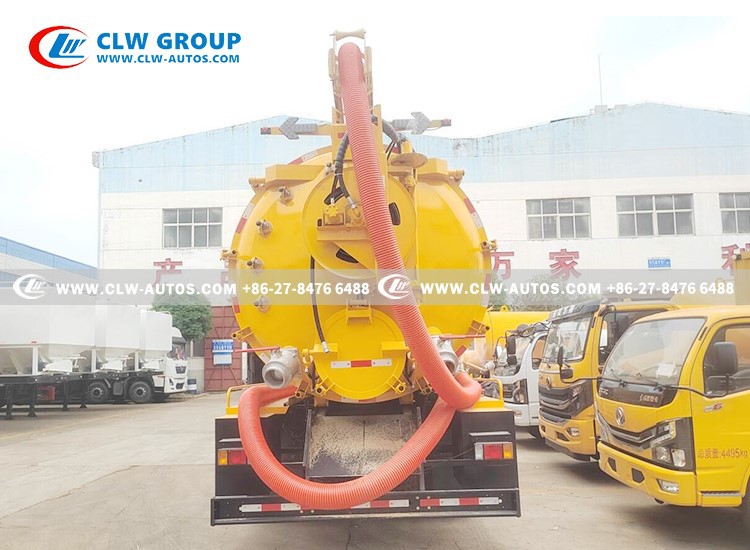

Isuzu 6x4 Sewer Cleaning and Vacuum Truck
Your Robust & Winter-Ready Solution for Russian
Products Description
Designed to meet the demanding conditions of Russia's climate and infrastructure, the Isuzu 6x4 Sewer Cleaning and Vacuum Truck integrates high-power cleaning, deep suction capabilities, and cold-weather resilience into a single, efficient unit. Built on a reliable Isuzu rear double-bridge chassis with 6x4 drive, this truck ensures stability and performance in extreme environments. Its 20 m³ total tank capacity (6 m³ clean water tank + 14 m³ sewage tank, both constructed from 8mm thick carbon steel) provides ample storage for extended operations, while specialized anti-freeze features guarantee year-round functionality.
- Chassis Model: Isuzu 6x4 Rear Double-Bridge
- Tank Capacity: 6 m³ (Clean Water) + 14 m³ (Sewage)
- Tank Material: 8mm Carbon Steel
- High-Pressure Pump: Pinfu (350 L/min, 180 bar)
- Vacuum System: Roots Blower (6000 L/H) + Weifang 420 HP
- Wheelbase: 4350+1370 mm
- Suction Hose: 8m Length, DN150
- Anti-Freeze Feature: Air-Blow Function for Winter Operations
- Key Add-ons: Hydraulic Crane, Remote Control, Lighting
- Engine: 6HK1-TCG60
Key Features & Superior Advantages
--Cold-Weather Optimized High-Pressure System
Equipped with a Pinfu high-pressure pump delivering 350 L/min flow rate and 180 bar pressure, ensuring powerful cleaning for urban sewer networks and industrial pipelines.

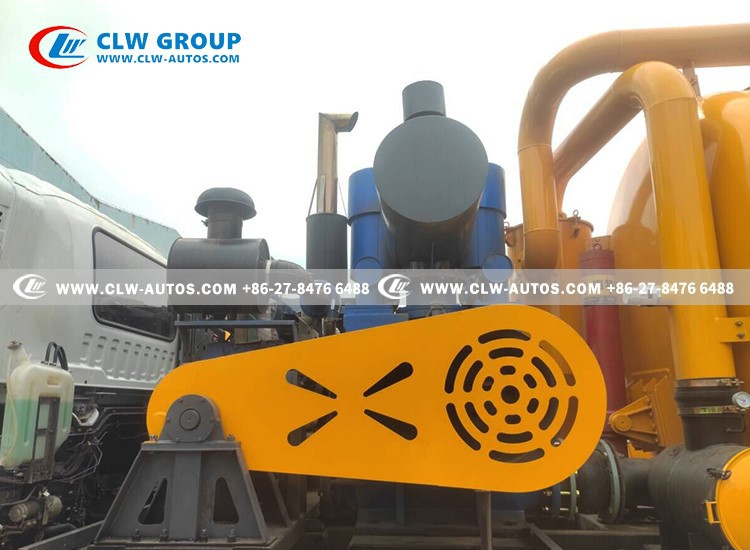

Integrated air-blow anti-freeze prevents water residue from freezing in pipelines during Russian winters, a critical advantage for uninterrupted operations
--High-Efficiency Vacuum Suction & Self-Cleaning Design
A dedicated Weifang 420 HP auxiliary engine powers a 6000 L/H Roots blower, enabling rapid suction of sludge, gravel, and viscous wastes with a suction depth of ≥8 meters.
--DN200 inlet/outlet pipes and a DN150 oblique suction port facilitate large-particle waste handling.

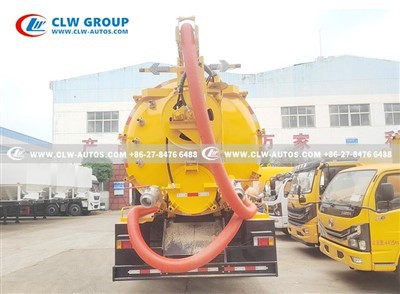

Hydraulic liftable tank with a rear-opening door + 600mm small access panel minimizes wear on main seals while simplifying maintenance.
--Operator-Friendly & Safety-Enhanced Configurations
Rear night working lights + arrow indicator lights improve visibility for safe night operations.

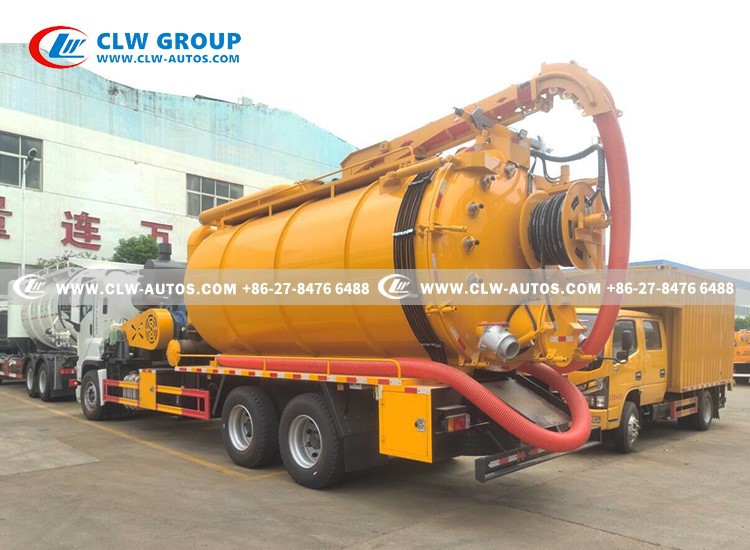

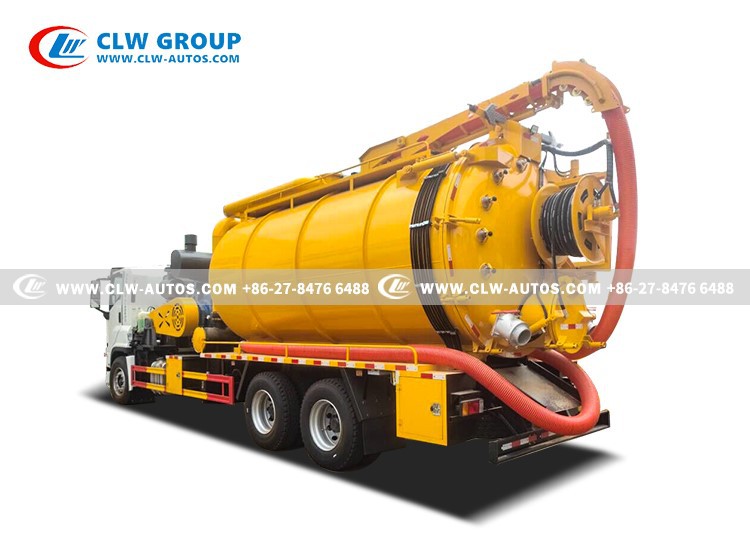

Hydraulic crane (includes 8-meter DN150 suction hose) with remote control for precise pipe positioning.
Transparent inspection window and pressure gauge for real-time monitoring.
--Durability for Long-Term Use
Sewage tank interior anti-corrosion treatment and polished surfaces extend lifespan.
Dual-purpose water-sewage interconnection and DN150 self-draining outlet enable flexible waste discharge.
Products Description
|
Technical Specification |
|||||
|
Chassis Part |
|||||
|
Condition |
ISUZU, factory brand new 2025 |
||||
|
Wheelbase |
4350+1370 mm |
||||
|
Cab |
ISUZU cabin LHD, 1+2 seats Electric AC, Cooling Fan |
||||
|
Engine |
Engine brand |
ISUZU engine, 6KH1-TCG60 |
|||
|
Horsepower |
300hp |
||||
|
Fuel type |
Diesel |
||||
|
Emission standard |
Euro 6 |
||||
|
Transmission |
Manual type, FAST, 9 speeds forward and 2 reverse |
||||
|
Front axle loading |
7,000kg |
||||
|
Rear axle loading |
10,000kg |
||||
|
Tyre |
295/80R22.5 18PR, 10pcs with one spare |
||||
|
Upperstructure Configuration |
|||||
|
Tank dimensions |
Tank volume capacity |
20 m3, 20,000 litres |
|||
|
Clean water tank |
6m3, 6,000litres |
||||
|
Sewage tank |
14m3, 14,000litres |
||||
|
Jetting system |
High-pressure jetting pump model |
PINFL 350L/min |
|||
|
Vacuum system |
Vacuum pump model |
Roots Blower (6000 L/H) + Weifang 420 HP | |||
|
Horizontal suction range |
50 m |
||||
|
Drive system |
HP pump driven by Sandwich PTO |
||||
|
Filtration |
Dual-stage filtration protects pump from debris |
||||
|
Tank assembly |
Anti-overflow system |
Primary+ cyclone secondary valve |
|||
|
Dumping mechanism |
Front-mounted hydraulic lift |
||||
|
Accessories |
Top platform, filter ports, ladder |
||||
|
Reel |
Rear-mounted hydraulic reel, 160° hydraulic swing (deploy/ retract/ lateral positioning). |
||||
|
Discharge |
Side-mounted Ø100mm suction valve |
||||
|
Work platforms |
Both extended side platforms + toolboxs |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
Our Official Website--Factory Real Shot Video For You
Ideal Application Scenarios
- Municipal Sewer Maintenance: Cleaning storm drains, sewage pipelines, and pump stations in Russian cities.
- Industrial Waste Management: Handling toxic liquids, oil sludge, and chemical residues from factories or mines.
- Emergency Response: Addressing floodwater, spill contamination, or accidental blockages in harsh climates.
- Public Sanitation: River sludge removal and road cleaning in sub-zero temperatures.
- Tailored for Russian Markets: Cold-weather adaptations and compliance with regional operational standards-5.
- Fuel-Efficient Power: Isuzu chassis reliability combined with a high-torque auxiliary engine.
- Minimized Downtime: Anti-freeze protection and corrosion-resistant tank interiors reduce maintenance needs.
- Customization Options: Adjustable tank partitions, nozzle types, and hose lengths based on project requirements.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
