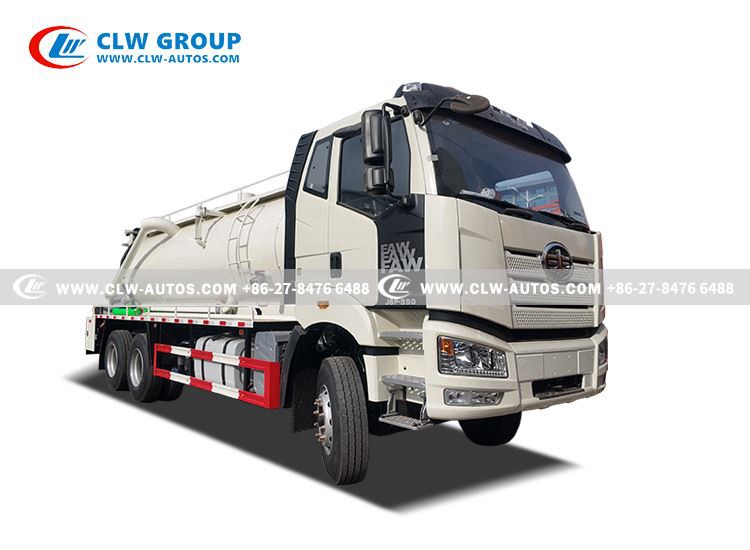

FAW J6P 12000Liters Sewer Cleaner Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw j6p 12000liters sewer cleaner truck in China. If you're going to buy high quality faw j6p 12000liters sewer cleaner truck, welcome to get more information from our factory. For price consultation, contact us.







FAW J6P  6×4 12,000L–18,000L Vacuum Septic Tank Sewer Cleaning/Cleaner Suction Truck for Municipal Use

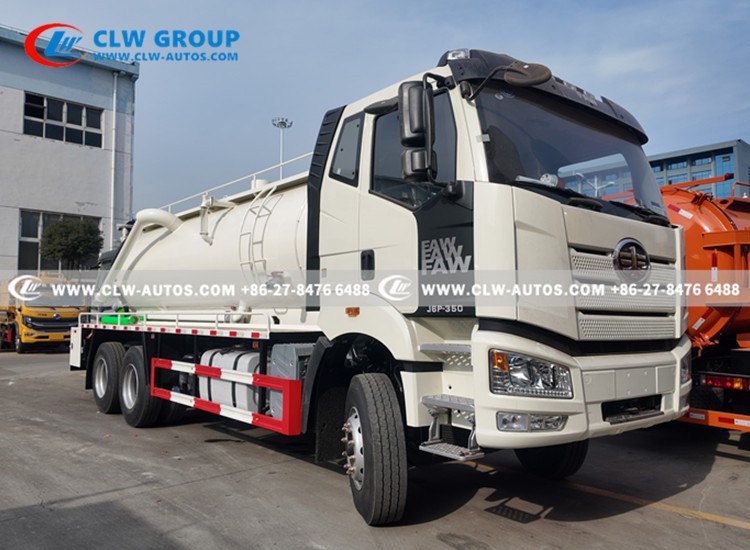

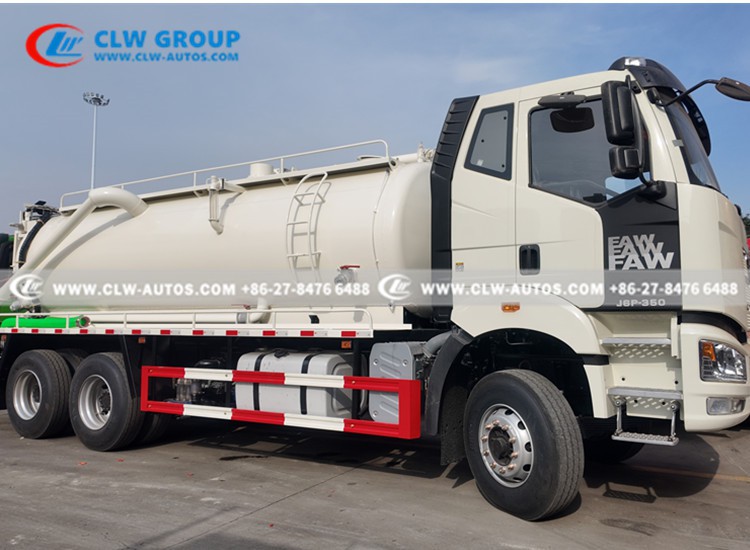

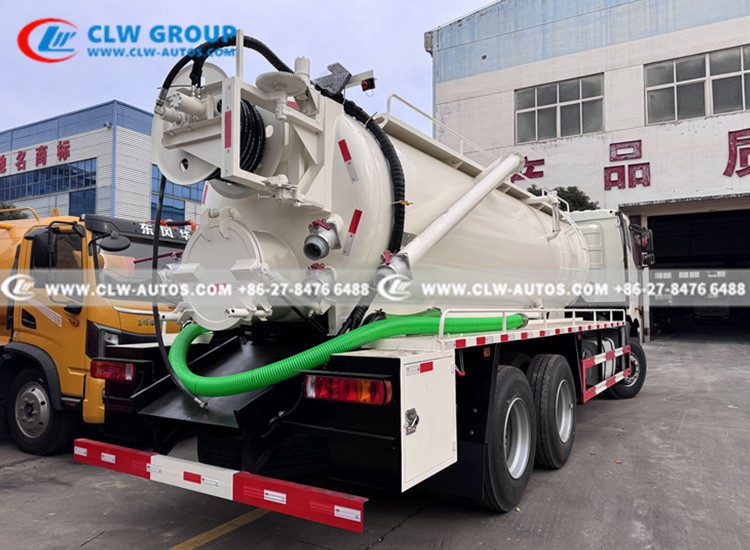

The FAW J6P/J6L 6×4 Vacuum Sewer Cleaning/Cleaner Truck is a high-performance, heavy-duty utility vehicle designed for municipal sewage, septic tank cleaning, and industrial waste suction . With a large-capacity tank (12,000–18,000 liters) , powerful vacuum pump system , and durable chassis , it ensures efficient and reliable operation in harsh working conditions.





1. Chassis & Engine

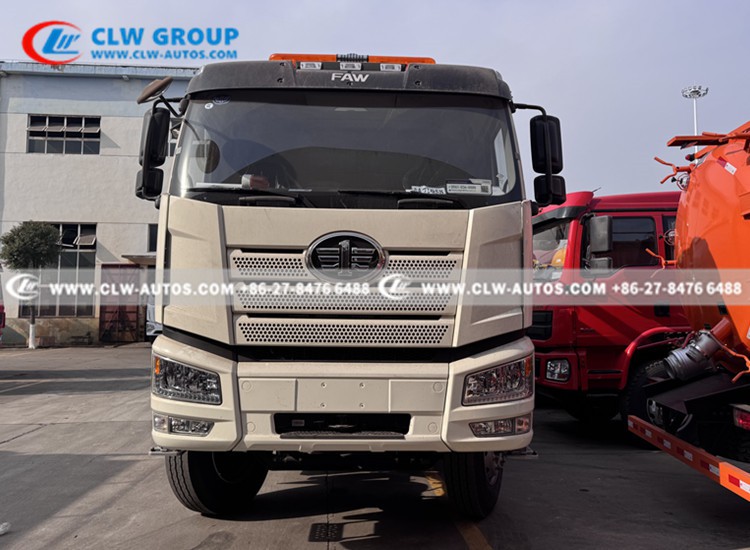

• Chassis Model: FAW J6P or J6L (6×4 drive, robust heavy-duty truck chassis)
• Engine: High-power diesel engine ( XICHAI, CA6DL2-35E3F, 350HP ), Equipped with PTO.
• Transmission: CA10TAX160M2, FAW Made; 10-speed or 2-speed manual transmission/Gearbox
• Wheelbase:  4800+1350MM or 5800+1350MM for big Sewage Tank
• Axle: 2020 front axle; ф457 Rear Axle with Automatic adjusting arm.
• Tire:  12.00R20 tire with one spare
• Max Speed: 85–100 km/h (suitable for urban and highway use)



2. Pumping System

• Vacuum Pump: High-pressure rotary vane or water ring pump (e.g., 15–25 m³/min suction capacity). Italy MORO, BP, Jurop Band for option.
• Vacuum Degree:  Up to -0.09 MPa (strong suction for thick sludge)
• Hose & Nozzles: 3–6-inch suction hose with anti-clogging design
• High-pressure cleaning pump: Chinese Famous brand.





3. Tank System

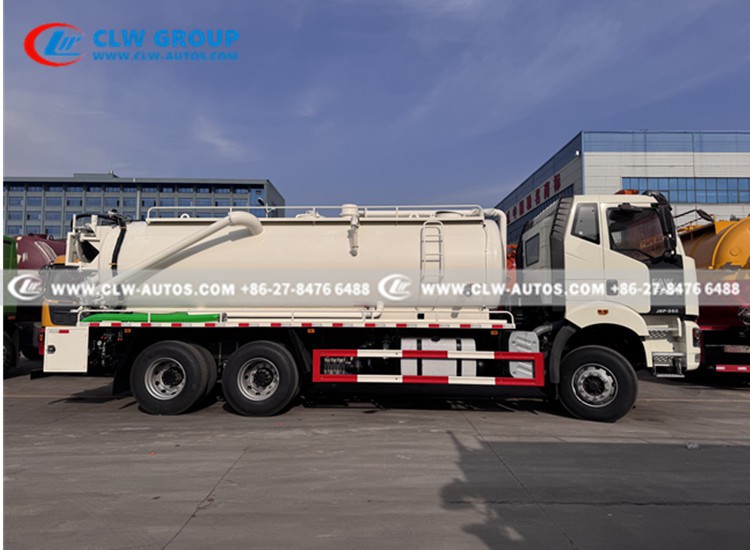

• Tank Capacity: 12,000L, 15,000L, or 18,000L Sewage tank & Water Tank Combination (stainless steel/carbon steel, anti-corrosion coating)
• Tank Structure: Cylindrical or oval shape , with baffle plates for stability

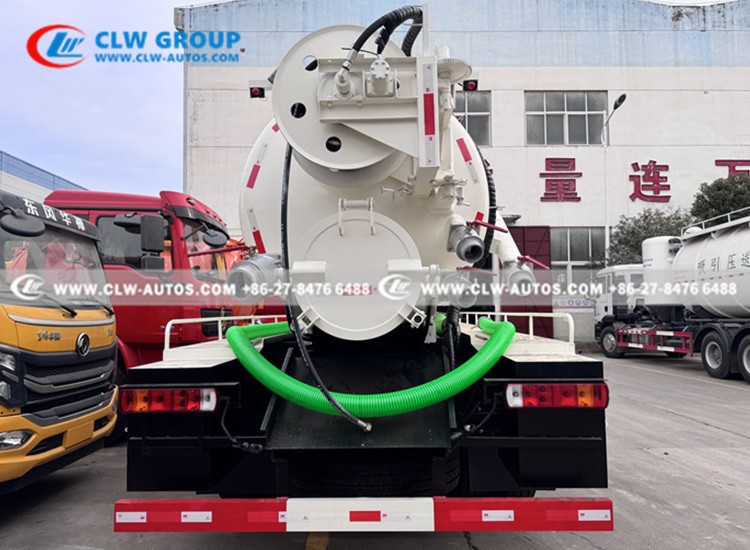

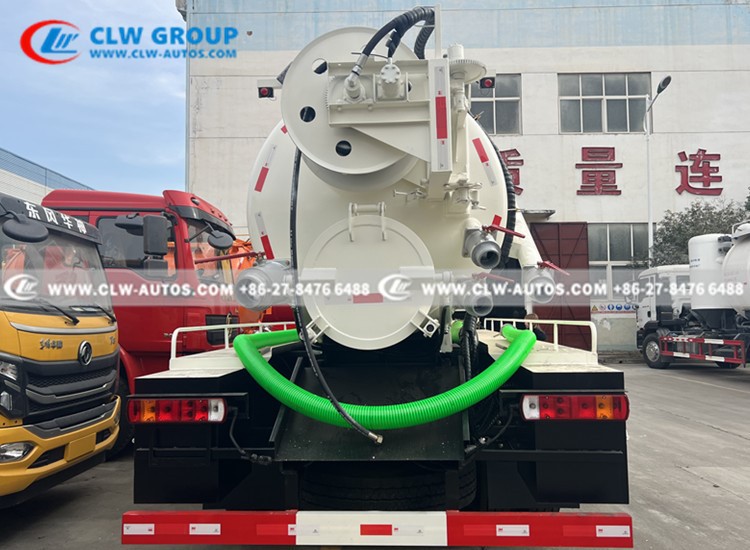

• Discharge: Rear or side hydraulic discharge (option for high-pressure water jet cleaning)

• Vacuum Sewage Suction & High-Pressure Water Cleaning Tank Combination



4. Hydraulic & Control System

• Hydraulic Power: Independent PTO-driven hydraulic system
• Control Panel: Mounted outside the cab , with joystick/push-button operation
• Safety Features: Overpressure alarm, emergency stop, and anti-overflow device



5. Additional Functions (Optional)

High-pressure water jetting (for pipe cleaning)

Remote control operation

LED work lights (for night operations)

GPS tracking & monitoring system









• Municipal sewer maintenance (sludge, wastewater suction)
• Septic tank cleaning (residential/commercial)
• Industrial waste collection (oil, chemical residues)
• Disaster relief & flood drainage

• Sewage & Sludge Removal – For septic tanks, cesspools, and industrial waste.

• Municipal Services – Street cleaning, stormwater drainage, and emergency spill response.

• Industrial Waste Management – Factories, refineries, and chemical plants.





1. What is the primary function of this truck?
It combines vacuum sewage suction (for sludge, wastewater, or hazardous liquids) and high-pressure water jet cleaning (for pipes, sewers,

or industrial equipment) in a single vehicle.

2. What is the tank capacity?
Standard capacity is 12,000 liters (10000Liters Sewage Tank & 2000Liters Water Tank) . Custom sizes (12–30m³) are available.

3. What type of chassis is used?
FAW J6P 6×4 heavy-duty chassis , ensuring stability and high load capacity (GVW ~25–31 tons).

4. What engine powers the truck?
350HP diesel engine (Euro III/II compliant), with optional emissions standards for different regions.

5. How strong is the vacuum suction?
Suction depth reaches 8–12 meters , with airflow rates up to 20,000m³/h (depending on pump brand).

6. What brands of vacuum pumps are available?
Options include Italian JUROP, BP, MORO, German Roth, or Chinese high-performance pumps (customizable).

7. What is the high-pressure cleaning capability?
Pressure: 250–350 bar
Flow rate: 30–60 liters/minute
Ideal for blocked sewers, grease traps, and industrial residue .

8. Is the tank corrosion-resistant?
Yes, tanks are made of stainless steel or carbon steel with anti-corrosion coating .

9. Can it operate in cold climates?
Optional heated tank and insulated pipes prevent freezing in sub-zero temperatures.

10. What safety features are included?
Overflow protection , emergency shutoff, pressure gauges, and explosion-proof lighting (for hazardous environments).

11. How is waste discharged?

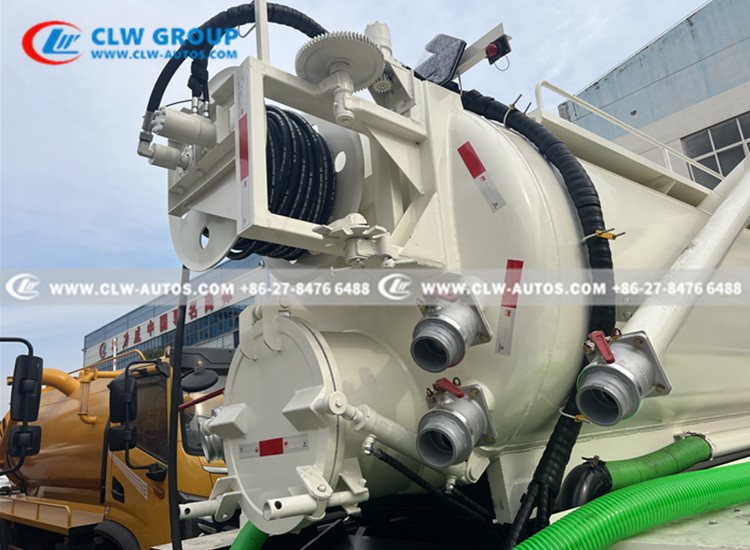

Via pneumatic or manual valves (3–6" diameter) with options for rear/side discharge.
