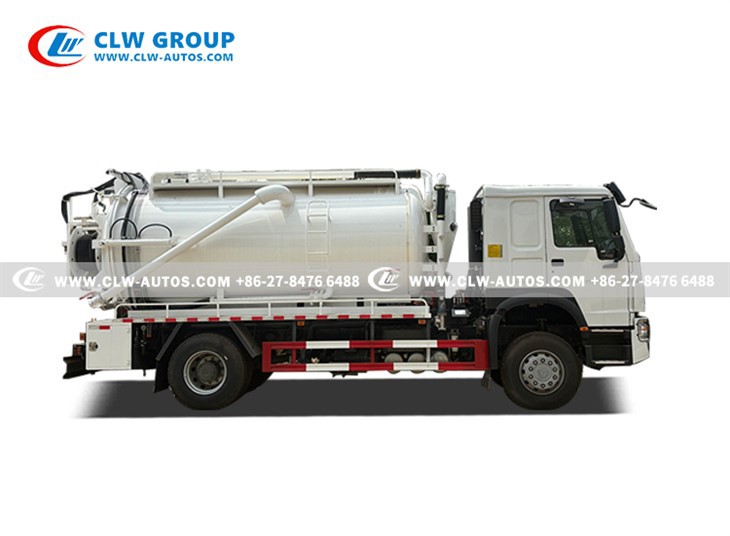

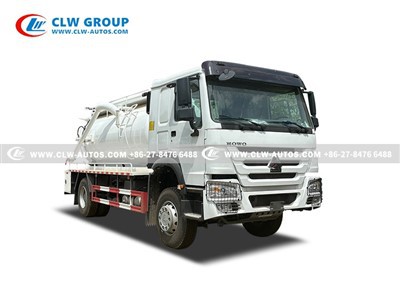

10cbm HOWO Jet Vacuum Truck
Truck brand:Sinotruk HOWO
Wheelbase: 4300mm
Horsepower:WEICHAI Engine 300hp
Tire:295/80R22.5
Front/Rear Axle loading: 7,000kg/16,000kg
Tank volume: 10cbm designed as customers' request
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10cbm howo jet vacuum truck in China. If you're going to buy high quality 10cbm howo jet vacuum truck, welcome to get more information from our factory. For price consultation, contact us.

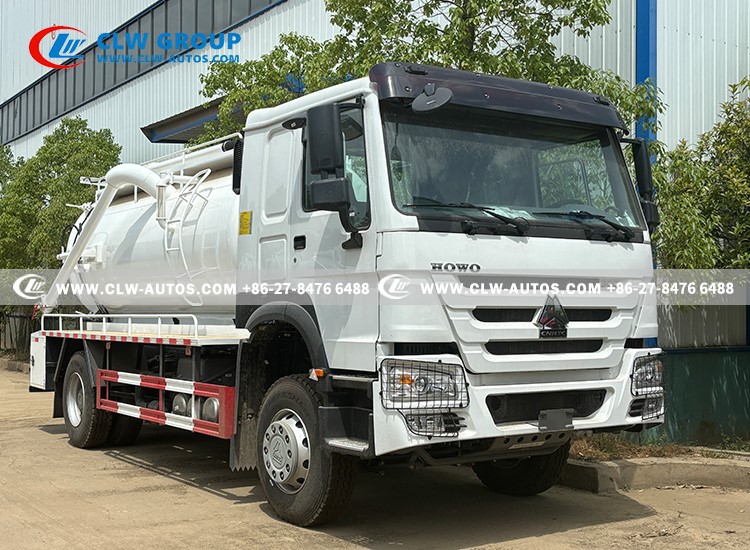

HOWO 4x2 10-Cubic Meter Jet Vacuum Truck
Your Efficient and Versatile Sanitation Solution
Products Description
In the demanding fields of municipal sanitation and industrial waste management, efficiency, versatility, and reliability are paramount. The HOWO 4x2 10-Cubic Meter Sewer Cleaning and Vacuum Truck is engineered to deliver on all fronts. This robust multi-functional vehicle integrates high-pressure cleaning, powerful vacuum suction, and a customizable tank into a single, highly efficient unit, designed to enhance productivity and prevent secondary pollution across various operating environments.
Key Features & Superior Advantages
--Customizable High-Capacity Tank
The truck features a 10-cubic meter tank, which can be flexibly partitioned between clean water and sewage storage according to your specific job requirements. The tank is constructed from 8mm thick high-strength carbon steel, ensuring exceptional durability and resistance to corrosive wastes
--Powerful Cleaning with Configurable Pump Options
The high-pressure cleaning system is designed for effective and washing. To suit different performance needs and budgets, we offer a choice between cost-effective domestic Pinfu high-pressure pumps or high-performance Italian imported high-pressure cleaning pumps. The system includes various specialized nozzles for tasks ranging from clearing urban sewer blockages and industrial pipelines to road sprinkling and even emergency firefighting.
--High-Efficiency Vacuum Suction
For the vacuum system, clients can select from reliable Chinese brands like Yifeng or Weilong pumps, or opt for imported vacuum pumps. The system achieves a powerful vertical suction lift ≥ 8 meters and is equipped with a 7-meter long suction hose, enabling it to handle, slurry, and even larger particles like stones effectively
--Robust HOWO Chassis and Reliable Performance
Built on a dependable HOWO 4x2, 8-wheel chassis with a 4300 mm wheelbase, this truck ensures stability and durability. It is powered by a Weichai 300 HP engine and paired with a manual transmission featuring 10 forward and 2 reverse gears. The 7-ton front axle and 16-ton rear axle, along with 295/80R22.5 tires and ABS, provide safe and reliable performance under full load conditions
--User-Centric and Efficient Design
The vehicle is designed for high productivity and ease of use. It features a fully-powered PTO for stable pump operation. Operator convenience is prioritized with features such as a tank rear-door with a hydraulic opening system, a double-cylinder self-dumping mechanism for complete waste discharge, an observation window, and other practical elements that streamline operation and maintenance
Products Technical Specification
|
Chassis Part |
|||||
|
Condition |
Sinotruk HOWO, factory brand new 2025 |
||||
|
Wheelbase |
4300 mm |
||||
|
Cab |
HOWO cabin LHD/RHD, 1+2 seats Electric AC, Cooling Fan |
||||
|
Engine |
Engine brand |
WEICHAI engine, WP10.300E53 |
|||
|
Horsepower |
300hp |
||||
|
Fuel type |
Diesel |
||||
|
Emission standard |
Euro 2 |
||||
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
|
Transmission |
Manual type, HW19710L, 10 speeds forward and 2 reverse |
||||
|
Front axle loading |
7000kg |
||||
|
Rear axle loading |
16000kg |
||||
|
Frame |
Double-deck (8+5/300) |
||||
|
Leaf spring |
4/4/5 |
||||
|
Fuel tank |
400L |
||||
|
Tyre |
295/80R22.5, 6 pcs with one spare |
||||
|
Upperstructure Configuration |
|||||
|
Tank dimensions |
Tank volume capacity |
10 m3, 10,000 litres |
|||
|
Clean water tank |
3m3, 3,000litres |
||||
|
Sewage tank |
7m3, 7,000litres |
||||
|
Jetting system |
High-pressure jetting pump model |
PINFL XO |
|||
|
Pipe cleaning capacity |
Ø800-1500mm municipal pipelines |
||||
|
Vacuum system |
Vacuum pump model |
CN-YIFENG 2BE-204 liquid ring pump |
|||
|
Horizontal suction range |
50 m |
||||
|
Drive system |
HP pump driven by Sandwich PTO |
||||
|
Filtration |
Dual-stage filtration protects pump from debris |
||||
|
Tank assembly |
Anti-overflow system |
Primary+ cyclone secondary valve |
|||
|
Dumping mechanism |
Front-mounted hydraulic lift |
||||
|
Accessories |
Top platform, filter ports, ladder |
||||
|
Reel |
Rear-mounted hydraulic reel, 160° hydraulic swing (deploy/ retract/ lateral positioning). |
||||
|
Discharge |
Side-mounted Ø100mm suction valve |
||||
|
Work platforms |
Both extended side platforms + toolboxs |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
Our Official Website--Factory Real Shot Video For You
Why do you choose us ?
Why Choose Our HOWO
Cleaning and Vacuum Truck?
Proven HOWO Reliability: Benefits from the robust and trusted foundation of the HOWO commercial vehicle platform, known for its safety and durability -7.
Exceptional Versatility: A true multi-tasking vehicle that performs high-pressure cleaning, vacuum suction, and waste transportation.
Superior Terrain Access: The capable chassis and powertrain ensure effective operation in various urban and industrial settings.
Fully Customizable Solutions: We offer a range of configurations for tanks, pumps, and components to perfectly match your operational needs and budget.
Direct Factory Source: As a specialized vehicle manufacturer, we provide competitive pricing and expert support directly.
Ideal Application Scenarios
Municipal Sewer Systems: Cleaning and maintaining urban storm drains, sewage pipelines, and pump stations.
Industrial Waste Management: Handling industrial wastewater, waste liquids, and other fluid byproducts for factories and mining operations.
River and Environmental Cleanup: Removing sludge from rivers and contributing to environmental remediation projects.
Public Sanitation and Emergency Use: Utilized for auxiliary tasks like road sprinkling, water transport, and as an emergency water source for firefighting.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
