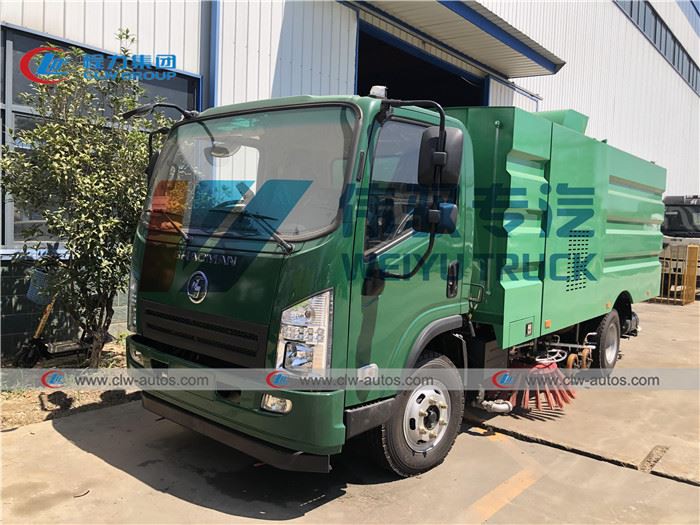

Shacman High Pressure Washing Sweeper Street Road Cleaning Truck
Truck purpose:street,airport cleaning
Sweeper brushes:2 units
Dust Vacuum system behind the swpeer
Auxiliary Cummins Engine supply the power to the sweeper and vacuum system
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman high pressure washing sweeper street road cleaning truck in China. If you're going to buy high quality shacman high pressure washing sweeper street road cleaning truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Best Choice for Road Sweeping with both Garbage Tank & Water Tank
Garbage Tank: DN100 Suction Hose with 2 wheels Sunction Pan.
Water Tank: with Water Filter & Level Gauge.
Auxiliary Cummins Engine 140HP to Supply Power for the whole system.
Wind Suntion System to suck up the garbage.
Sweeping System: 4 Brush totally, 2 Brush at each side
Feature1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.

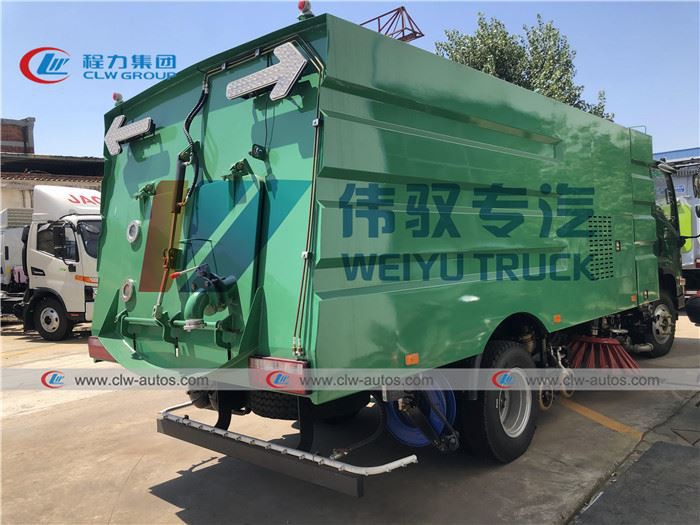

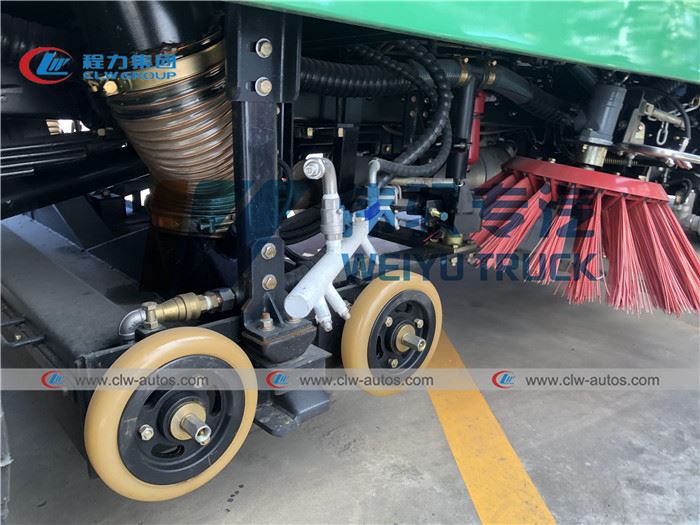

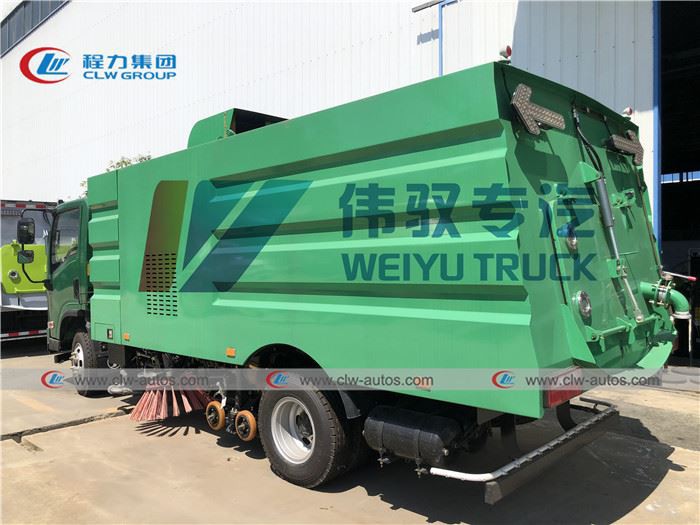

Reference Picture
Technical parameter
| |||||
| New condition/Right hand drive/4x2 | ||||
| Brand | Shacman | |||
Curb weight(kg) | 4460 kg | ||||
Wheelbase(mm) | 3815 mm | ||||
Dimensions(mm) | 7180x2260x2680 | ||||
Wheel track (front/rear) (mm) | 1504/1425 | ||||
Approach/Departure angle(°) | 24/13 | ||||
Axle Load(kg) | 5280/4720 | ||||
Max. driving speed(km/h) | 90 km/h | ||||
Tire | Specifications | 6pcs with one spare tire | |||
Number | 8.25-16 | ||||
| Reinforced diaphragm clutch | ||||
| Manual type, 6 Forwards & 1 Reverse | ||||
| Left Hand Driving, 3 Passenger Allowed | ||||
| Model | Diesel Engine | |||
Power(kw)/Horsepower(HP) | 103 kw/140 HP | ||||
Emission standard | Euro III | ||||
| Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||||
Auxiliary brake: engine exhaust valve brake | |||||
| Power steering, hydraulic steering with power assistance | ||||
| |||||
| Garbage tank | Tank material | Stainless steel 304 | ||
Tank volume(cbm) |
| ||||
Water tank | Tank material | Stainless steel 304 | |||
Tank volume(cbm) |
| ||||
| Model | ISUZU | |||
Power(kw) | 102 kw/140HP | ||||
| Quantity(pc) | 2 pcs | |||
Working area(m) | 2.7-3.2 m | ||||
Cleaning | High pressure reel | 18 meters | |||
| 1, With water sprayer-bar | ||||
2, Rear vacuum cleaner | |||||
3, Blower | |||||
4, Rear LED pilot lamp | |||||
5, Self unloading box body | |||||
6, The color will be designed on basis of your requirements. | |||||
