ISUZU 5CBM 5tons Water Bowser Truck
Engine:diesel engine ISUZU 120HP;
Driving model:LHD
Gear box:5-speed forward and 1 reverse
Tire:7.00R16
Loading weight: 5000KGS
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5cbm 5tons water bowser truck in China. If you're going to buy high quality isuzu 5cbm 5tons water bowser truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Water Bowser Truck(also called Water tank truck, Water truck, Water spray truck and Watering truck) is used for cleaning road and construction site etc.
--Water Bowser Truck can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Drinking Water Delivery Truck;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 Water Bowser Truck;
3) according to loading weight: 4tons-35tons Water Bowser Truck.
Feature
--Material: High quality high strength carbon steel for tanker body.
--Water pump: High quality carbon steel water pump.
--Truck chassis: 4x2 International brand Japanese ISUZU truck chassis

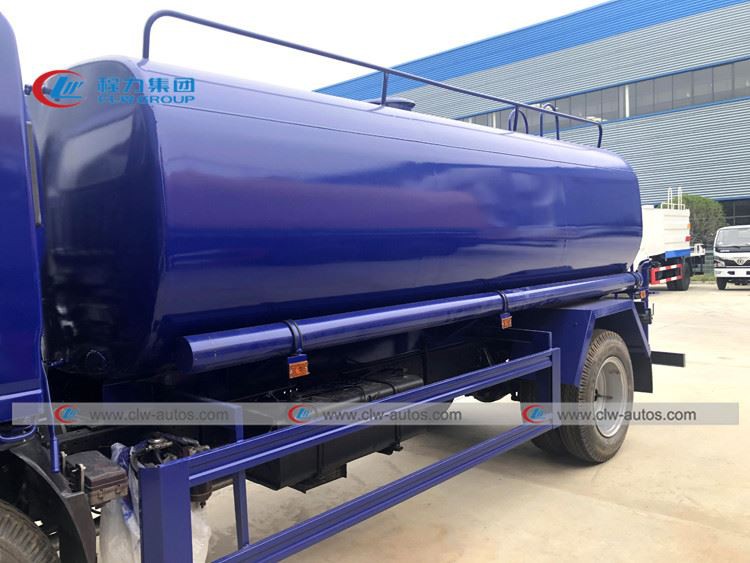

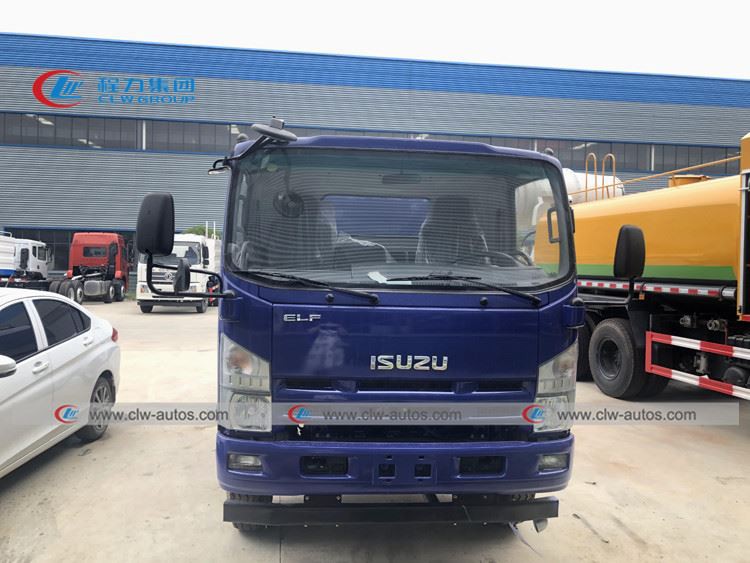

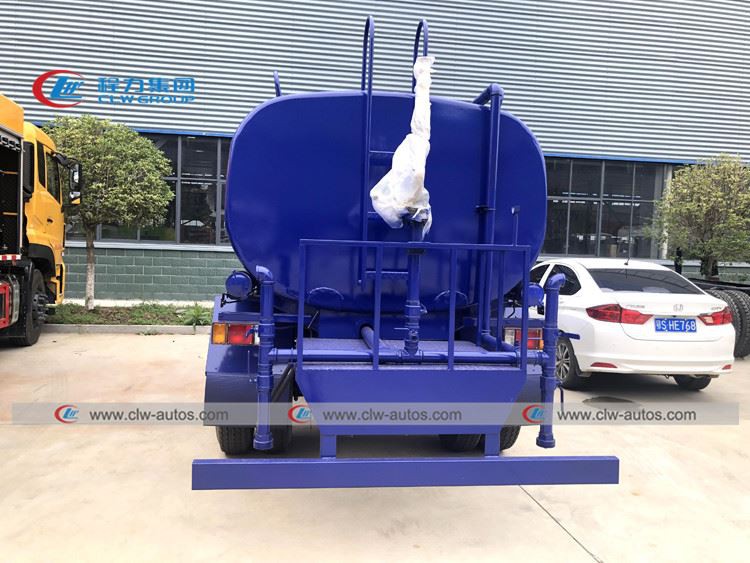

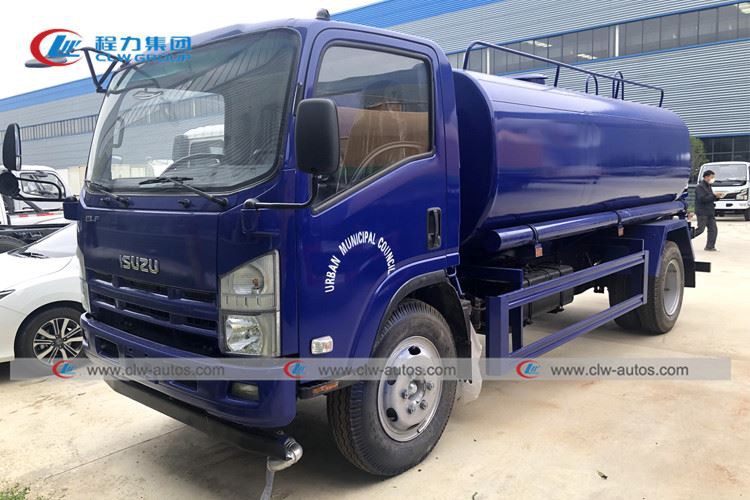

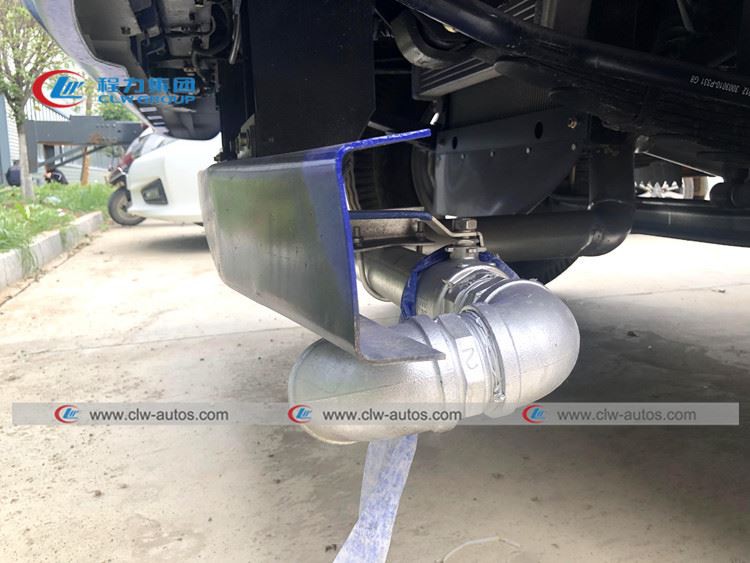

Reference picture
Specification
Parameters | |||
Drive Model | 4*2, Left hand drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6545*2350*2550 mm | |
Wheelbase (mm) | 3360 mm | ||
Max. driving speed(km/h) | |||
| Engine | Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 120 HP | ||
Emission standard | Euro IV | ||
Brakes | Service brake: Dual circuit compressed air brake. Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
Cabin | It can accommodate three people, With Air conditioner | ||
Gearbox | 5 forwards & 1 reverses | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | 7.00R16, 6 + 1(spare tire) | ||
Water tanker | Loading weight | 5tons | |
Material | High quality carbon steel | ||
Water pump | 40/45 | ||
